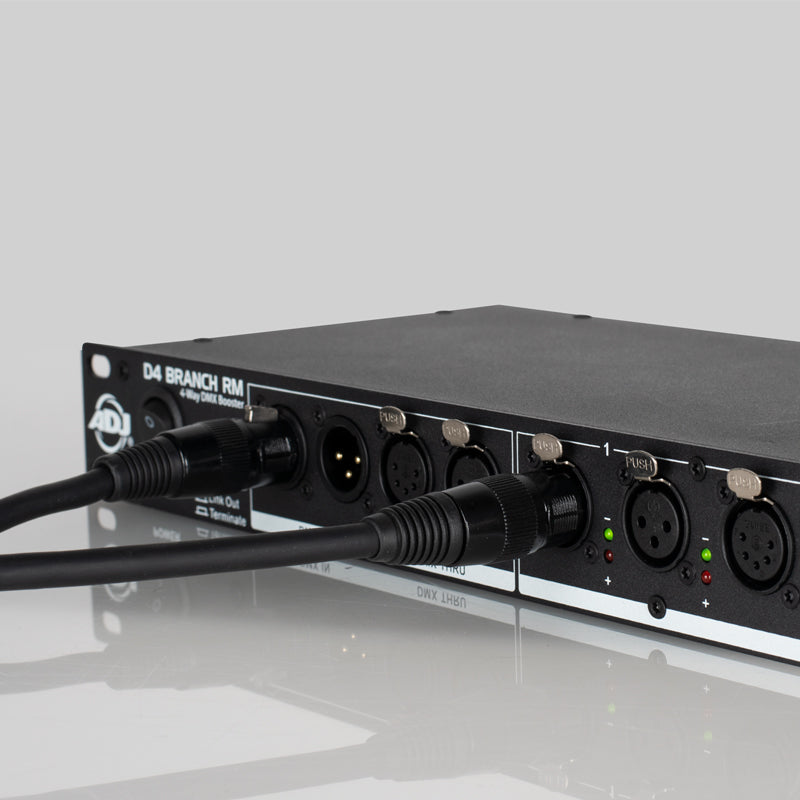

ADJ D4 Branch RM

ADJ D4 Branch RM

SoundPro Item: 133997 | Part Number: D4 Branch RM

$199.99
$279.95 $199.99
Your Price Sold out
MSRP: $279.95 | MAP: $199.99

Usually ships in 5-7 business days

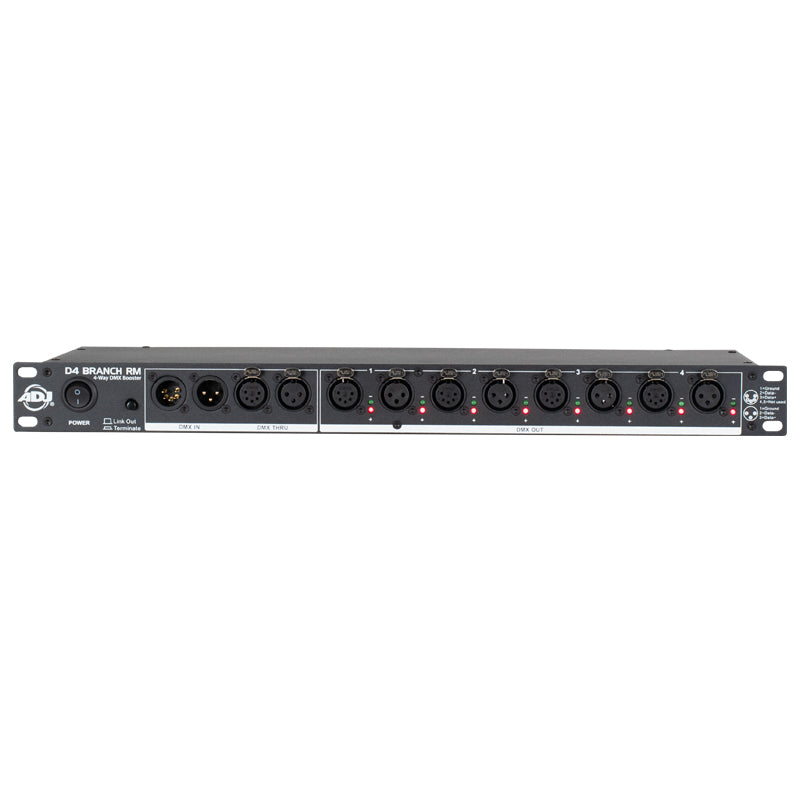

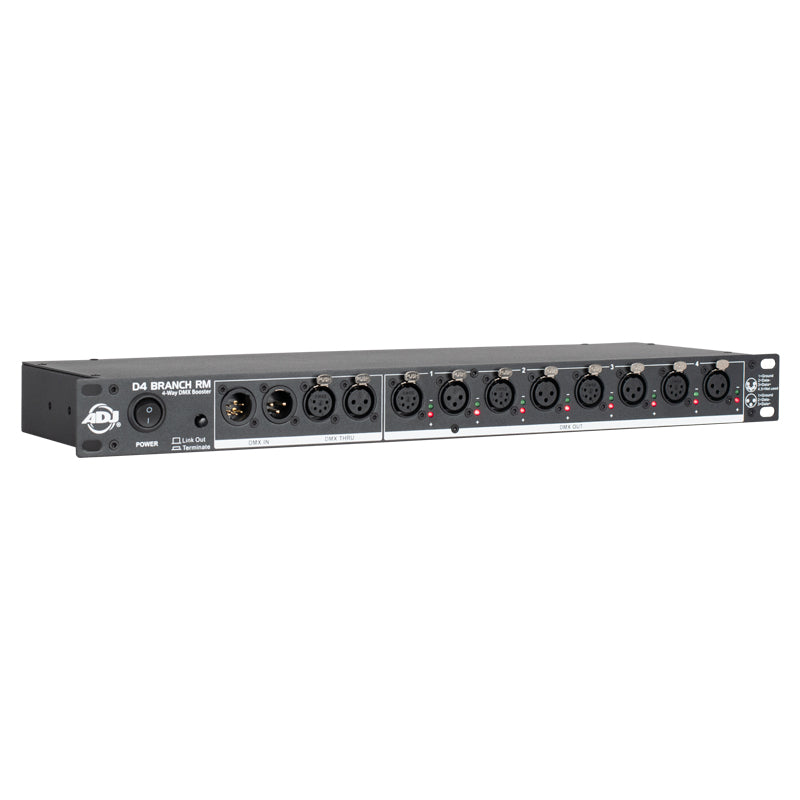

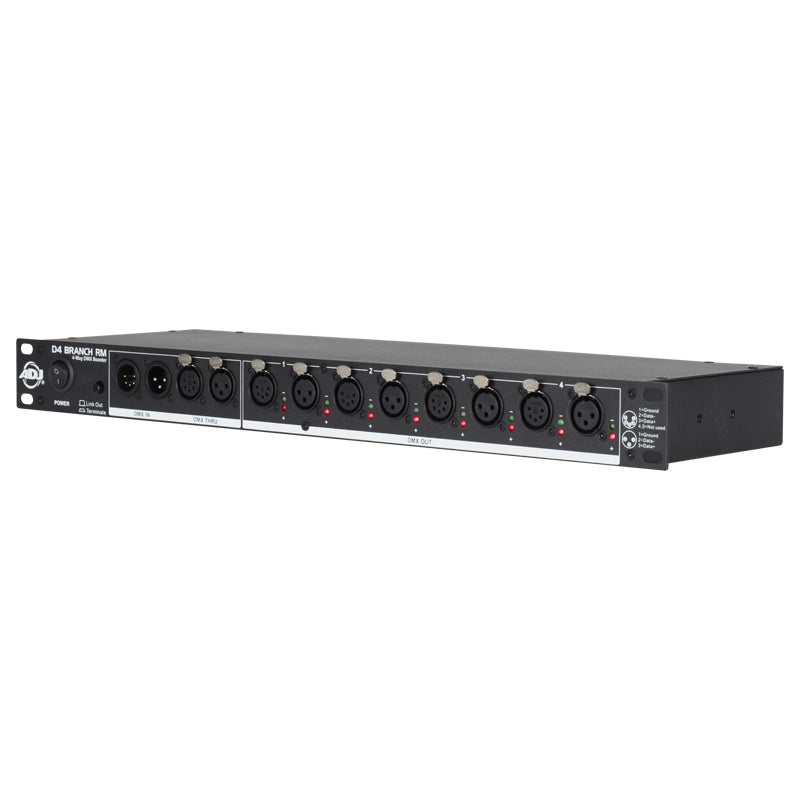

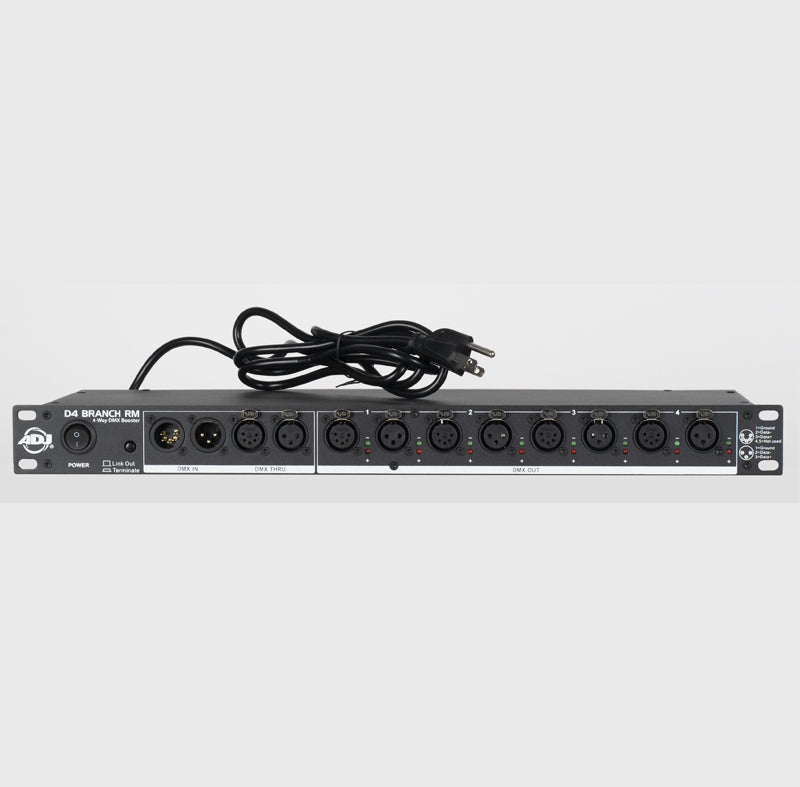

  • Available now from ADJ USAThe ADJ D4 Branch RM is a single rack space, 4-way distributor/booster with 3-pin and 5-pin XLR input and output jacks. This unit takes the incoming DMX signal and splits it to four (4) separate outputs that are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal, and the unit includes a link / terminate button for easy troubleshooting.Click here to read the D4 Branch RM press release.
Log in or register for YOUR best price

The ADJ D4 Branch RM is a single rack space, 4-way distributor/booster with 3-pin and 5-pin XLR input and output jacks.

View full details

Specifications

FEATURES:+++4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
Built-in signal amplifier boosts the DMX signal for each port
Link / Terminate Button for Easy Troubleshooting
DMX Status LED Indicator
(1) 3-pin + (1) 5-pin XLR Isolated Inputs
(1) 3-pin + (1) 5-pin XLR Passive Loop Output
(4) 3-pin + (4) 5-pin XLR Isolated Outputs

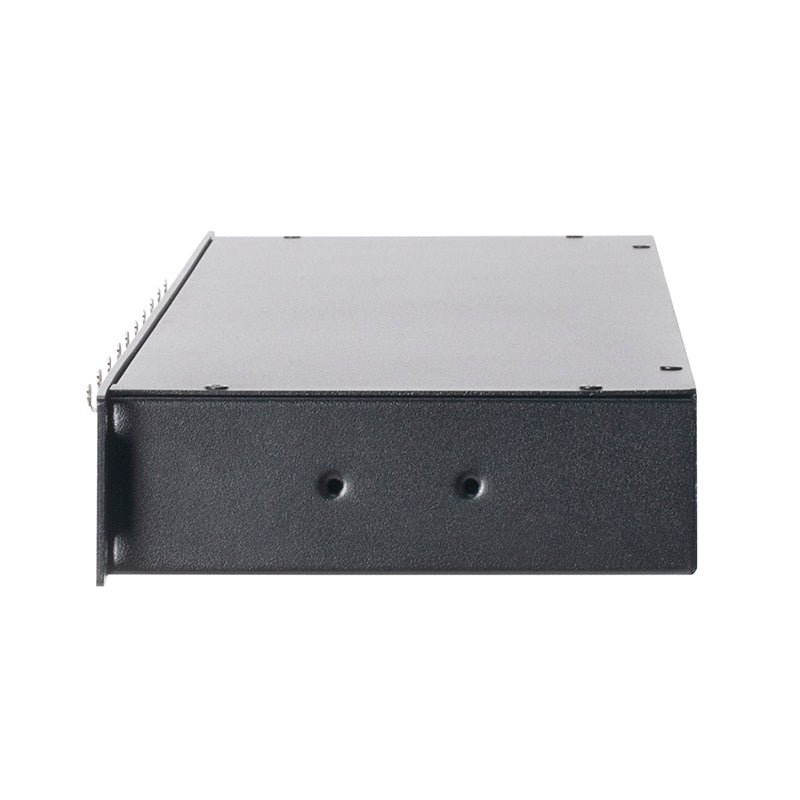

SIZE / WEIGHT:+++19” (482mm) x 5.5” (139.8mm) x 1.7” (44mm)
5.3 lbs. (2.4kg)

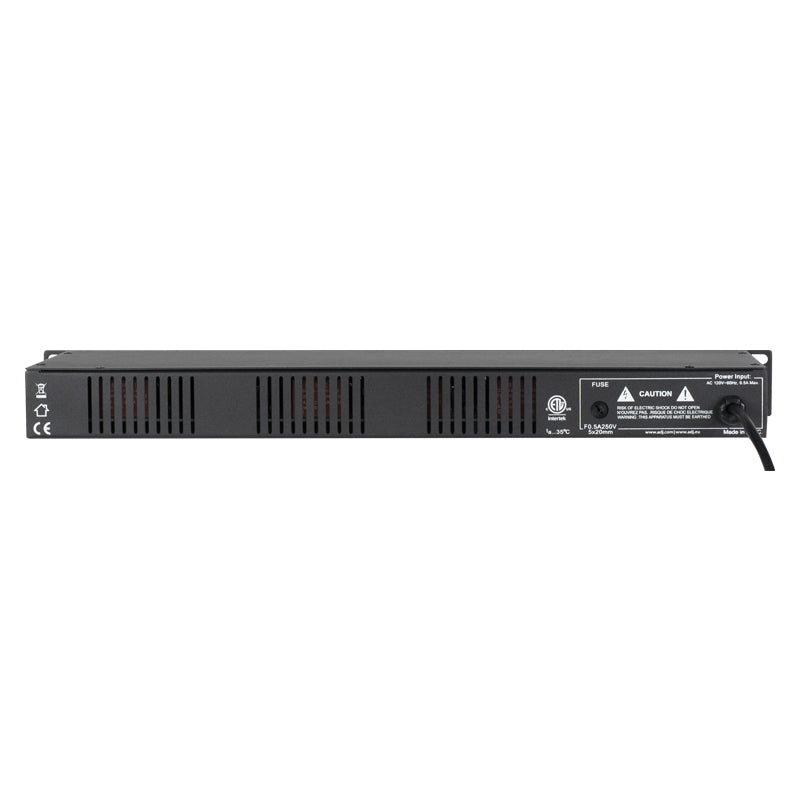

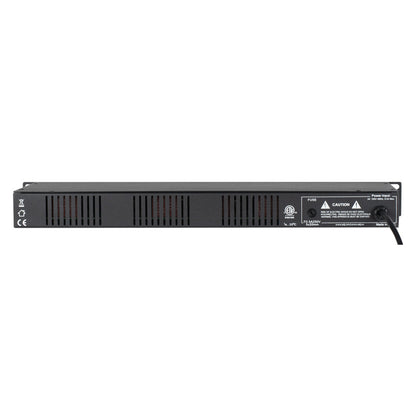

ELECTRICAL:+++AC 120V/60Hz (U.S. Only), AC 240V/50Hz (E.U. Only)
APPROVALS:+++cETLus pending
CE approved
FCC compliant
Specifications and documentation subject to change without notice.+++
