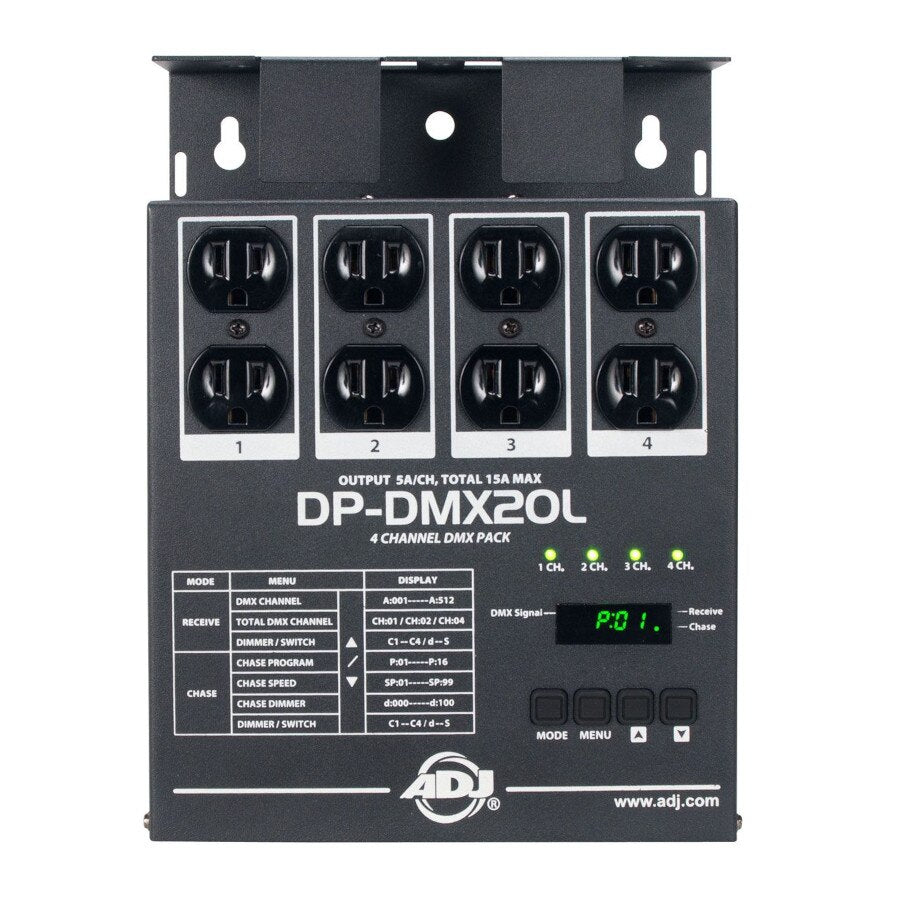

• ADJ DP-DMX20L 4-Channel DMX Pack
1 1

ADJ DP-DMX20L 4-Channel DMX Pack

ADJ DP-DMX20L 4-Channel DMX Pack

SoundPro Item: 49981 | Part Number: DP-DMX20L

$234.99
$293.95 $234.99
Your Price Sold out
MSRP: $293.95 | MAP: $234.99

Usually ships in 5-7 business days

  • Selectable 1, 2, or 4 channel operation
  • Four LEDs display channel activity
  • Adjustable master dim level
  • Two three prong Edison sockets per channel
  • 3 pin XLR DMX Input & Output
  • External channel fuses for quick and easy replacement
  • Sleek reversible mounting panel on the rear
  • Zero crossing circuitry for protection of transformer loads when switching
  • 16 built in Chases when in Chase mode with adjustable speed setting
  • Use in conjunction with Elation; DMX Operator Pro, Stage Setter-8, Scene Setter, Scene Setter-48, Stage Desk-16 or any universal DMX controller
Log in or register for YOUR best price

The DP-DMX20L 4-Channel DMX Pack from ADJ is a portable and universal dimmer/switch pack. Versatile and portable, this pack’s digital display and a reversible mounting panel make it easy and efficient to set up, while four external channel fuses allow for simple maintenance, and zero-crossing circuitry protects transformer loads for enhanced safety compliance.

The DP-DMX20L pack is specifically engineered with all the features and presets you need to enhance your lighting system. Dim or switch each channel individually or in a combination of two or four. Connect one or more effects to each channel using its dual Edison sockets. Use 16 built-in chase sequences with speed and intensity control to further customize your lighting to whatever performance needs arise.

View full details
  • Voltage120V ~ 60Hz or 230V ~ 50Hz
  • Power Input120V ~ 60Hz
  • Maximum Load5A per channel / 15A total
  • Fuse4 x 6.3A
  • Duty Cycle None
  • Working Position Any Safe, Secure Position
  • Dimensions (LxWxH)10.25 x 8.25 x 3 inches
  • Weight 6 lbs
