Specifications
Certifications
Certifications & IP Rating
CE, cETLus (Pending), FCC, IP65
Dimensions
Width
1163.6mm
Height
191.2mm
Electrical
Battery
Rechargeable Lithium ion, 5 Hour Standard Operation at Full Output and 10 Hour Saver Mode Operation at Full Output Selectable in the menu
Battery Capacity
14,000mAh
Battery Voltage
22.2V
Battery Cycles
500
Connectivity
Connections

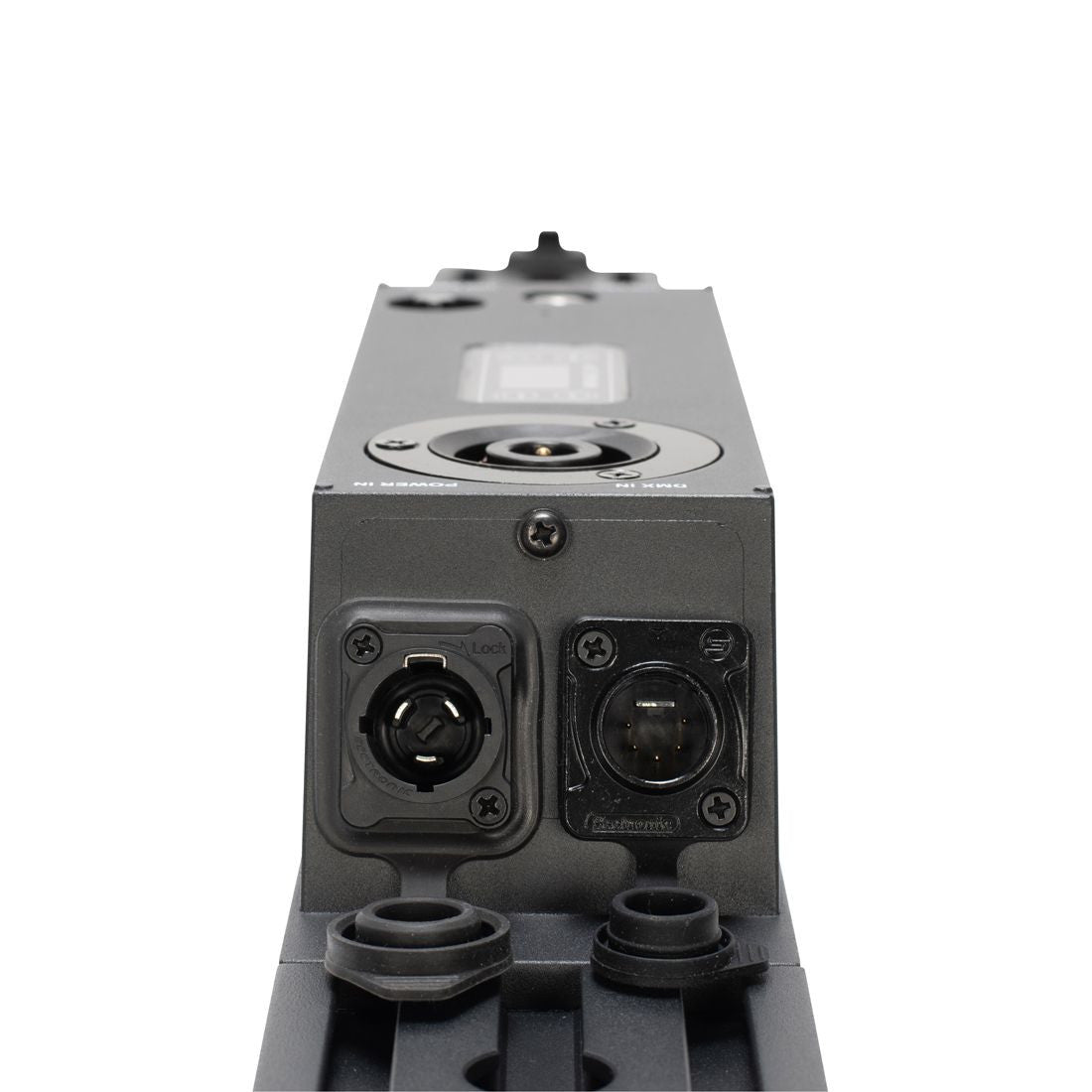

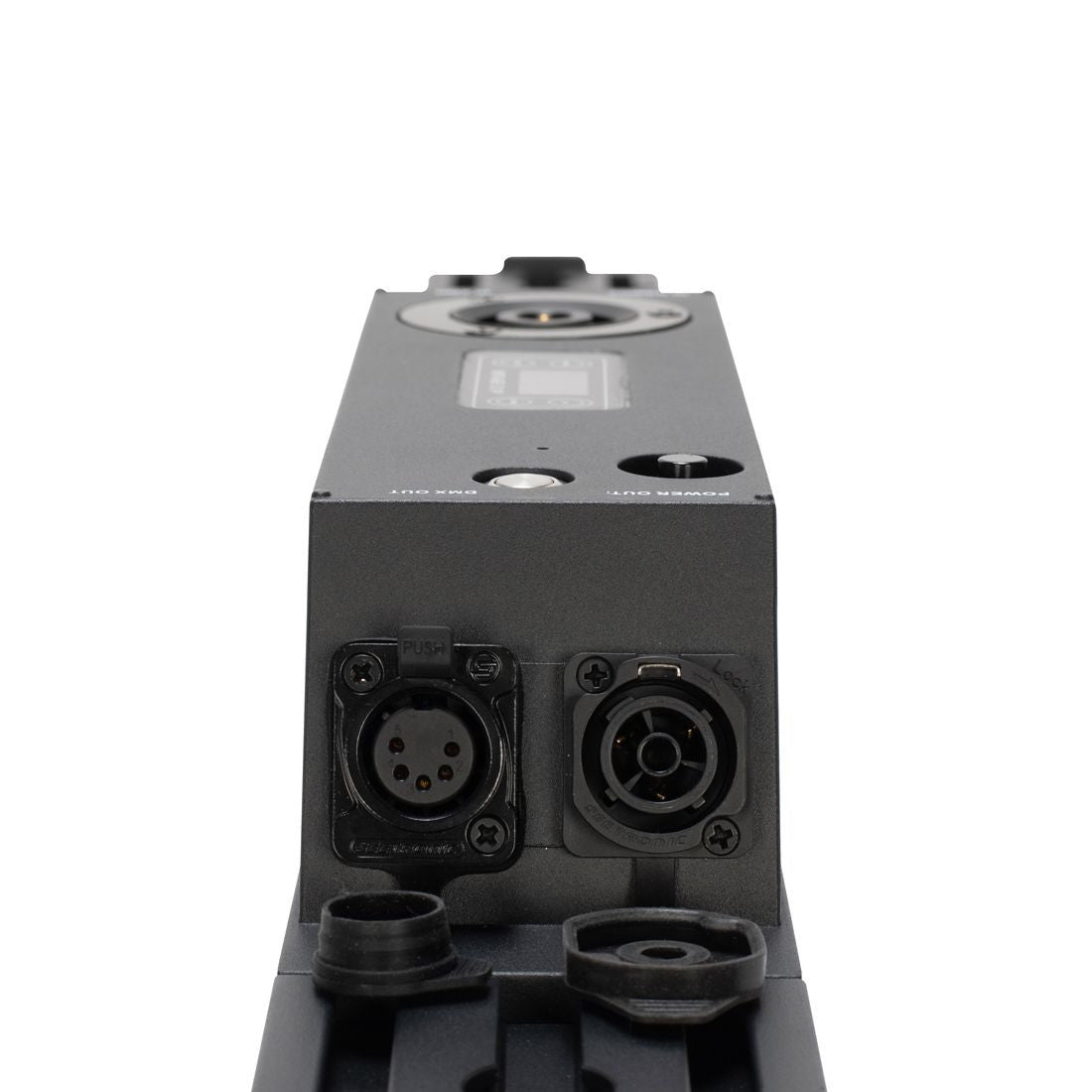

5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal), Outdoor Locking Power Sockets, Battery Charging Socket
Environmental
Ambient Operational Temperature
-20°C to 45°C
Storage Temperature
-30°C to 45°C
Shipping
Weight
12,5 kg
Identifiers
Length
85.7mm
General
Source

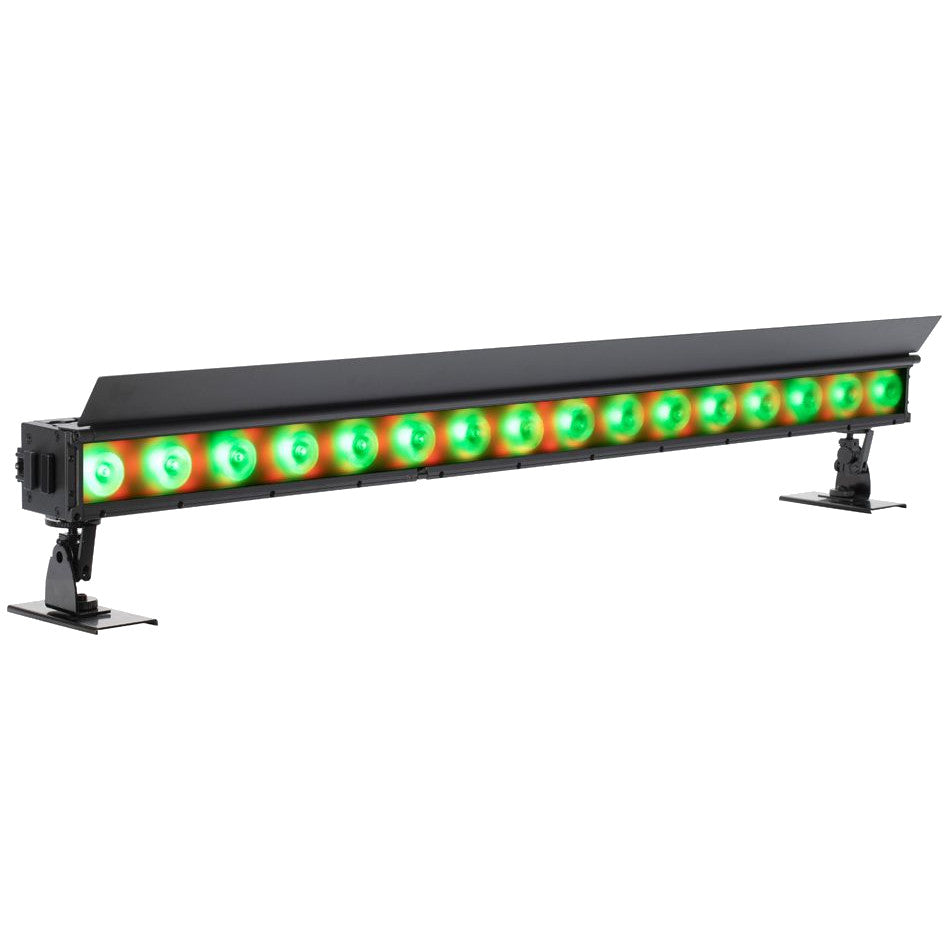

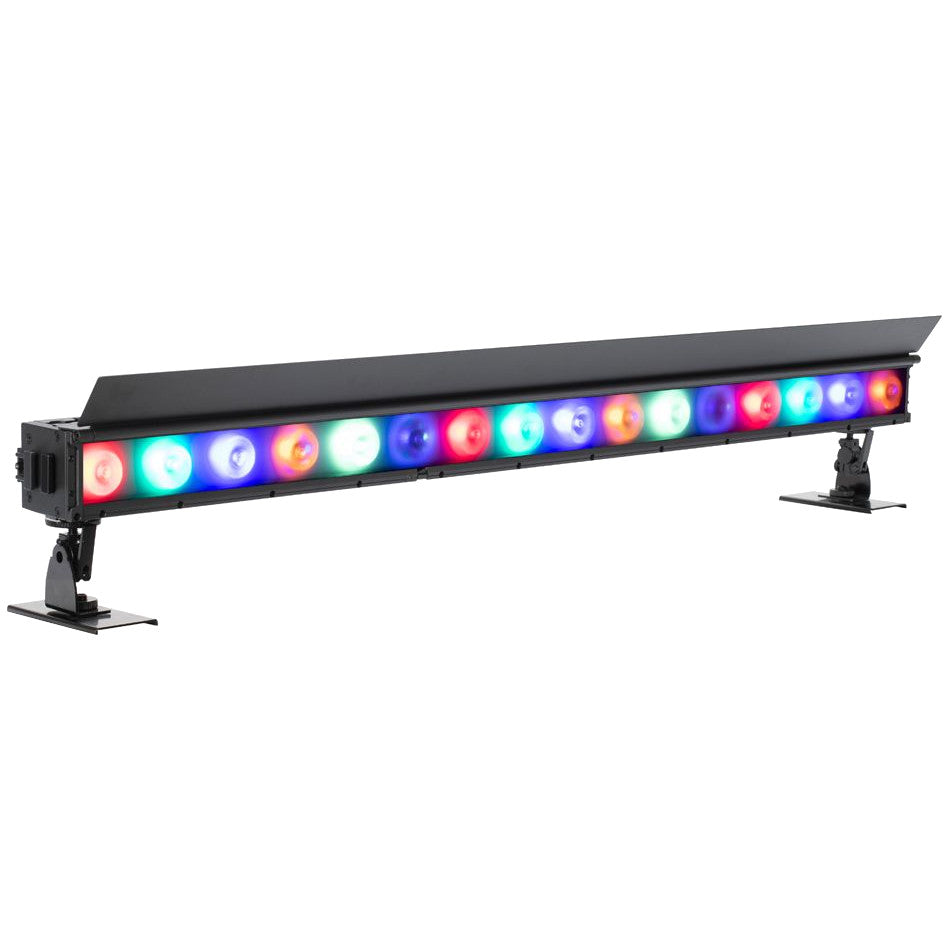

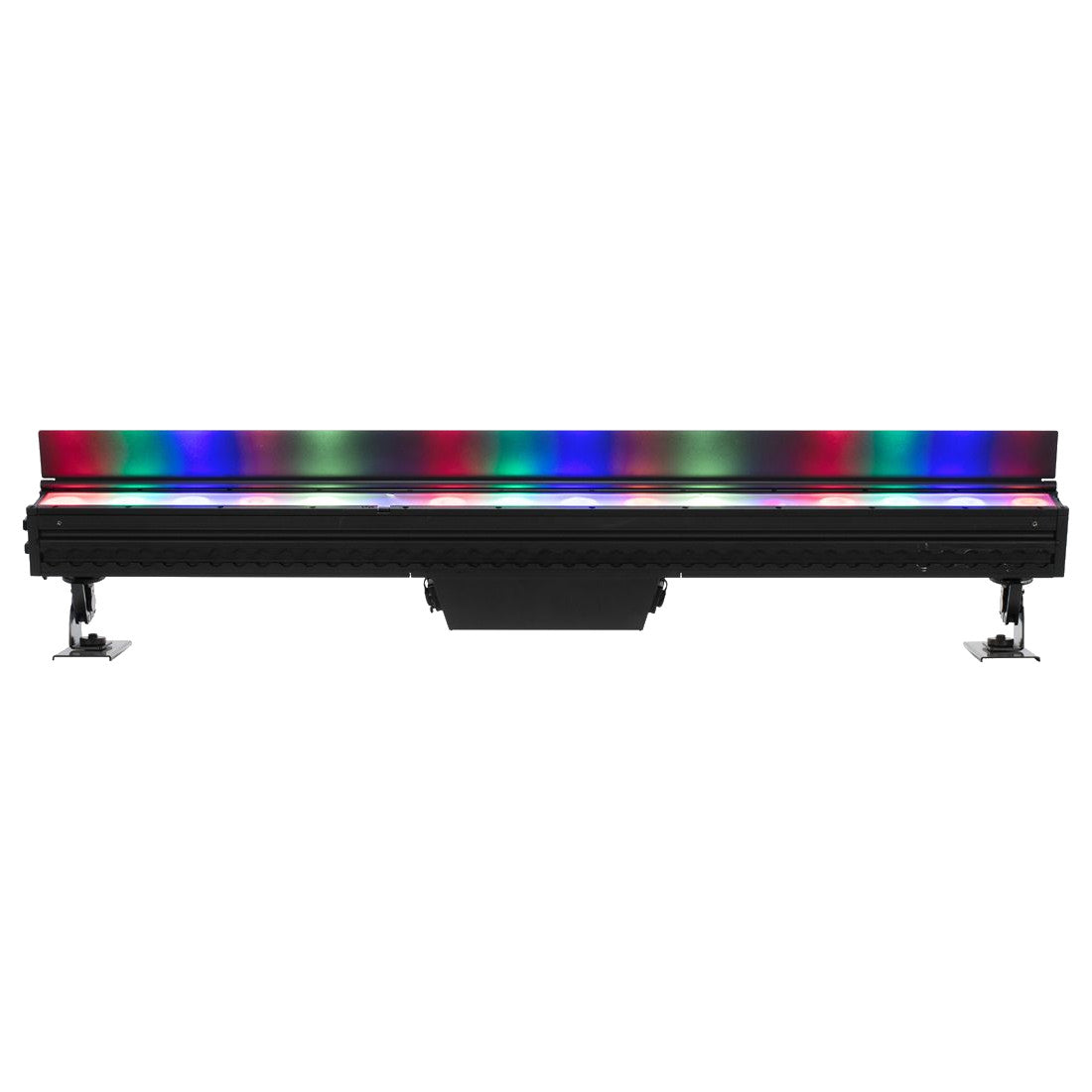

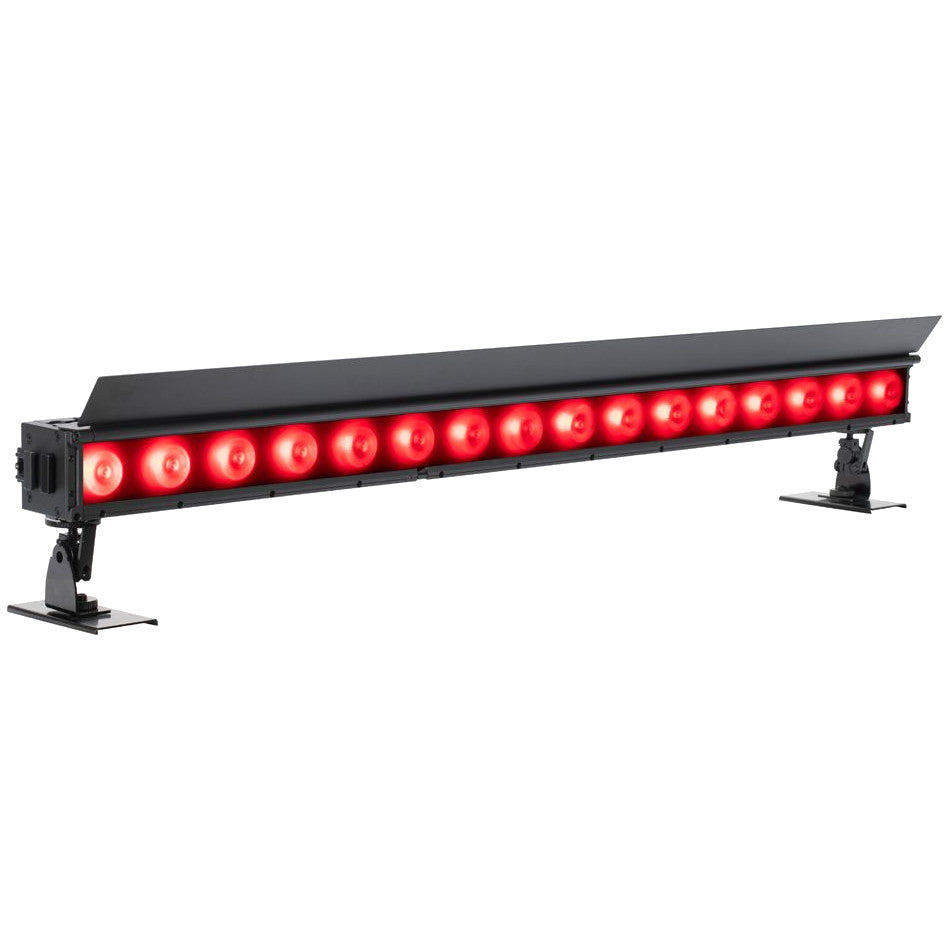

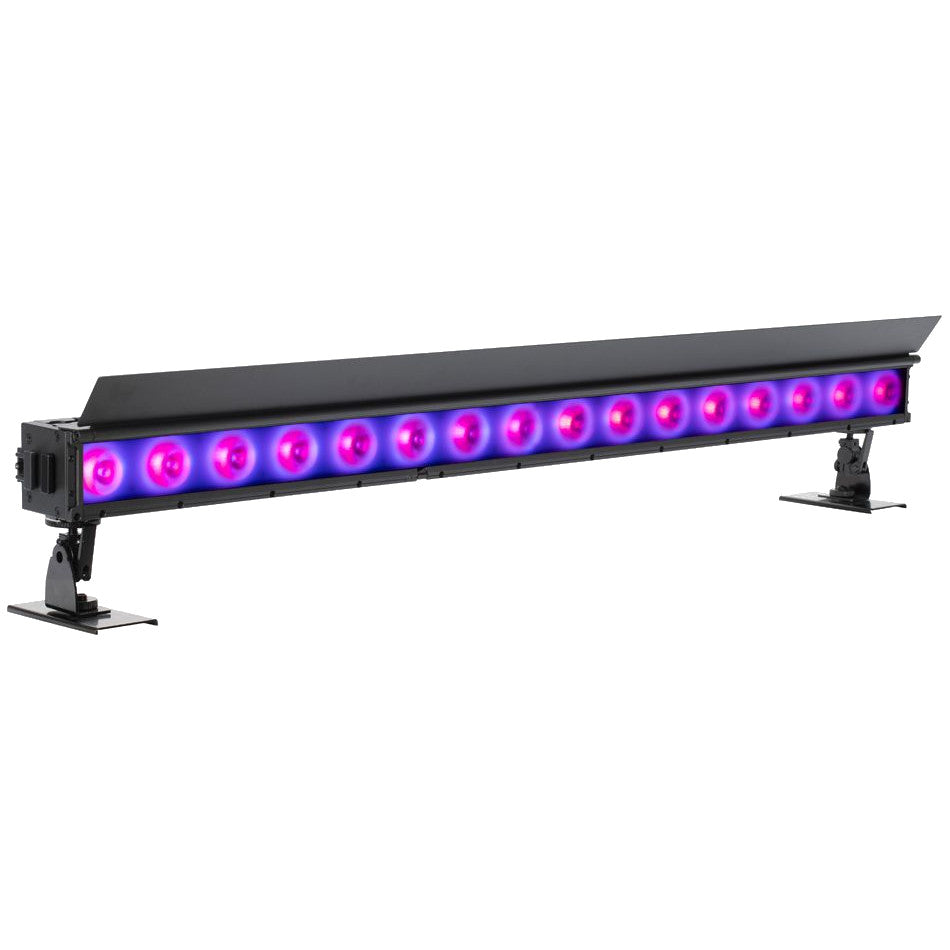

(16) 20W Hex Color RGBAL+UV Foreground LED's, (66) 0.2W RGB Background LED's, 50,000 Hour Average Life* (*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.)
Optical
2,300K ~ 9,900K White Color Temperature Range, 17° Beam Angle, 45mm Lens Diameter x16
Physical

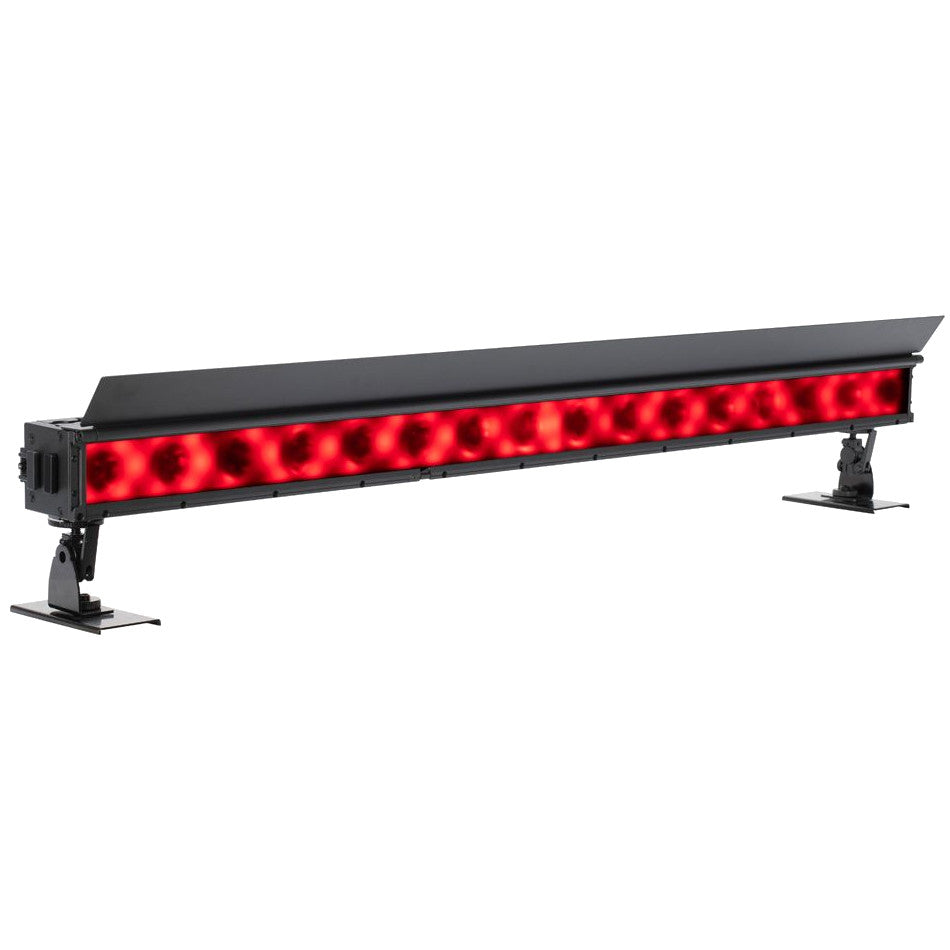

IP65 Housing, OLED Digital display, L Track system for locking accessories / rigging, Glare Shield, Diffusion Filter slot, Angle adjustable feet, Horizontal slide lock to attach additional ElectraPix Bar 16 or ElectraPix Bar 8
Control
DMX512, Aria X2 Wireless DMX, Bluetooth, RDM and RDM Net Compatible, IR (Includes UCIR24 wireless remote), (4) DMX Channel Modes (5, 6, 9,13, 21, 24, 96, 99 & 114 Channel modes), On-board Manual Control Mode, Primary / Secondary Mode
Charge Time
7 Hours (To Full)
Optional Accessories
ElectraPix Bar FB, LTrack A2 (LTrack Adapter Only), LTrack CA2 (LTrack Adapter with Narrow Clamp)
Power
Power
AC100-240V/50Hz-60Hz Input, 90W Power Consumption, Link 18 pieces @ 230VAC
