ADJ ElectraPix Par 7 Pak Six-Fixture Battery Par Pack With Case

ADJ ElectraPix Par 7 Pak Six-Fixture Battery Par Pack With Case

SoundPro Item: 142565 | Part Number: ElectraPix Par 7 Pak

Regular price $7,599.99
Regular price $10,600.00 Sale price $7,599.99
Your Price Sold out
MSRP: $10,600.00 | MAP: $7,599.99

Usually ships in 5-7 business days

  • Six Battery-Powered Fixtures Enable Wireless Wash Coverage With No Cabling Per Light
  • User-Selectable Battery Runtime Gives Operators Control Over Output Versus Duration
  • Integrated Flight Case Simultaneously Stores, Transports, And Charges All Six Fixtures
  • Hex Color RGBAL+UV LED Engine Delivers Full-Spectrum Color Mixing And UV Output
  • IP65 Housing And Locking Power Sockets Seal The System For Outdoor And Touring Use
  • Nine DMX Channel Modes With Aria X2 Wireless DMX And Bluetooth For Flexible Control
  • L-Track Accessory System Allows Rigging And Locking Accessories Without Extra Hardware

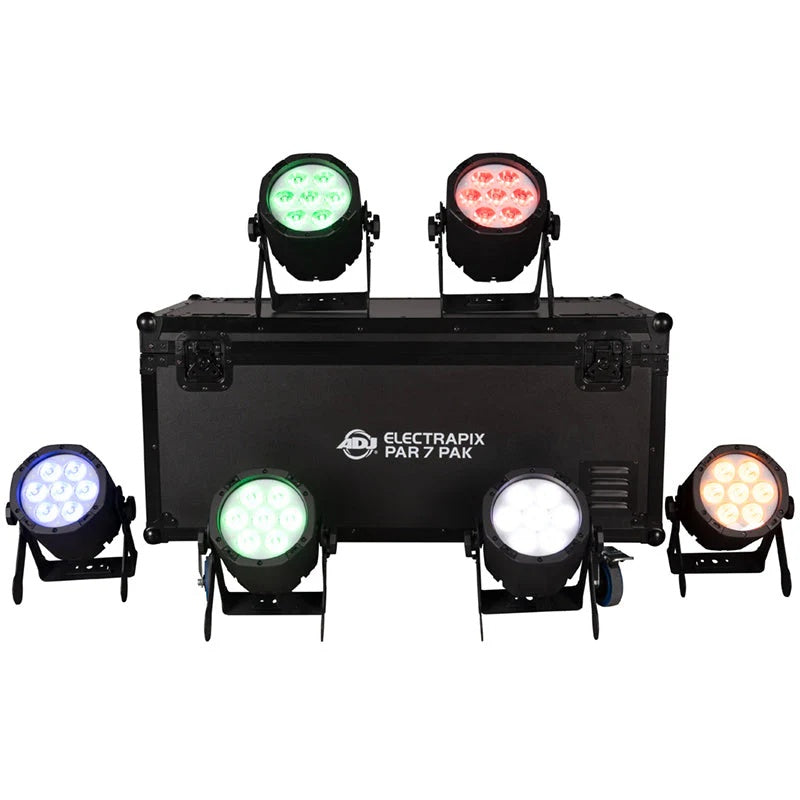

The ADJ ElectraPix Par 7 Pak is engineered for production professionals, event lighting designers, and rental companies that need a self-contained, battery-powered wash lighting system ready to deploy without running power to every fixture. Each of the six included ElectraPix Par 7 fixtures runs on a rechargeable lithium-ion battery with user-selectable runtimes from 5 to 20 hours, making them equally at home on stages, outdoor events, corporate installations, and architectural environments where cabling is impractical or impossible.

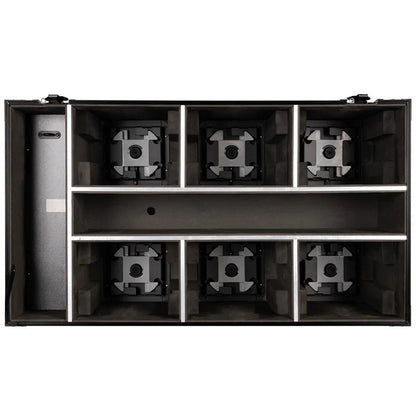

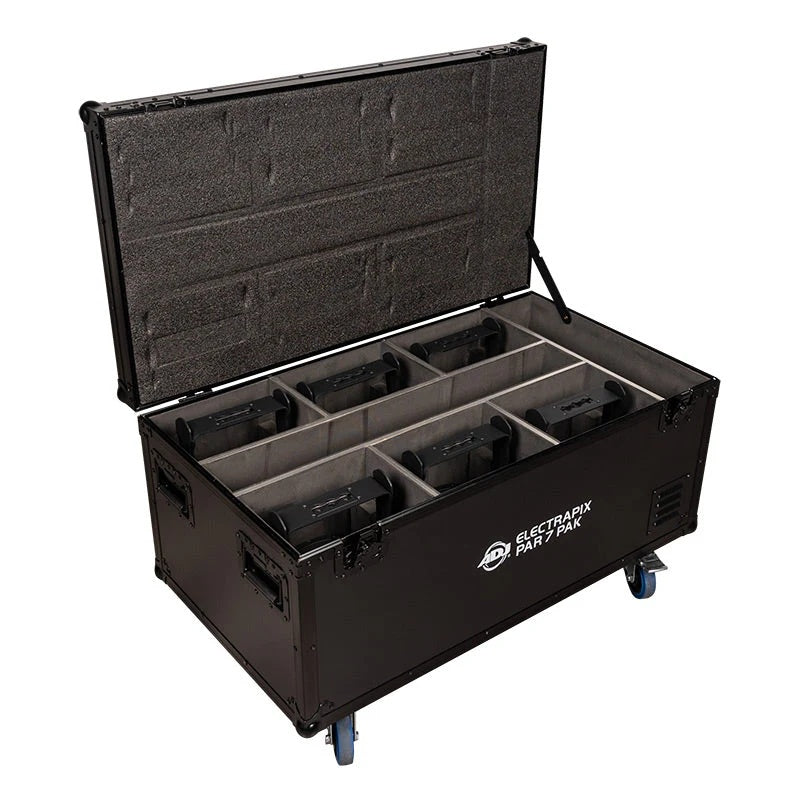

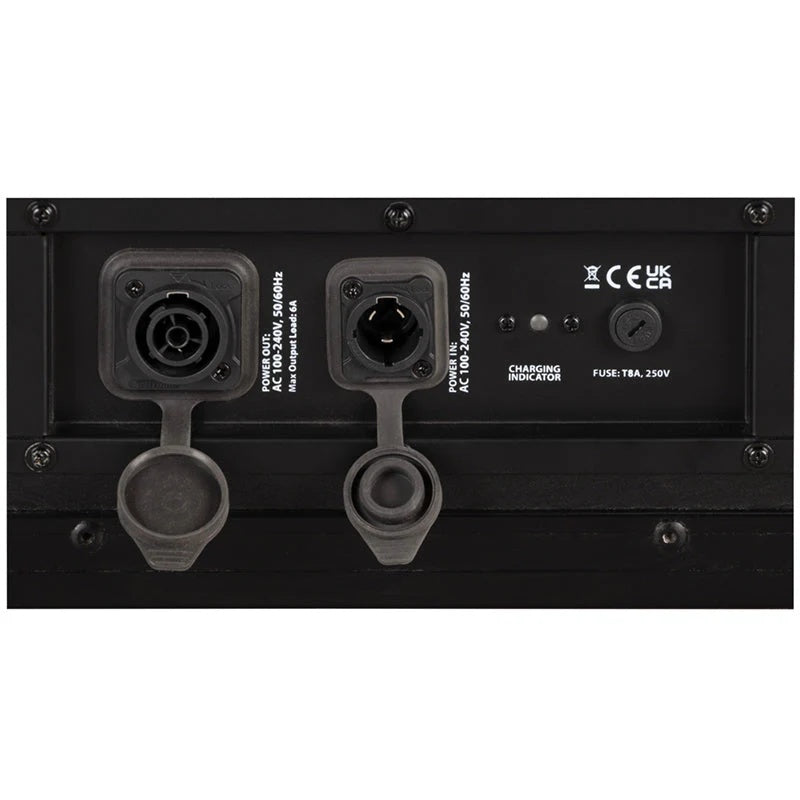

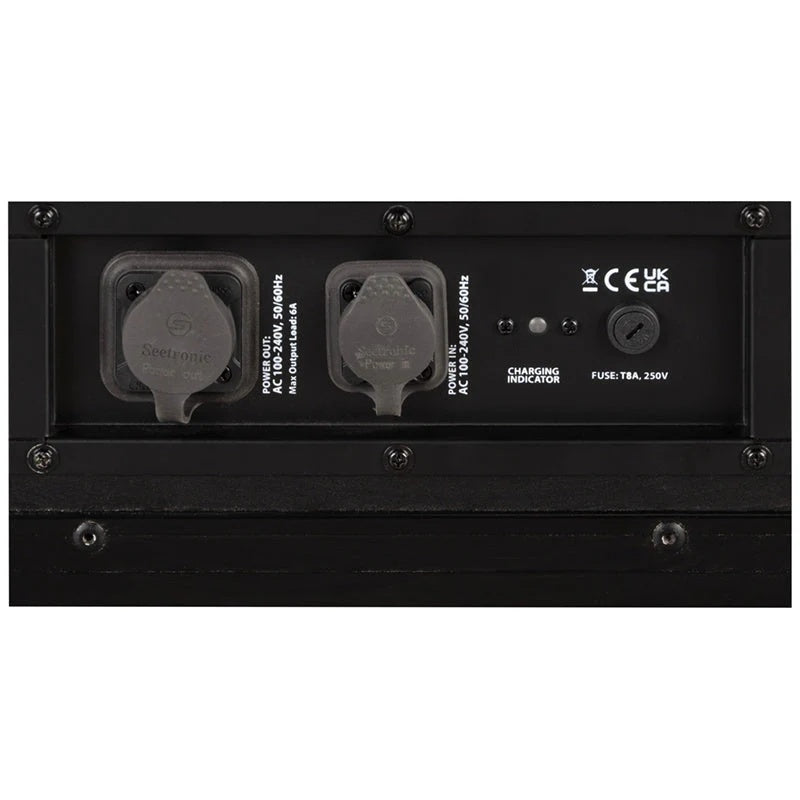

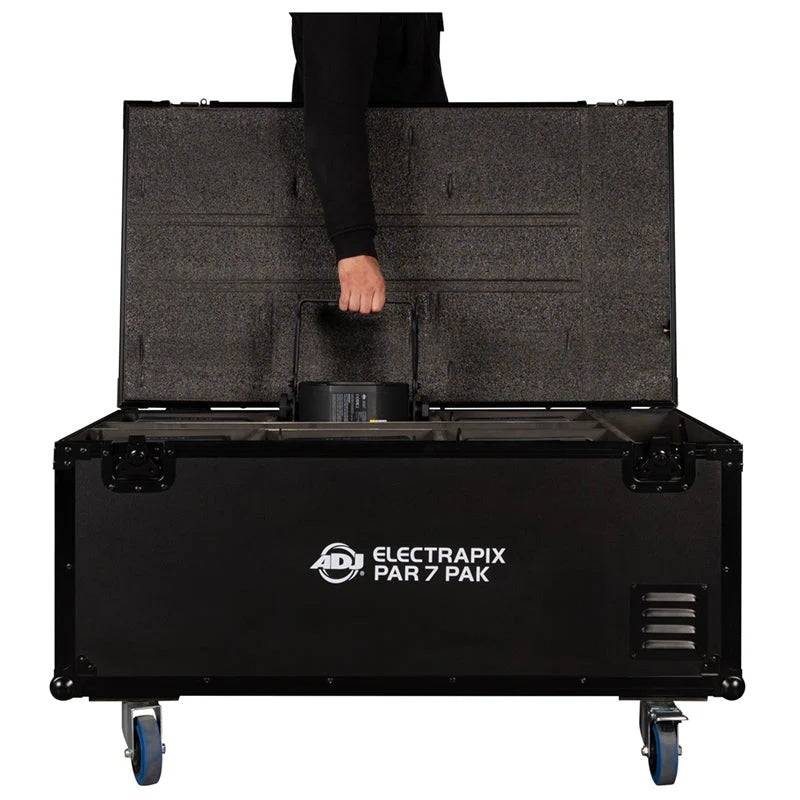

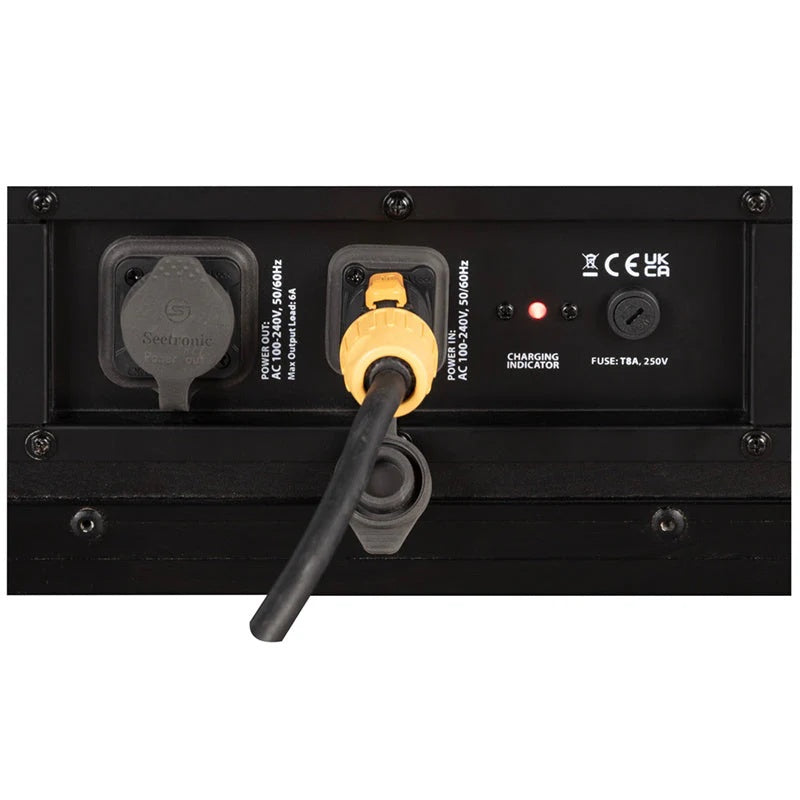

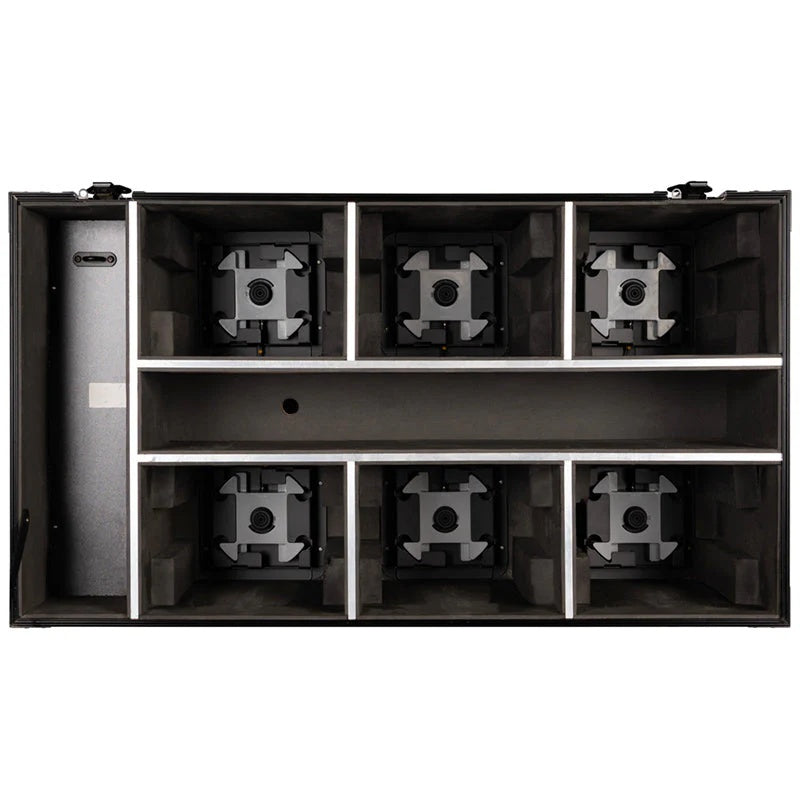

The system ships with six charging bases and power supplies housed inside the ElectraPix Par 7 FC flight case, which simultaneously stores, protects, and recharges all six fixtures in a single interconnected workflow. The inclusion of the UC-IR24 wireless infrared remote and six IP65-rated locking power cables means the package arrives with every component needed to go from case to stage without additional purchases. The flight case's electrical system accepts universal AC voltage and is rated to a 400-watt maximum, with a built-in charge status indicator and an operational thermal range suited to real-world venue and outdoor conditions.

Each fixture combines seven 20W RGBAL+UV foreground LEDs with 29 RGB background LEDs for full hex-color blending and UV output, supported by a 17-degree beam, a wide white color temperature range, and nine DMX channel modes. Aria X2 wireless DMX, Bluetooth, RDM, and onboard manual control give production teams flexible integration options across both touring and installed environments. IP65 housing and an L-track accessory system round out a fixture designed to handle the physical demands of professional deployment.

Downloads

View full details

Specifications

Certifications
IP Rating
IP65
Electrical Safety
CE, cETLus (Control # 4002034)
RF Compliance
FCC
Dimensions
Flight Case Length
40.4"
Flight Case Width
22.7"
Flight Case Vertical Height
22.3"
Fixture Length
11.11"
Fixture Width
9.8"
Fixture Height
7.46"
Weight
Loaded Case Weight
197.3 lbs
Fixture Weight
18.1 lbs
Electrical
Flight Case Power Input
AC 100-240VAC, 50/60Hz
Flight Case Max Power Consumption
400 Watts
Flight Case Power Draw
4A @ 120VAC or 2A @ 230VAC
Flight Case Thermal Range
14°F to 113°F (-10°C to 45°C)
Fixture Power Input
AC 100-240V, 50/60Hz
Fixture Power Consumption
90W
Fixture Link Capacity
10 pieces @ 120VAC or 18 pieces @ 230VAC
Battery
Battery Type
Rechargeable Lithium-ion
Battery Capacity
12,000mAh
Battery Voltage
22.2V
Charge Time (AC Power)
5 Hours (To Full)
Charge Time (Flight Case)
7 Hours (To Full)
Battery Runtime Range
5 to 20 Hours (User Selectable)
Battery Cycles
500
Performance
Foreground LEDs
7 x 20W Hex Color RGBAL+UV
Background LEDs
29 x 0.2W RGB
LED Lifespan
50,000 Hours Average
White Color Temperature Range
2,300K to 9,900K
Beam Angle
17°
Lens Diameter
45mm x7
Control
DMX Protocol
DMX512
Wireless DMX
Aria X2
Additional Control
Bluetooth, IR, RDM, RDM Net
DMX Channel Modes
9 Modes (5, 6, 9, 13, 22, 24, 42, 45, 60 channels)
Manual Control
On-board Manual Control Mode
Operating Modes
Primary / Secondary Mode
Connectivity
DMX Connectors
5-pin XLR Outdoor In/Out
Power Connectors
Outdoor Locking Power Sockets, Battery Charging Socket
Environmental
Fixture Ambient Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Fixture Storage Temperature
-22°F to 113°F (-30°C to 45°C)

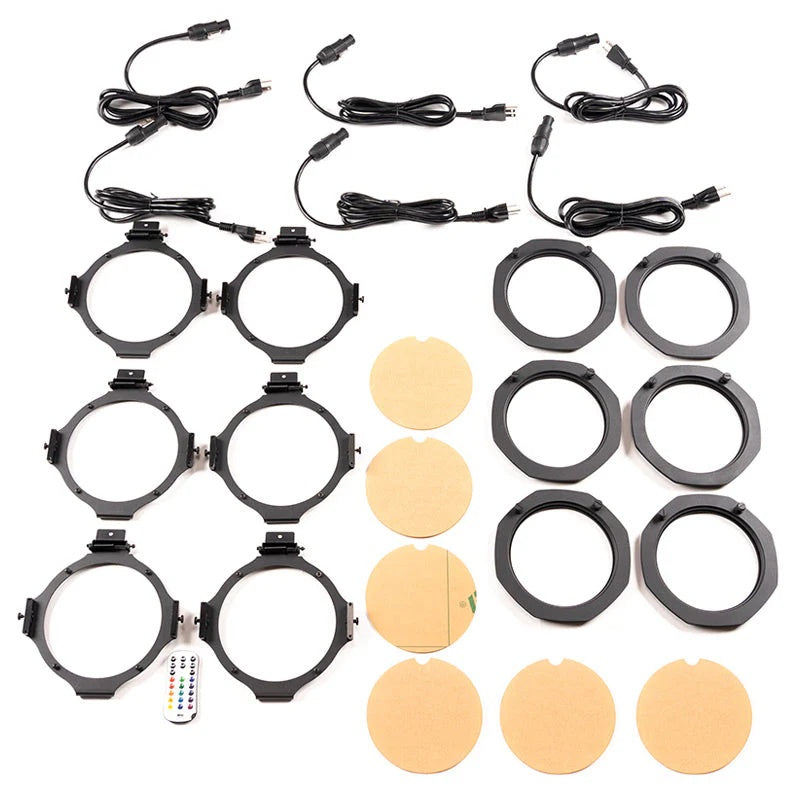

Included Items
Fixtures
6 x ElectraPix Par 7
Flight Case
1 x ElectraPix Par 7 FC
Charging Bases
6 x ElectraPix Par 7 IPCB
Remote Control
1 x UC-IR24 Wireless Infrared Controller
Power Cables
6 x IP65 Locking Power Cable
