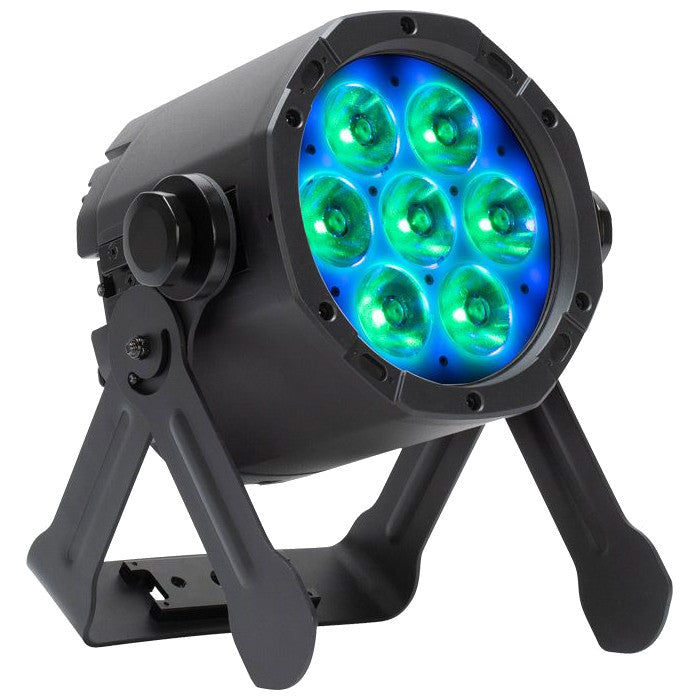

  • ADJ ElectraPix Par 7 RGBAL+UV LED Wash Light blue

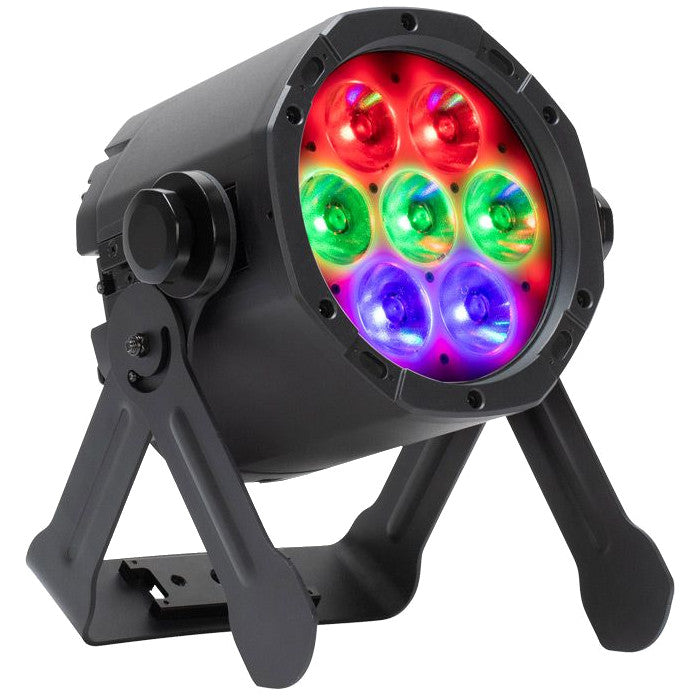

  • ADJ ElectraPix Par 7 RGBAL+UV LED Wash Light multi 1

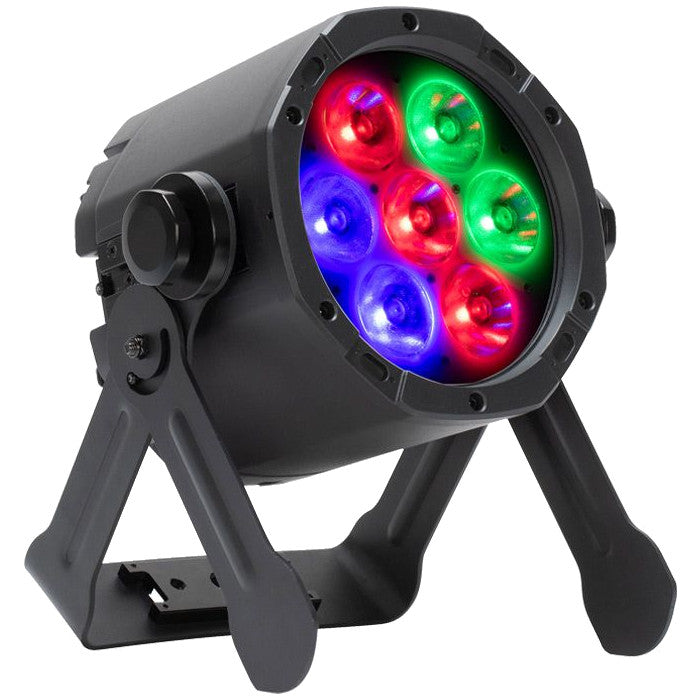

  • ADJ ElectraPix Par 7 RGBAL+UV LED Wash Light multi 2

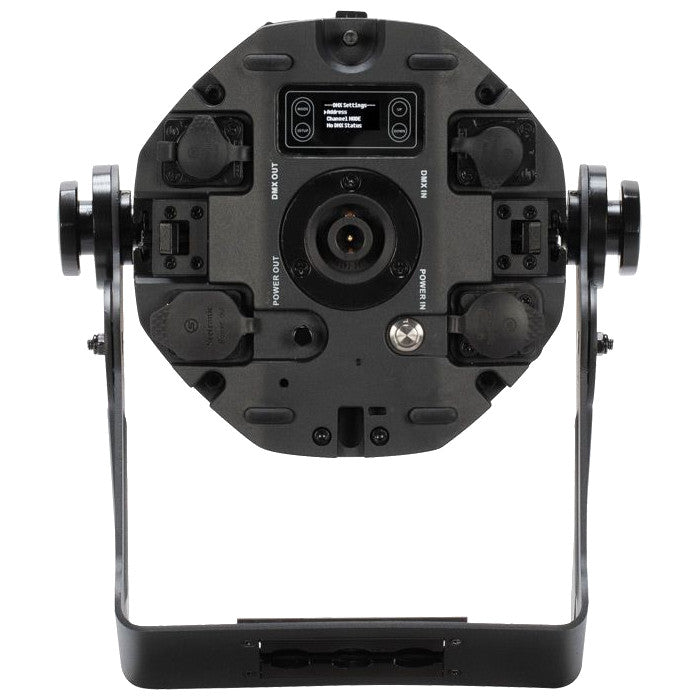

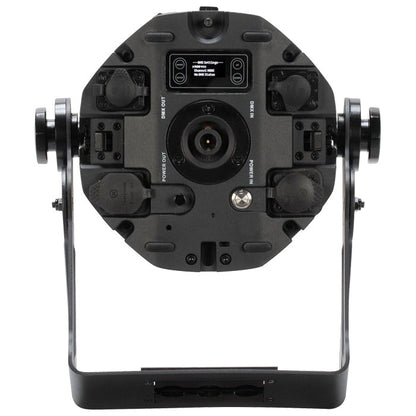

  • ADJ ElectraPix Par 7 RGBAL+UV LED Wash Light back

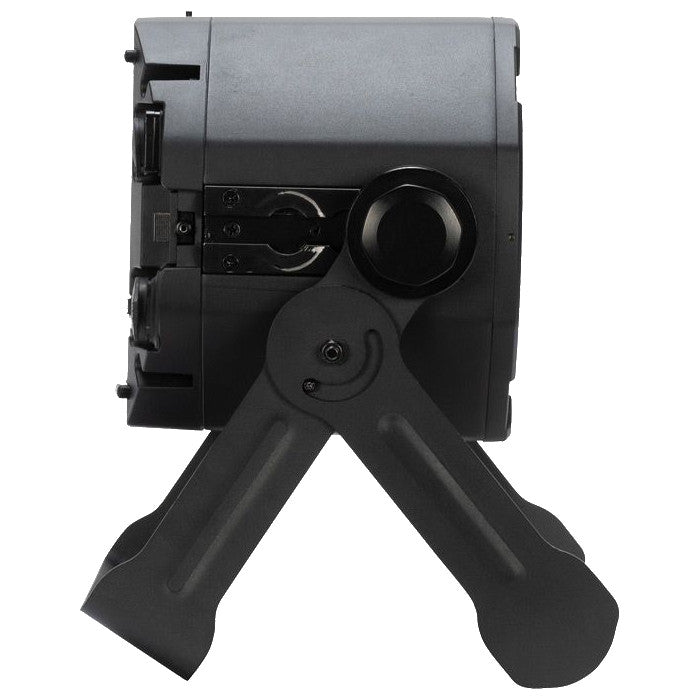

  • ADJ ElectraPix Par 7 RGBAL+UV LED Wash Light side

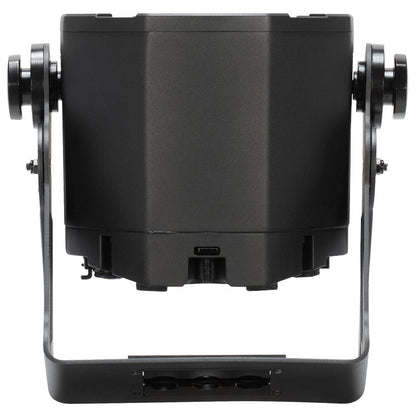

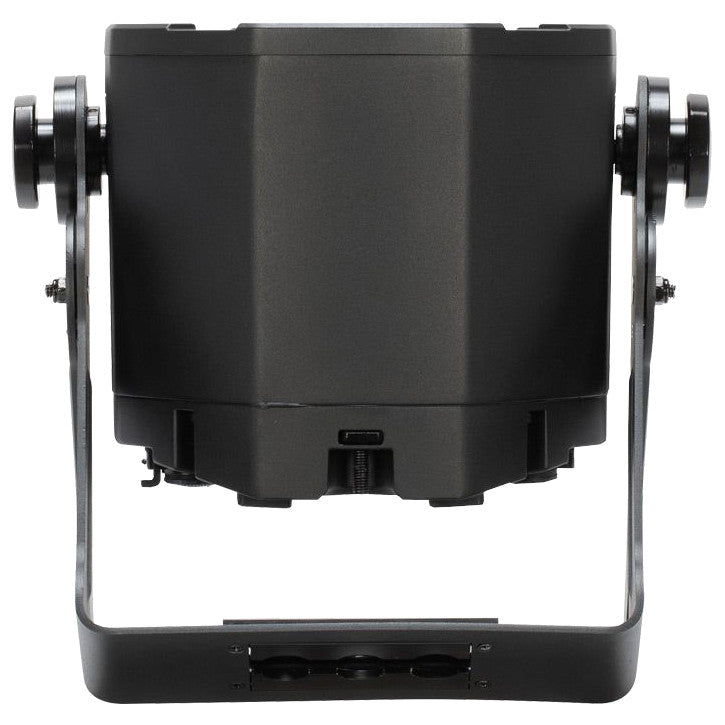

  • ADJ ElectraPix Par 7 RGBAL+UV LED Wash Light top

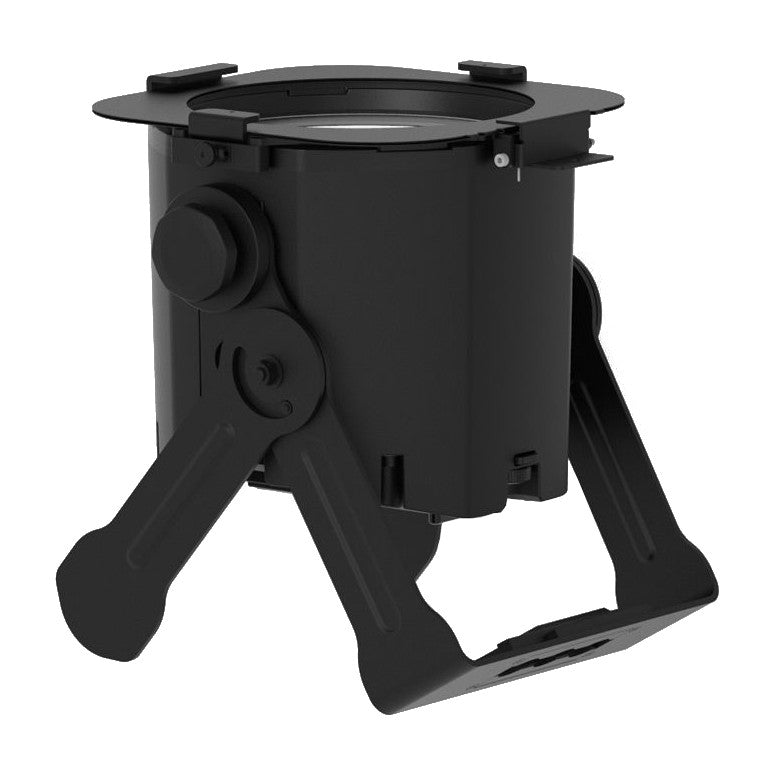

  • ADJ ElectraPix Par 7 RGBAL+UV LED Wash Light upright

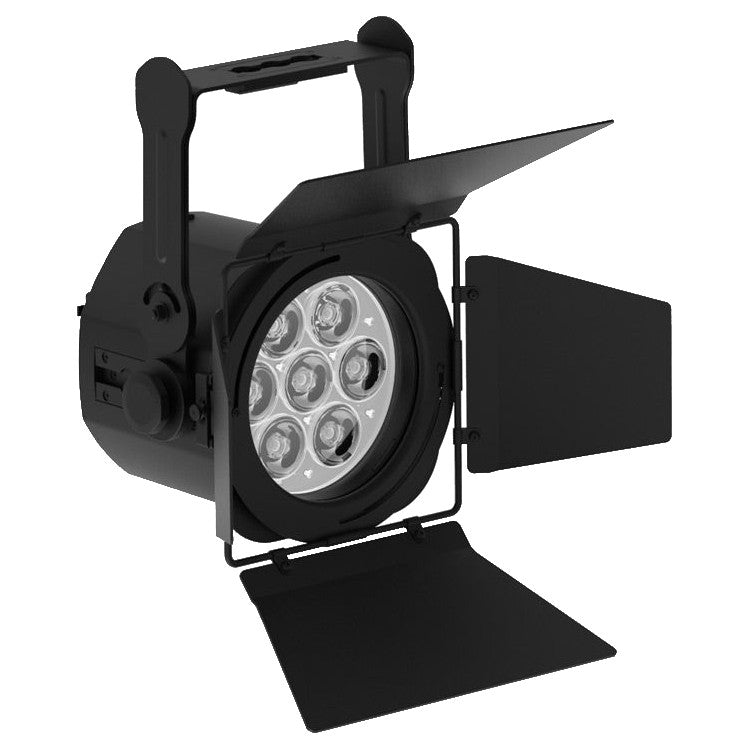

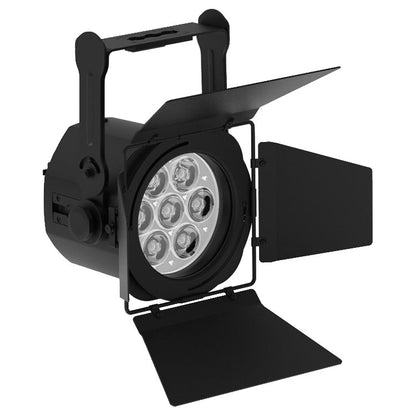

  • ADJ ElectraPix Par 7 RGBAL+UV LED Wash Light barn doors
  • ADJ ElectraPix Par 7 RGBAL+UV LED Wash Light diagram
1 10

ADJ ElectraPix Par 7 RGBAL+UV LED Wash Light

ADJ ElectraPix Par 7 RGBAL+UV LED Wash Light

SoundPro Item: 142564 | Part Number: ElectraPix Par 7

$1,149.99
$1,599.95 $1,149.99
Your Price Sold out
MSRP: $1,599.95 | MAP: $1,149.99

Usually ships in 5-7 business days

  • 7 Pixel, Hex Color LED (RGBAL+UV) LED Par
  • Battery or Wall Powered
  • Battery operation can be selected by the user for durations ranging from 5 to 20 hours
  • Individual Pixel Control
  • Built-In Foreground LED Programs
  • Built-In Background LED Programs

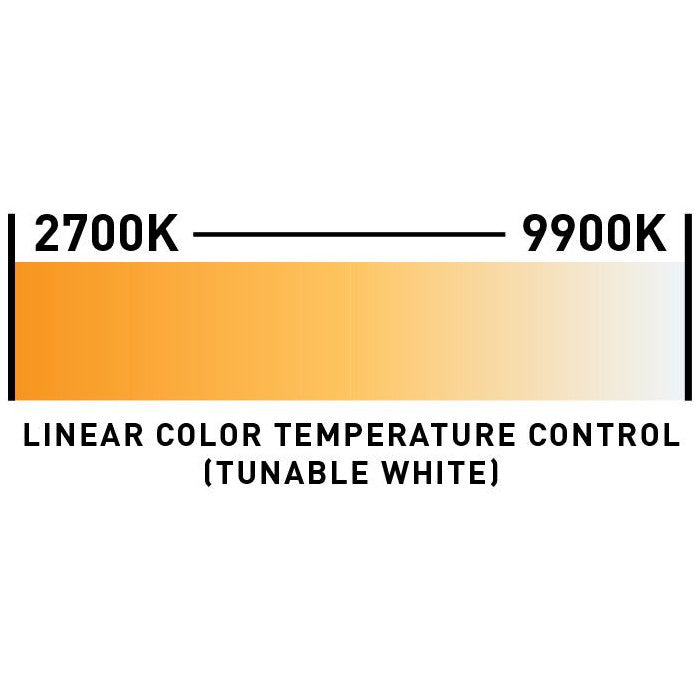

  • Variable White Color Temperature Control (2,700K ~ 9,900K)
  • English & Spanish User Menu
  • Built-In Alarm
  • Color Calibrated LED's
  • User Selectable LED Refresh Rates (900Hz ~ 25K)
  • 6 User Selectable Dim Modes
  • 4 User Selectable Dim Curves
  • Electronic Strobe (0.3Hz ~ 11Hz)
  • Electronic Dimming
Log in or register for YOUR best price

The ADJ Lighting ElectraPix Par 7 LED Par is a cutting-edge wireless DMX lighting solution. Packed with advanced features, this fixture boasts seven 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, battery operation can be selected by the user for durations ranging from 5 to 20 hours.

With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Par 7 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.

Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.

The ElectraPix Par 7 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Par 7, where innovation meets performance.

View full details

Specifications

Certifications
Certifications & IP Rating
CE, cETLus (Pending), FCC, IP65
Dimensions
Width
9.77” (590.3mm)
Height
7.46” (189.5mm)
Electrical
Battery
Rechargeable Lithium ion, Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
Battery Capacity
7,000mAh
Battery Voltage
22.2V
Battery Cycles
500
Connectivity
Connections
5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal), Outdoor Locking Power Sockets, Battery Charging Socket
Environmental
Ambient Operational Temperature
-4°F to 113°F (-20°C to 45°C)
Storage Temperature
-22°F to 113°F (-30°C to 45°C)
Shipping
Weight
15.4 lbs. (7 kg)
Identifiers
Length
11.11” (282.1mm)
General
Source
(7) 20W Hex Color RGBAL+UV Foreground LED's, (29) 0.2W RGB Background LED's, 50,000 Hour Average Life* (*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.)
Optical
2,300K ~ 9,900K White Color Temperature Range, 17° Beam Angle
Physical
IP65 Housing, OLED Digital display, L Track system for locking accessories / rigging, Gel Frame Holder, Adjustable, hanging / kick stand bracket
Control
DMX512, Aria X2 Wireless Management / DMX System, Bluetooth, RDM and RDM Net Compatible, IR (Includes UCIR24 wireless remote), (9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 42, 45 & 54 Channel modes), On-board Manual Control Mode, Primary / Secondary Mode
Charge Time
6 Hours (To Full)
Optional Accessories
LTrack A2 (LTrack Adapter Only), LTrack CA2 (LTrack Adapter with Narrow Clamp), ELP12IPBDA (Barn Door and Gel Frame Assembly, Sku: ELP404)
ELPIX7L55
55° diffusion filter for the ElectraPix Par 7
ELPIX7L40
40° diffusion filter for the ElectraPix Par 7
ELPIX7L30
30° diffusion filter for the ElectraPix Par 7
ELPIX7L20
20° diffusion filter for the ElectraPix Par 7
ELPIX7L30X60
30x60° linear filter for the ElectraPix Par 7
ELPIX7L15X60
15x60° linear filter for the ElectraPix Par 7
ELPIX7L10X60
10x60° linear filter for the ElectraPix Par 7
ELPIX7L10X40
10x40° linear filter for the ElectraPix Par 7
EPIX P7 IPCB
replacement charging base and power supply
Power
Power
AC100-240V/50Hz-60Hz Input, 60W Power Consumption, Link 15 pieces @120VAC or 28 pieces @ 230VAC
