Specifications
Dimensions
Width
111.3” (289mm)
Vertical Height
17.7” (450mm)
Electrical
Electrical/Thermal
Quiet Fan Cooling, AC 100-240V - 47/63Hz, 250W Max Power Consumption, 14° to 113°F (-10° to 45°C)
Optics
GOBOS
Supports “B” Size Metal, HT Transparency Gobos, GOBO Holder is included (See compatible Gobo Dimensions in Downloads section), GOBOs are sold separately
Shipping
Weight
20 lbs (9.1 kg)
Identifiers
Length
26.9” (688mm) (Lens In)
General
Source

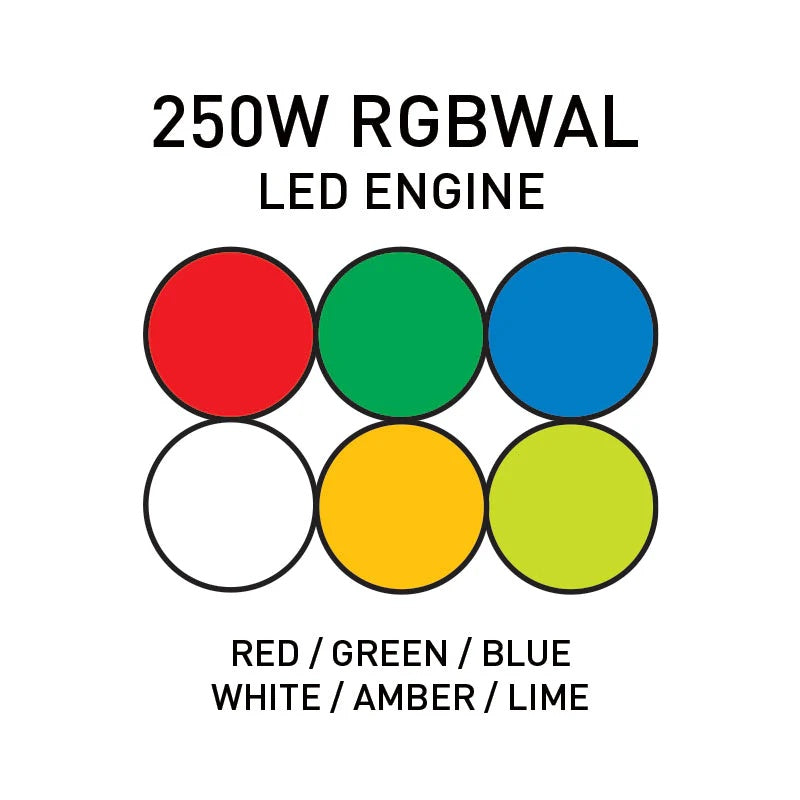

250W RGBWAL (Red/Green/Blue/White/Amber/Lime) LED Engine, 50,000 Hour Average LED Life (LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.)
Photometric Data
>90CRI 6,000 Total Lumens (with 26° lens)
Effects

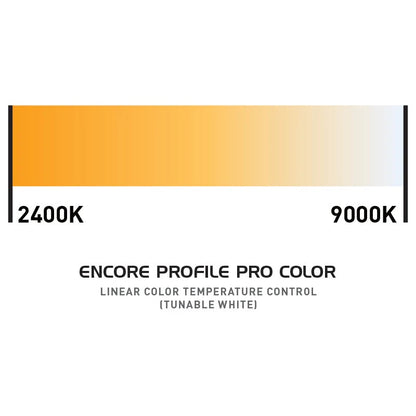

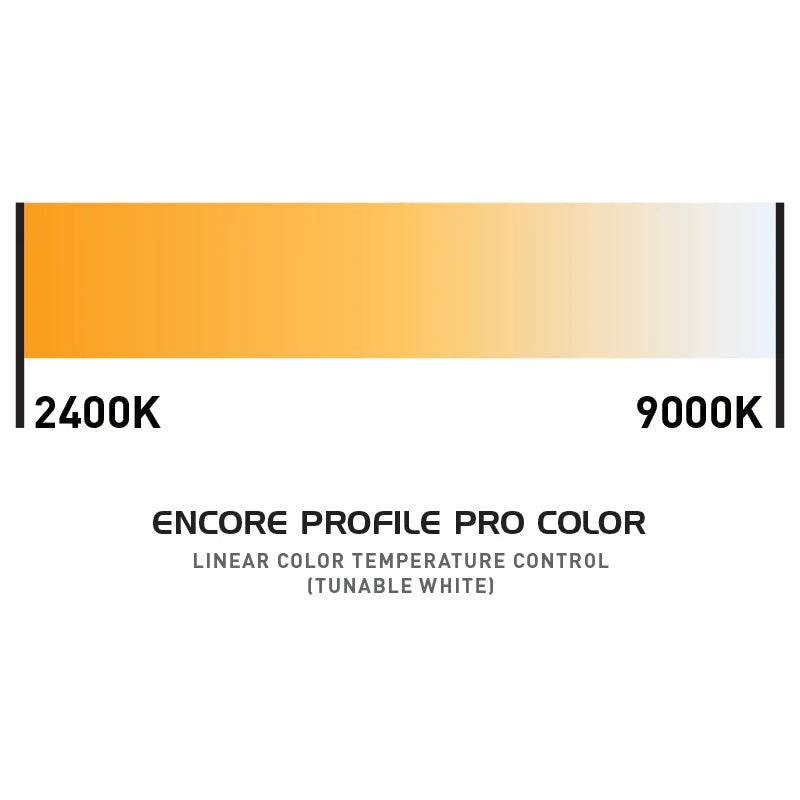

Electronic Strobe and Dimming, Variable Dimming Curves and Dimming Modes, Independent dynamic white fader feature that achieves white color temperatures from 2400K to 9000K
Control/Connections

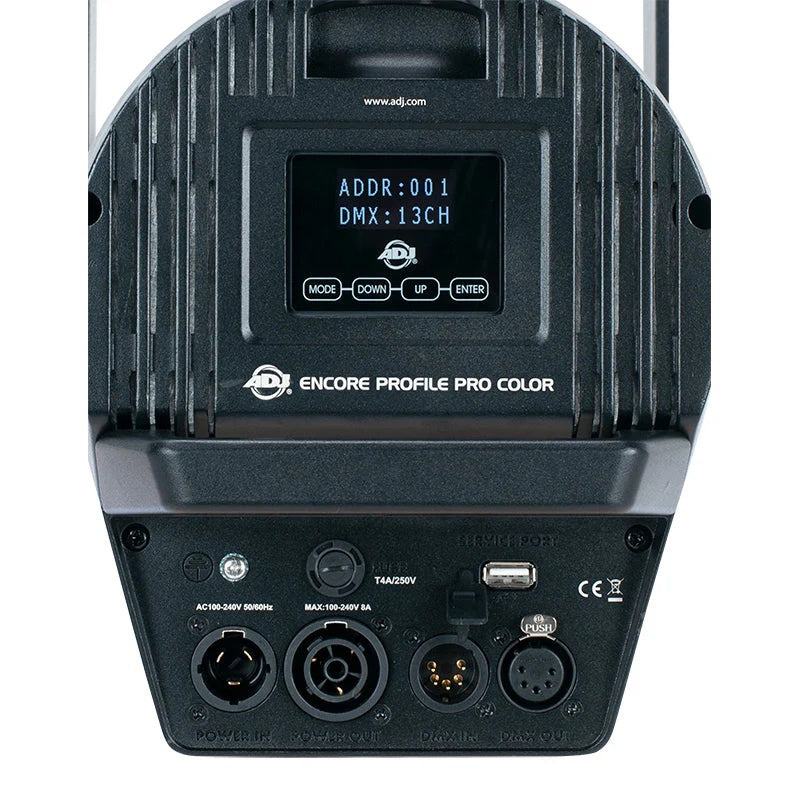

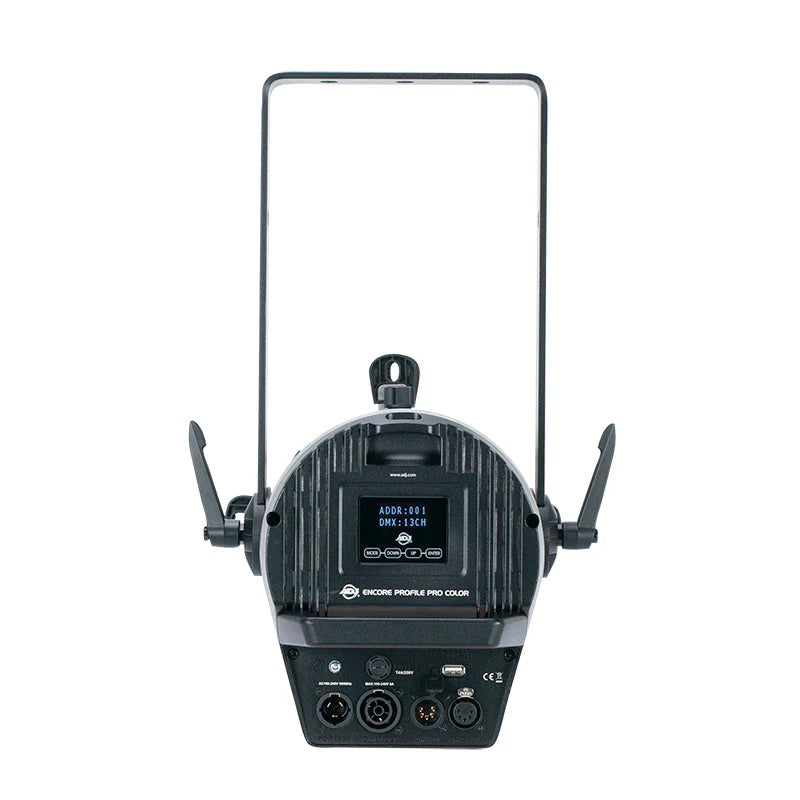

6 DMX Channel Modes (2/4/6/13/14/16), Adjustable Refresh Rate (900-1500, 25,000 Hz), 4 Button Control Panel, LED Menu Display, Locking 5pin XLR Connector In/Out, Locking Power Connector In/Out, With Wired Digital Communication Network, RDM (Remote Device Management)
Power Linking
3pcs Max @120V / 8pcs Max @240V
Approvals/Ratings
CE | cETLus (Pending) | IP30
