ADJ EVS3 Modular LED Video Wall Panel for Touring
ADJ EVS3 Modular LED Video Wall Panel for Touring
SoundPro Item: 141692 | Part Number: EVS3
Usually ships in 5-7 business days
- Memory On Module Technology Retains Calibration Data Through Module Swaps Without Recalibration

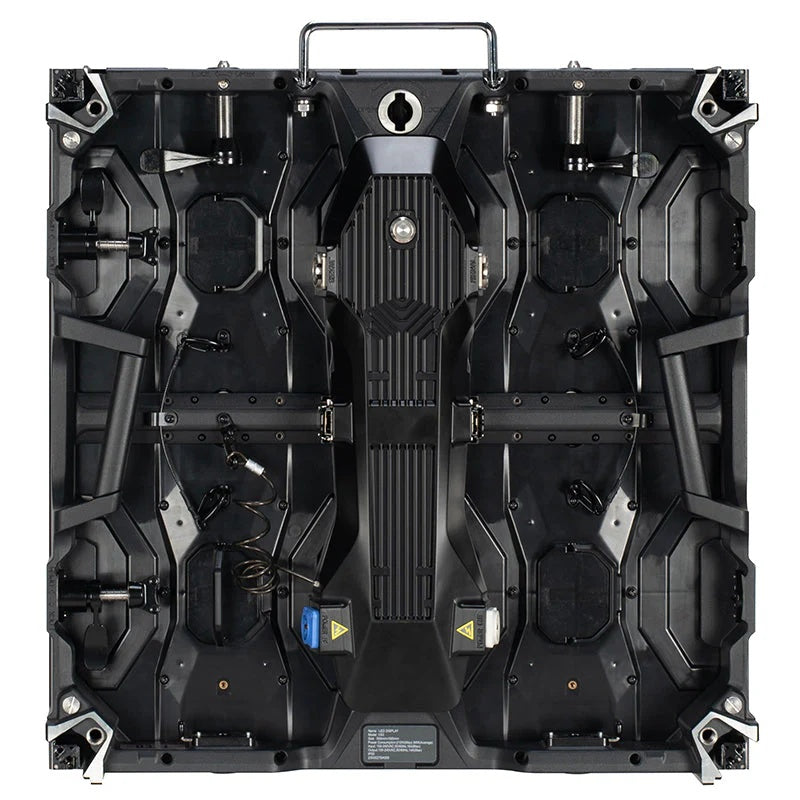

- Front And Rear Serviceability With Four Independently Replaceable Video Modules Per Cabinet

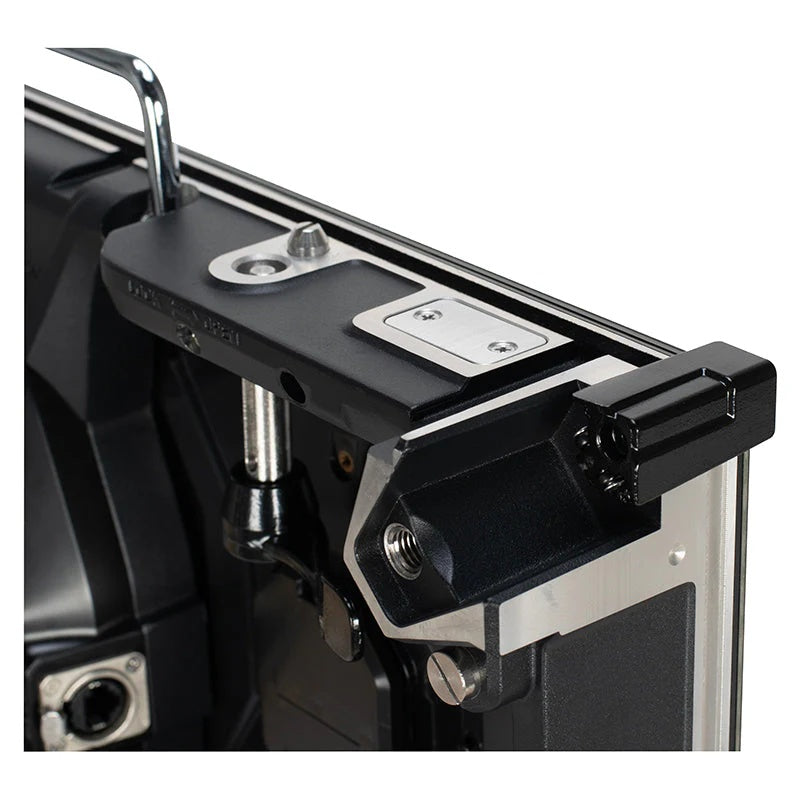

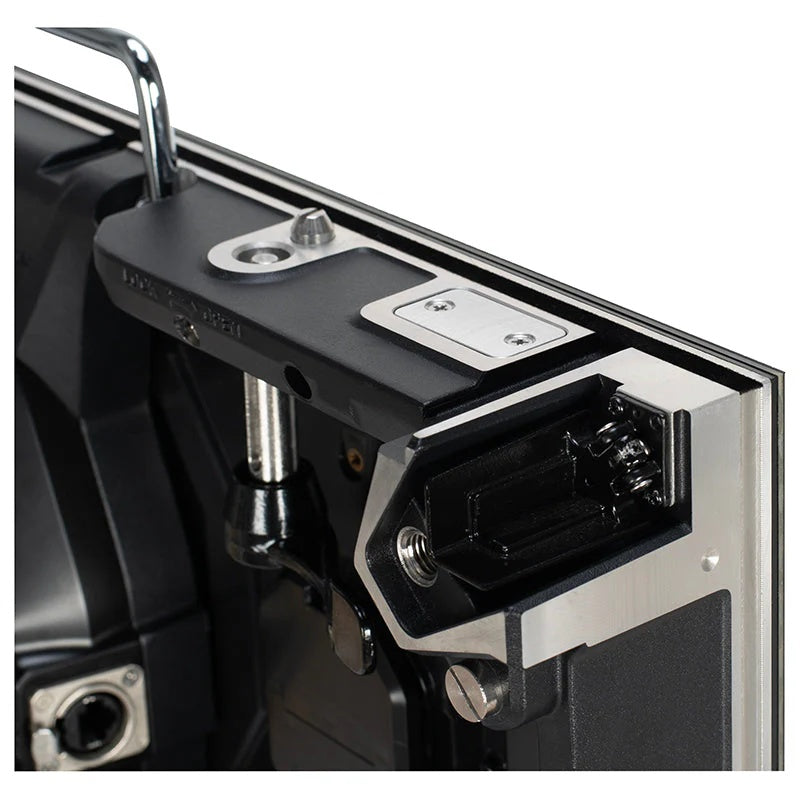

- Corner Protectors Shield Cabinet Edges During Transport, Setup, And Teardown
- Nova Star Synchronous Control System Enables Frame-Accurate Multi-Panel Synchronization
- Broad Signal Input Support Covers HDMI, DVI, HD-SDI, VGA, Component, S-Video, And Composite
- High Refresh Rate Eliminates Flicker For Broadcast And Camera-Facing Applications
- cETLus Certified For Rental And Touring Deployment In North American Markets

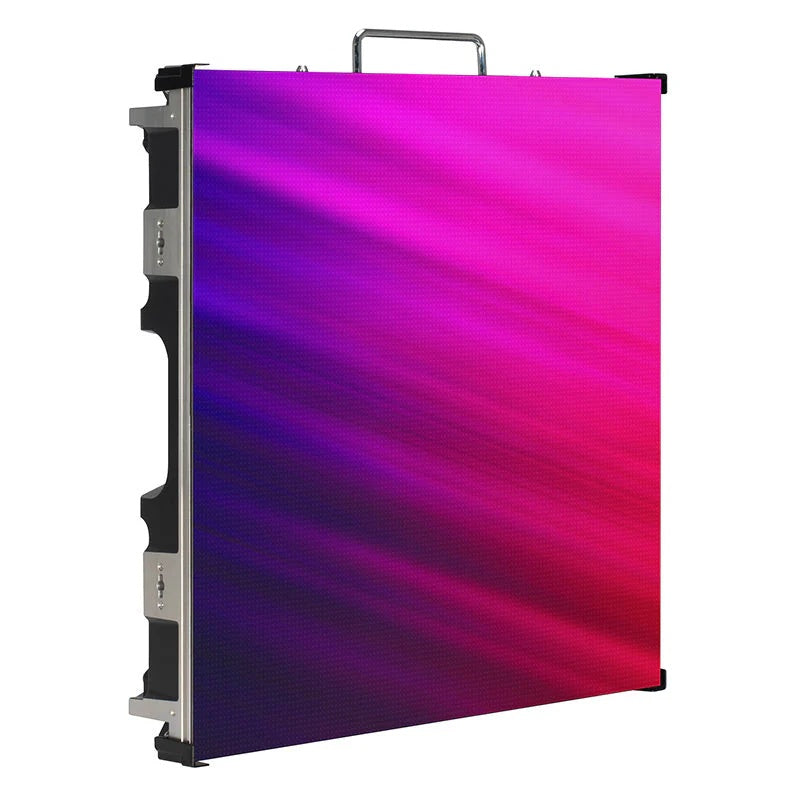

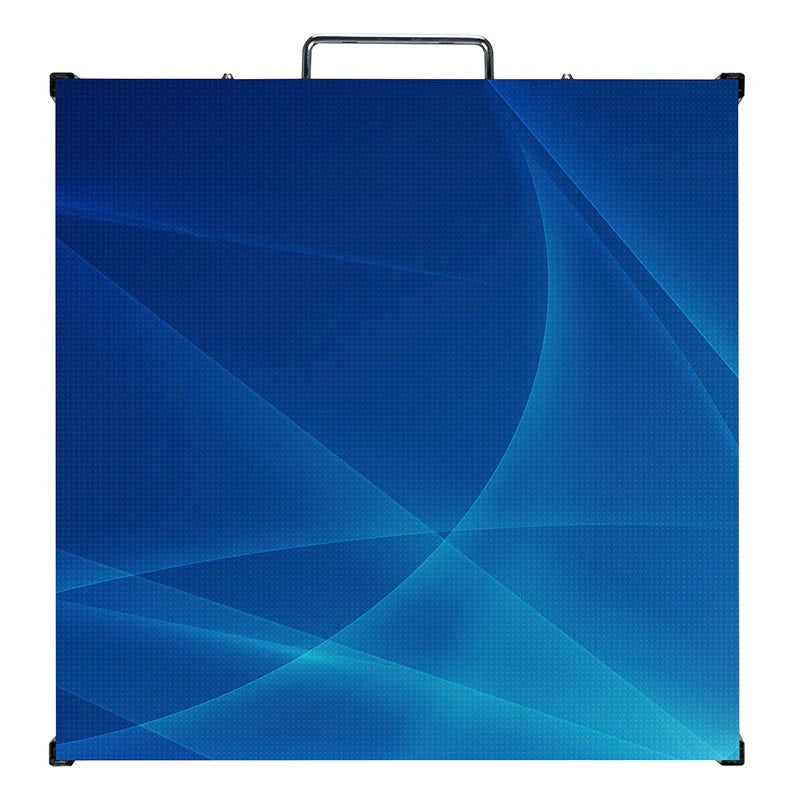

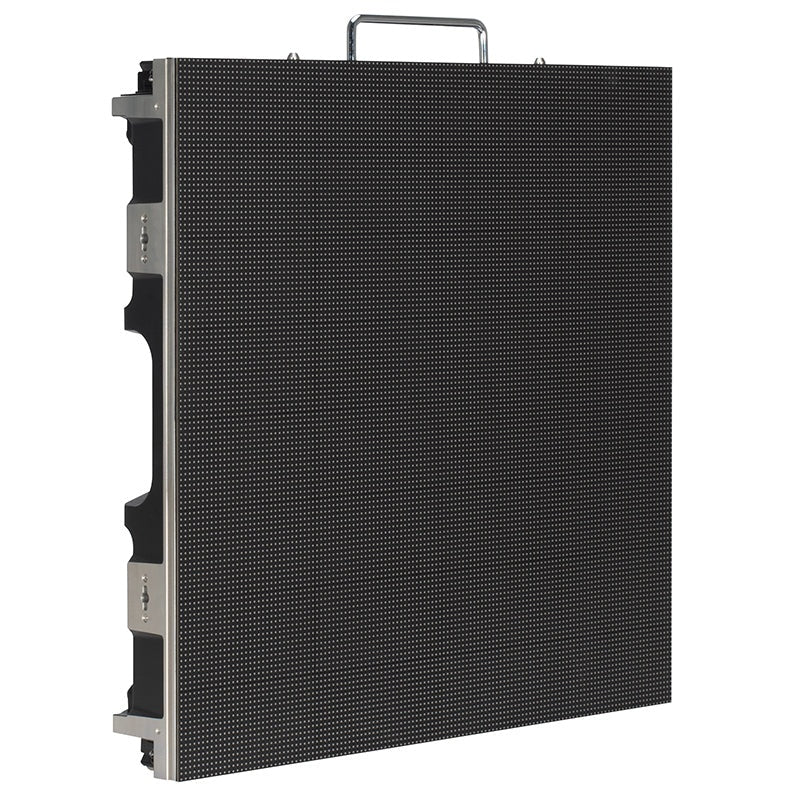

The ADJ EVS3 is built for rental houses, touring production companies, and live event integrators who need a reliable, field-serviceable LED video wall panel without the complexity of permanent installation infrastructure. With a 3.91mm pixel pitch and an SMD2121 3-in-1 RGB LED array, the EVS3 produces sharp, vibrant imagery at densities appropriate for close-to-medium viewing distances common in concert stages, corporate events, and festival environments. Its compact, lightweight form factor lets crew assemble large-format walls efficiently, and up to 20 panels can be flown vertically using the optional VSRB1 rigging bar.

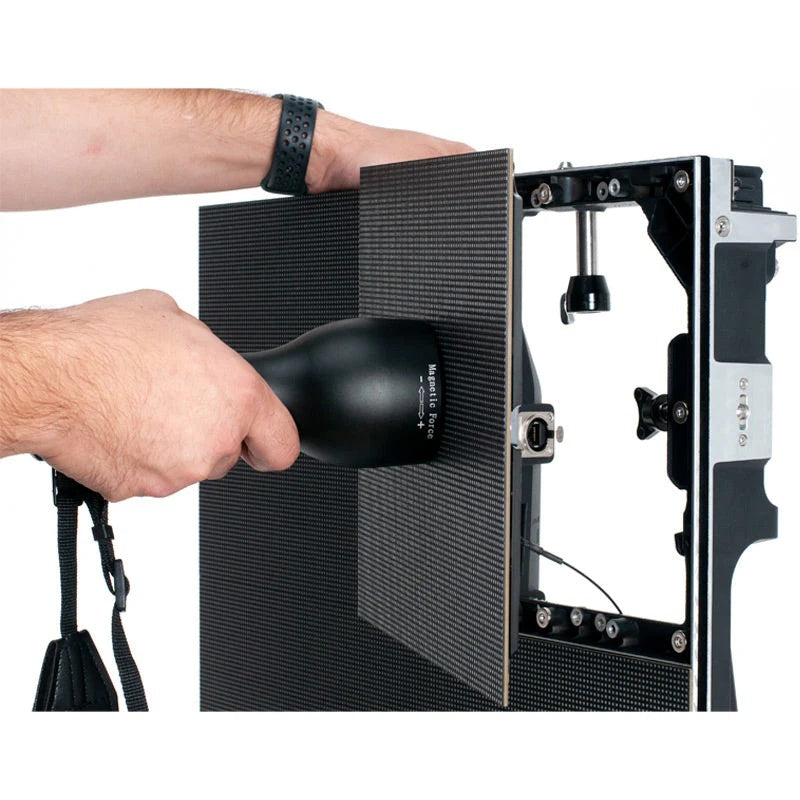

What separates the EVS3 from comparable rental-grade panels is its Memory on Module (MOM) architecture. Calibration data — brightness, color uniformity, and configuration — is stored directly on each module, so when a module is swapped in the field, the panel self-corrects without manual recalibration. Combined with front and rear serviceability and four independently replaceable video modules per cabinet, maintenance during a show or between sets becomes a practical reality rather than a production risk.
The EVS3 supports a wide range of signal inputs including HDMI, DVI, HD-SDI, VGA, Component, S-Video, and Composite, and integrates with Nova Star synchronous control systems for frame-accurate playback. A 3840Hz refresh rate and 14-bit processing ensure flicker-free capture under broadcast cameras. Corner protectors and a cETLus certification round out a panel purpose-built for the demands of touring and temporary installation — not permanent fixture.
