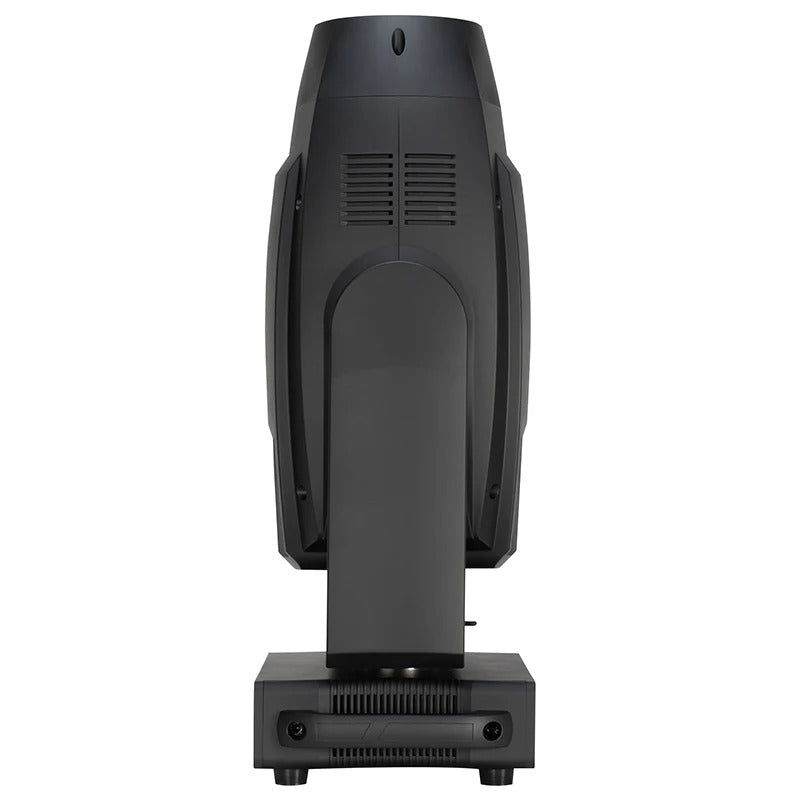

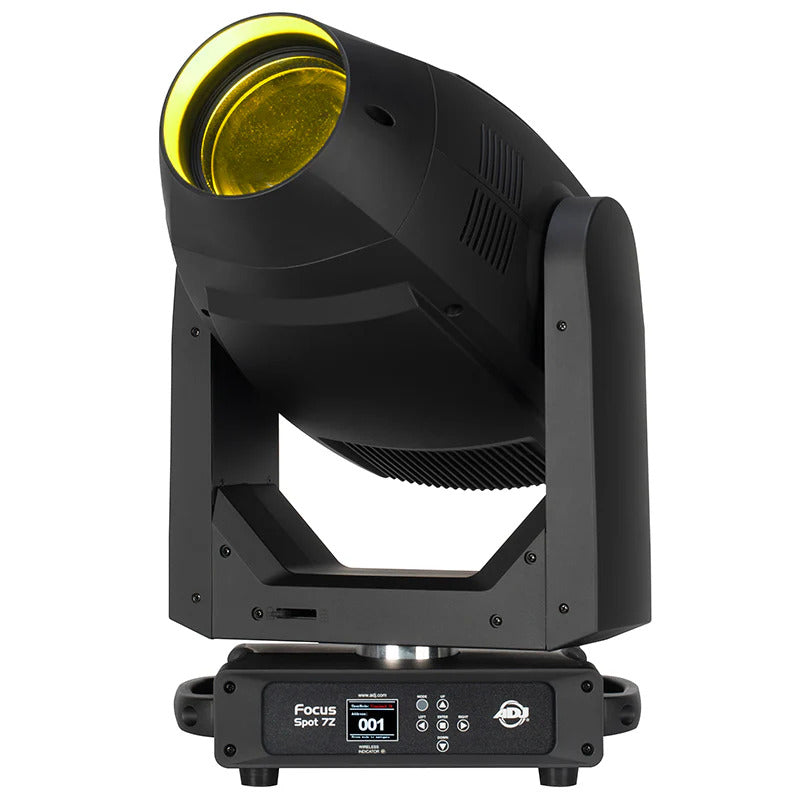

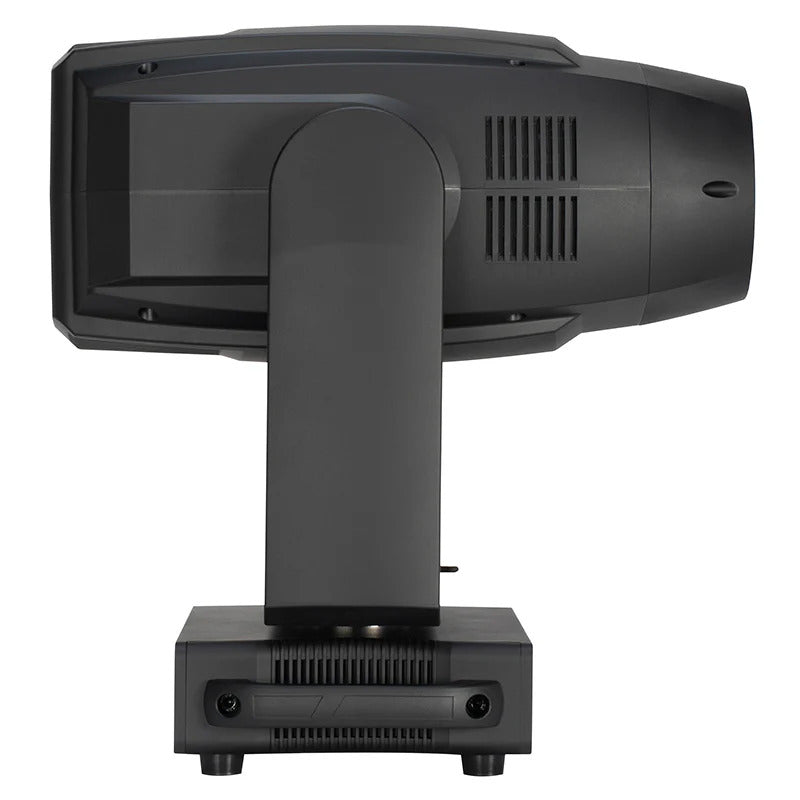

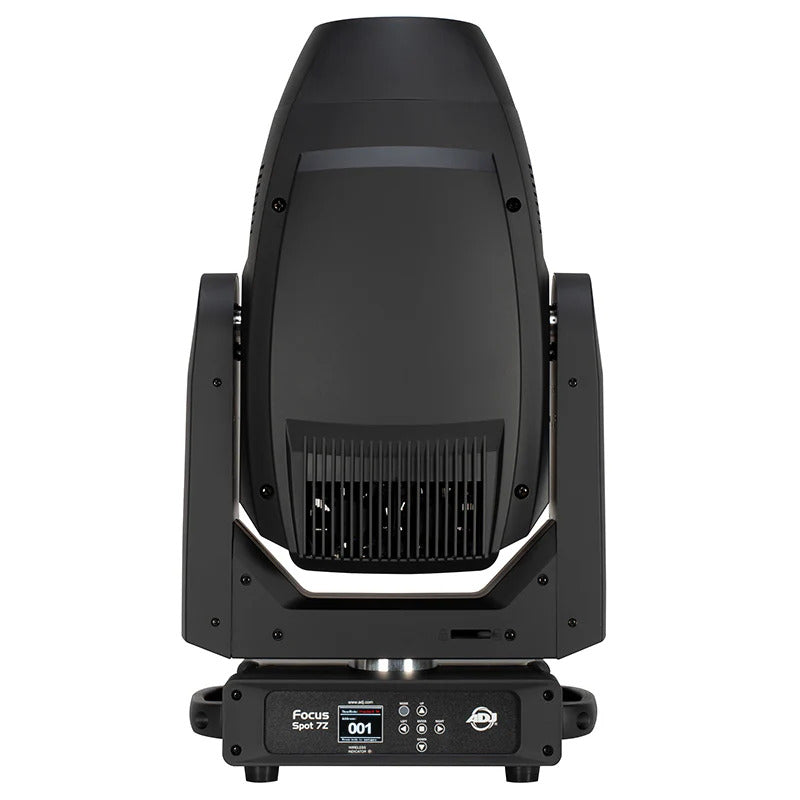

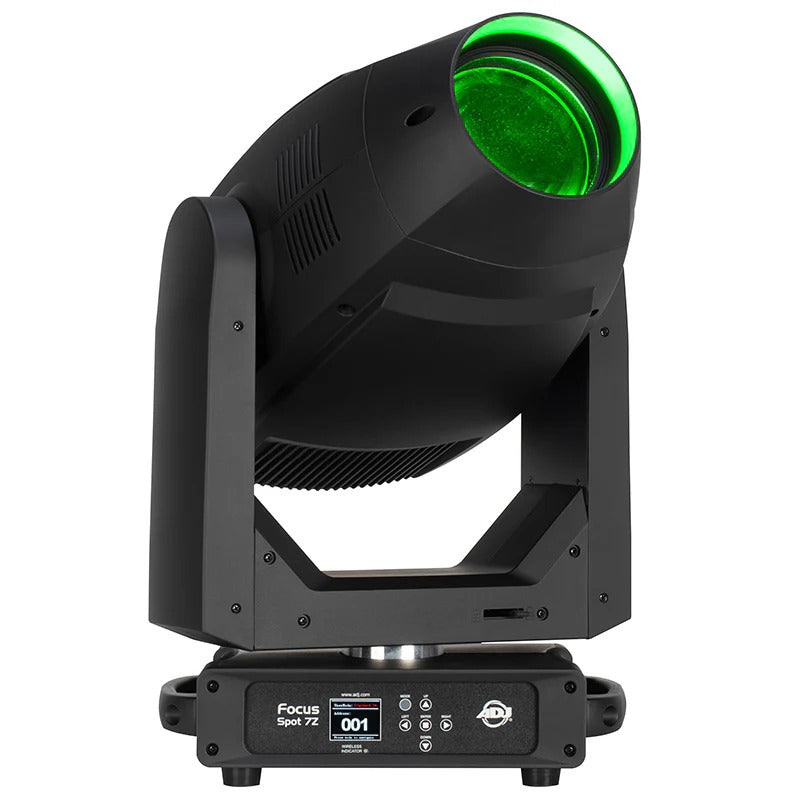

ADJ FOC750 Focus Spot 7Z

ADJ FOC750 Focus Spot 7Z

SoundPro Item: 201272 | Part Number: FOC750

$4,699.99
$6,999.95 $4,699.99
Your Price Sold out
MSRP: $6,999.95 | MAP: $4,699.99

Usually ships in 5-7 business days

  • Color: CMY Color Mixing + Variable CTO
  • Animation Wheel + Iris Feature
  • 420W Cool White LED
  • Motorized Zoom: 6° ~ 48°
  • 2 Prism Wheels
Log in or register for YOUR best price

Offering an impressive output of 20,000 Lumens, Focus Spot 7Z is a powerful and feature-packed moving head spot luminaire capable of producing spot and wash effects. Its efficient 420W LED light engine and superior optics allow the fixture to deliver crisp and even projections, while its extensive collection of integrated beam-shaping tools provide lighting designers with immense creative potential. These include full CMY + CTO color mixing; an animation wheel; motorized zoom (6° ~ 48°), focus and iris; as well as twin GOBO wheels, rotating prisms and frost filters.

View full details

Specifications

Source
  • 420W White LED Engine
  • 20,000 Hour Average LED Life
Photometric Data
  • 19,000 Total Lumens
  • 7,000K, >73CRI (without CRI Filter)
  • 7,700K >85CRI (with CRI Filter)
  • 50,528 LUX @16.4’ (5m) (6° Beam)
  • 1,799 LUX @16.4’ (5m) (48° Beam)
Effects
  • 4-Facet Circular 6-Facet Linear Rotating Prisms
  • 2 Frost Filters (Light Heavy)
  • Animation Wheel (Rotatable and Indexable)
  • Motorized Zoom (6° ~ 48°)
  • Motorized Focus
  • Motorized Iris
  • Electronic Dimming Strobe (1-20Hz)
Color
  • Full CMY color mixing
  • Variable CTO (2,700K to 8,000K)
  • Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
  • CMY and Color Wheel preset macros
Gobos
  • (2) Gobo Wheels
  • #1 - (7) Interchangeable Rotating-Indexing Glass Gobos
  • #2 - (7) Interchangeable Rotating-Indexing Glass Gobos
Control / Connections
  • (3) DMX Channel Modes (30 / 34 / 45)
  • DMX512, ArtNet and sACN protocols
  • Aria X2 Wireless Management / DMX System
  • RDM (Remote Device Management) compliant
  • 6 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • 8 / 16 Bit Resolution Adjustable Movement

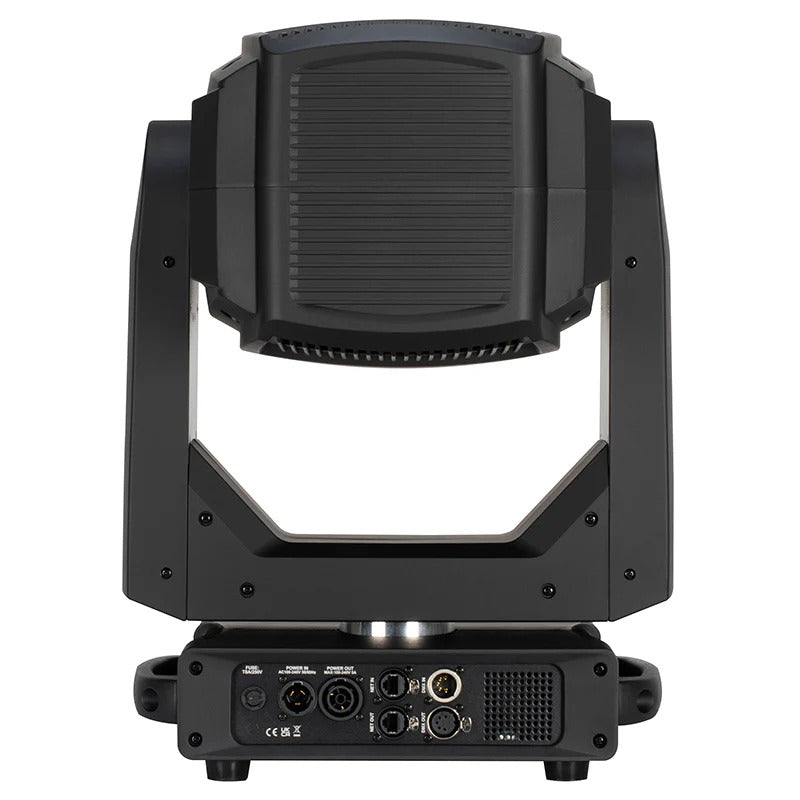

  • 5-pin XLR DMX In/Out
  • RJ45 connectors In/Out
  • Locking In/Out power connections
  • With Wired Digital Communication Network
Pan / Tilt
  • Pan: 540-degrees
  • Tilt: 270-degrees
  • Pan Tilt Locks
Size / Weight
  • Length: 18.8” (477.5mm)
  • Width: 14.7” (374mm)
  • Vertical Height: 25.7” (653mm)
  • Center Spacing: 24.0” (609.6mm)
  • Weight: 55.3 lbs. (25.1kg)
Electrical / Thermal
  • AC 100-240V - 50/60Hz
  • Max Power Consumption: 524W
  • Max ambient temperature: 14°F to 113°F (-10°C to 45°C)
  • Max housing temperature: 136°F (58°C)
Technical Data
  • DB Rating @ 3ft.: 49dB
  • BTU: 0.53
  • BTU/H: 1,909.60
Approvals / Ratings
  • CE | ETL Approved (Control #4010765)
  • IP20
Included Accessories
  • Locking Power cable
  • 180mm Omega brackets (x2)
