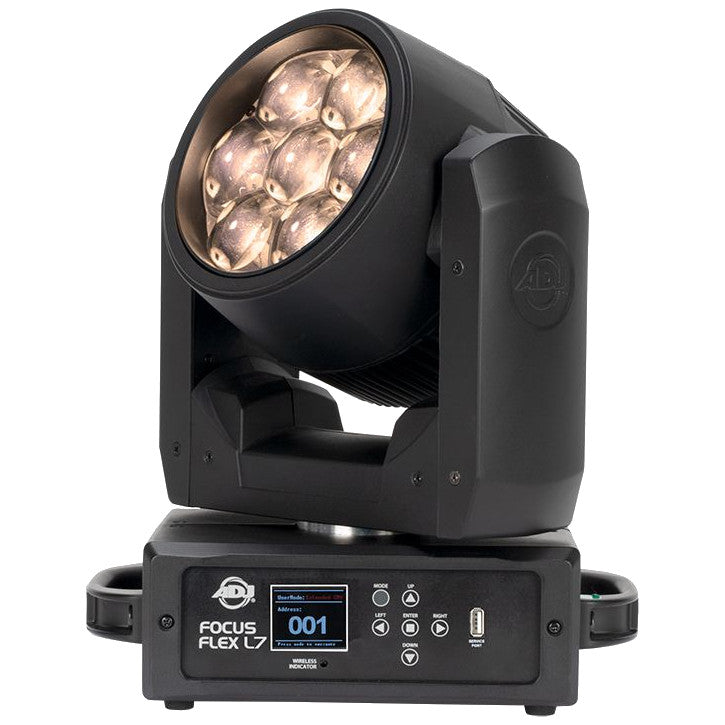

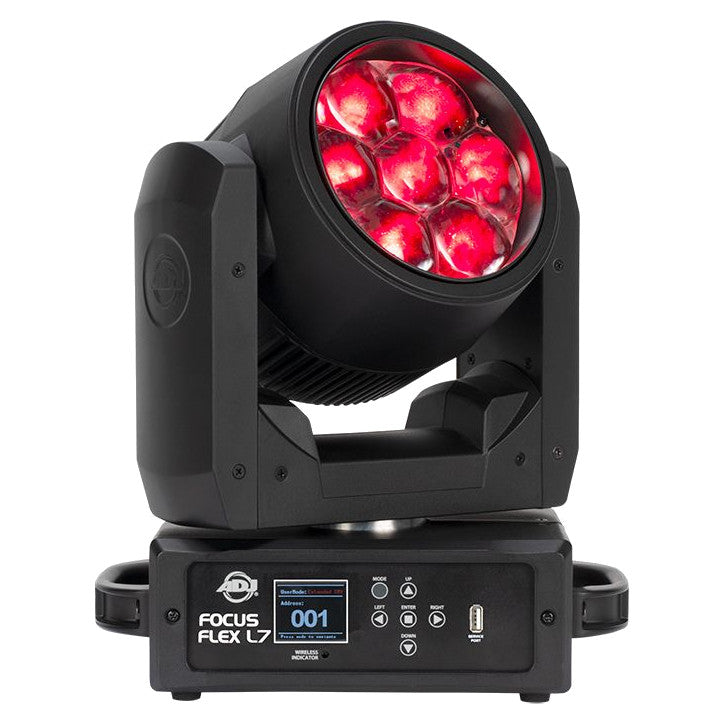

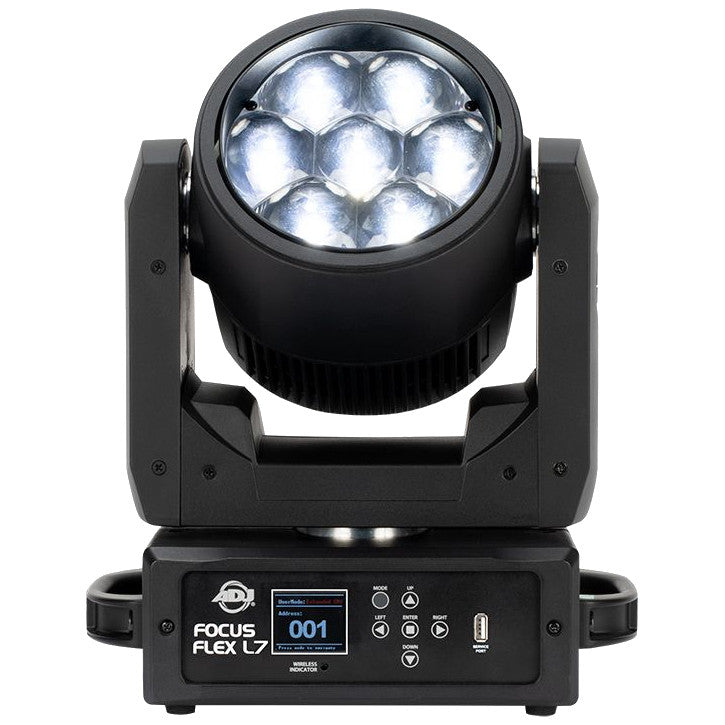

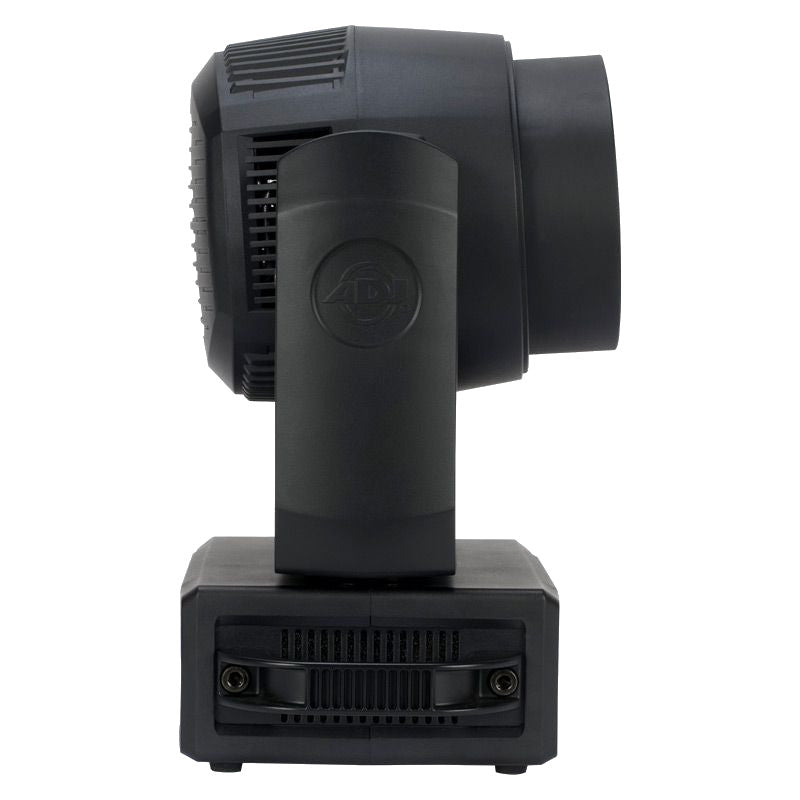

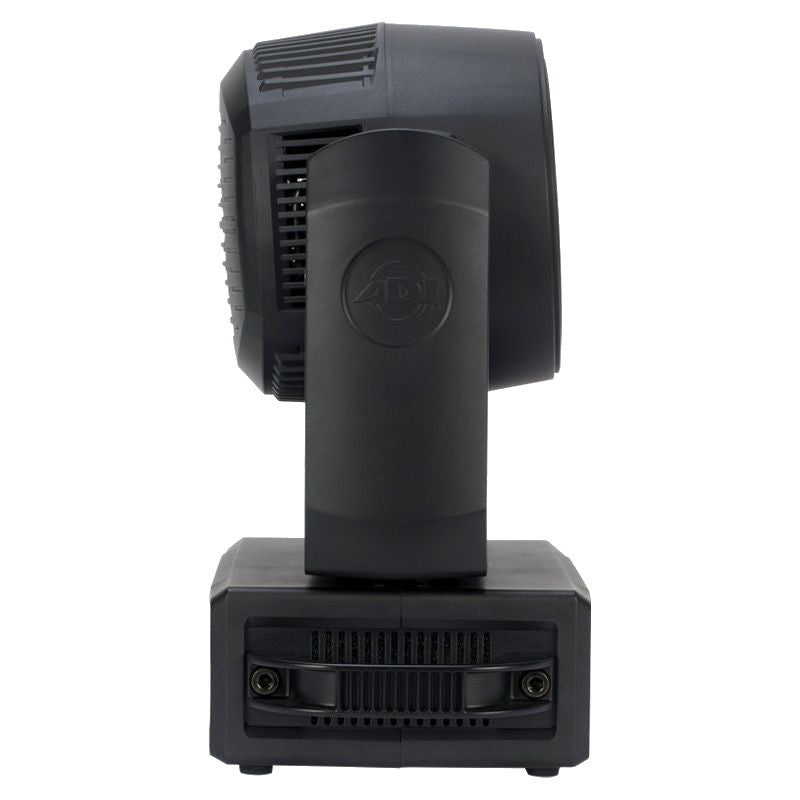

ADJ Focus Flex L7 7x40W RGBL LED Moving Head
ADJ Focus Flex L7 7x40W RGBL LED Moving Head
SoundPro Item: 135405 | Part Number: FOC734
Usually ships in 5-7 business days
- Moving Head Pixel Wash with Pixel Effects
- Electronic Strobe / Dimmer
- Pan/Tilt: 540/630 x 260
- Beam Angle: 4 ~ 35°
- Field Angle: 6 ~ 55°
- Color Calibrated Pixels so units match from batch to batch
- Virtual CMY DMX Control Modes
- Virtual Foreground and Background Color Wheel Control
- Selectable LED Refresh Rates (900 Hz~25K Hz)
- Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
- 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
- 0-100% smooth dimming
- Various strobe speeds
- USB firmware update port
- Fan Cooled
- Antenna for WiFLY EXR Wireless DMX

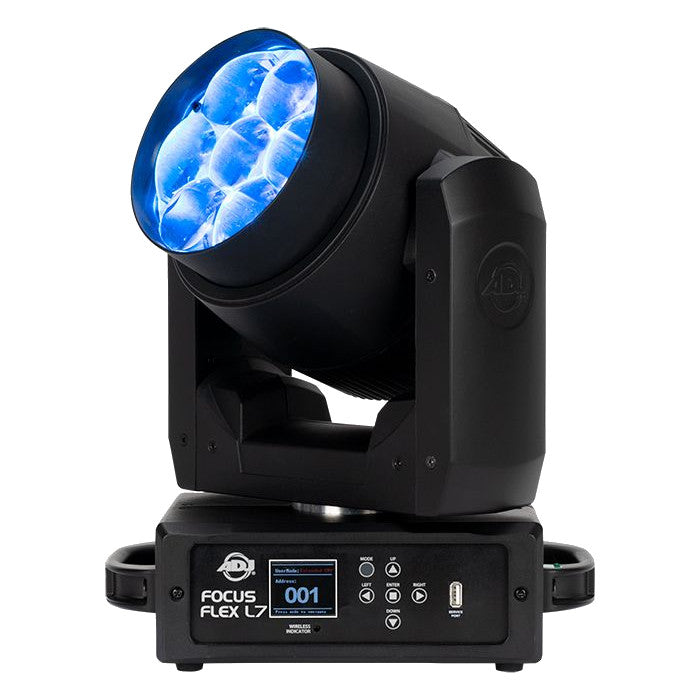

The Focus Flex L7 offers lighting designers the creative flexibility of generating vibrant washes, punchy beams, and eye-catching pixel effects from one compact and quick automated luminaire. Powered by an array of seven potent 40-Watt 4-in-1 RGBL color mixing LEDs, each of which can be controlled independently, it offers a motorized zoom function providing the versatility of a variable beam angle of between 6 and 55-degrees. With a variety of DMX mode options appropriate to different applications, it offers virtual CMY color mixing and virtual foreground and background color wheel control as well as a choice of seven different DMX modes ranging from 16 to 50 channels.
- Source
- 7 x 40-Watt RGBL LEDs (50,000 hr.)
- CRI: 83.4
- CT: 2700K ~ 10,000K
- 14,329 lux / 4° beam @ 16’ (5m)
- 367 lux / 35° beam @ 16’ (5m)
- Lumens: 3500 (Zoomed Out, Full On)
- Colors
- Virtual CMY DMX Control Modes
- Virtual Foreground and Background Color Wheel Control
- Built-In Color Macros
- 2,700K ~ 10,000K Linear White Color Temperature Control
- Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
- Control
- 7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels
- Color LCD display with 6-button function menu
- Control Mode: DMX512 or internal programs
- Built-In Effect Pixel Programs with Speed and Fade Control
- Various strobe speeds
- USB firmware update port
- With Wired Digital Communication Network
- RDM (Remote Device Management)
- WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)
- Pan/Tilt
- Pan: 540/630 degrees
- Tilt: 265 degrees

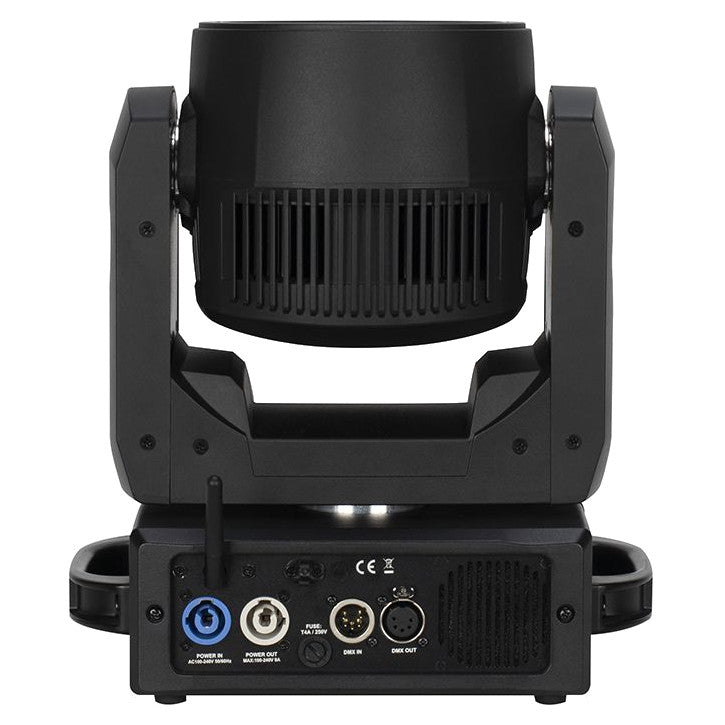

- Connections
- DMX Connections: 5-pin XLR In/Out
- Power Connections: Indoor Locking Power In/Out
- Electrical
- Multi-voltage operation: 90-240V, 50/60Hz
- Max power consumption: 337W @120V
- Dimensions (LxWxH)7x9.8x13.7” (178.8x250x349.2mm)
- Weight15.5lbs (7kg)
- Approvals / Rating
- CE Certified / ETL Approved
- IP20
