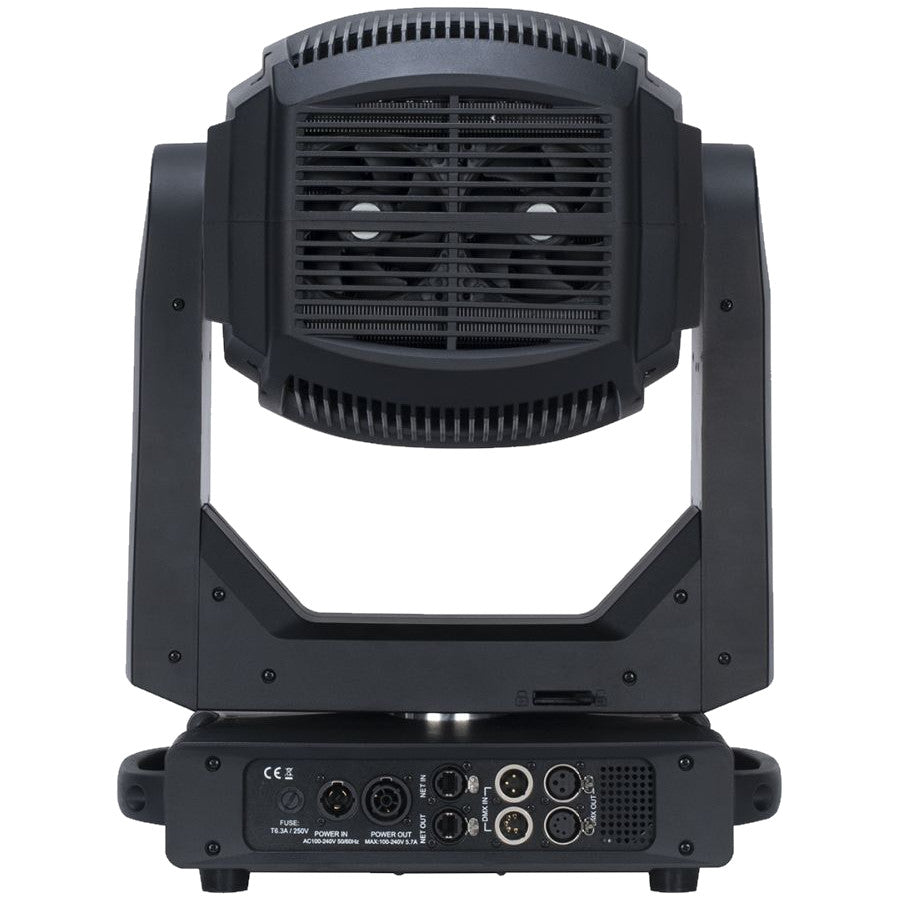

  • ADJ Focus Profile 400W LED Moving Head back

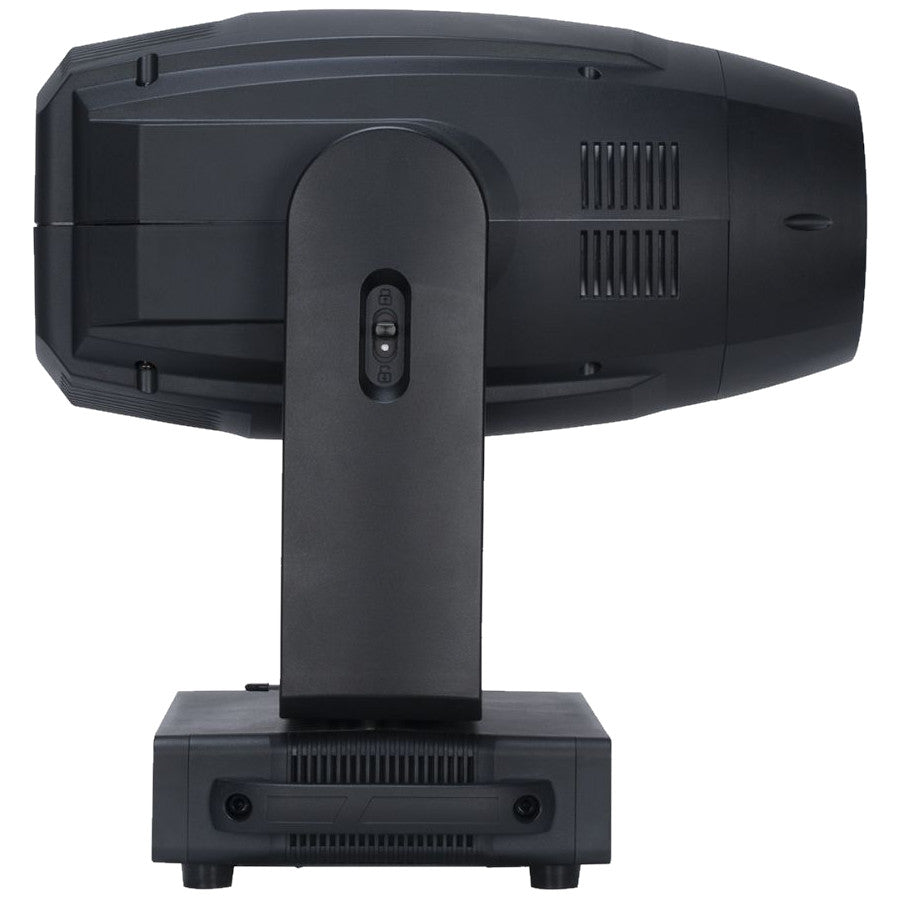

  • ADJ Focus Profile 400W LED Moving Head profile

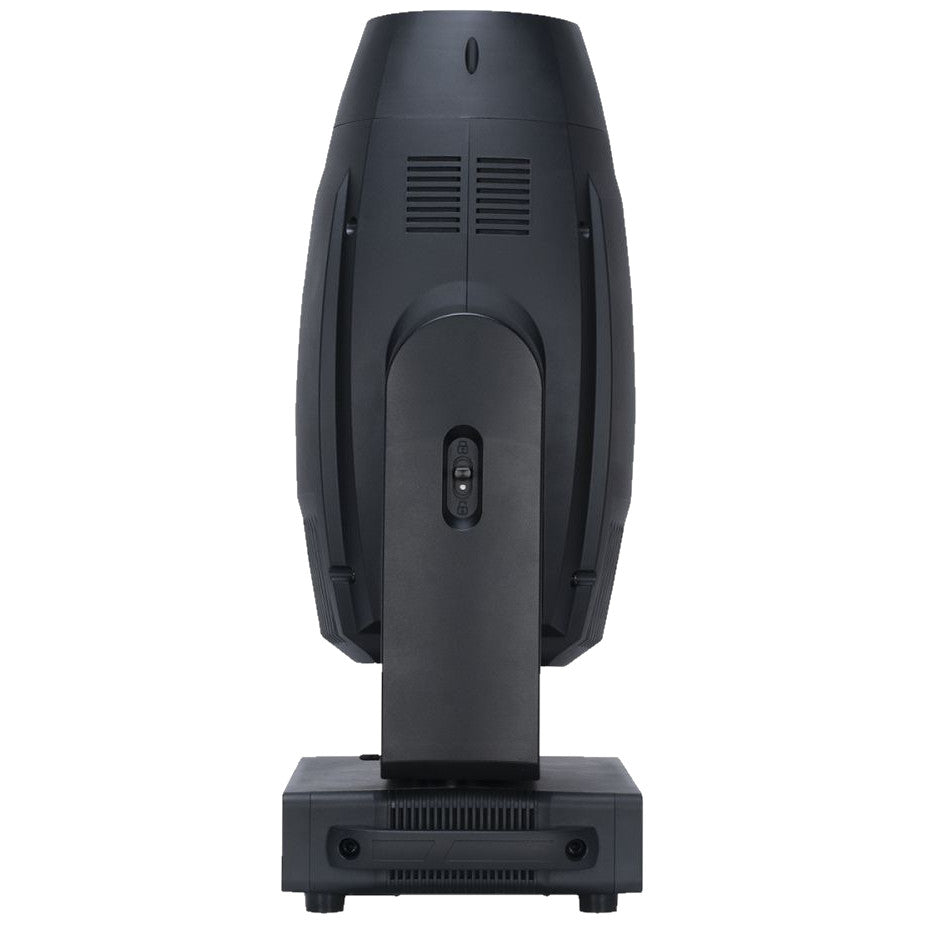

  • ADJ Focus Profile 400W LED Moving Head side
  • ADJ Focus Profile 400W LED Moving Head rotating frame shutters
  • ADJ Focus Profile 400W LED Moving Head animation wheel
  • ADJ Focus Profile 400W LED Moving Head 6 facet linear prism
  • ADJ Focus Profile 400W LED Moving Head 3 facet circular prism
  • ADJ Focus Profile 400W LED Moving Head frost filter
  • ADJ Focus Profile 400W LED Moving Head lifestyle
1 10

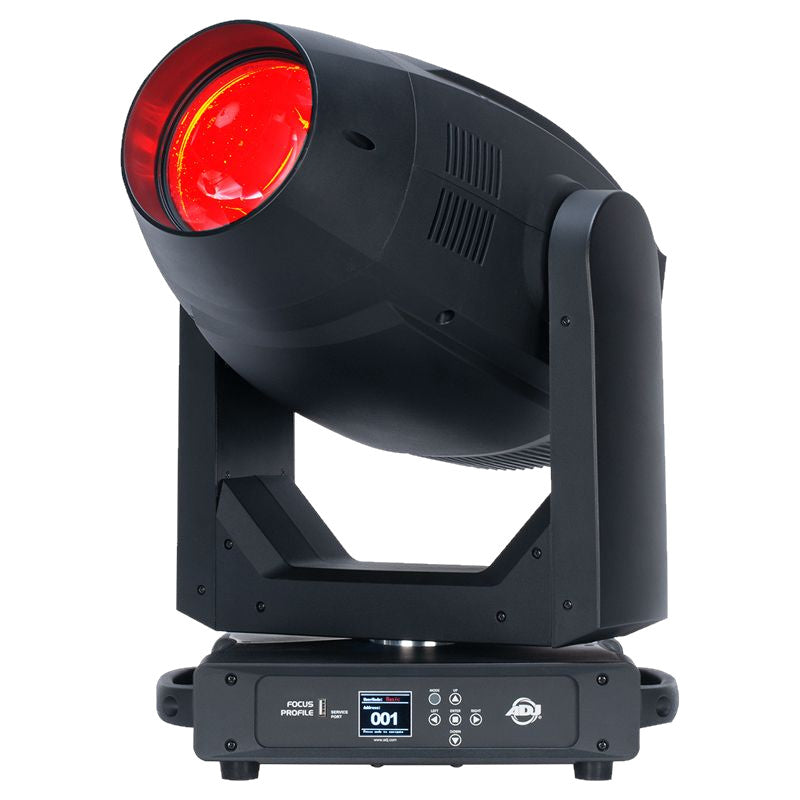

ADJ Focus Profile 400W LED Moving Head

ADJ Focus Profile 400W LED Moving Head

SoundPro Item: 134018 | Part Number: Focus Profile

$5,999.99
$8,799.95 $5,999.99
Your Price Sold out
MSRP: $8,799.95 | MAP: $5,999.99

Usually ships in 5-7 business days

  • 400W LED engine
  • 4 rotating framing shutters
  • Full CMY color mixing
  • Variable CTO (2700K to 6700K)
  • Two prism effects
Log in or register for YOUR best price

The ADJ Focus Profile is a feature-packed moving head profile fixture with framing shutters. It features a potent 400W LED engine, 4 rotating framing shutters, full CMY color mixing, variable CTO (2700K to 6700K), and two prism effects.

The brightest and most feature-rich Focus Series fixture to date, the Focus Profile is a professional caliber automated profile luminaire designed for theatrical, concert touring and event production applications. It features a potent 400W LED engine, with a native color temperature of 6,700K and a CRI in excess of 70, coupled with an exhaustive collection of beam-shaping tools. These include four, independently controllable, rotating framing shutter blades, which can be used to precisely shape the light output. The unit offers full CMY color mixing together with variable CTO color temperature control (2700K to 6700K) and an additional color wheel loaded with 6 dichroic filters comprised of four primaries together with CTB and CRI filters. Two separate GOBO wheels feature 7 replaceable, indexed-rotating GOBOs, and 8 static GOBOs, respectively, while two bi-directional rotating prisms (3-facet and 4-facet) allow for the creation of a wide variety of aerial effects. Motorized focus, iris and zoom (7 – 45°) together with a replaceable (medium) frost filter and an animation wheel complete the lineup of features offered by this powerful and versatile luminaire.

View full details

Specifications

Dimensions
Width
10.2" (259mm)
Vertical Height
26.1” (664mm)
Electrical
Electrical/Thermal
AC 100-240V - 50/60Hz
Max Power Consumption
560W
Optics
Gobos
(2) Gobo Wheels, #1 - (7) Interchangeable Rotating-Indexing Gobos, #2 - (8) Static-Stamped Gobos
Construction
Color
Full CMY color mixing, Variable CTO (2700K to 6700K), Colors Wheel with 6 dichroic colors
Environmental
Max Housing Temperature
136°F (58°C)
Shipping
Weight
61.2 lbs. (27.75kg)
Identifiers
Length
15.7" (400mm)
General
Source
400W LED Engine, 20,000 Hour Average LED Life
Photometric Data
20,000 Total Lumens, 6,700K, >70CRI (without CRI Filter), 6,200K >87CRI (with CRI Filter), 44,330 LUX 4,118 FC @16.4’ (5m) (7.32° Beam), 1,767 LUX 164 FC @16.4’ (5m) (45° Beam)
Effects
4 Rotating Framing Shutters, +/-60°, plus shape rotation, 3-Facet Circular & 4-Facet Linear Rotating Prisms, Replaceable Medium Frost Filter, Animation Wheel, Motorized Zoom (7~45-degrees), Motorized Focus, Motorized Iris, Electronic Dimming & Strobe (1-20Hz)
Control/Connections
(3) DMX Channel Modes (36 / 40 / 51), RDM (Remote Device Management), 6 Button Touch Control Panel, Full Color 180° Reversible LCD Menu Display, 8 / 16 Bit Resolution Adjustable Movement, 3 & 5 pin XLR DMX In/Out, RJ45 Ethernet In/Out (Art-NET), Locking In/Out power connections, With Wired Digital Communication Network
Pan/Tilt
Pan & Tilt Locks
DB Rating @ 3ft.
49dB
BTU
0.53
BTU/H
1,909.60
Approvals/Ratings
CE | ETL, IP20
Movement
Pan
540-degrees
Tilt
270-degrees
Thermal
Max Ambient Temperature
-13°F to 113°F (-25°C to 45°C)
