Specifications
Dimensions
Gobo Size
Outer: 23mm/Inner:19mm/Thickness: 0.5mm
Dimensions (LxWxH)
9.3" x 6.8" x 15.2"
Electrical
Multi-voltage Operation
100-240V, 50Hz/60Hz
Power Consumption
180W
Optics

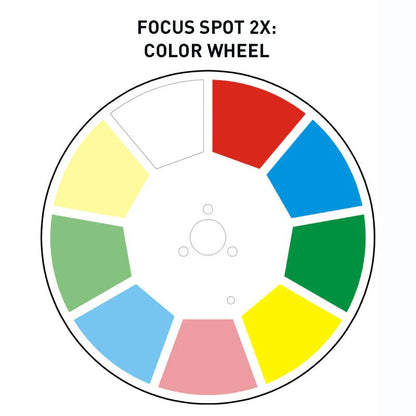

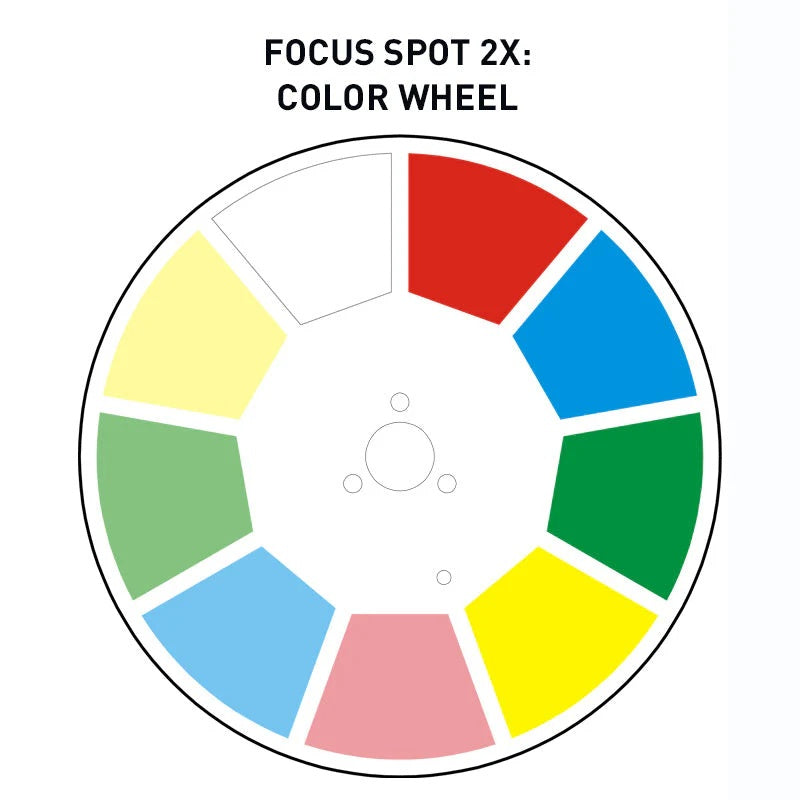

Color Wheel
8 Colors + White & Split Colors

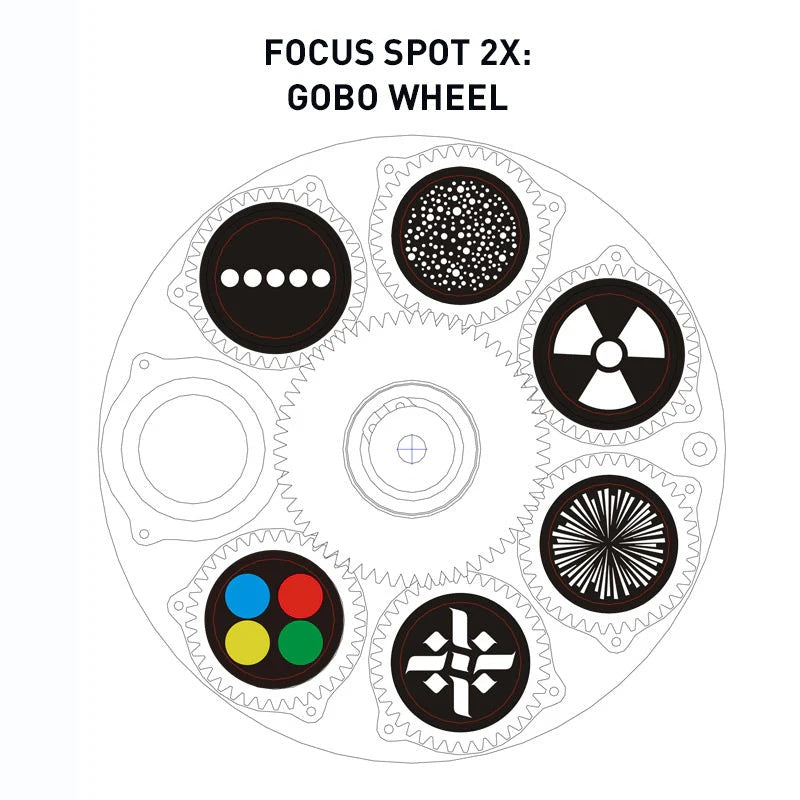

GOBO Wheel

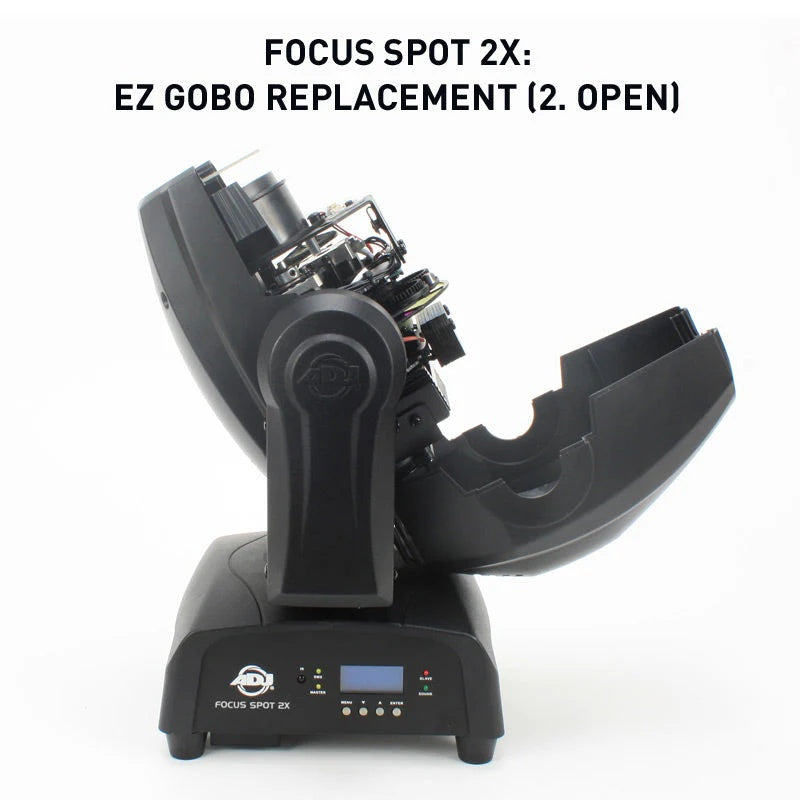

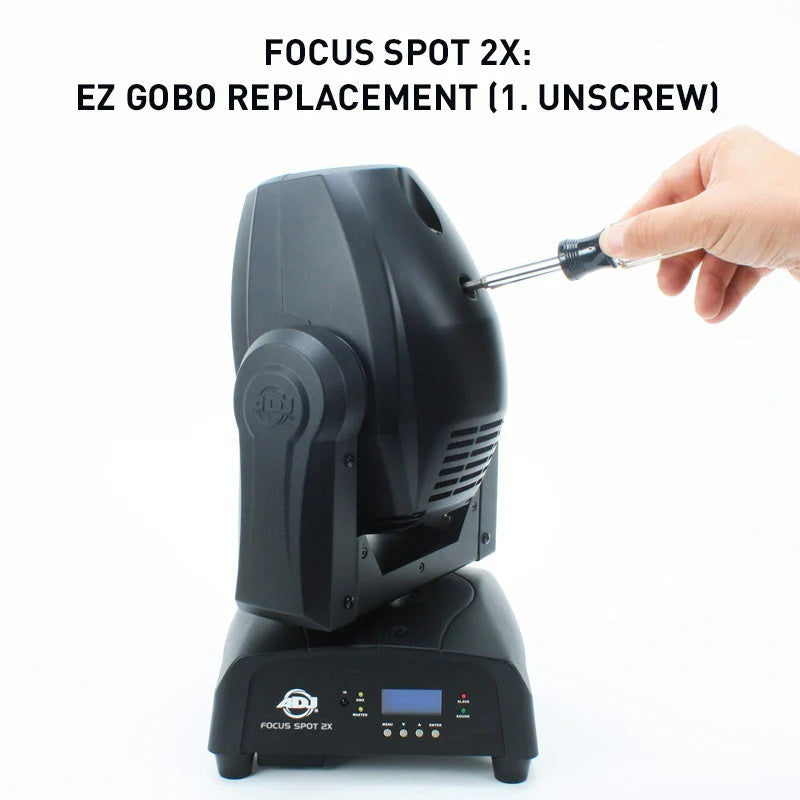

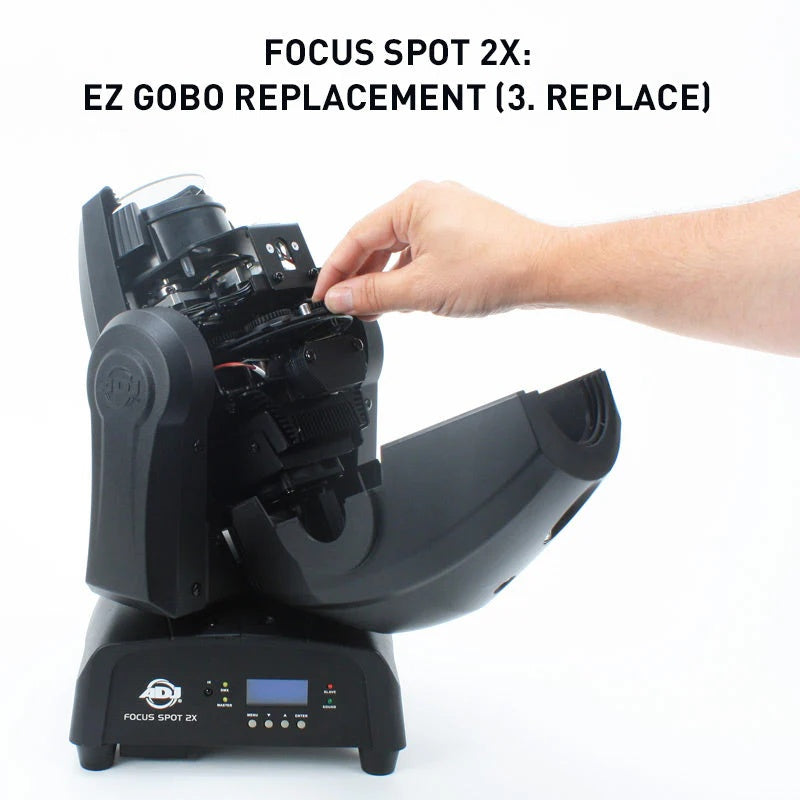

6 Rotating, replaceable Gobos + Spot, Gobo Indexing, EZ Gobo replacement with hinged head cover, Gobo Shake effect
Prism Wheel
6-facet circular prism, 6-facet linear prism
Connectivity

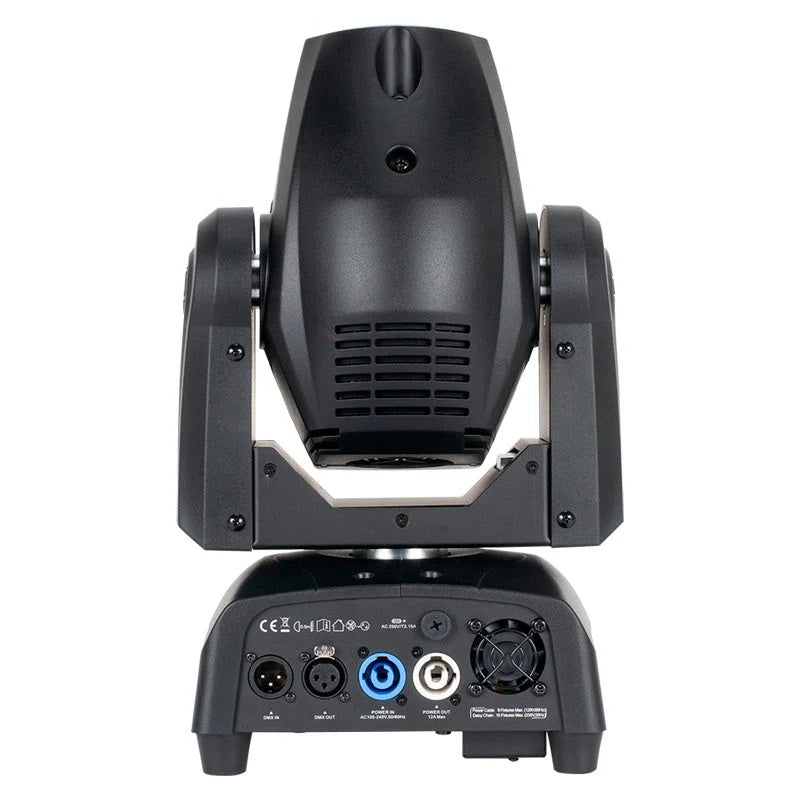

Connections
3-pin DMX In/Out, Twist locking power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X’s @ 120V and 16 Focus Spot 2X’s @ 230V)
Shipping
Weight
14.5 pounds
General
Light Source
1 x 100W Cold White LED (7600°K, 50,000 hr.), 1 x 3W UV LED
3 Operational Modes
Sound Active, Show Mode, & DMX Controlled
Control
Primary/Secondary, 4 Built-in lighting shows, 16 & 18 DMX channel modes, 5 Dimmer Curves, 4-Button DMX LED menu, Stepper motors with micro stepping, With Wired Digital Communication Network
Electronic Dimming
0% - 100%
Pan / Tilt
Fast and precise Pan/Tilt Movements, 16-Bit Fine Pan/Tilt control, Pan/Tilt Invert Mode, 4, Built-In, Pan/Tilt Target Modes
Movement
Pan
540-degree
Tilt
270-degree
