Specifications
Dimensions
Metal GOBO Size
23mm (outer), 19mm (viewable), 0.5mm (thickness)
Glass GOBO Size
23mm (outer), 19mm (viewable), 1.6mm (thickness)
Dimensions (LxWxH)
14.18" x 9.21" x 22.13"
Electrical
Multi-voltage Operation
AC 90-240V, 50/60Hz
Max. Power Consumption
380W
Optics
Motorized Zoom
9~28 degrees
2 Prism FX
rotating 6-facet linear and rotating 6-facet circular

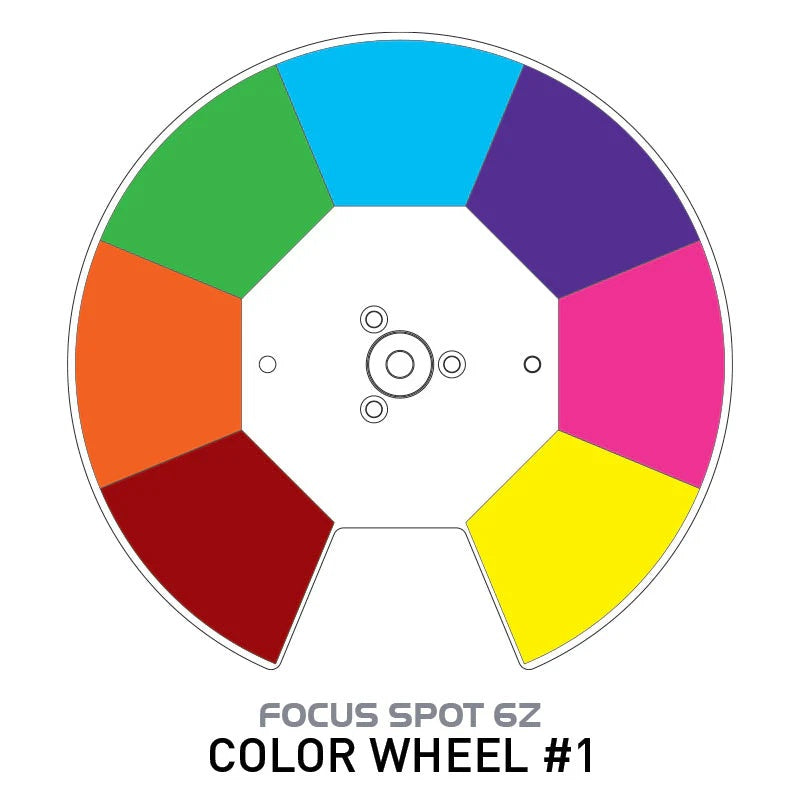

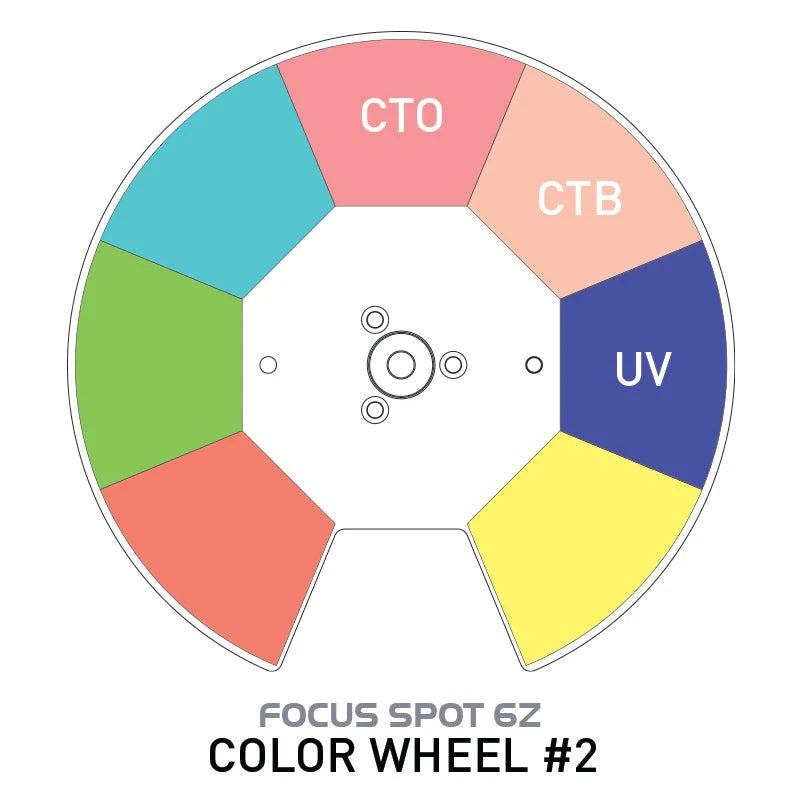

Color Wheel
7 dichroic colors + white

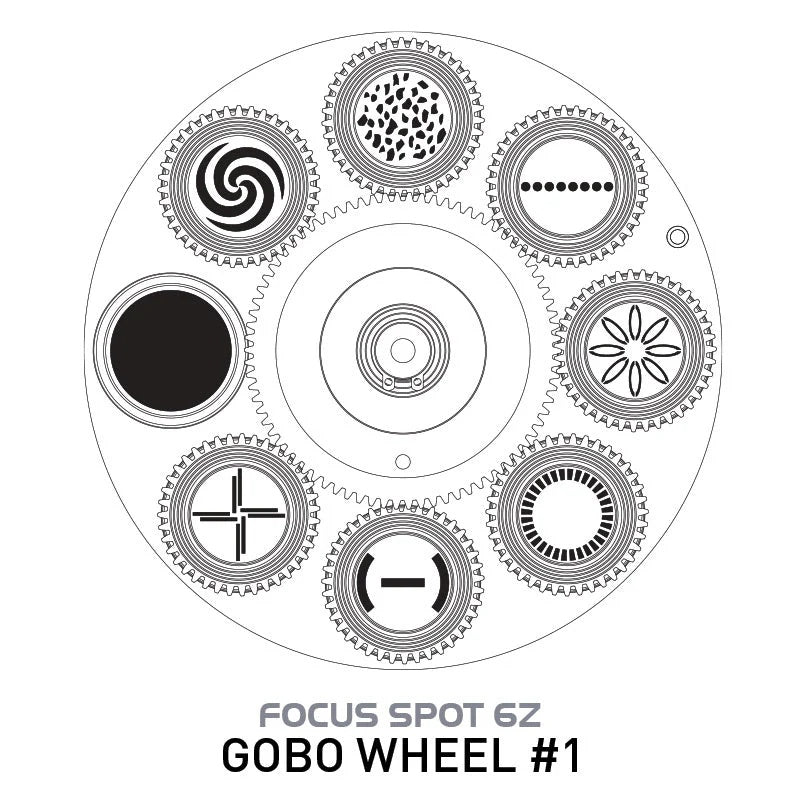

GOBO Wheel 1
7 GOBOS + open

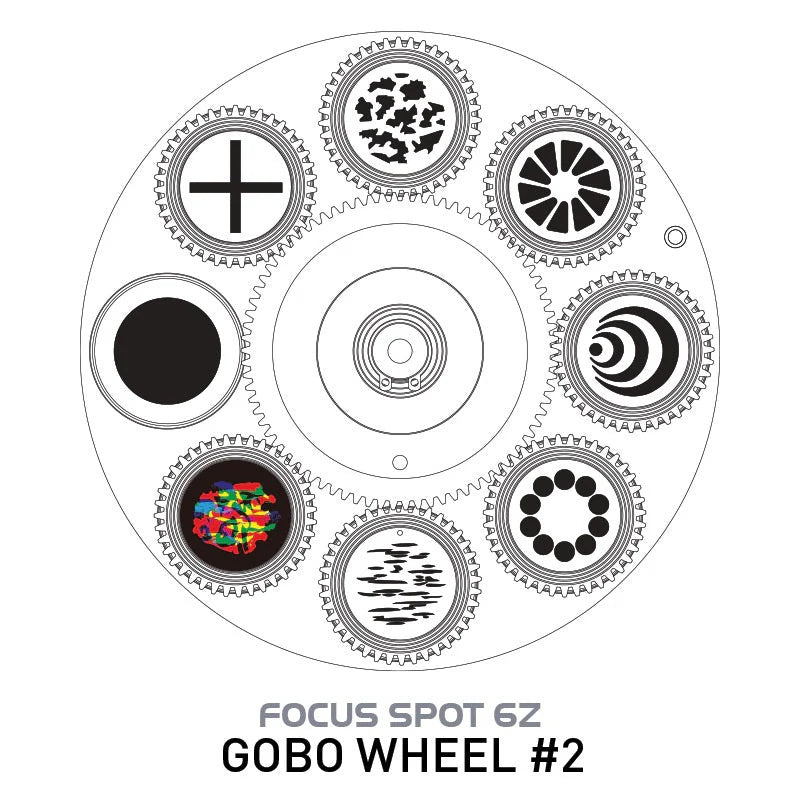

GOBO Wheel 2
7 GOBOS + open
GOBO Wheels
GOBO Morphing, GOBO Shake Effect
Prism Wheel 1
rotatable 6-facet linear
Prism Wheel 2
rotatable 6-facet circular
Prism Wheel
Each Prism is indexable

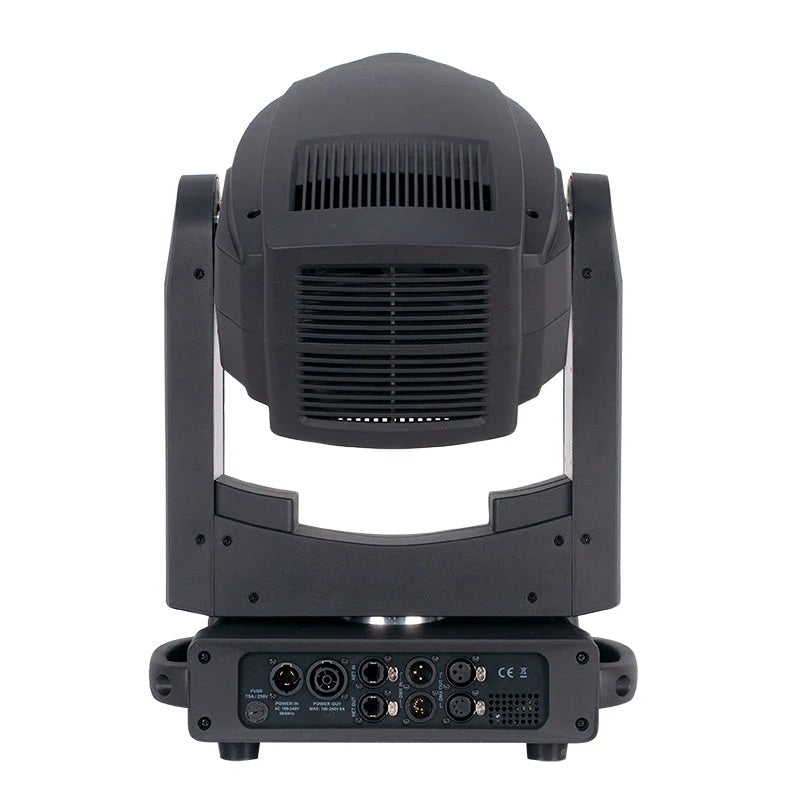

Connectivity
Connections
RJ45 in/out connections for Art-Net & sACN control
Controls
2 DMX Channel Modes
22/25 Channels
DMX Connections
3-pin & 5-pin XLR in/out
Shipping
Weight
43.6 pounds
General
Light Source
300W Cool White LED Engine (50,000 hr.)
Frost 1
heavy frost for wash effect
Frost 2
light frost creates lightly blurred edges for GOBO and Prism FX
Control
Color LCD display with 6-button function menu, 0-100% Smooth Dimming, Various Strobe Speeds, USB firmware update port, With Wired Digital Communication Network, RDM (Remote Device Management)
Control Mode
DMX512 or internal programs
6 Dimming Curve Modes
Standard, Stage, TV, Architectural, Theatre, Stage 2
Pan / Tilt

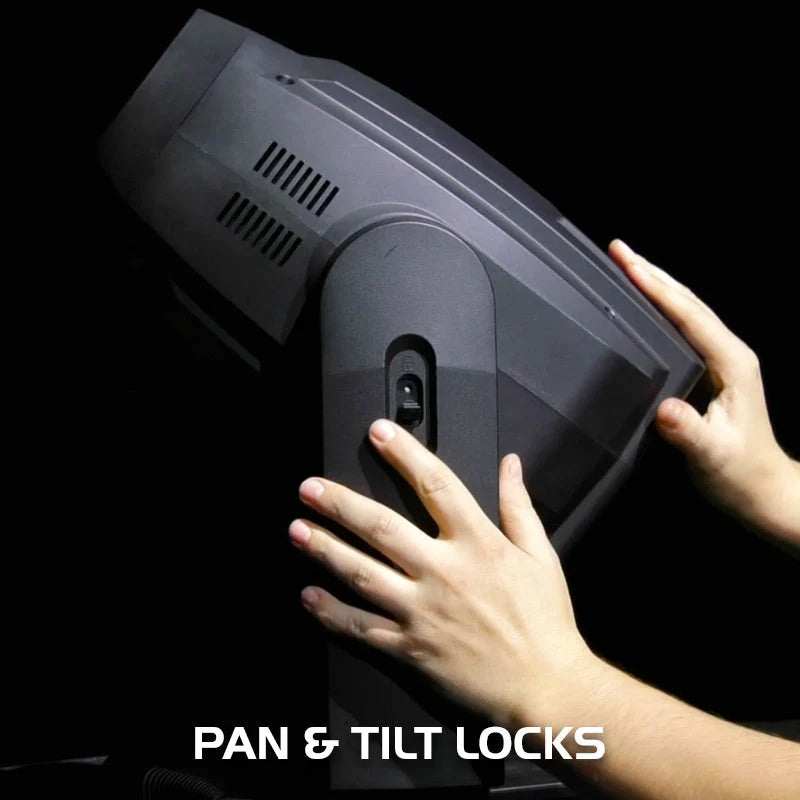

16-bit fine Pan & Tilt, Pan & Tilt locks
Power Connections
PowerLock in/out to daisy chain power
Movement
Pan
630 degrees
Tilt
270 degrees
