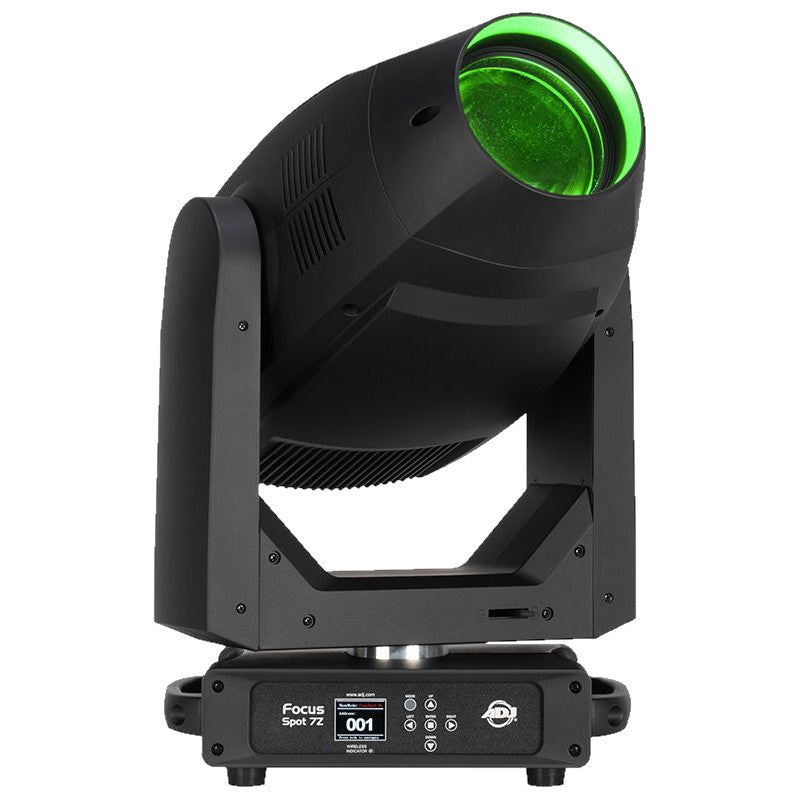

• ADJ Focus Spot 7Z Moving Head

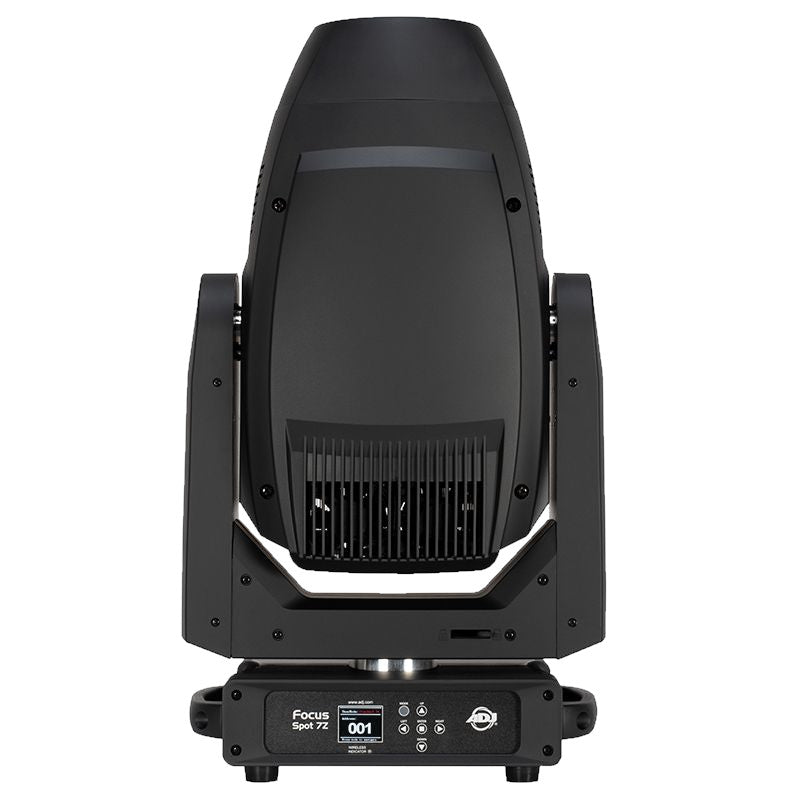

  • ADJ Focus Spot 7Z Moving Head top

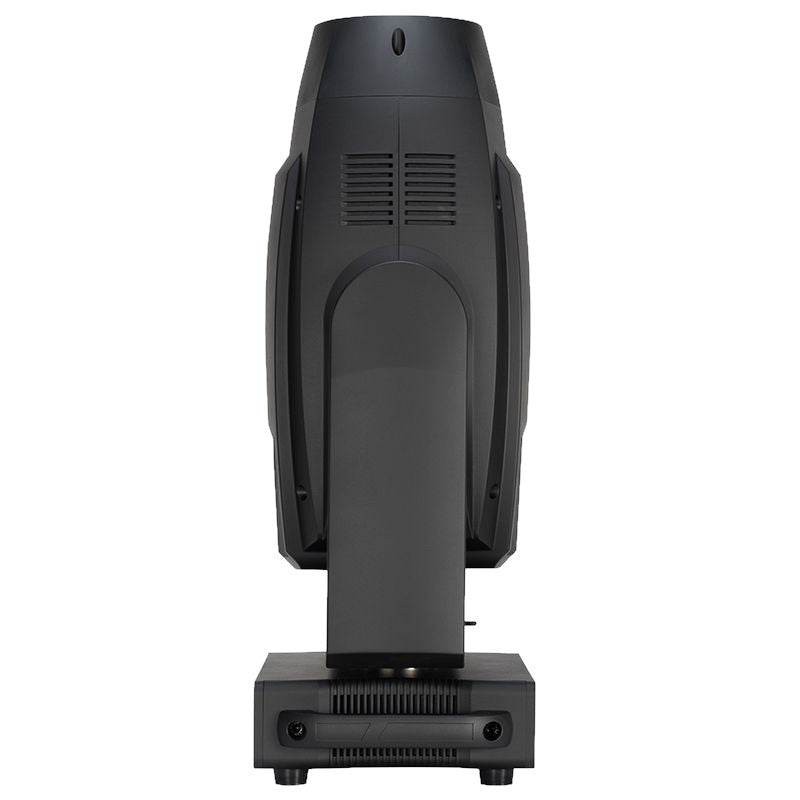

  • ADJ Focus Spot 7Z Moving Head side

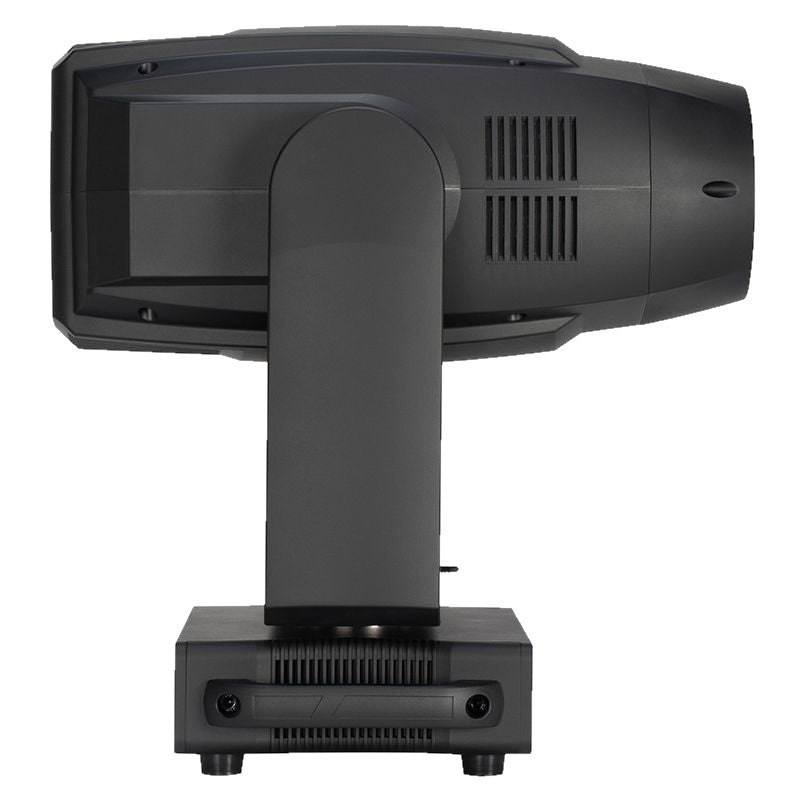

  • ADJ Focus Spot 7Z Moving Head profile

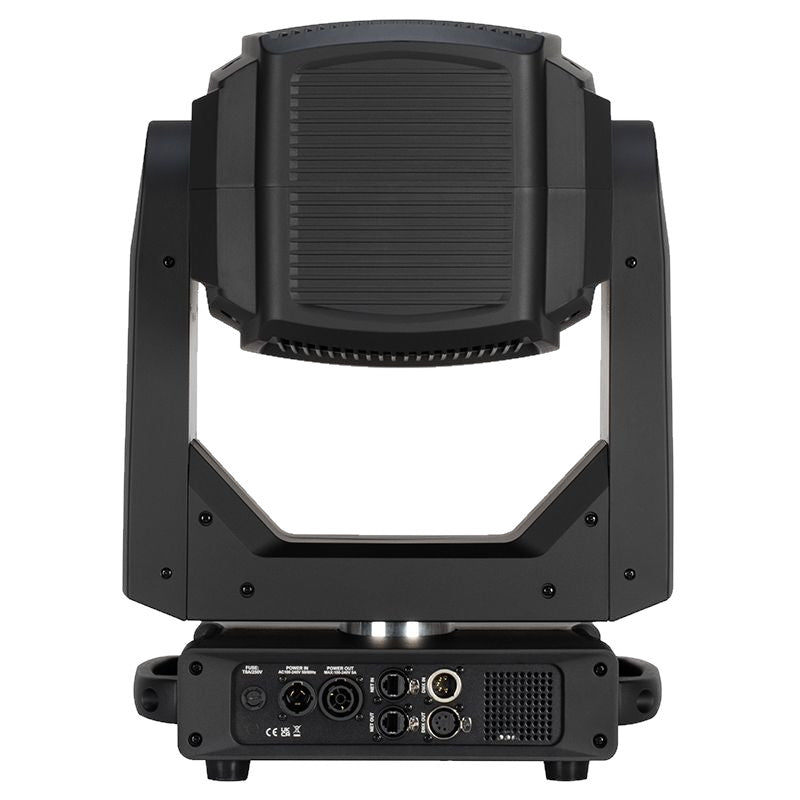

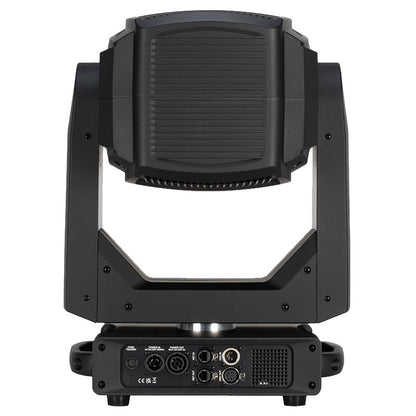

  • ADJ Focus Spot 7Z Moving Head back

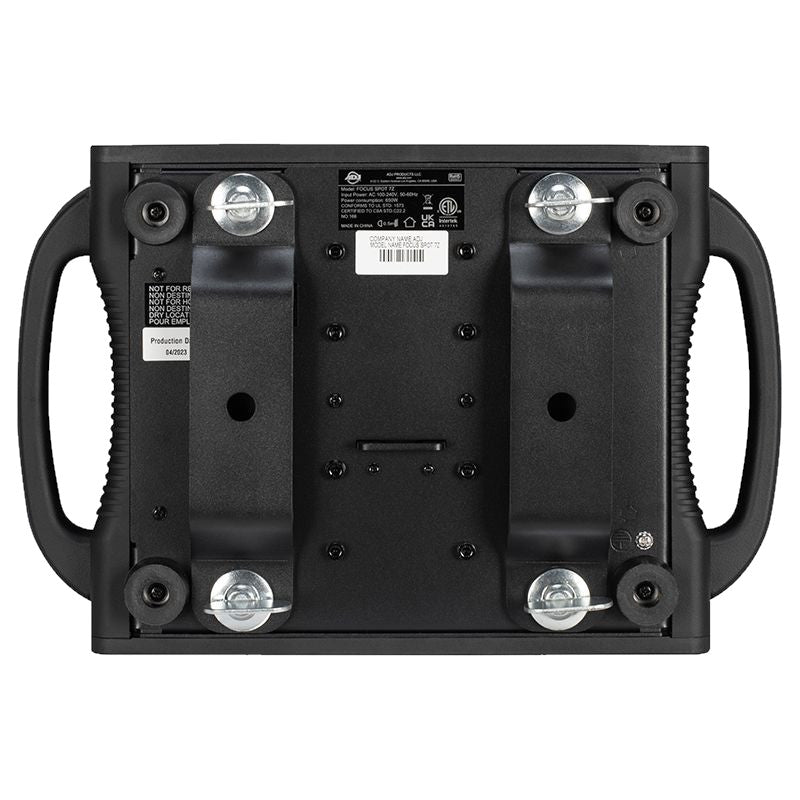

  • ADJ Focus Spot 7Z Moving Head panel
  • ADJ Focus Spot 7Z Moving Head lifestyle
  • ADJ Focus Spot 7Z Moving Head spot
  • ADJ Focus Spot 7Z Moving Head wash
  • ADJ Focus Spot 7Z Moving Head 4 facet circular prism
  • ADJ Focus Spot 7Z Moving Head 6 facet linear prism
  • ADJ Focus Spot 7Z Moving Head animation wheel
  • ADJ Focus Spot 7Z Moving Head lifestyle 2

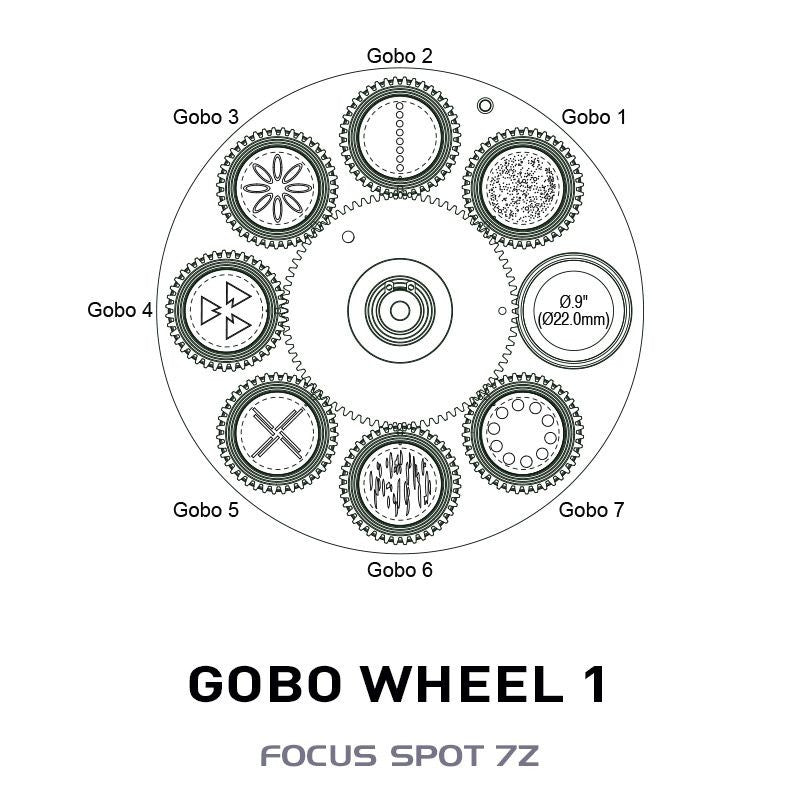

  • ADJ Focus Spot 7Z Moving Head Gobo Wheel 1

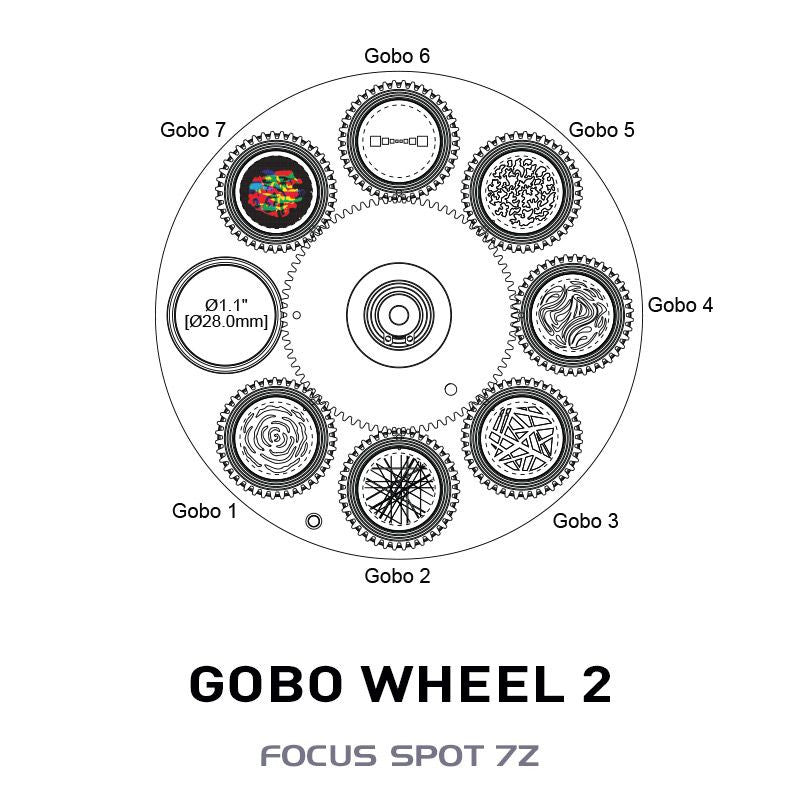

  • ADJ Focus Spot 7Z Moving Head Gobo Wheel 2
  • ADJ Focus Spot 7Z Moving Head Animation Wheel
  • ADJ Focus Spot 7Z Moving Head
1 17

ADJ Focus Spot 7Z Moving Head

ADJ Focus Spot 7Z Moving Head

SoundPro Item: 139316 | Part Number: Focus Spot 7Z

$4,699.99
$6,999.95 $4,699.99
Your Price Sold out
MSRP: $6,999.95 | MAP: $4,699.99

Usually ships in 5-7 business days

  • Powerful, feature-packed moving head spot luminaire
  • Efficient 420W LED light engine and superior optics
  • Crisp, even projections
  • CMY + CTO color mixing
  • Animation wheel
  • Motorized zoom (6° ~ 48°)
  • Focus and iris
  • Twin GOBO wheels
  • Rotating prisms and frost filters
Log in or register for YOUR best price

Part of ADJ’s popular Focus Series of LED-powered moving head luminaires, the Focus Spot 7Z is a potent and feature-rich spot fixture. Its light source is an efficient 420W white (8,000K) LED engine, which has an average operational life of 20,000 hours. Focused through precision-engineered optics, it allows the fixture to generate a bright, punchy and even output of 20,000 Lumens.

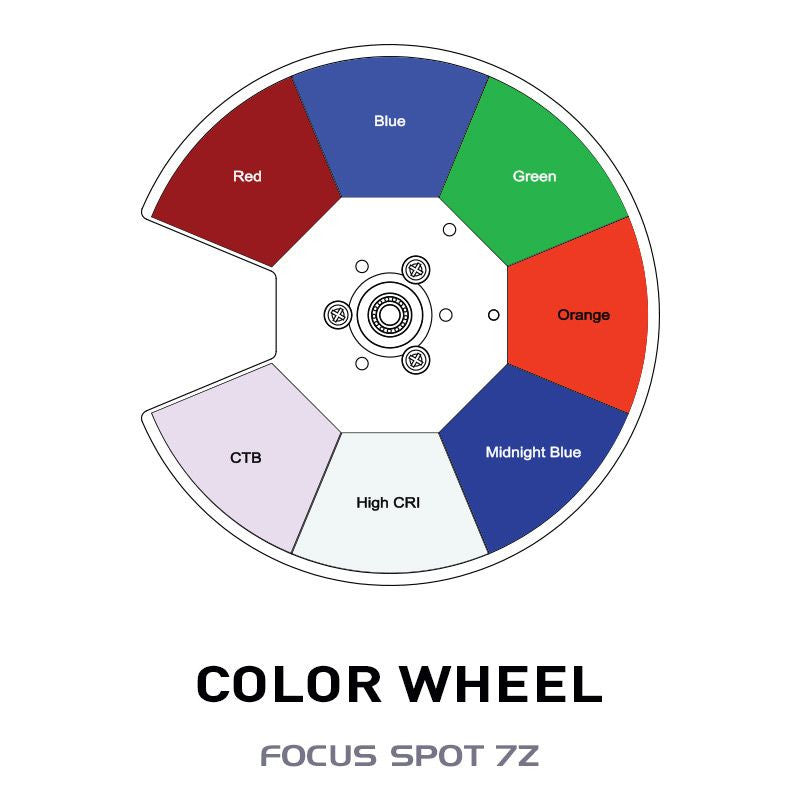

An exhaustive collection of beam-shaping tools is packed into the Focus Spot 7Z, equipping lighting designers to fully unleash their creative potential. This begins with an advanced color selection system which combines a variable CMY and CTO (2,700K to 8,000K) color mixing system with a color wheel that features seven dichroic slots (including High CRI and CRB filters).

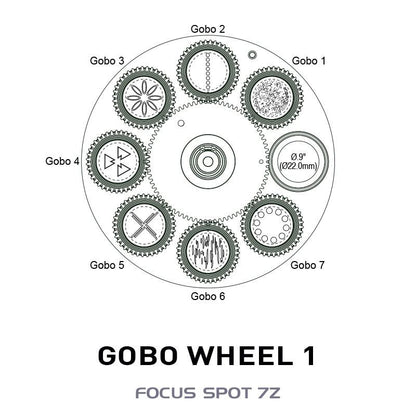

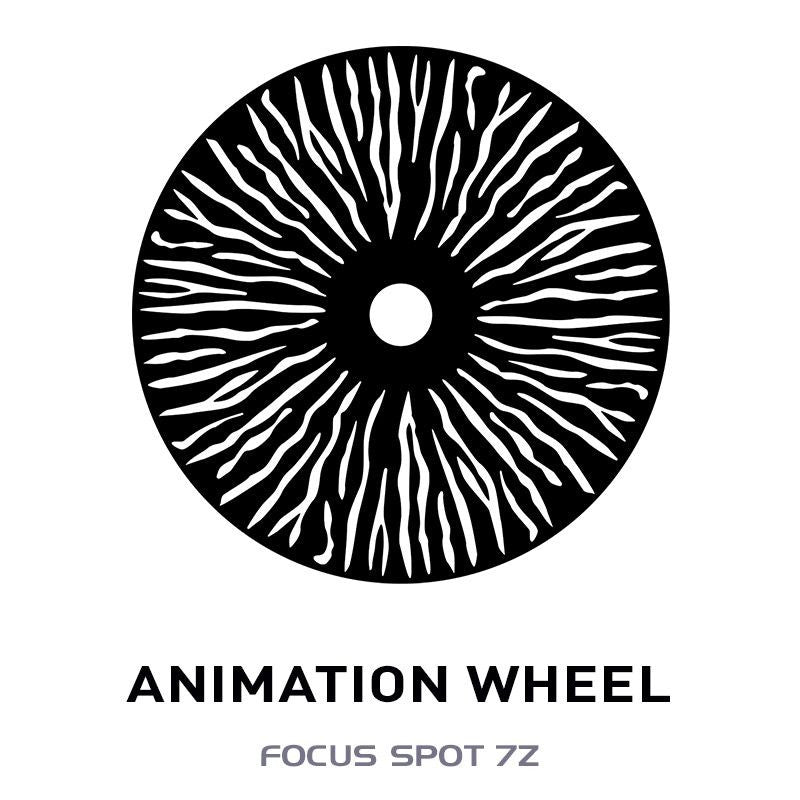

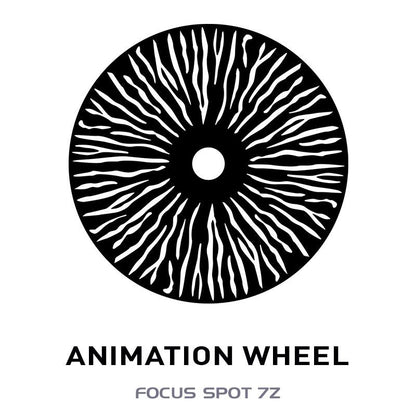

The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output).

Weighting in at only 51.7 lbs. (23.45kg), the Focus Spot 7Z is lighter and has a smaller footprint than other leading spot/wash fixtures in its class.

View full details

Specifications

Dimensions
Width
14.7” (374mm)
Vertical Height
25.7” (653mm)
Electrical
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption
524W
Optics
GOBOS
(2) Gobo Wheels, #1 - (7) Interchangeable Rotating-Indexing Glass Gobos, #2 - (7) Interchangeable Rotating-Indexing Glass Gobos
Construction
COLOR
Full CMY color mixing, Variable CTO (2,700K to 8,000K), Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters), CMY and Color Wheel preset macros
Environmental
Max Housing Temperature
136°F (58°C)
Shipping
Weight
55.3 lbs. (25.1kg)
Identifiers
Length
18.8” (477.5mm)
General
SOURCE
420W White LED Engine, 20,000 Hour Average LED Life
PHOTOMETRIC DATA
20,000 Total Lumens, 8,000K, >73CRI (without CRI Filter), 7,700K >85CRI (with CRI Filter), 56,513 LUX @16.4’ (5m) (6° Beam), 1,585 LUX @16.4’ (5m) (48° Beam)
EFFECTS
4-Facet Circular & 6-Facet Linear Rotating Prisms, 2 Frost Filters (Light & Heavy), Animation Wheel (Rotatable and Indexable), Motorized Zoom (6° ~ 48°), Motorized Focus, Motorized Iris, Electronic Dimming & Strobe (1-20Hz)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (30 / 34 / 45), DMX512, ArtNet and sACN protocols, WiFLY Wireless DMX Built-in, RDM (Remote Device Management) compliant, 6 Button Touch Control Panel, Full Color 180° Reversible LCD Menu Display, 8 / 16 Bit Resolution Adjustable Movement, 5-pin XLR DMX In/Out, RJ45 connectors In/Out, Locking In/Out power connections, With Wired Digital Communication Network
PAN / TILT
Pan & Tilt Locks
Center Spacing
24.0” (609.6mm)
DB Rating @ 3ft.
49dB
BTU
0.53
BTU/H
1,909.60
APPROVALS / RATINGS
CE | ETL Approved (Control #4010765), IP20
Movement
Pan
540-degrees
Tilt
270-degrees
Thermal
Max Ambient Temperature
14°F to 113°F (-10°C to 45°C)
