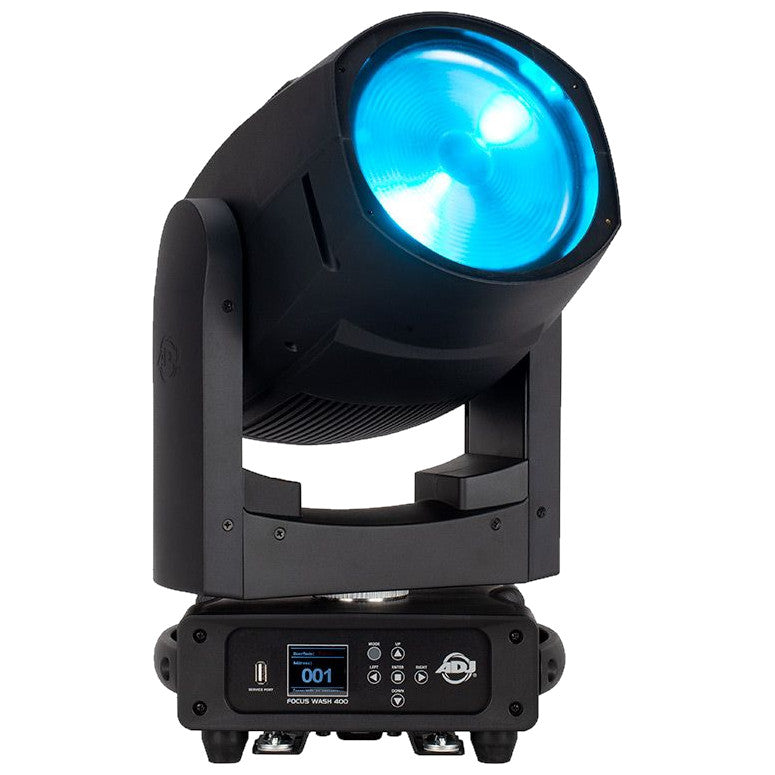

• ADJ Focus Wash 400 LED Moving Head

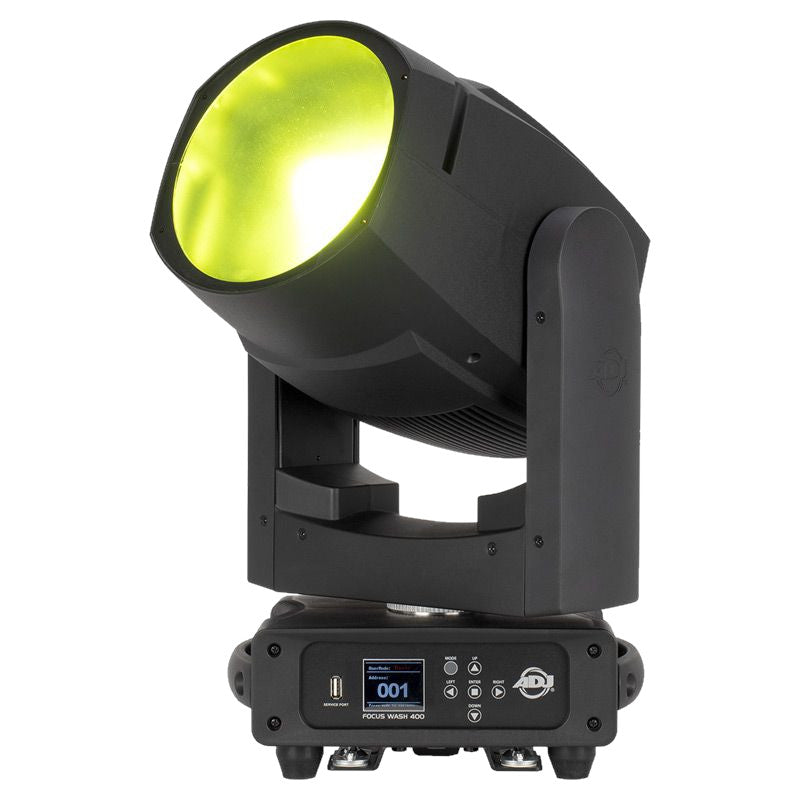

  • ADJ Focus Wash 400 LED Moving Head yellow

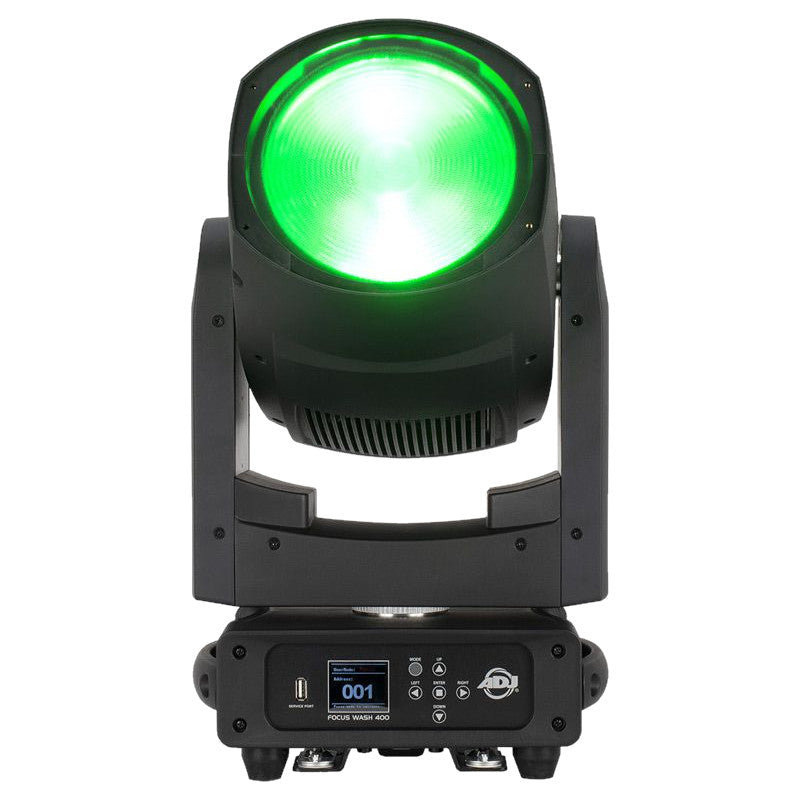

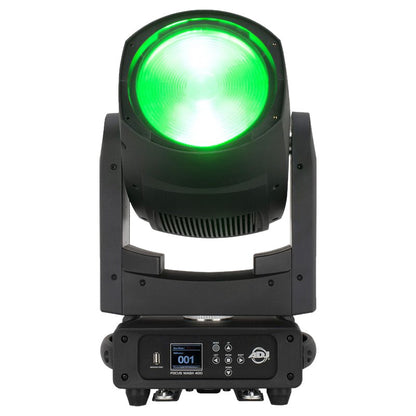

  • ADJ Focus Wash 400 LED Moving Head green

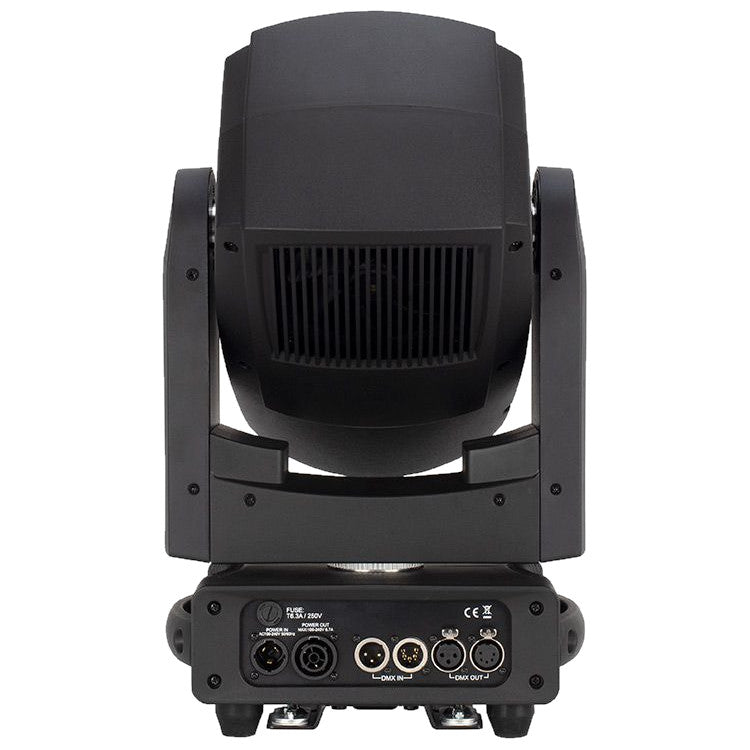

  • ADJ Focus Wash 400 LED Moving Head back
  • ADJ Focus Wash 400 LED Moving Head detail
  • ADJ Focus Wash 400 LED Moving Head snoot

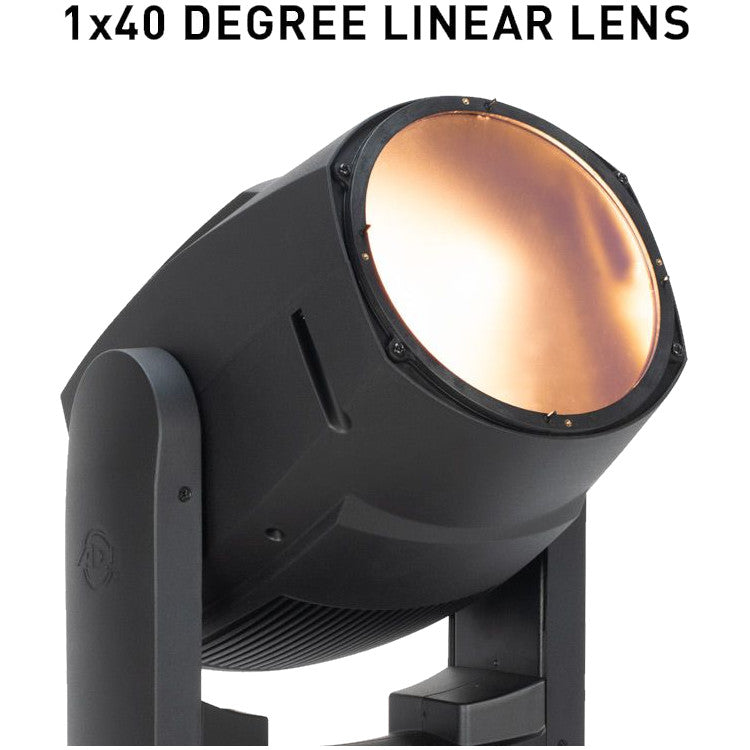

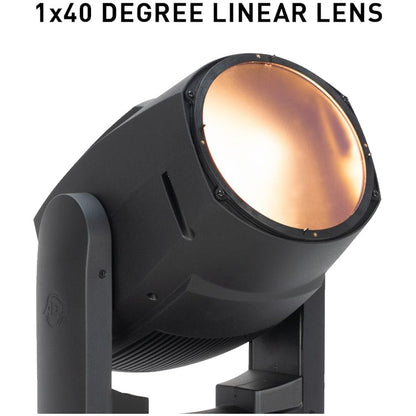

  • ADJ Focus Wash 400 LED Moving Head 1x40 linear lens
  • ADJ Focus Wash 400 LED Moving Head motorized zoom

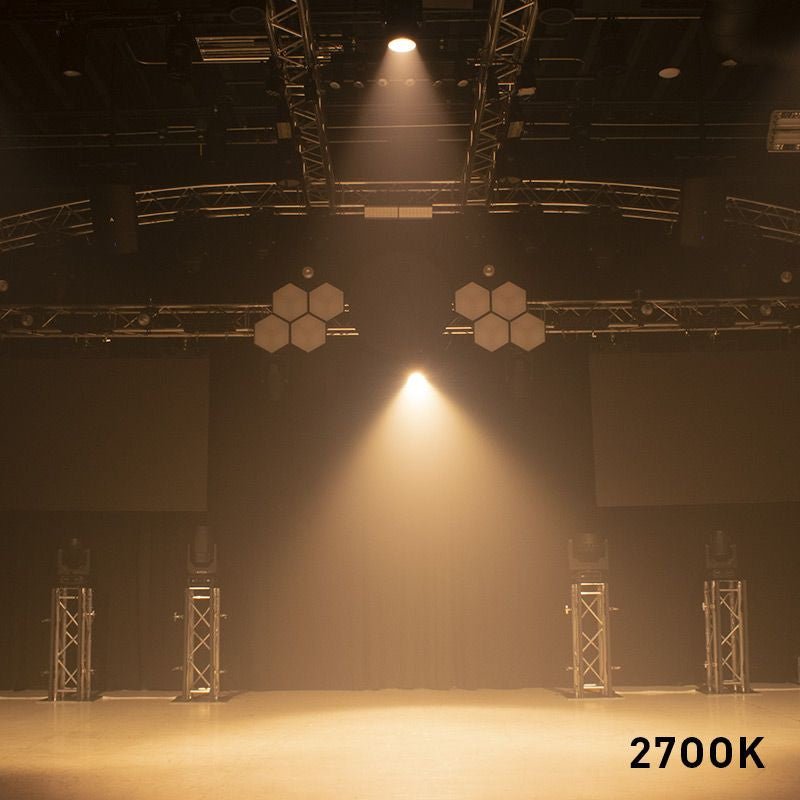

  • ADJ Focus Wash 400 LED Moving Head 2700K

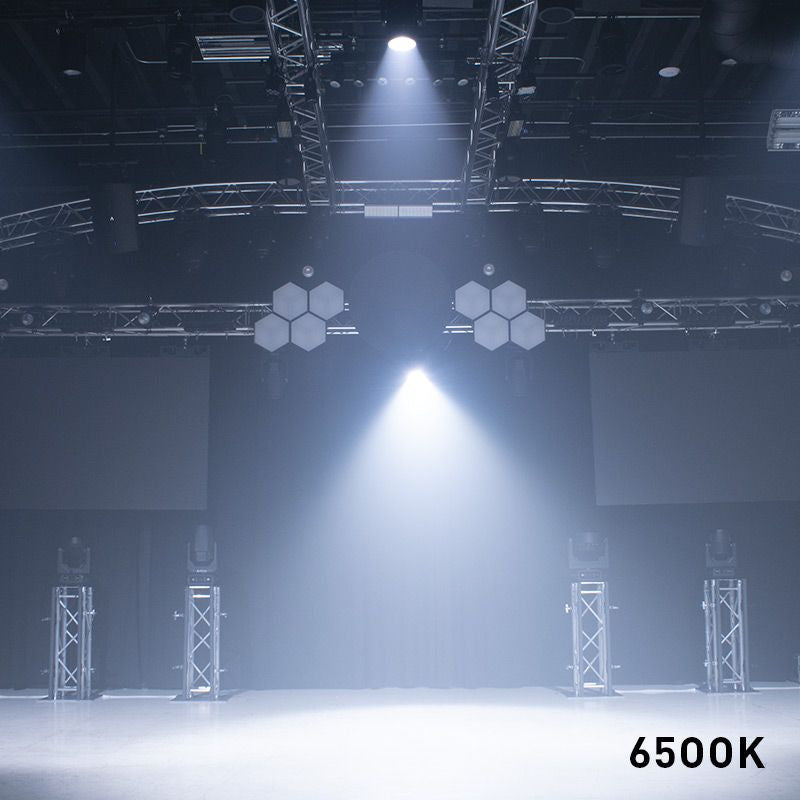

  • ADJ Focus Wash 400 LED Moving Head 6500K

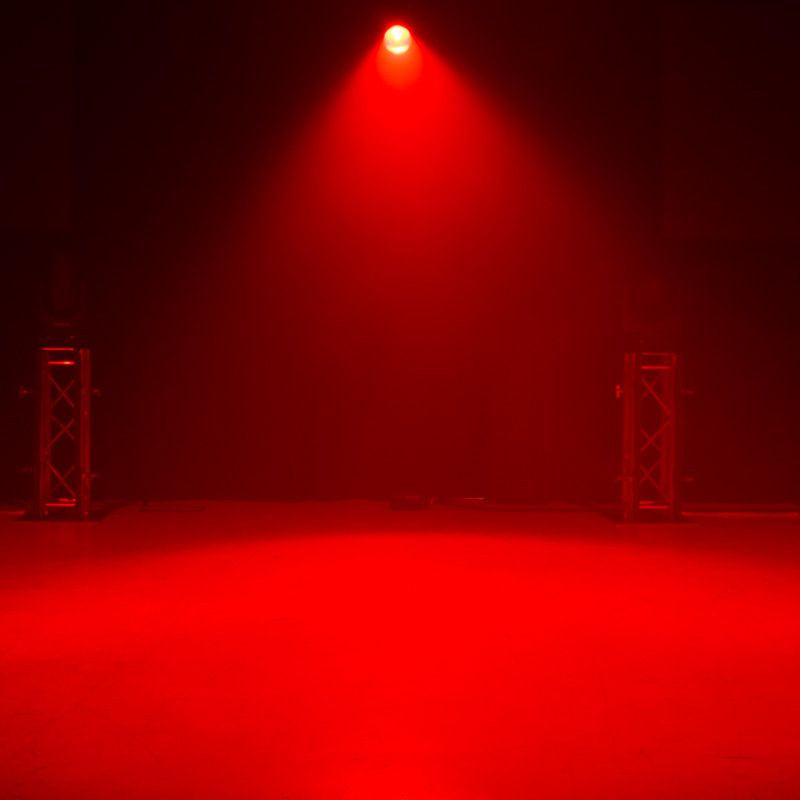

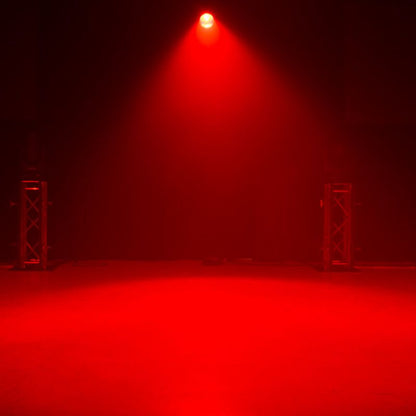

  • ADJ Focus Wash 400 LED Moving Head lifestyle
1 11

ADJ Focus Wash 400 RGBACL LED Moving Head

ADJ Focus Wash 400 RGBACL LED Moving Head

SoundPro Item: 115363 | Part Number: Focus Wash 400

$1,999.99
$2,799.95 $1,999.99
Your Price Sold out
MSRP: $2,799.95 | MAP: $1,999.99

Usually ships in 5-7 business days

  • 400W, RGBACL (Red, Green, Blue, Amber, Cyan and Lime) LED moving head wash
  • 10 to 41 degree motorized zoom,
  • Flicker free operation for TV and film
  • Linear white color temperature control from 2700K - 6500K
  • Virtual CMY color mixing
Log in or register for YOUR best price

The FOCUS WASH 400 is a RGBACL LED moving head with a motorized zoom, flicker free operation, linear white color temperature control, & virtual CMY color mixing.

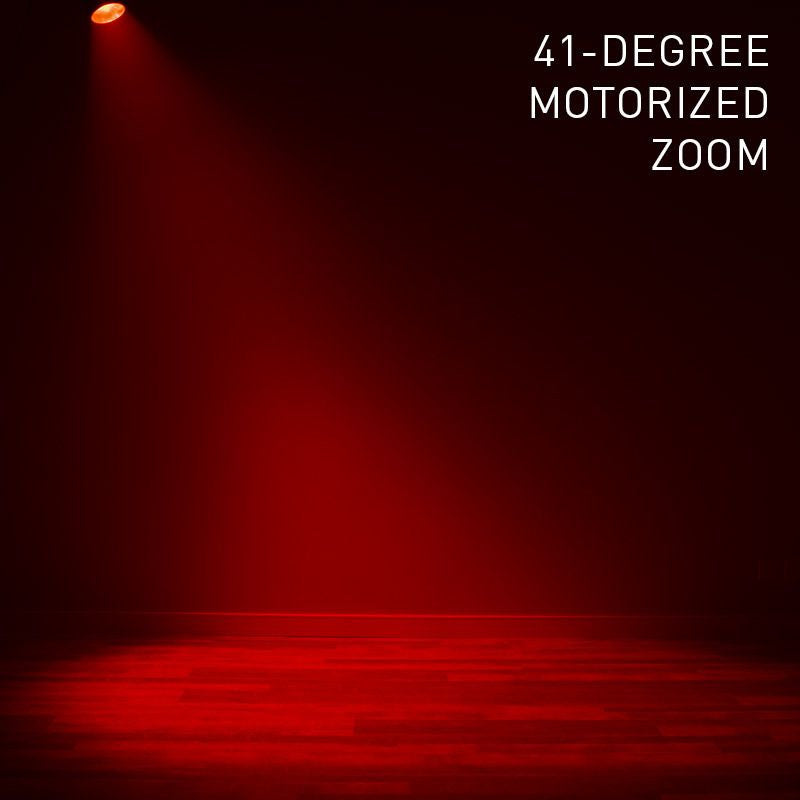

The FOCUS WASH 400 is a 400W moving head wash fixture powered by a 400W RGBACL (Red, Green, Blue, Amber, Cyan and Lime) LED engine. A 6-inch Fresnel lens with 10 to 41 degree motorized zoom produces an even field light output.

Ideal for live broadcasting and film use, this fixture has flicker free operation, adjustable refresh rates from 900Hz to 25kHz, a quiet fan mode, linear white color temperature control from 2700K - 6500K, as well as, preset white color macros (2700K, 3200K, 4000K, 5600K and 6500K). In addition to it’s tunable white feature, the Focus Wash 400 has a virtual CMY color mixing channel which allows users to choose any hue on a color picker.

The FOCUS WASH 400’s unique color engine produces a high CRI of 90+ for bright whites and a CRI R9 of 87.3 to help make red tones more vibrant. The fixture also includes, 16-bit pan / tilt movement, RGBACL color mixing LED engine, variable dimming modes / curves and strobe effects, DMX and RDM (remote device management) protocol support.

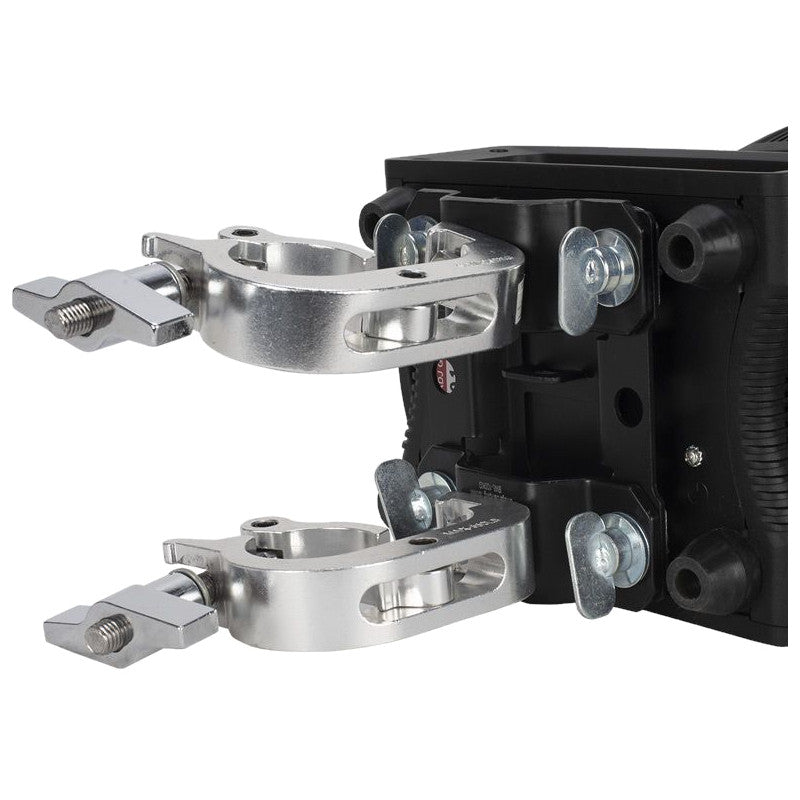

The fixture comes standard with locking power In/Out connections, locking 3-pin & 5-pin DMX In/Out sockets, color LCD menu display with 6 button control panel, multiple unit power linking, a multi-voltage universal auto switching power supply (AC100-240V), USB port to conveniently update firmware, and omega brackets with two hanging points.

View full details

Specifications

Dimensions
Width
8.4" (213.33mm)
Vertical Height
(Without Snoot)19.6" (498.1mm)
Dimensions

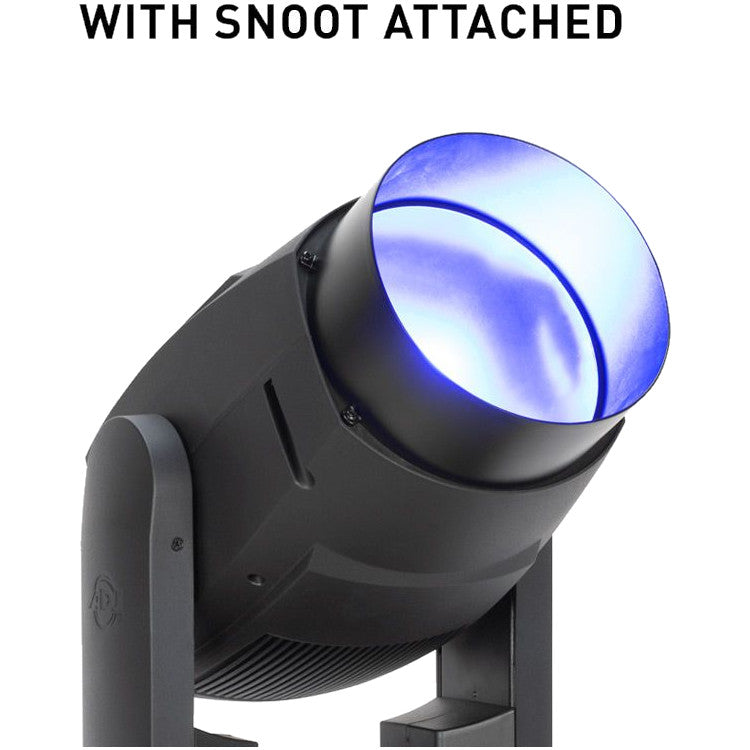

Vertical Height (With Snoot) 22.37" (568.1mm)
Electrical
Multi-voltage
AC 100-240V / 47/63Hz
Electrical/Thermal
460W Power Consumption @ 120V, 430W Power Consumption @ 240V, Multiple Unit Power Linking, 5°F to 113°F (-15°C to 45°C)
Optics
Zoom Range
10° - 41°
Field Angle
19° - 54°
Color Temperature
10,000K
Lux @ 10'
10,384 lx (965 foot candles), 1.8' diameter
Construction
Color
Individual RGBACL (Red, Green, Blue, Amber, Cyan, Lime) Control, Virtual Color Wheel Control, Virtual CMY Control
Controls
5 DMX Channel Modes
[Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24)]
Shipping
Weight
23.5 lbs. (10.7 kg)
Identifiers
Length
10.96" (278.43mm)
General
Source
400W RGBACL LED, 50,000 Hour Average LED Life (May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.)
Photometric Data
4,600 Total Lumen Fixture Output
CRI
90+
CRI R9
87.3
TM30 Rf
90.8
TM30 Rg
99.5
Effects
RGBACL Color Mixing, Virtual CMY Color Mixing, 10° - 41° degree Motorized Zoom, Electronic Strobe and Dimmer, Color Temperature Red to Green control via DMX, Linear Color Temperature control, 2700K to 10,000K, Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
Control/Connections
Selectable LED Refresh Rates, 900Hz to 25kHz., Linear Dimming with user selectable Dim Curves, Dim Modes and Dim Speeds, 6-button Control Panel and LCD Menu Display, USB Firmware Update Port, RDM (Remote Device Management), Quiet Fan Mode, Locking 3-pin and 5-pin XLR Connector In/Out, IP65 Locking Power Connector In/Out, With Wired Digital Communication Network
Approvals/Ratings
CE | cETLus (Pending), IP20
Db Rating
46dB @ 3'
