Specifications
Dimensions
Gobo Dimensions
Outer 74.5mm
Dimensions (LxWxH)
33.5x12.25x7” (850x310x180mm)
Electrical
Voltage
AC100V-240V/50Hz-60Hz
Optics
Color Temperature
6000K
GOBO

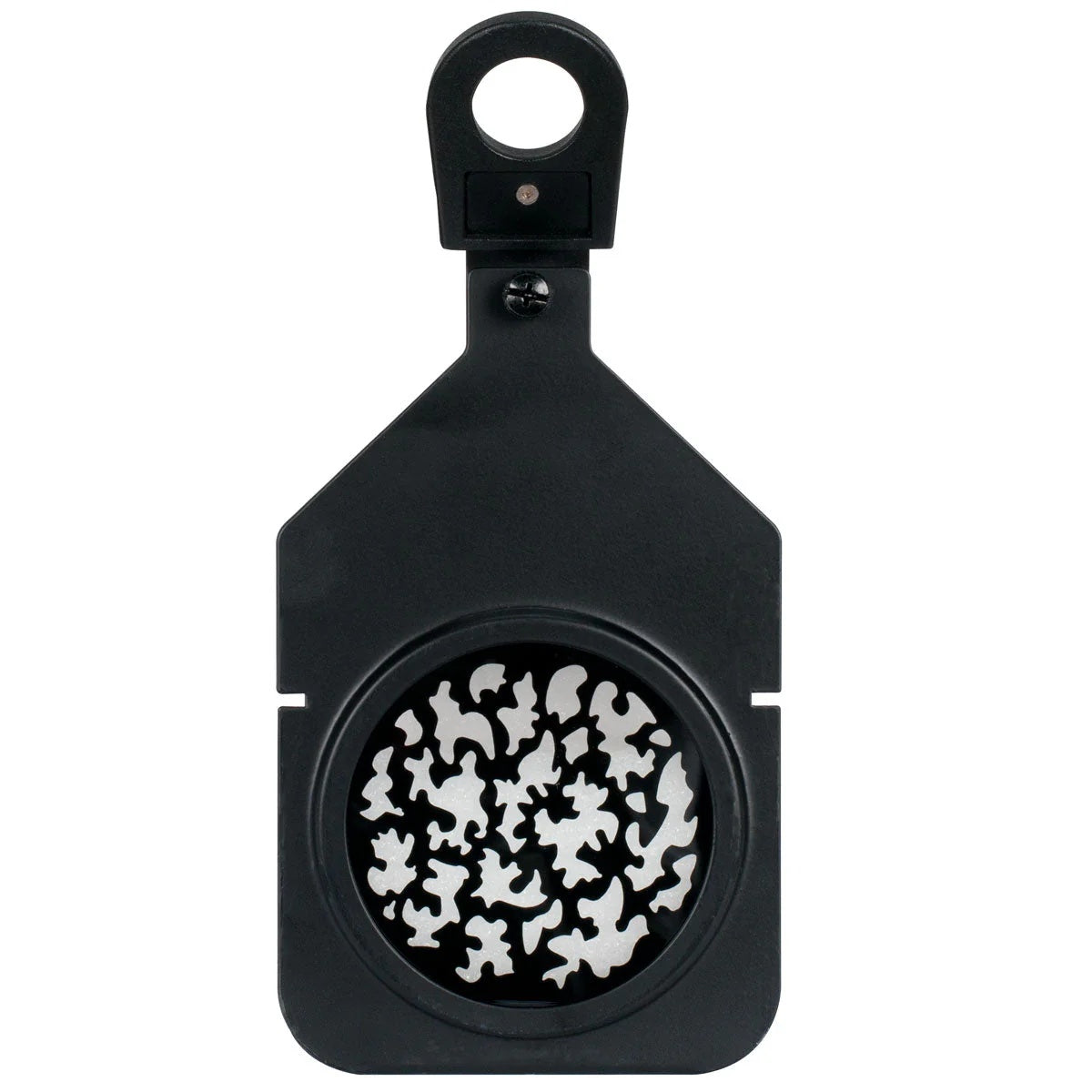

GOBO holder with metal break apart pattern GOBO
Connectivity

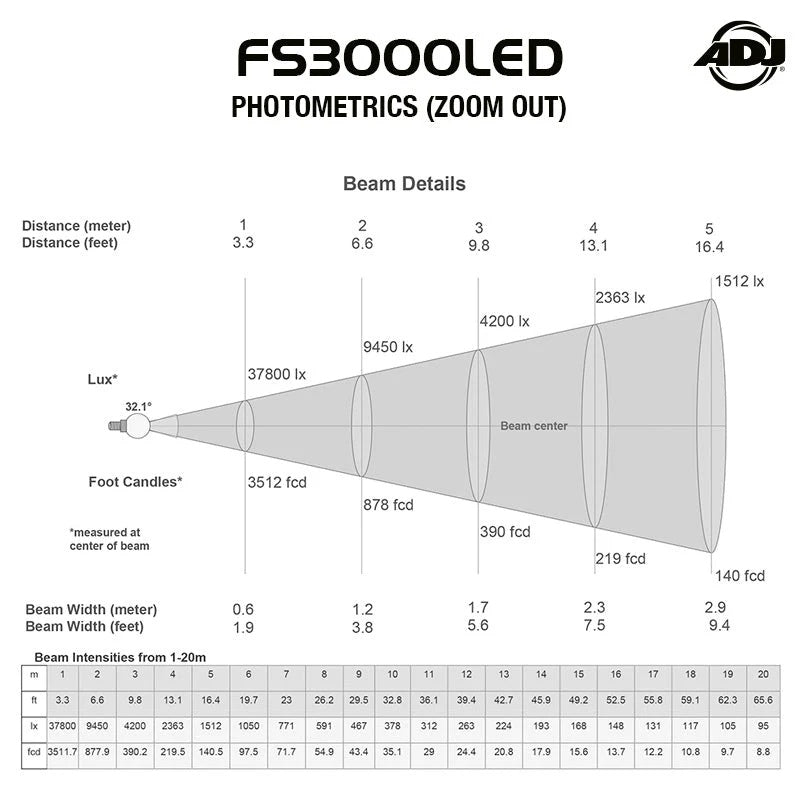

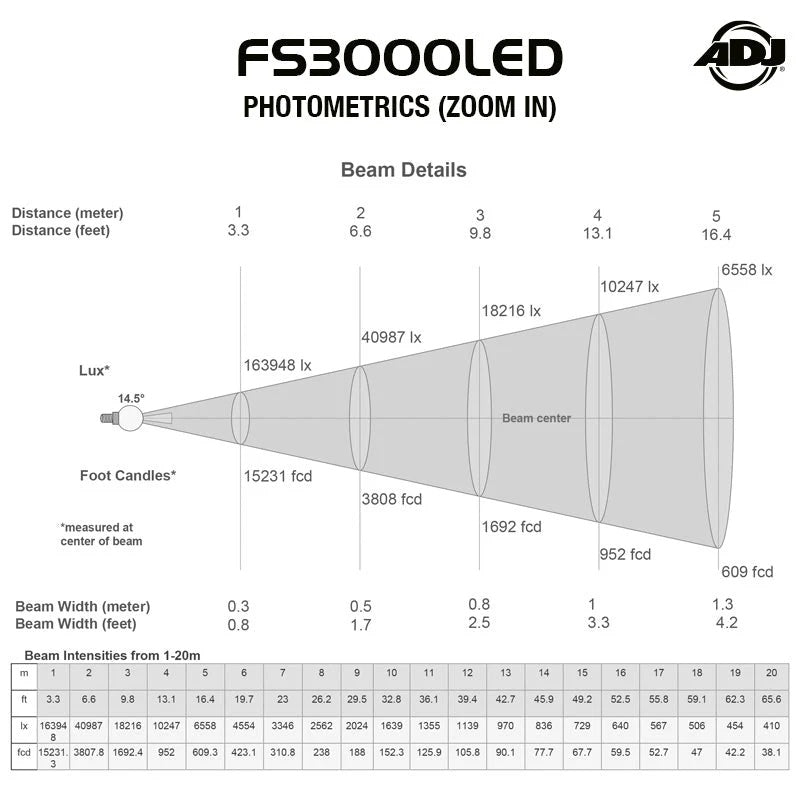

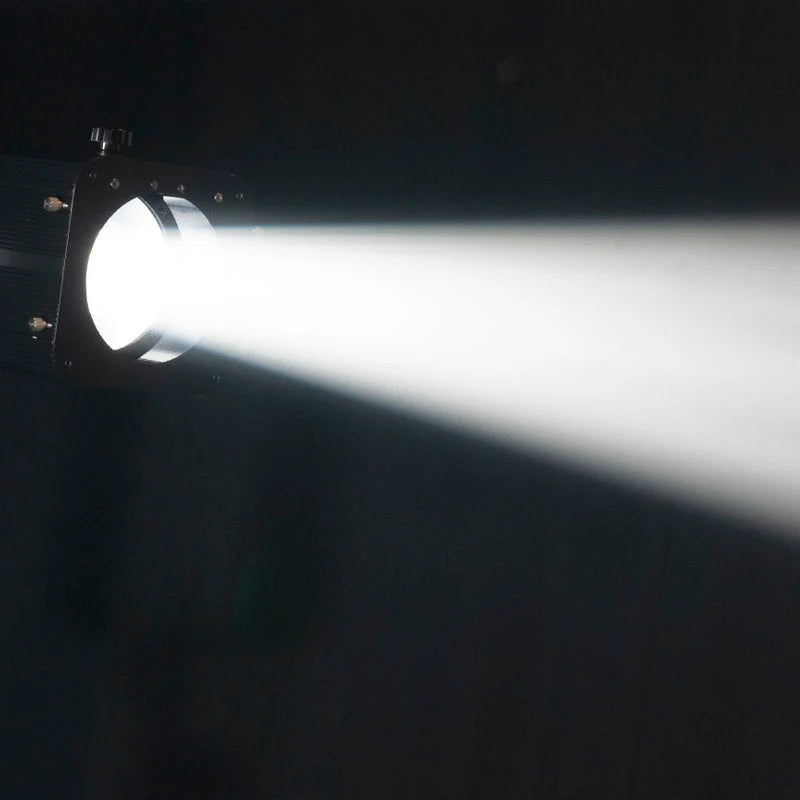

Light Output (12-degree)
6558 LUX @ 5M; 1639 LUX @ 10M; 410 LUX @ 20M
Total Lumen Output
8500 lm

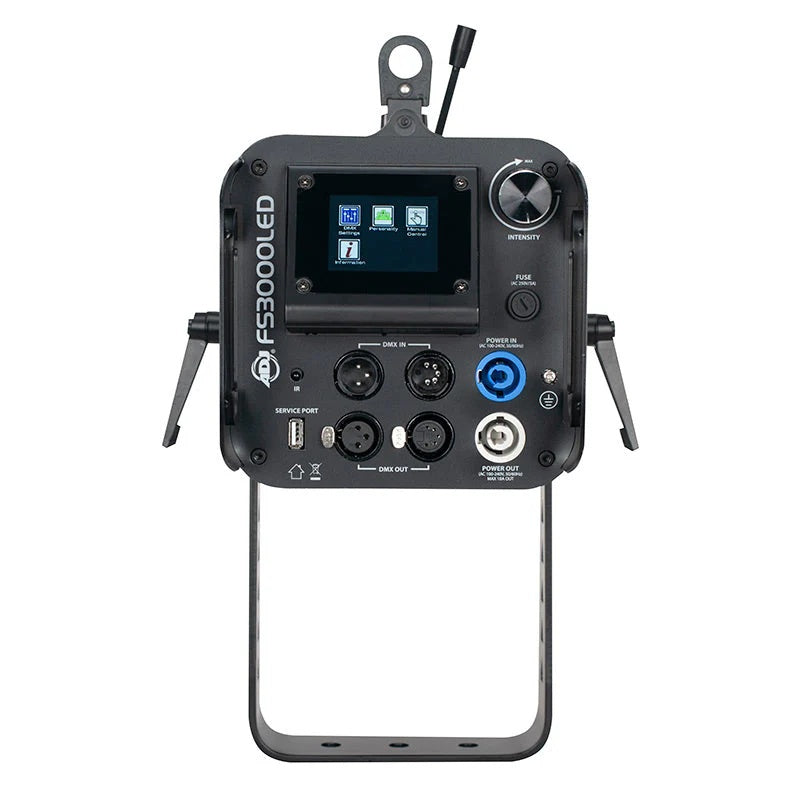

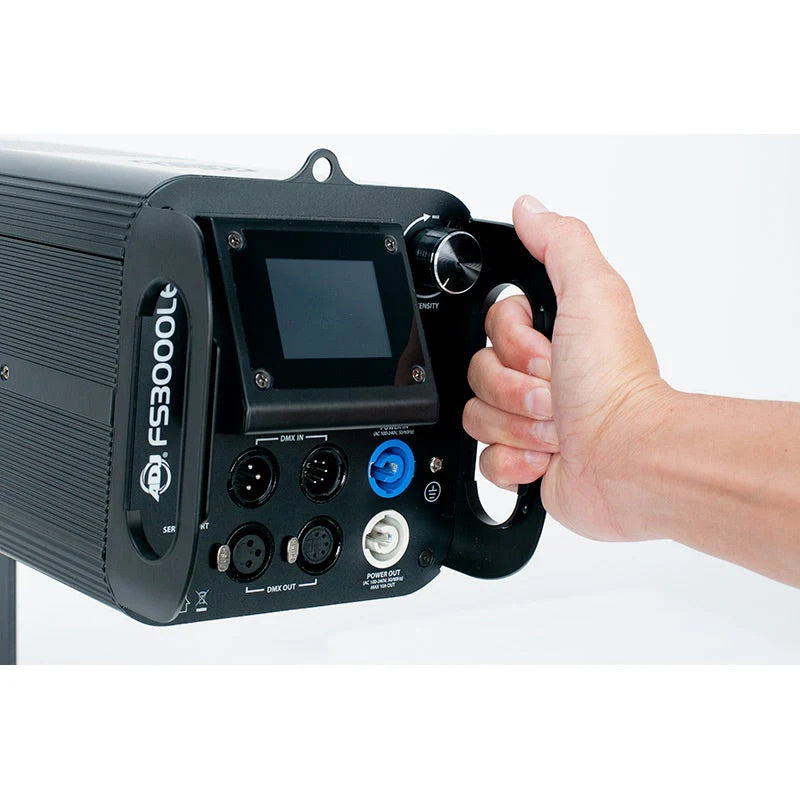

Connections
3-pin and 5-pin DMX data linking, PowerLock In/Out to daisy chain power (3 fixtures max at 110V, 5 fixtures max at 240V), USB Input for firmware update
Shipping
Weight
26.5 lbs (12kg)
General
Light Source
300W white C.O.B. (Chip On Board) LED
CRI
95
Inner
65mm
Thickness
2mm
Maximum Power
340W
