ADJ HEX136 Hexcon L 36-Channel DMX Controller

ADJ HEX136 Hexcon L 36-Channel DMX Controller

SoundPro Item: 203812 | Part Number: HEX136

$169.99
$225.95 $169.99
Your Price Sold out
MSRP: $225.95 | MAP: $169.99

Usually ships in 5-7 business days

  • RGBAL+UV Fixture Control - Supports up to six individual or grouped HEX Series LED fixtures.
  • User-Programmable Presets - Six direct access buttons customizable for preset colors.
  • Multi-Function Faders - Control color intensity, chase speed, fade, master dimming, and strobe effects.
  • Diverse Lighting Modes - Includes Color Fade, Color Macro, Auto Run, Chase, Manual, Sound Active, Strobe, and Blackout modes.
  • Sound Active Mode - Utilizes internal microphone with adjustable sensitivity for audio-reactive lighting.
  • Robust Connectivity - 5-pin XLR DMX output and USB C charging port.
  • Compact Design - Portable form factor with included UL approved power supply.
Log in or register for YOUR best price

The ADJ Hexcon L provides precise control for up to six RGBAL+UV LED fixtures or groups, ideal for dynamic lighting setups in live events and installations.

It features multi-function faders, color macros, chase effects, and sound active mode for flexible programming.

Compact and user-friendly, this controller suits professional lighting applications requiring diverse color and effect manipulation.

View full details

Specifications

Control
Channels
36
Fixture Capacity
Up to 6 individual or grouped RGBAL+UV LED fixtures
User Presets
6 programmable preset buttons
Color Macros
24 pre-programmed color macros
Multi-Function Faders
6 (for intensity, speed, fade, dimming, and strobe)
Functions
Modes
Color Fade, Color Macro, Auto Run, Chase, Manual, Sound Active, Strobe, Blackout
Sound Activation
Internal microphone with adjustable sensitivity
Strobe Frequency
0.33Hz to 11Hz variable
Connectivity and Power
DMX Output
5-pin XLR
Charging Port
USB C
Power Input

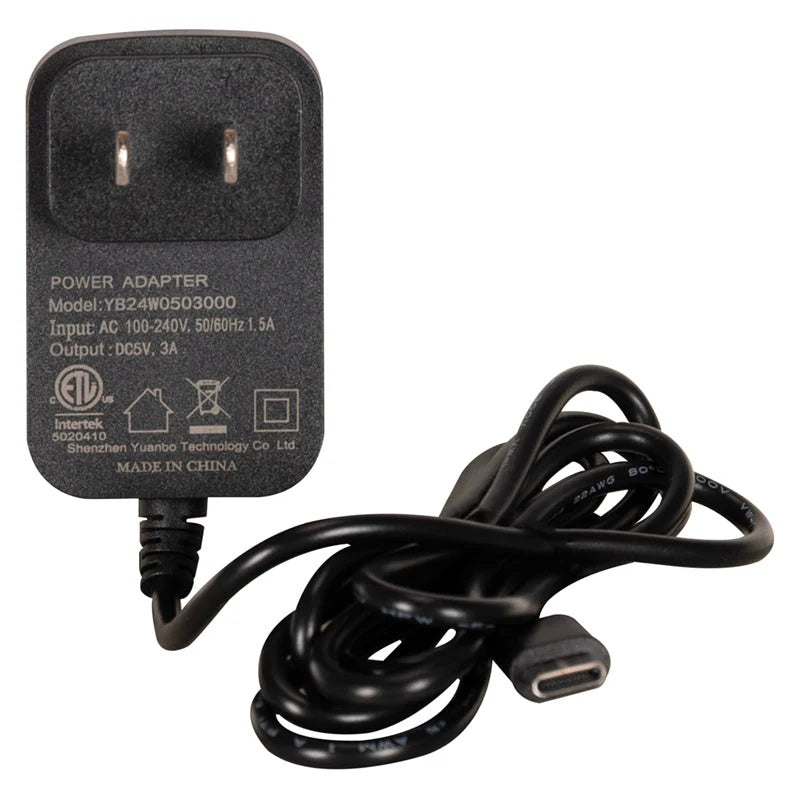

5VDC 3A UL approved power supply (included)
Power Consumption
15 Watts (3 Amps)
Physical
Dimensions
14.2u201d x 7.2u201d x 2.7u201d (360mm x 183mm x 69mm)
Weight
4lbs. (1.74kgs.)
IP Rating
IP20
Temperature Range
Ambient: -20u00b0C ~ 40u00b0C; Storage: -30u00b0C ~ 45u00b0C
Certifications
Approvals
CE, cETLus, FCC
