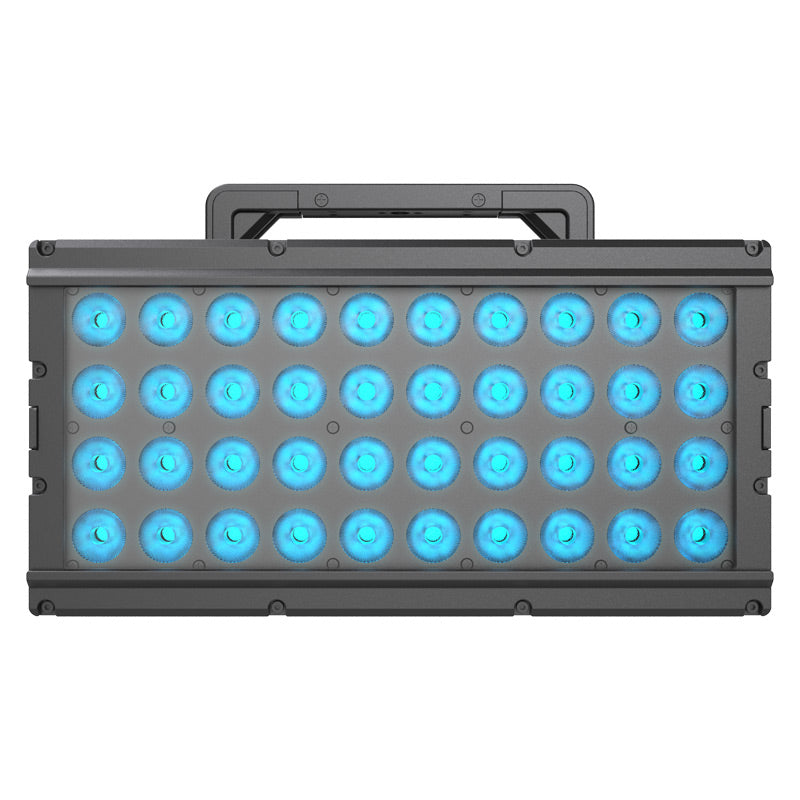

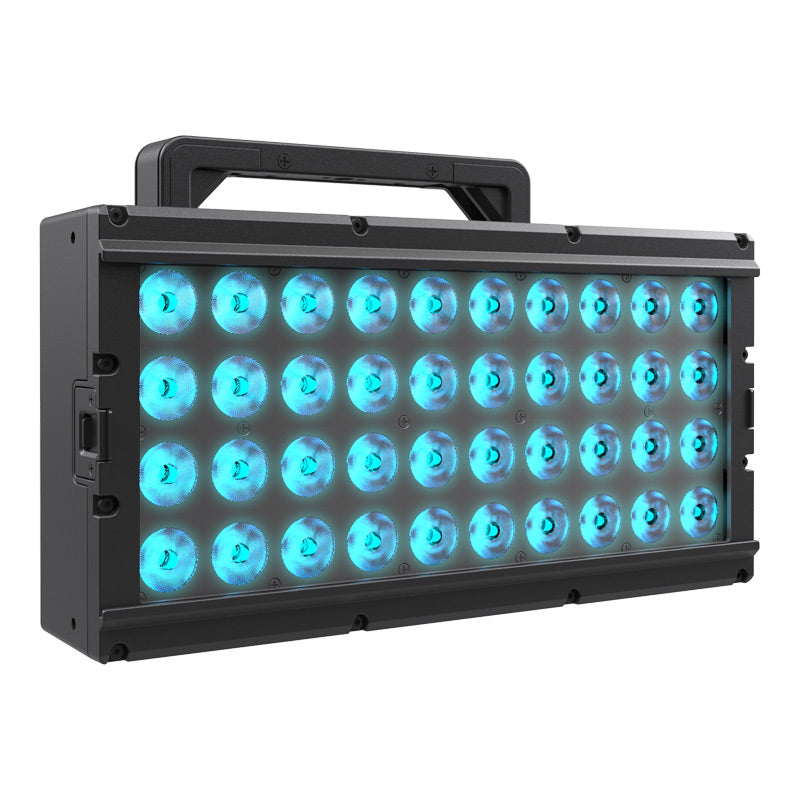

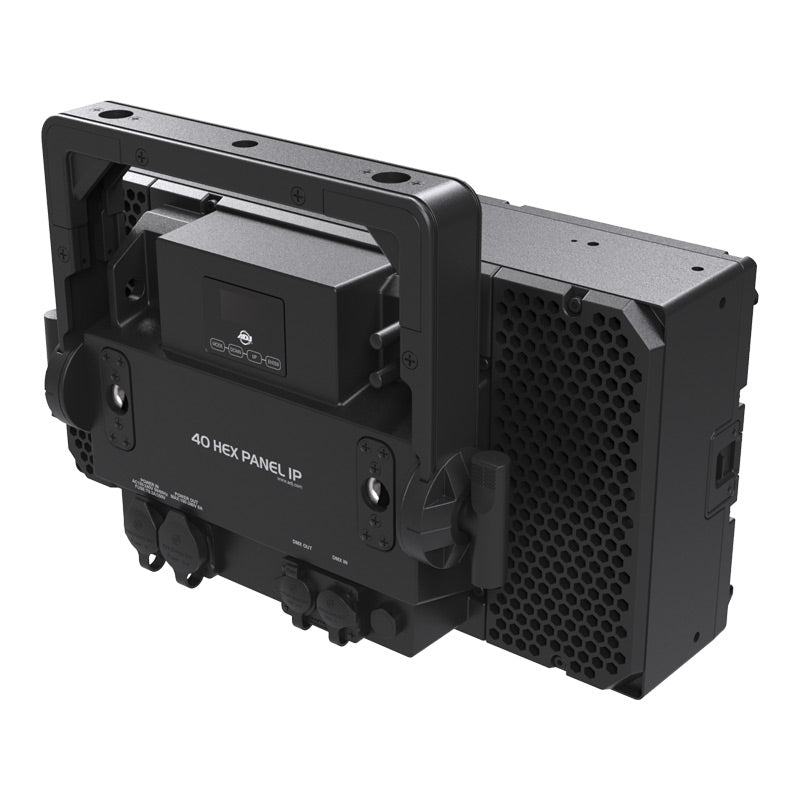

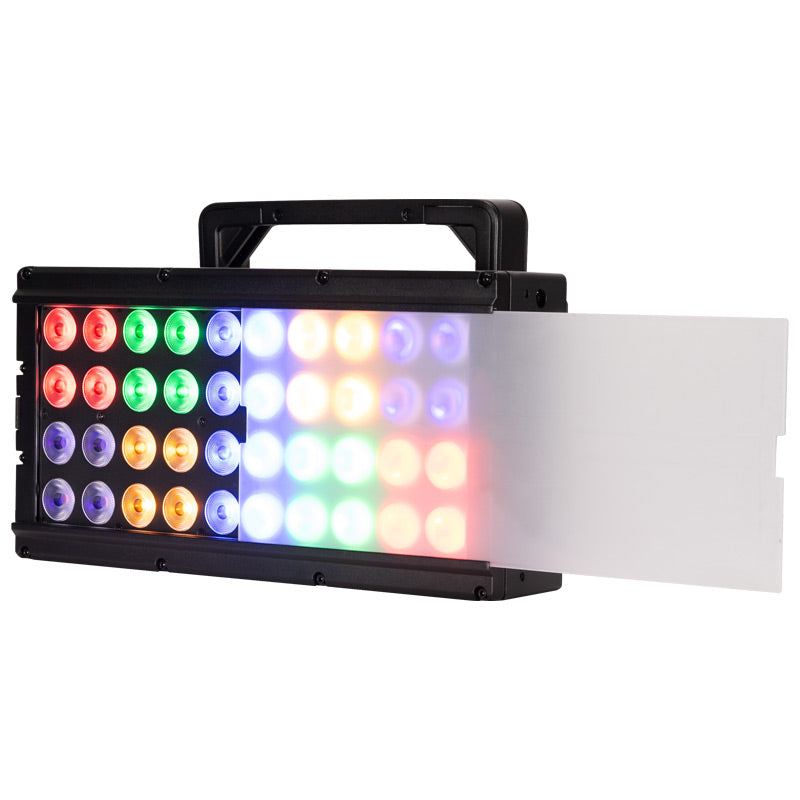

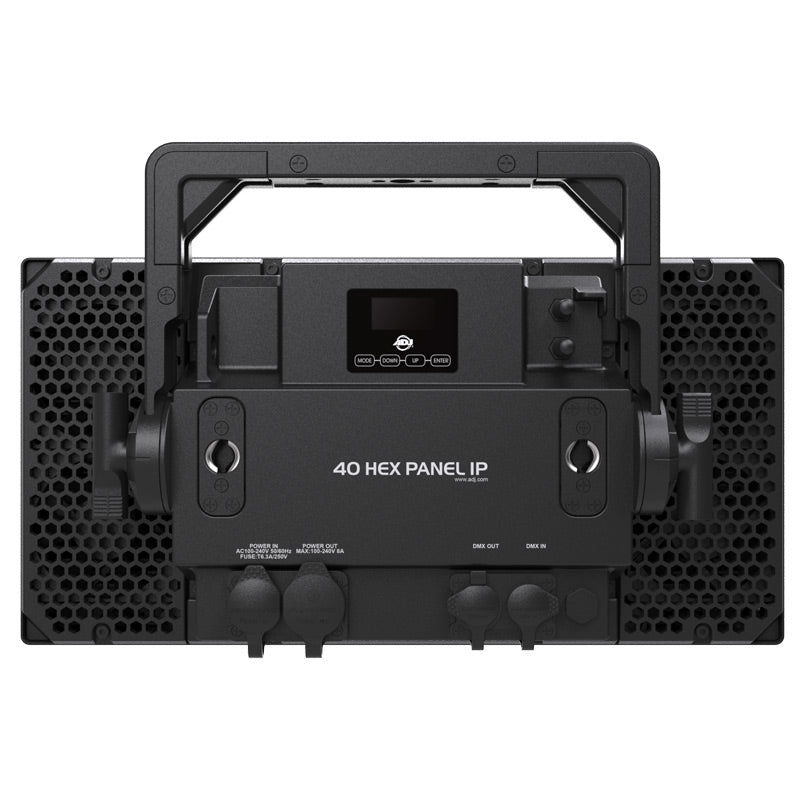

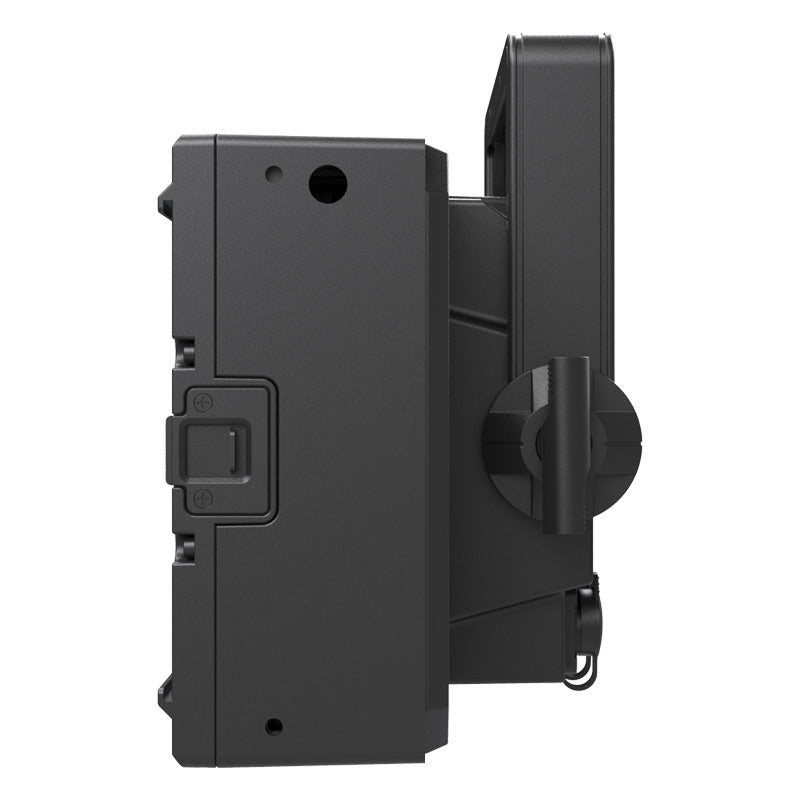

ADJ HEX444 40 HEX Panel IP
ADJ HEX444 40 HEX Panel IP
SoundPro Item: 146798 | Part Number: HEX444
Usually ships in 5-7 business days
40 HEX Panel IP is a versatile IP65-rated fixture designed for indoor and outdoor use, functioning as a wash, blinder, or color strobe. It features 40 high-performance 20W HEX LEDs (6-in-1: RGBAL+UV), 10 pixel-controlled sections, tunable white color temperature control, Aria X2 management, and a durable all-metal black housing for reliable operation in any setting.\n\n
- LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr.)
- Beam Angle: X = 28.61°, Y = 23.72°
- Field Angle: X = 50.82°, Y = 44.95°
- Lumens: 19,590
- IP65 rated - protects from dust, sand, moister, water
- Aria X2 Management System
- All metal construction with black housing
- Includes heavy duty bracket
- Flicker free for film and broadcast
- Linear variable white temperature control (2700K~10,000K)
- Display: OLED display with function buttons
- All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications
- 24 DMX control modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5 G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G 132Ch 10G modes
- 4 Control Groups: 1 / 2 / 5 / 10 Groups
- 0-100% Dimming + smooth 16-bit Dimming
- 5 Dimming Curve Modes
- Control Mode: DMX512, RDM (Remote Device Management)
- LED Refresh Rate: Multiple settings
- With Wired Digital Communication Network
- Data: IP65 Locking 5-pin DMX In/Out
- Power: IP65 Locking Power In/Out
- 100-240V 50Hz/60Hz (Auto Sensing)
- Max Power Consumption: 513W @120V; 492W @220V
- Max Power Link: 1pcs @120V; 4pcs @230V
- Fuse Protected: T4A/250V Glass Fuse (5*20MM)
- Length: 16.42" (417mm)
- Width: 11.7" (296.8mm)
- Height: 8.35” (212mm)
- Weight: 24.58 (11.15kg)
