Specifications
Dimensions
Aluminum GOBO Size
23mm (outer); 19mm (viewable); 0.5mm (thickness)
Glass Gobo Size
23mm (outer); 19mm (viewable); 3.3mm (thickness)
Dimensions (LxWxH)
9.49" x 14.57" x 19.21"
Electrical
Multi-voltage Operation
90-240V, 50/60Hz
Max Power Consumption
280W
Optics
Color Wheels
(2) Color wheels, 8 dichroic colors + white on each wheel (includes CTO, CTB and UV filters)
GOBO Wheels
(1) Wheel with 6 Rotatable Gobo's, All Gobo's are replaceable, Gobo Shake Effect
Prism Wheel 1
Rotatable 6-facet Circular
Prism Wheel 2
Rotatable 5-facet Linear
Prism Wheel
Both Prisms are indexable
Controls
3 DMX Channel Modes
17/20/22
6 Dim Modes
Standard, Stage, TV, Architectural, Theatre, Stage2
4 Dim Curves
Square, Linear, Inv. Square and S. Curve
DMX Connections
5-pin XLR In/Out
Shipping
Weight
35.2 pounds
General
Light Source
200W Cool White LED Engine (50,000 hr.)
Frost 1
Heavy frost for wash effect
Frost 2
Medium frost creates lightly blurred edges for Gobo and Prism FX
Control

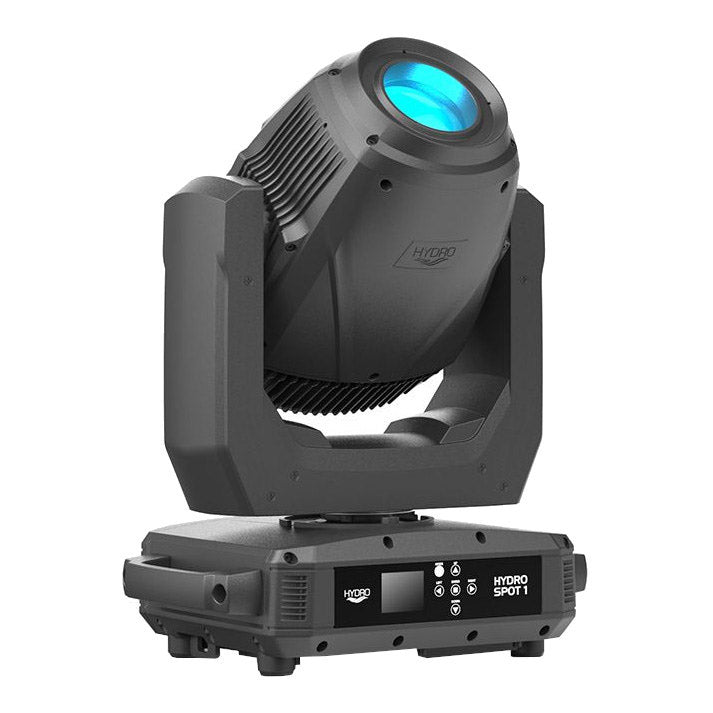

Color LCD display with 6-button function menu, Selectable LED Refresh Rates (900 Hz~25K Hz), 0-100% smooth dimming, Various strobe speeds, RDM (Remote Device Management), With Wired Digital Communication Network
Control Mode
DMX512 or internal programs

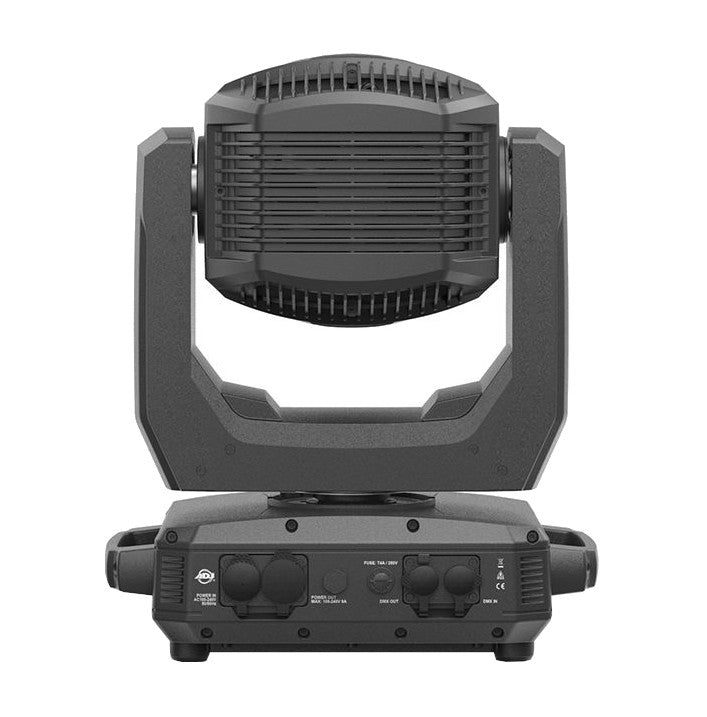

Power Connections
IP65 PowerLock In/Out to daisy chain power
Movement
Pan
630 degrees
Tilt
270 degrees
