ADJ JOL299 Jolt Panel FX2

ADJ JOL299 Jolt Panel FX2

SoundPro Item: 142573 | Part Number: Jolt Panel FX2

$1,049.99
$1,459.95 $1,049.99
Your Price Sold out
MSRP: $1,459.95 | MAP: $1,049.99

Usually ships in 5-7 business days

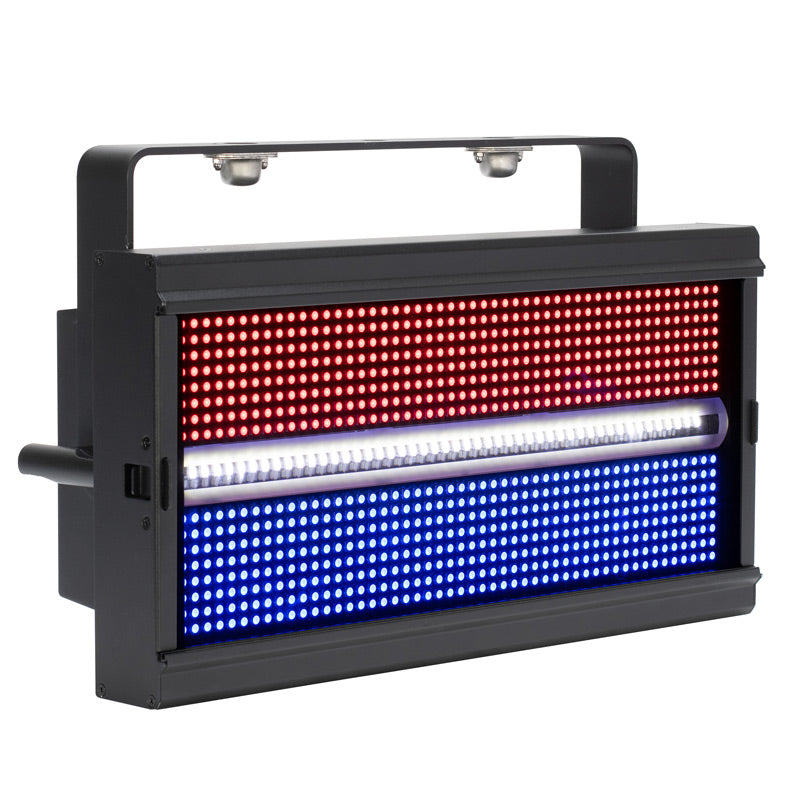

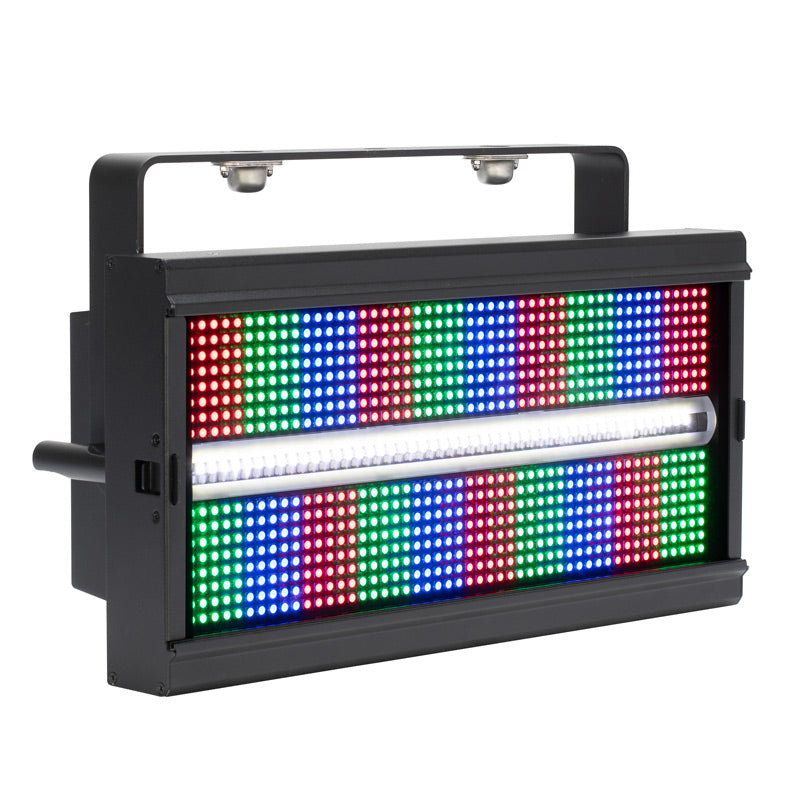

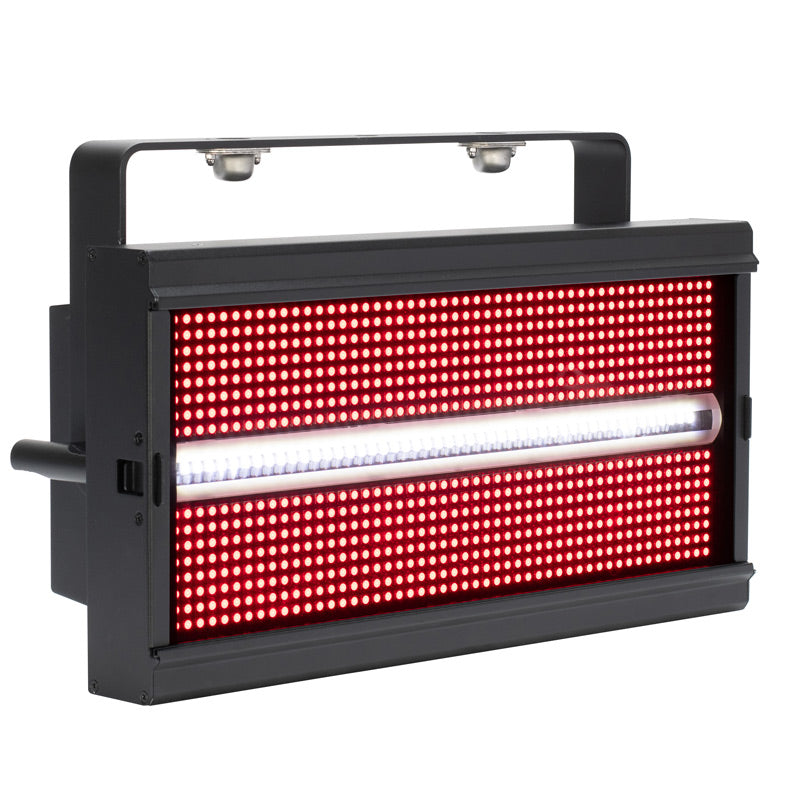

  • Color LED Source: 800x 0.5-Watt RGB SMD LEDs
  • Field Angle: 111°
  • LED Zones: 40 RGB/6 White
  • White LED Source: 48x 5-Watt Cool White SMD LEDs
  • Wireless DMX: Aria X2
Log in or register for YOUR best price

The Jolt Panel FX2 provides lighting designers with the creative potential of generating strikingly bright white strobe flashes, vibrant color washes, and animated ‘eye candy' chase effects ideal for concert productions, festival stages and rental houses, as well as for permanent installation in large nightclubs.

View full details

Specifications

Dimensions
Width
16.42” (417mm)
Height
10.26” (260.5mm)
Electrical
Max Power Consumption
214W @120V., 208W @230V.
Optics
Beam Angle
73°
Field Angle
111°
Controls
Control Protocol
DMX, Aria X2 and RDM
14 DMX Modes
6, 9, 13, 18, 20, 36, 41, 43, 51, 81, 83, 126, 141 and 143 channel modes
Dim Modes
6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Curves
4 Presets (Linear, Square Law, Inv Square Law and S Curve)
Strobe
Ramp Up / Down, Lighting and Random
Max Strobe Rate 20Hz. Min Strobe Rate
1Hz.
Shipping
Weight
13.67 lbs. (6.2 kg)
Identifiers
Length
5.28" (134.2mm)
General
Light Source
800 x 0.5W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs
RGB LED Specs
Red: 620-630nm; Green: 515-530nm; Blue: 460-470nm
White LEDs CCT
Typical 7400K (Min 6900 - Max 8000), 472nm
CRI
69.4
Selectable LED Refresh Rate
900Hz - 25kHz

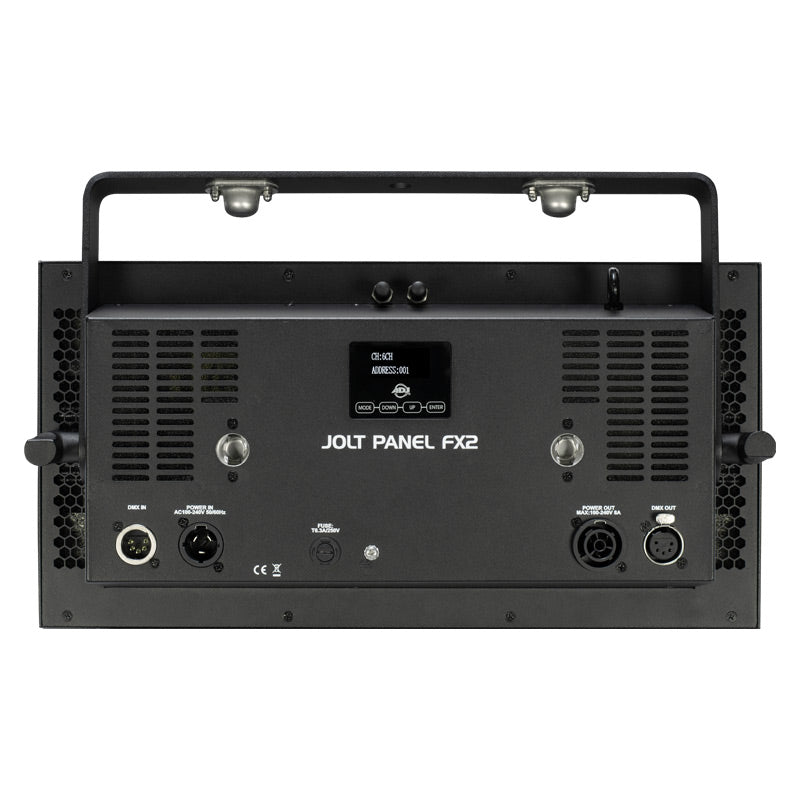

Data
IP65 Locking 5-pin DMX In/Out
Max Power Link
4pcs @110V120V, 9pcs @220V/240V
Fuse Protected
T5A/250V Glass Fuse (5*20MM)
LED Life
50,000 Hour Average
LED Program Macros
25 built-in RGB, 9 built-in Cool White
Management Suite
Integrated Aria X2

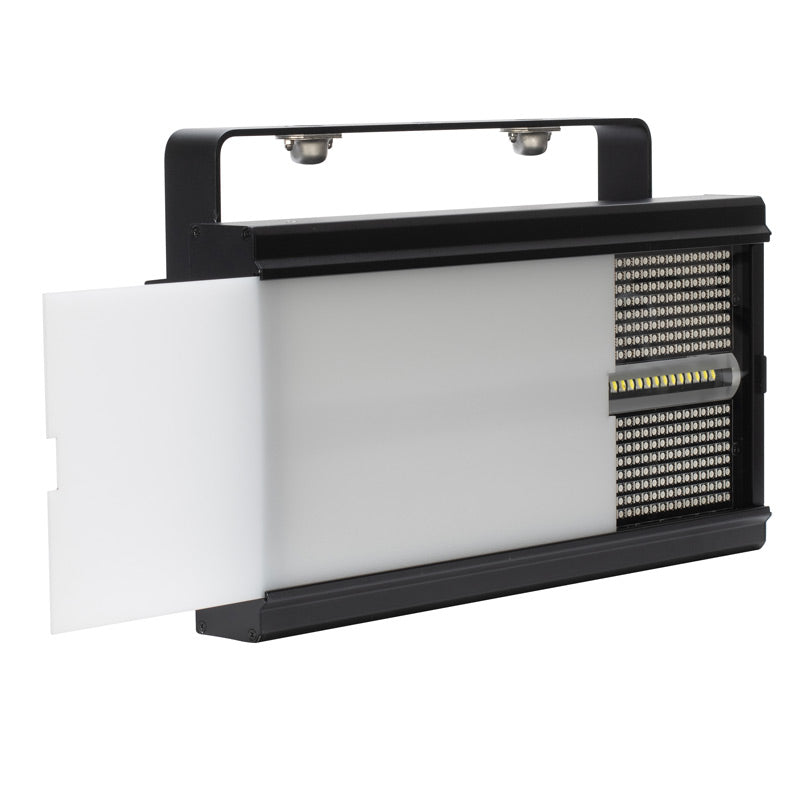

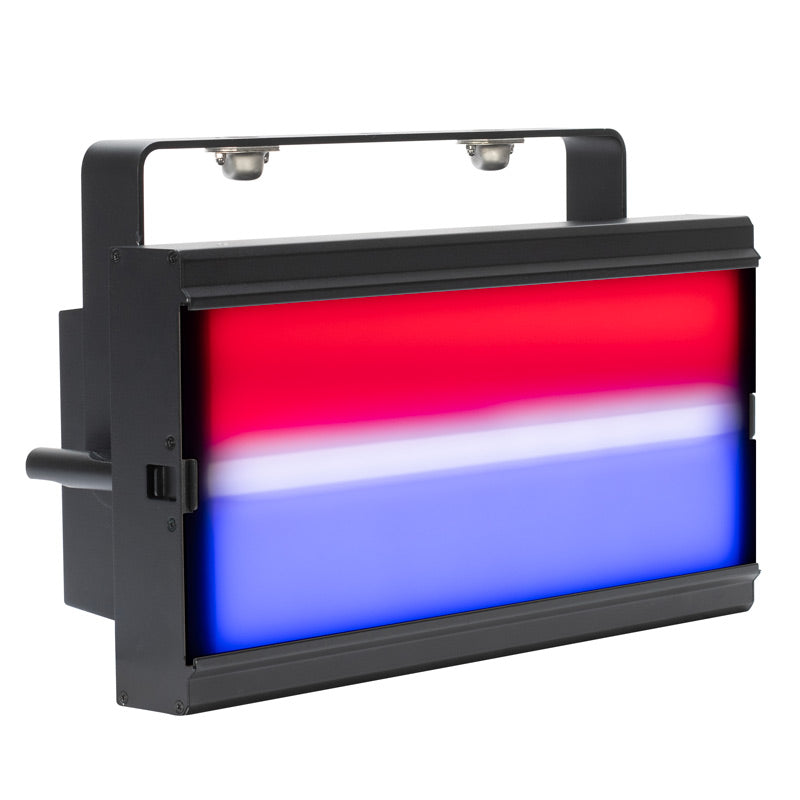

Filter
Includes Frost Lens
Smooth Dimming
0-100%

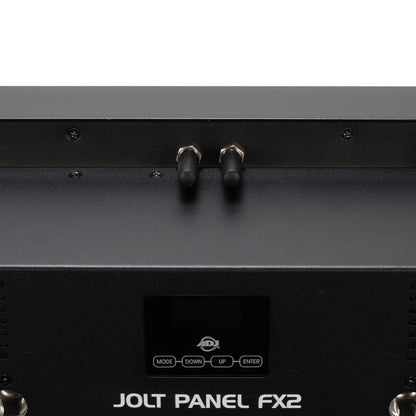

Indicators

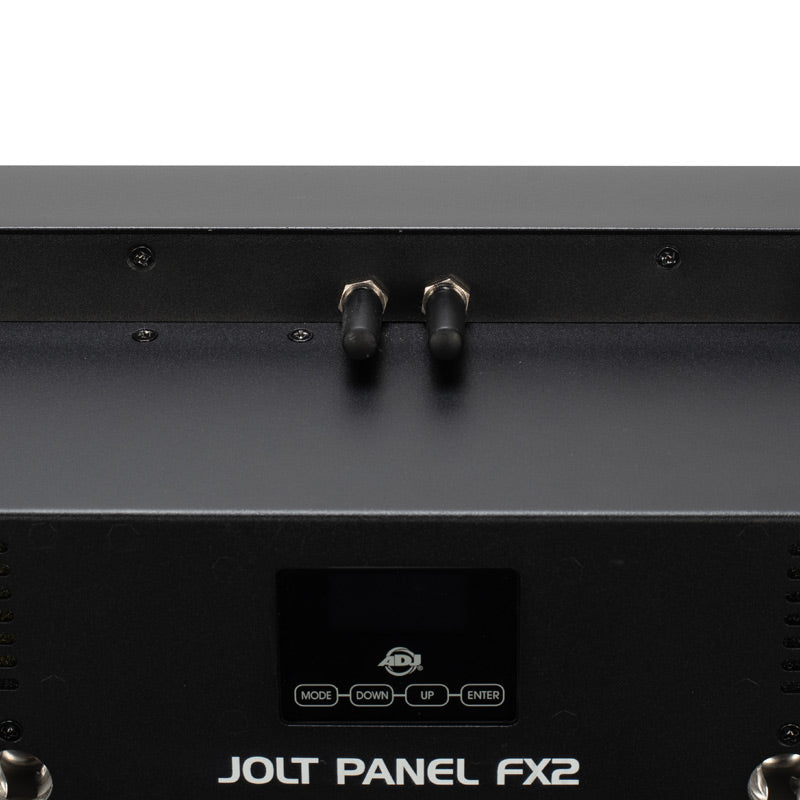

Display
OLED display with 4-button touch menu
Power
Power
IP65 Locking Power In/Out
