ADJ LINK 4-Universe DMX Hardware Controller
ADJ LINK 4-Universe DMX Hardware Controller
SoundPro Item: 114058 | Part Number: LINK
Usually ships in 5-7 business days
- WiFi and DMX512
- 2.4 and 5Ghz GHz DSSS wifi network
- 4 hardwired, DMX universes
- USB input for gooseneck work light
- Removable outer case for 6U rack mounting
- Kensington™ security device slot
- Several functions in faders, blackout button, instant effect or scene calling buttons, bump/momentary effect buttons, rotary encoder wheels with push-in selection, and more
- USB 2.0 type “B” port
- Measures 20.3" long x 13.2" wide x 3.5" high

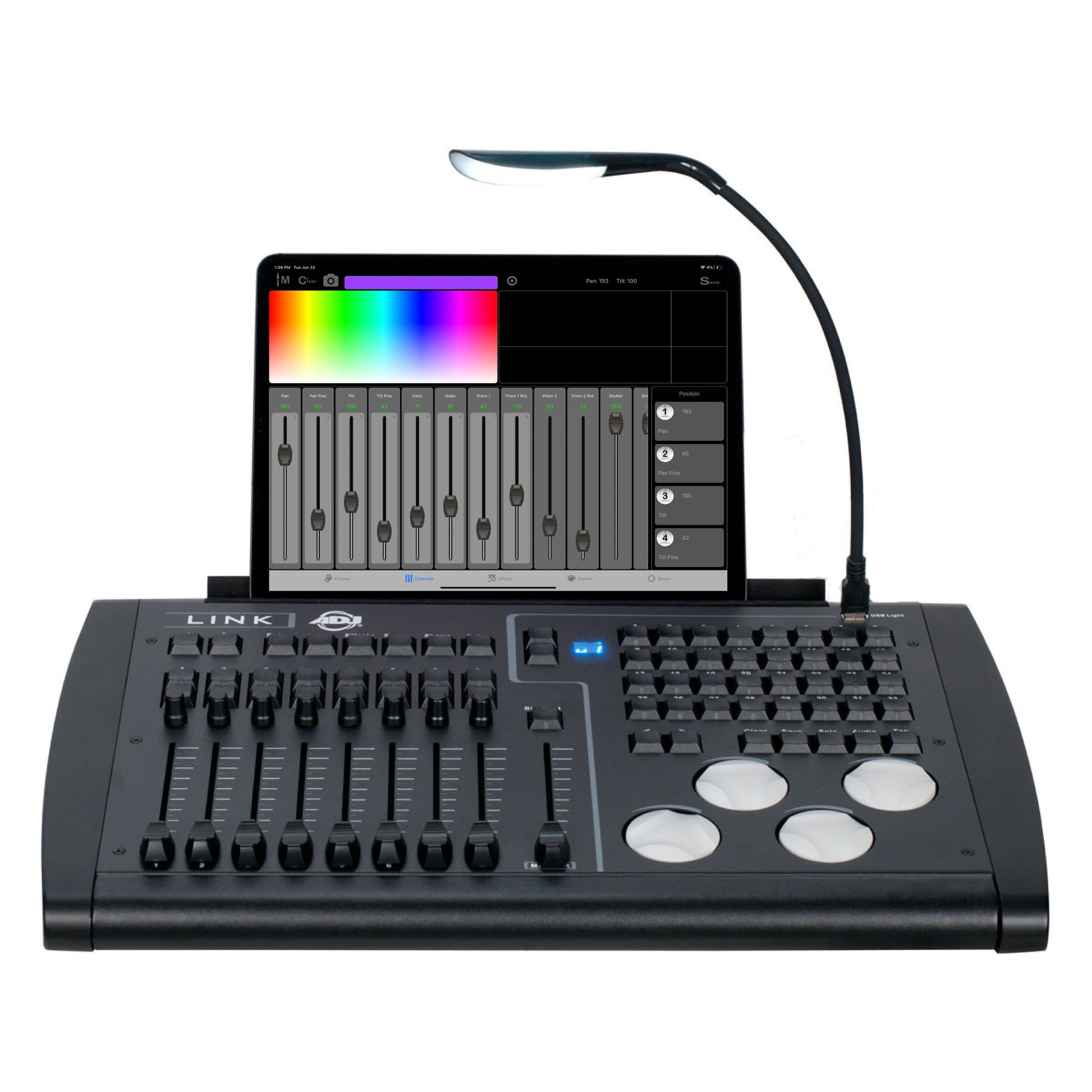

LINK is a 4-universe controller designed to control compatible DMX devices with control from the dedicated Airstream DMX LINK iOS App for iPad.

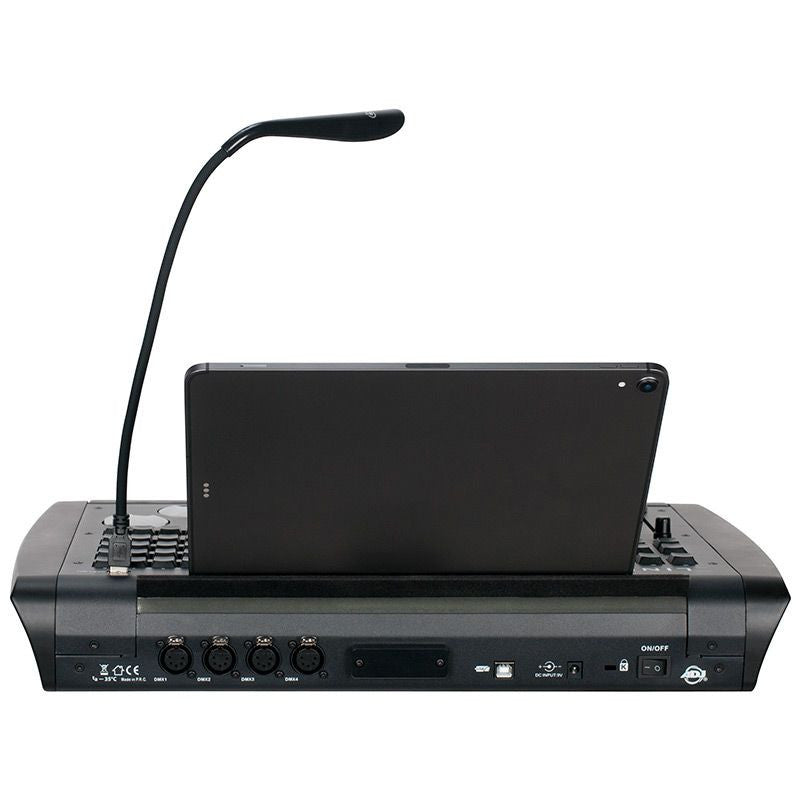

LINK can connect to an iPad wirelessly or hardwired. When connected wirelessly, LINK creates a private standalone 2.4 or 5 GHz DSSS (Direct Sequence Spread Spectrum) WiFi network between an iPad and LINK console, which can coexist in busy RF environments alongside other wireless technologies. Connecting wirelessly will also allow you to undock the iPad and remotely control, program and playback your light show. If you prefer to use a hardwired connection between the IPad and LINK you will need a USB cable adapter, not included, which will also allow the IPad to charge at the same time. Four (4) hardwired, 5-pin XLR outputs on the rear of LINK send constant and reliable DMX signal to compatible DMX devices.
LINK is ideal for small production events, nightclubs, bars or any event or venue which requires the flexibility of wireless iPad control, and who are looking for a robust, 4 DMX universe APP based lighting control solution.
The LINK controller is compatible with the dedicated Airstream DMX LINK iOS APP for iPad.
Note: Compatible with iPad only (iPad is not included). Requires iOS 12.0 or later.
- Control/Connections
- 6 General Purpose Buttons
- 1 Master and (8) Control 100mm Faders
- 16 Page Playback Buttons Above Faders
- 8 Rotary Dials with Push-In Selection Above Faders
- 1 Blackout Button
- 32 Instant Effect or Scene Calling Buttons
- 8 Bump / Momentary Effect Buttons
- 4 Rotary Encoder Wheels with Push-In Selection
- USB 2.0 Type “B” Port
- Dimensions
- Length: 20.3” (514mm)
- Width: 13.2” (336mm)
- Vertical Height: 3.5” (88mm)
- Weight: 13 lbs (5.9 kg)
