ADJ Mirage Q6 Pak IP65 Lighting System
ADJ Mirage Q6 Pak IP65 Lighting System
SoundPro Item: 124577 | Part Number: MIR600
Usually ships in 5-7 business days
- All-in-one event up lighting system with 6 IP65 rated battery powered fixtures in a flight case with battery charging solution
- Built-in kickstand to angle fixture when sitting on the floor

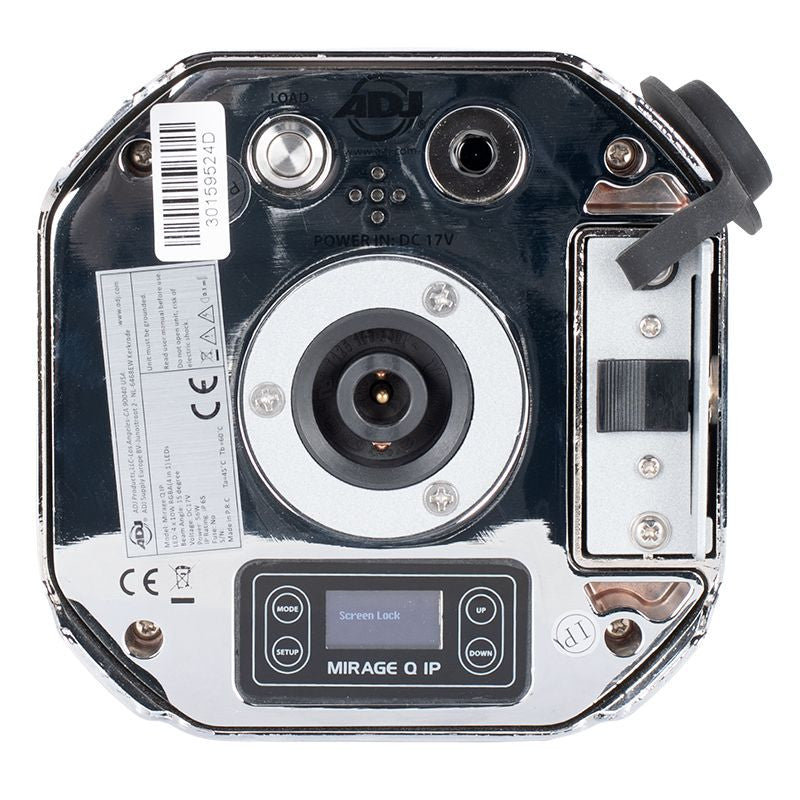

- 4-touch button OLED display on rear panel of fixture
- 64 built-in Color Macros on each fixture
- Variable RGBA color mixing offers a smooth, seemingly unlimited color palette is great for wall washing
- LED pulse and strobe effect (0.2Hz-11Hz)
- Flicker free operation
- Electronic dimming: 0-100% with 6 dim modes and 4 dim curves
- Run all night - no duty cycle
- Energy Save Mode
- Built-in alarm system with on/off
- Battery charge indicator on each fixture

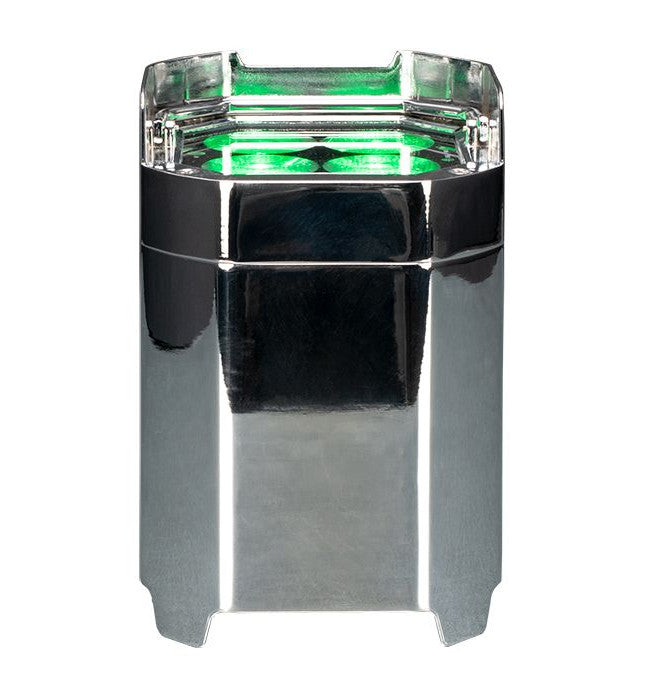

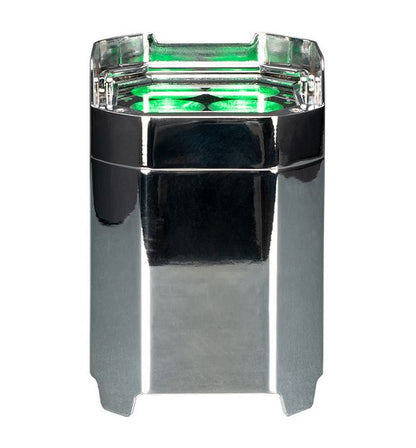

- Die-cast aluminum housing on fixture

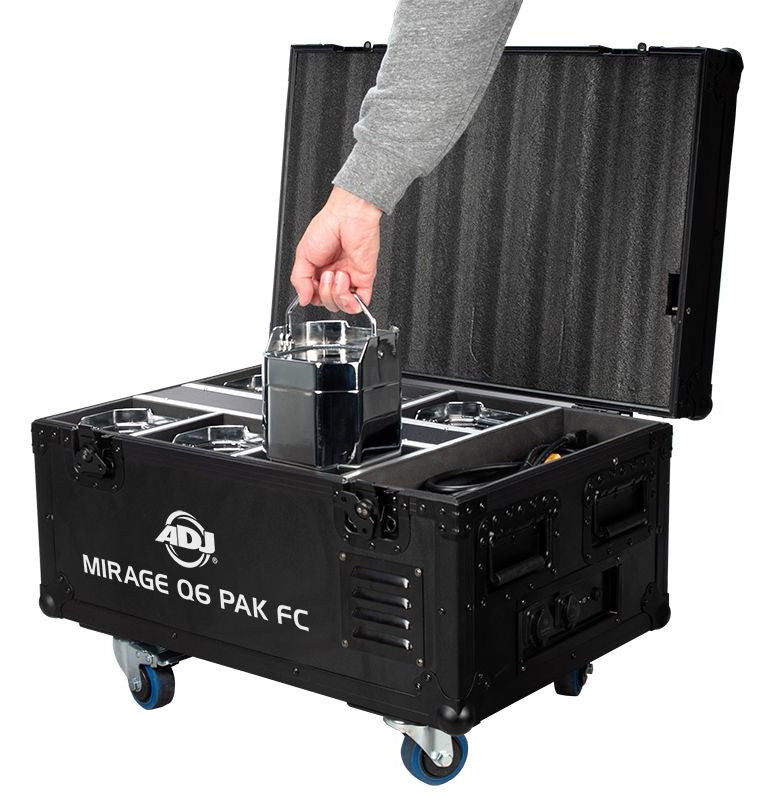

The ADJ Lighting Mirage Q6 PAK includes 6 battery-powered fixtures and a durable flight case with onboard battery charging.
The ADJ Lighting Mirage Q6 PAK is an all-in-one event up lighting system with six (6) IP65 rated, for outdoor or indoor use, battery powered fixtures and a durable flight case with an on-board battery charging solution.
Each Mirage Q6 IP fixture is powered by four (4) 10W RGBA LEDs that produce a 11-degree beam angle. The fixture is IP65 rated and is waterproof; suitable for temporary use outdoors with protection against the elements (rain, snow, dust and sand). Built-in WiFLY EXR wireless DMX allows for the fixtures to communicate with a lighting controller, also with WiFLY EXR wireless DMX, up to 2,500 feet (700M) away.

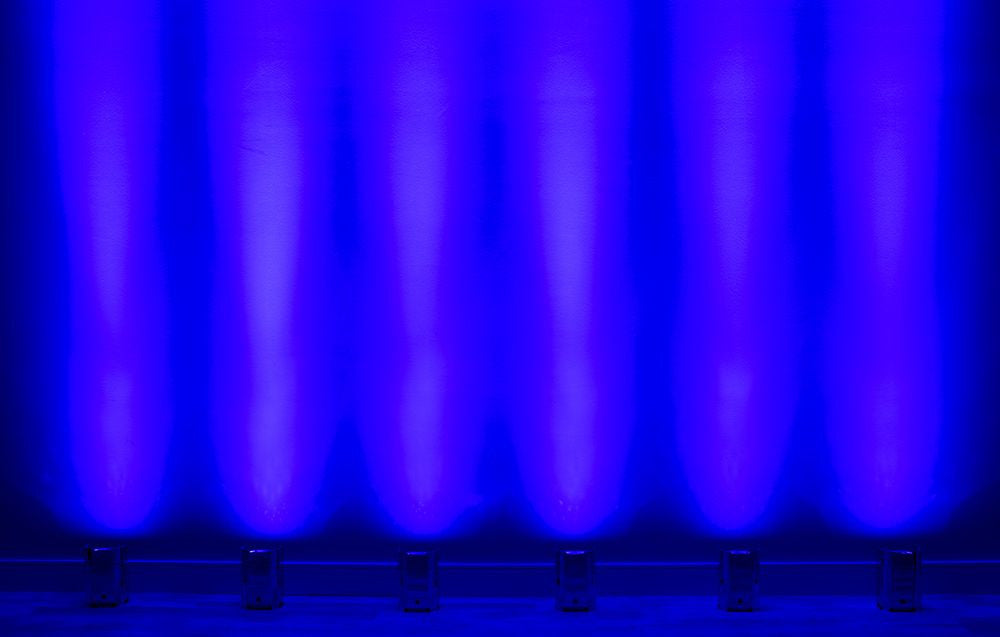

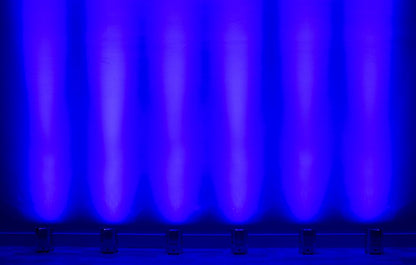

Ideal for wall washing, Mirage Q6 IP fixtures are all fitted with an integral carry handle and built-in feet which mean they can simply be dropped in place and are ready to go. They also feature a built-in kickstand which allows the beam to be easily angled inwards towards a wall if required. This creates a more intense wash and minimizes light spill onto the ceiling above.
Each fixture has an alarm system with on/off controls. If someone picks up the fixture with the alarm system on, the fixture will make a beeping sound and strobe in red.
The robust battery will operate up to 40 hours on a single color (20 hours changing colors). The battery charge time is 7 hours.
- MIRAGE Q6 IP Fixture Source
- 4 x 10-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
- 50,000 Hour Average Life
- MIRAGE Q6 IP Fixture Photometric Data
- Lux: 9903 @ 2M; 2303 @ 4M
- MIRAGE Q6 IP Fixture Optics
- Beam Angle: 11°
- MIRAGE Q6 IP Fixture Control / Connections
- Control protocol: WiFLY EXR Wireless DMX
- 11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels
- Remote control: WiFLY EXR DMX, UC-IR (Included), Airstream IR
- 5 Operation modes: RGBA Dimmer Mode; Auto Run Mode (13 programs, & 1 color/fade combo mode); Static Color mode; and Wireless DMX Control
- With Wired Digital Communication Network
- Contact Charging system. 6x Charging bases and power supplies included in flight case
- MIRAGE Q6 IP Fixture Battery
- Battery Type: Fixed lithium battery
- Battery Energy: 162.8WH (Watt Hours)
- Battery Voltage: 14.8V
- Battery Capacity: 11000mAh (Typical Capacity)
- Total Lithium Ion Cells: 20 pieces
- Battery Wrap Material: PVC sleeving + highland barley paper
- Battery Charge Time: 7 Hours
- Battery Life: 14 hours (When color changing in Battery Saver Mode 14); 40 hours (When set to a single color in Battery Saver Mode 14) Battery Saver Mode 14 is available in software V1.03>
- MIRAGE Q6 IP Fixture Electrical / Thermal
- Power Input: DC 17.3V
- Amperage Draw: 2A
- 40W Max Power Consumption (each unit)
- 14°F to 113°F (-10°C to 45°C)
- MIRAGE Q6 IP Measurements (single fixture)
- Dimensions (LxWxH): 5.6" x 5.6" x 8.3"
- Weight: 8.84 pounds
- Pak Electrical / Thermal
- Power Input: AC100VAC~240VAC, 50/60Hz
- IP65 Power Locking Input and Output
- Max. Power Consumption: 400 Watts
- Power Draw: 4A
- Charge status indicator
- 14°F to 113°F (-10°C to 45°C)

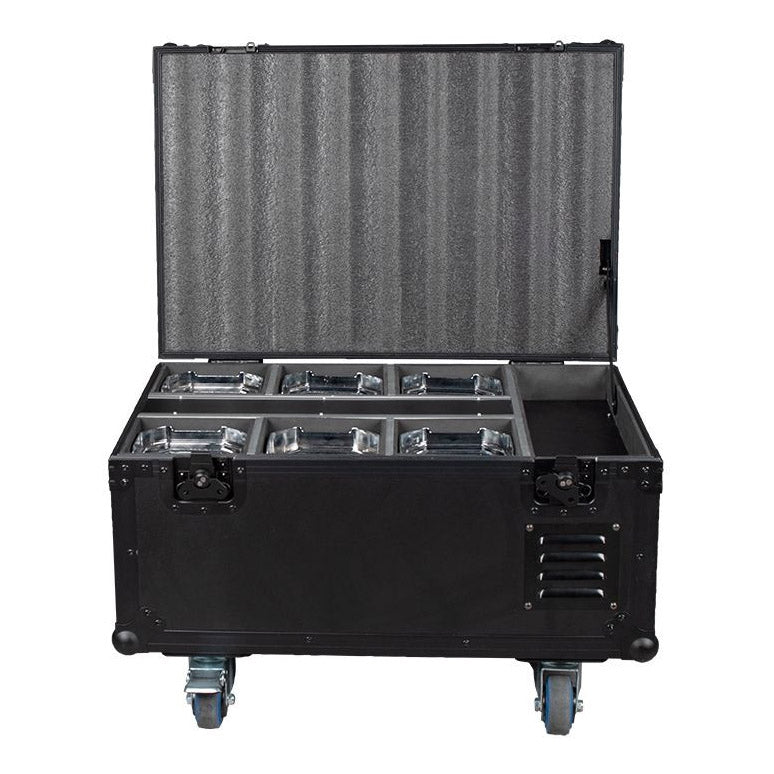

- Flight Case

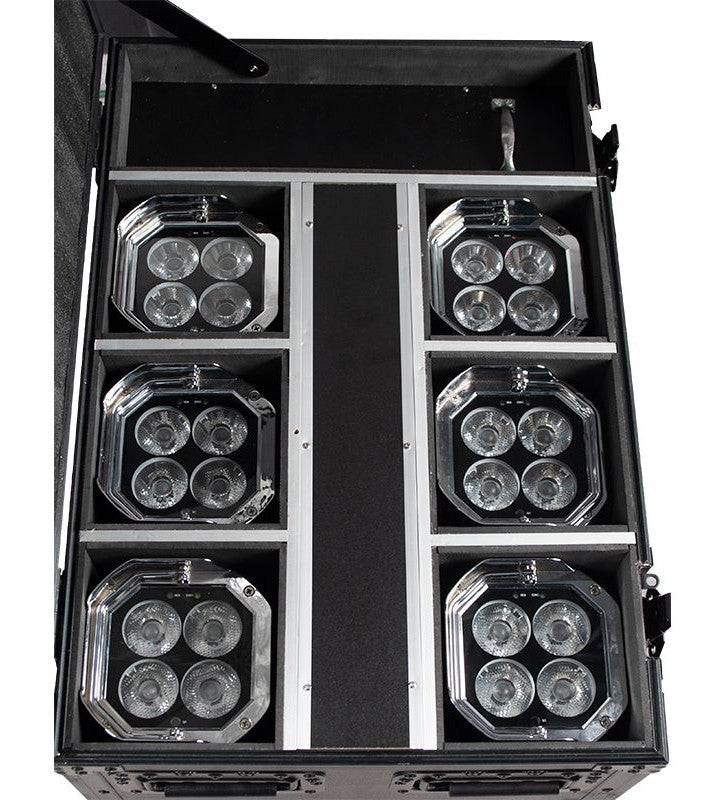

- Houses / Transports: 6 MIRAGE Q6 IP fixtures
- Weight (with 6 fixtues included): 97.9 pounds
- Dimensions (LxWxH): 26.4" x 18.2" x 18.1"
