Specifications
Certifications
IP Rating
IP20
Electrical Approval
ETL Approved (4002034)
Compliance
CE, FCC
Dimensions
Length
10.7"
Width
11.2"
Height
19.3"
Metric Dimensions
272.4 x 285.7 x 489mm
Weight
Product Weight
7.94 lbs / 3.6 kg
Electrical
Power Draw (Full On)
115W
Power Consumption
0.964A @ 120V/60Hz; 0.5A @ 220V/50Hz
Input Voltage
AC 100-240V, 50/60Hz
Daisy Chain Capacity
12 fixtures @ 120V; 22 fixtures @ 230V
Fuse
3A/250V
Optical
LED Engine
100W, 5700K Cool White C.O.B. (Chip On Board)
LED Lifespan
50,000 hrs

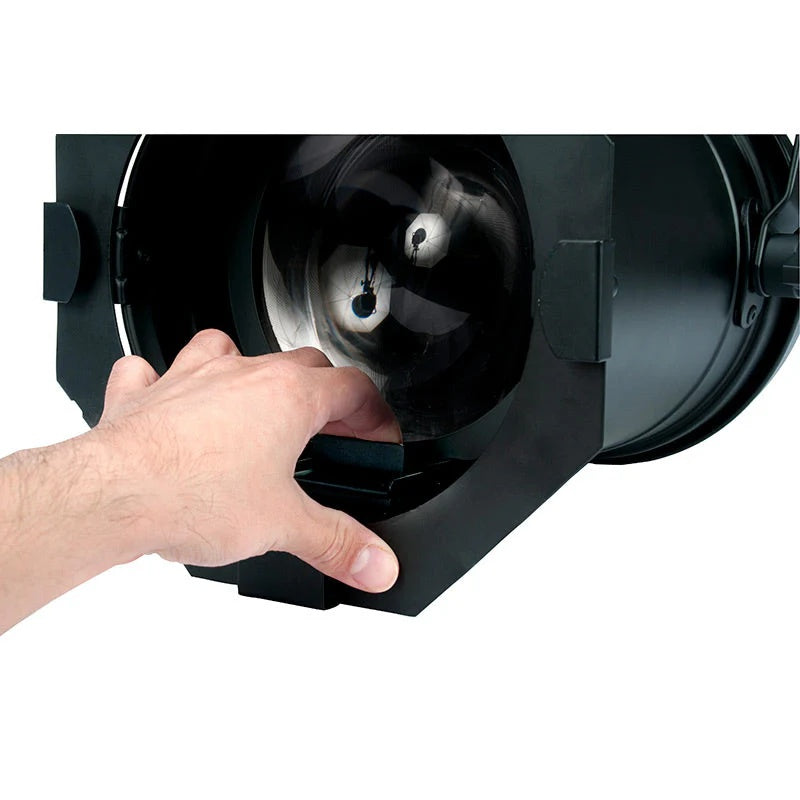

Manual Zoom Angles
9°, 15°, 20°, 25°, 30°
Zoom Ratio
3.3:1
CRI
>90
Photometrics
Peak Illuminance
5023 Lux (9° @ 5 meters)
Minimum Illuminance
783 Lux (25° @ 5 meters)
Control
DMX Protocol
DMX-512
DMX Channel Modes
1, 3, 4 channel modes

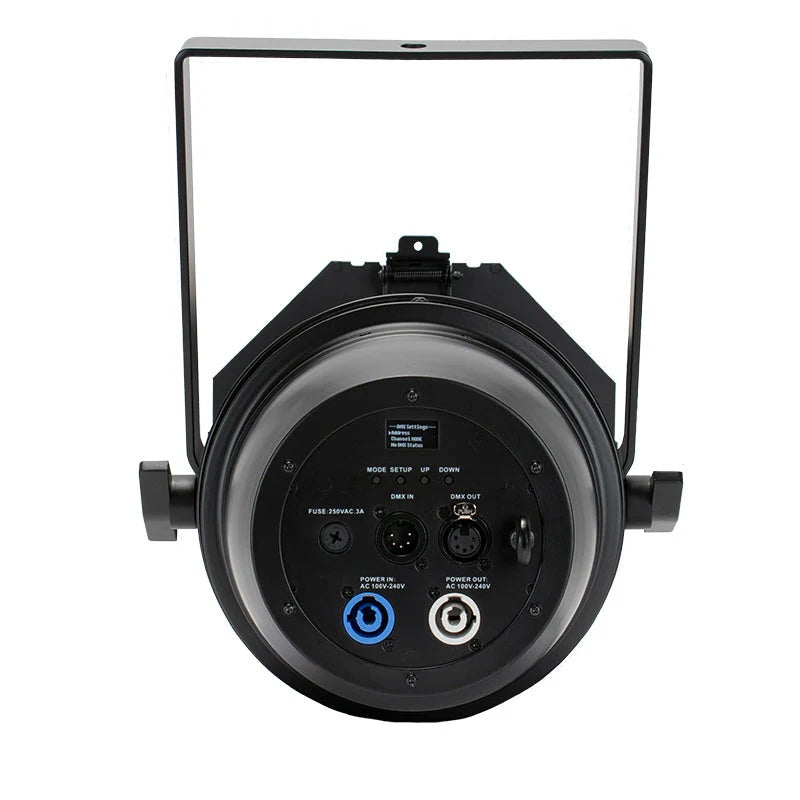

DMX Connector
5-pin DMX In/Out
RDM
RDM and RDM Net Compatible
Control Modes
Primary/Secondary, Stand-Alone, On-Board Manual
Display
OLED with 4-button menu
Strobe Rate
0.6Hz to 7.5Hz
Refresh Rate
1.2kHz
Electronic Dimming
0-100%
Dim Modes
6
Environmental
Ambient Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Storage Temperature
-22°F to 113°F (-30°C to 45°C)
