Specifications
Optical
Light Source
20W RGBL LED
LED Life Expectancy
30,000 hrs
Beam Angle
5.7°
Included Alternate Beam Angles
10° and 45° (via frost filter lenses)
LED Refresh Rate
3.6KHz
Control
DMX Channel Modes
12 (3 HSI / 4 RGBL / 4 HSI+ / 5 RGBL / 6 sRGBLI / 6 RGBL / 7 RGBL / 8 RGBL / 8 16bit / 10 HSI / 12 sRGBLI / 13 RGBL)
RDM Compliant
Yes
IR Control
Yes
Built-In Color Macros
63
Built-In Color Changing Programs
13

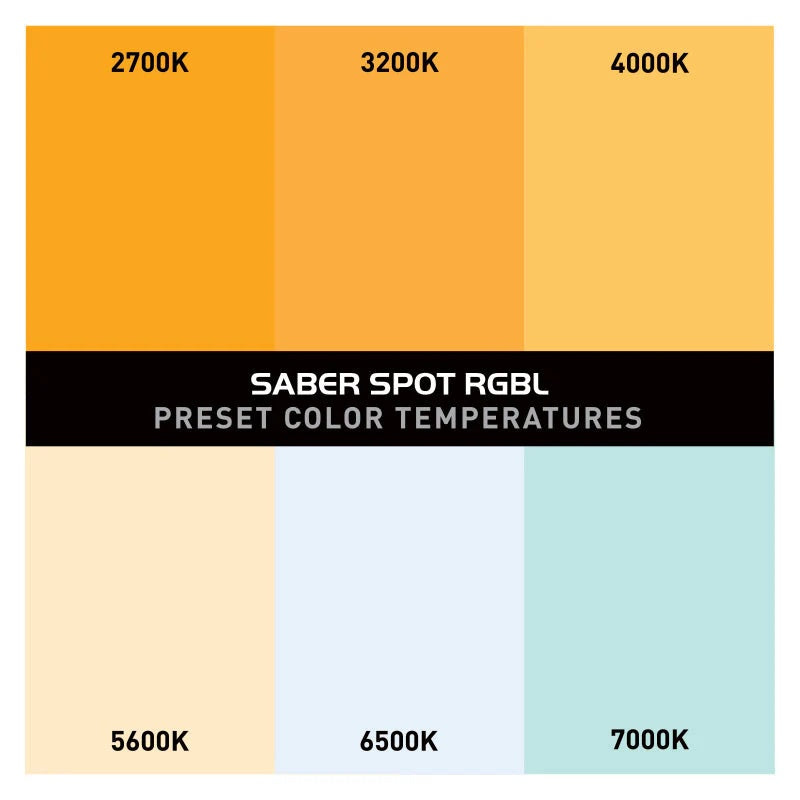

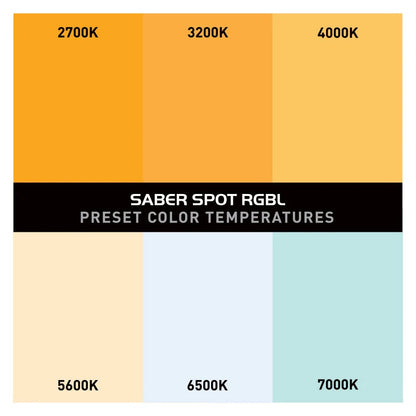

White Color Temperature Presets
6 (2700K, 3200K, 4000K, 5600K, 6500K, 7000K)
Electronic Dimming
0–100%

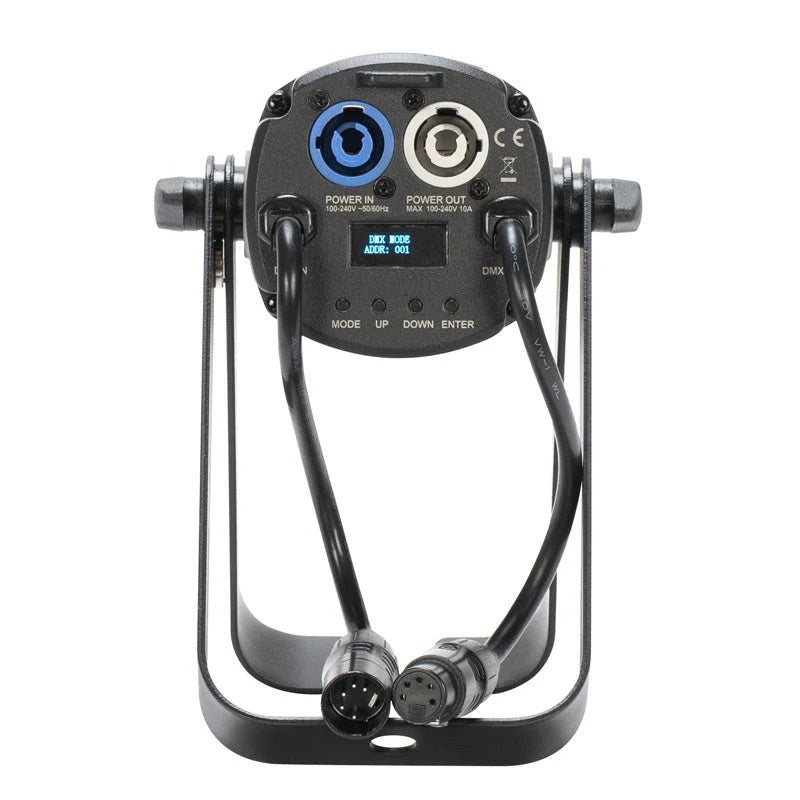

Connectivity
Power Input
Indoor power locking
Power Pass-Through
Indoor power locking
DMX Control
5-pin DMX In/Out pigtails
Digital Communication
Wired Digital Communication Network
Electrical
Input Voltage
100–240V, 50/60Hz (Auto Sensing)
Power Draw (120V 60Hz)
16.7W, 0.243A
Power Draw (230V 50Hz)
16.7W, 0.147A
Power Output Current
1.2A (14W)
Power Linking
57 units @ 120V; 95 units @ 230V
Dimensions
Length
6.69"
Width
5.31"
Height
8.46"
Weight
Product Weight
3.2 lbs
Construction
Housing Color
Black
Certifications
CE
Yes
cETLus
Approved (Control # 4010765)
IP Rating
IP20

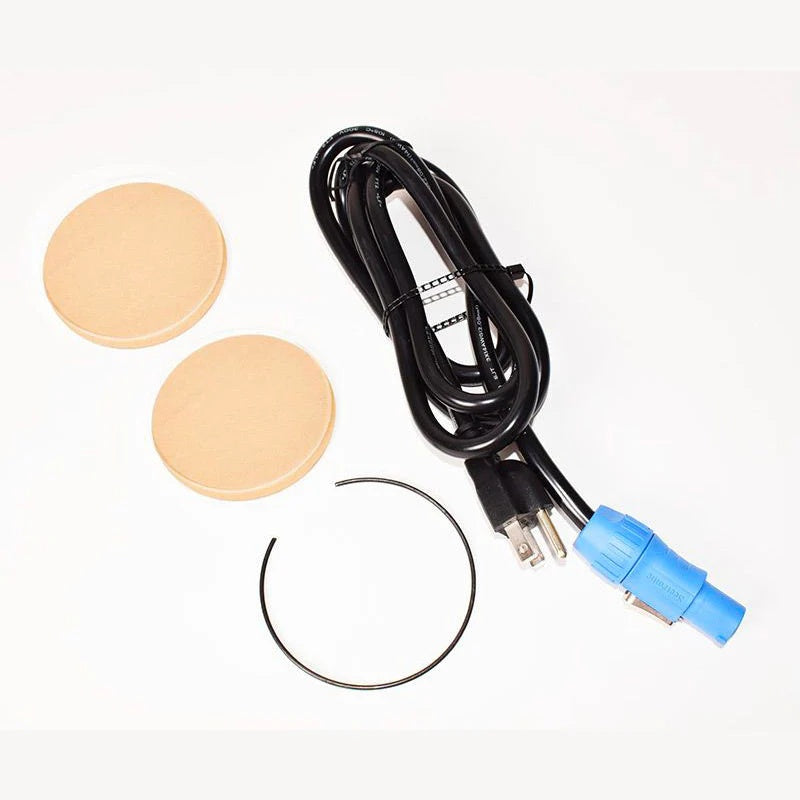

Included Items
Power Cord
1.83m indoor locking power cord
Frost Filter Lenses
2 (10° and 45°)
Lens Accessory
Metal clip ring for frost filter lens
