Specifications
Dimensions
Dimensions (LxWxH)
11.5” x 11.9” x 18.3” / 292.1x302.3x464.0mm
Electrical
Multi-voltage Operation
AC 100-24V, 50/60Hz
Maximum Power Consumption
150W
Optics
Beam Angle
2.3-Degree
Focus
Motorized
Frost Filter
(11-Degree Wash Effect)
Feature
Prism layering
Controls
2 DMX Channel Modes
16 or 19 channels
Protocols
DMX-512, RDM, Auto and Primary/Secondary control modes
Variable Strobe
0-20HZ

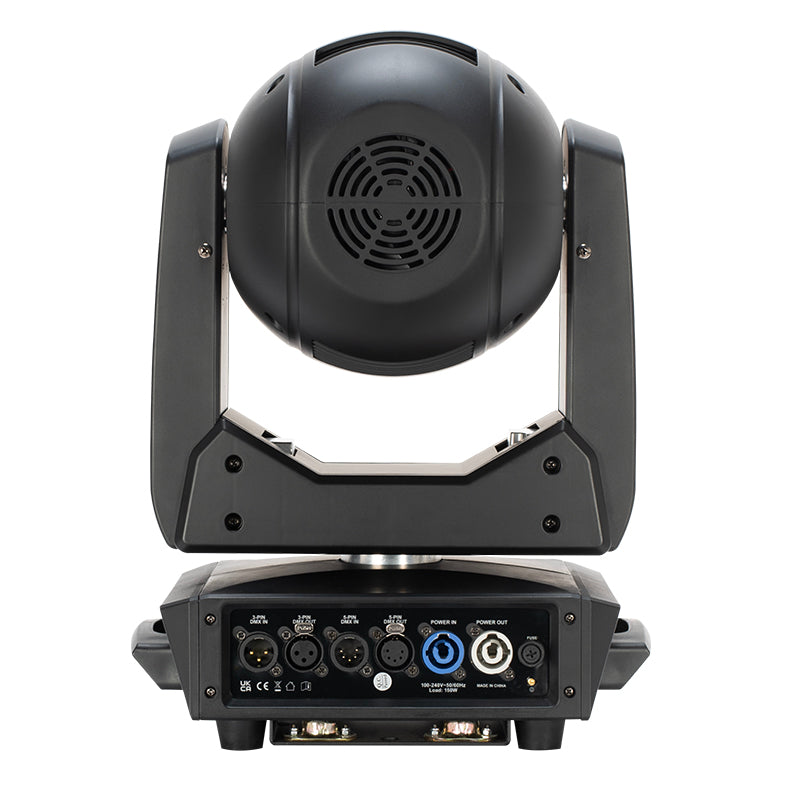

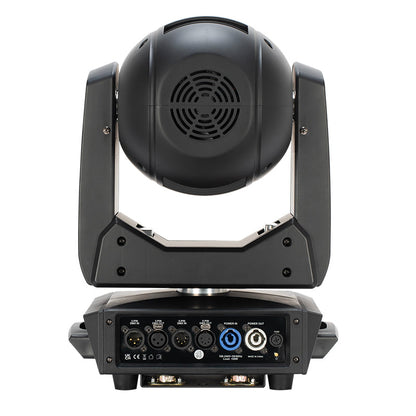

DMX Data In/Out
3-pin 5-pin connections
Shipping
Weight
29 lbs. / 12.8 kg.
General
Electronic Dimmer
0- 100 %
Power in
Blue Locking indoor power connection
Power Out
White Locking indoor power connection
Pan/Tilt
540-degrees / 270-degrees
Power Daisy Chain
2 units @120V, 3 units @230V
LED Engine
100W
Effect
GOBO Shake
Fine Pan
16-bit
Fine Tilt
16-bit
