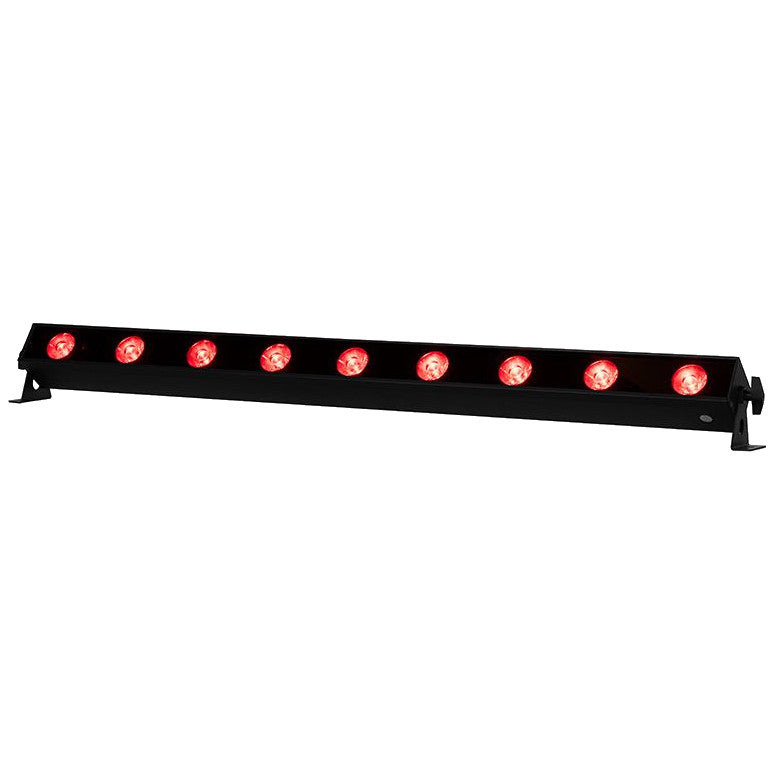

ADJ UBL9H RGBAL+UV LED Linear Wash Light

ADJ UBL9H RGBAL+UV LED Linear Wash Light

SoundPro Item: 142583 | Part Number: UBL9H

$349.99
$479.95 $349.99
Your Price Sold out
MSRP: $479.95 | MAP: $349.99

Usually ships in 5-7 business days

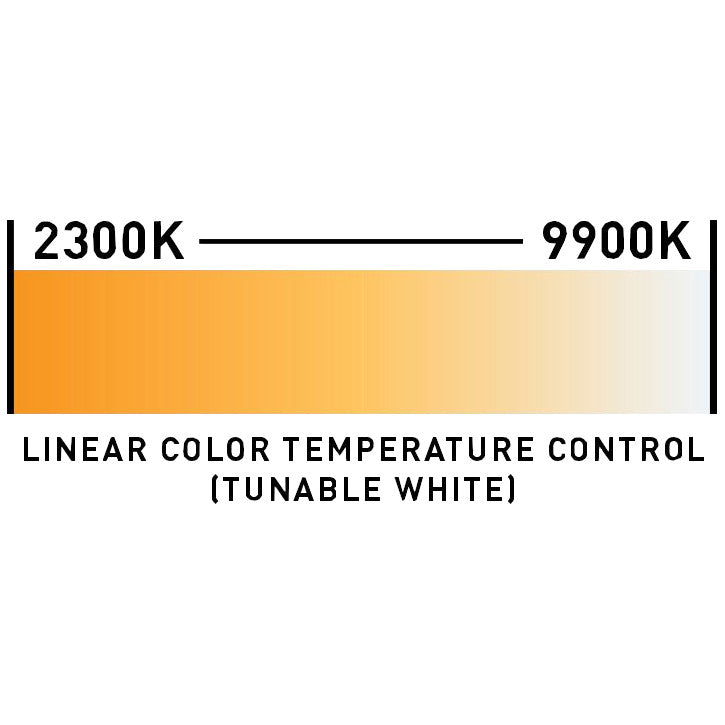

  • Linear Color Temperature Control (2,300K to 9,900K)

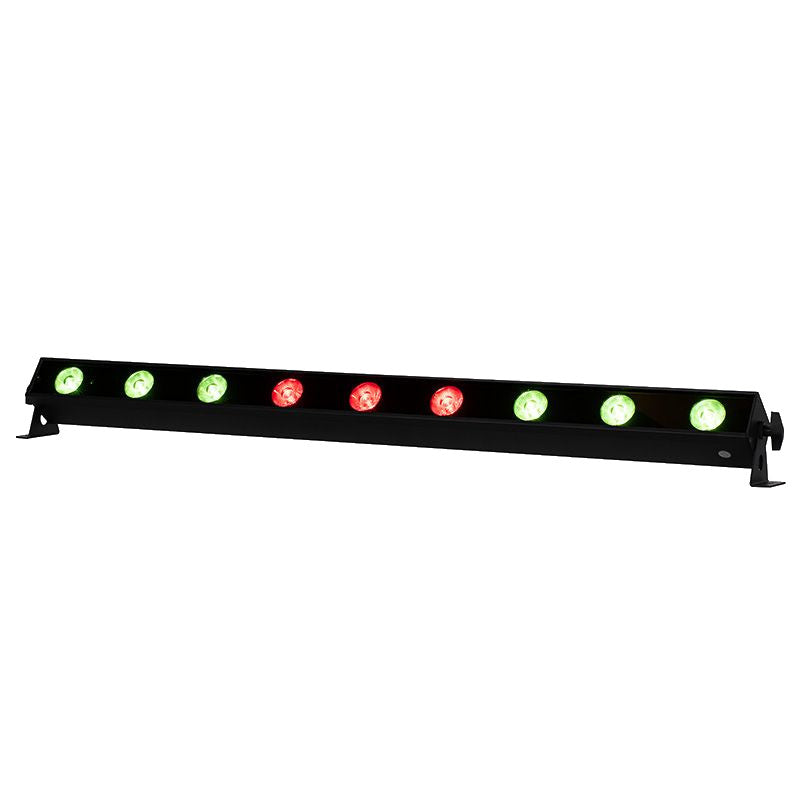

  • Smooth RGBAL+UV color mixing

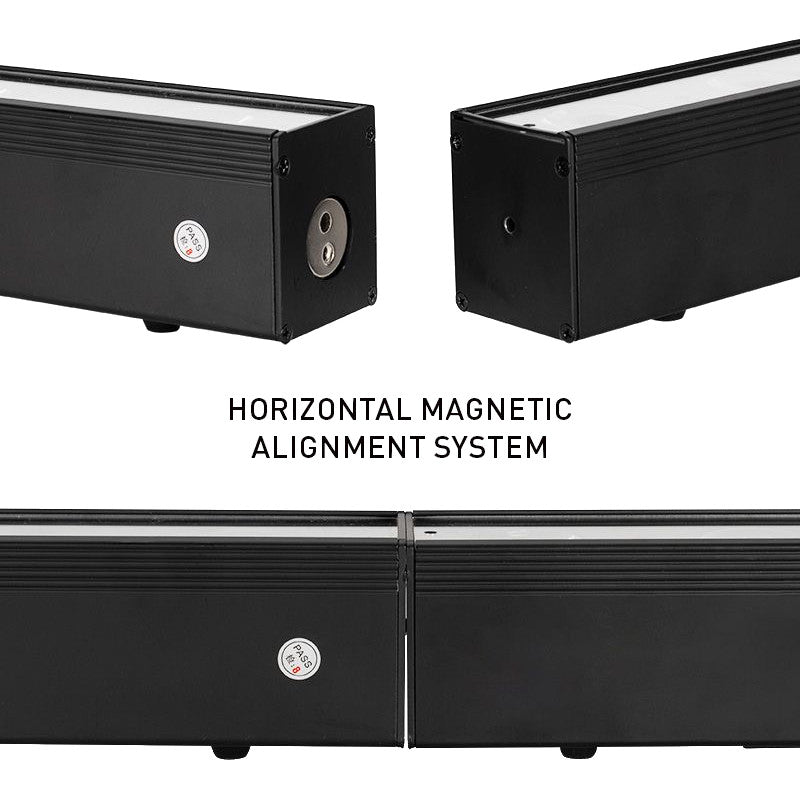

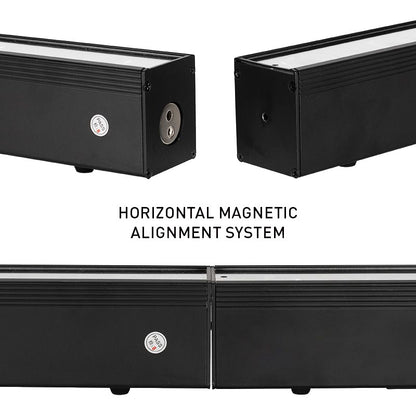

  • Horizontal Magnetic Alignment feature (Built-In)

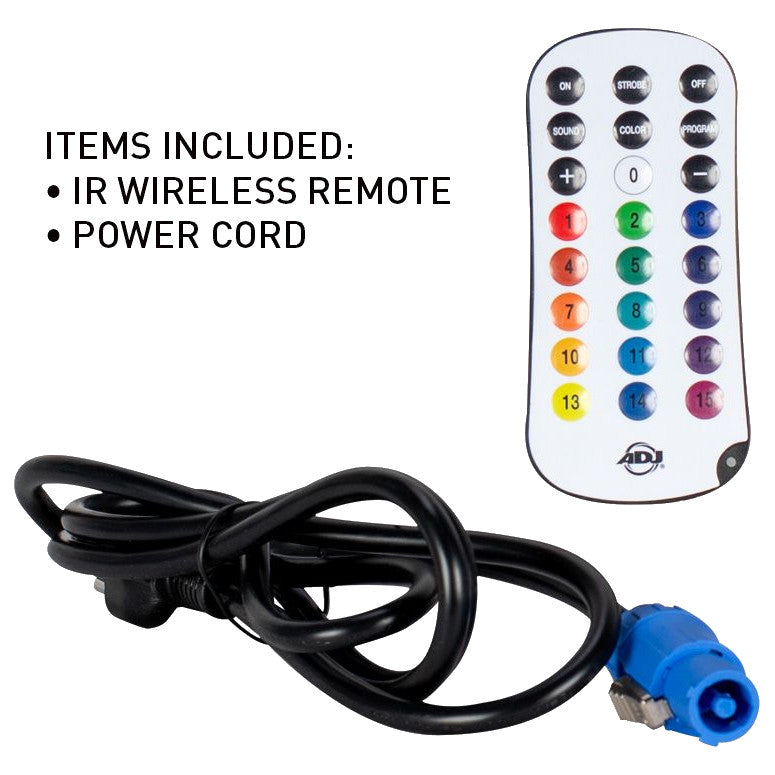

  • Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
  • RDM Compatible
Log in or register for YOUR best price

The UBL9H incorporates a lime-infused HEX LED with nine (9) 20-Watt (Red, Green, Blue, Amber, Lime and UV) LEDs. The added lime chip offers a higher caliber of color indexing with a high CRI of over 90 along with tunable white light control from 2,300K to 9,900K.

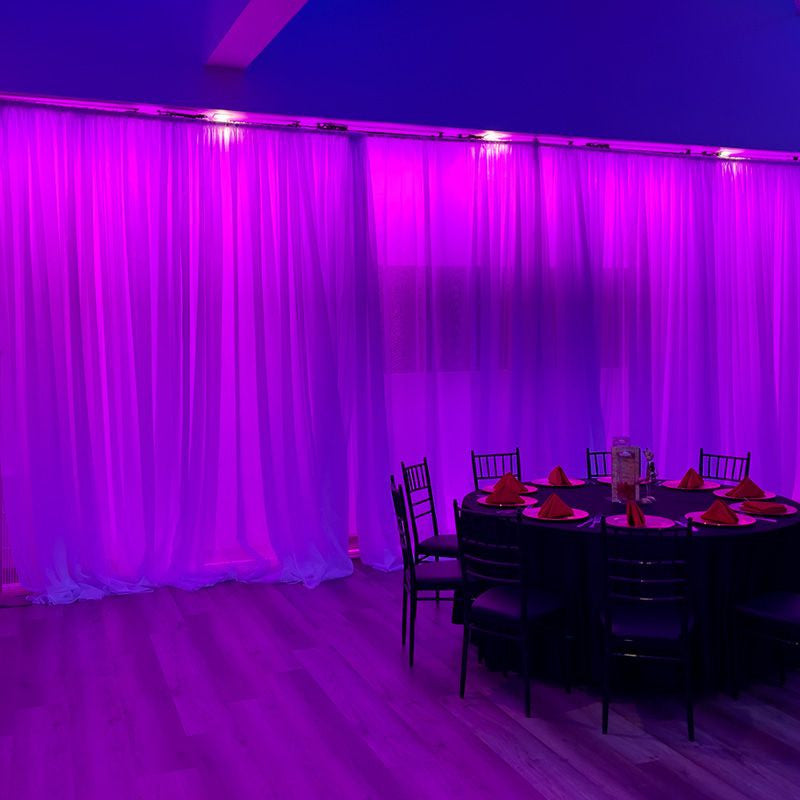

The ADJ Ultra Series has long provided lighting designers and event producers the creativity to create event linear wash lighting for walls, floors and ceilings.

View full details

Specifications

Certifications
Certifications / IP Rating
cETLus (Control # 4002034), CE, FCC, IP20
Dimensions
Dimensions (LxWxH)
2.96x42.6x4.2" (75x1082x106.7mm)
Electrical
Multi-voltage Operation
AC 100V-240V 50/60Hz
Electrical
Daisy-chain power link (Up to 22 UBL9H's can be linked @120V and up to 40 UBL9H's can be linked @230V)
Connectivity
Connections
Locking power In/Out to daisy chain power
Controls
7 DMX Channel Modes
6, 11, 13, 16, 18, 25, & 28 Channels
Environmental
Operational Temperature Range
-4°F ~ 113°F (-20°C ~ 45°C)
Storage Temperature
-22°F ~ 113°F (-30°C ~ 45°C)
Shipping
Weight
7.28 lbs (3.3kg)
General
Light Source
9 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs, Long Life LEDs (Rated at approximately 50,000 hrs.), 17° beam angle, CRI >90
Pixel Pitch
113mm
Control

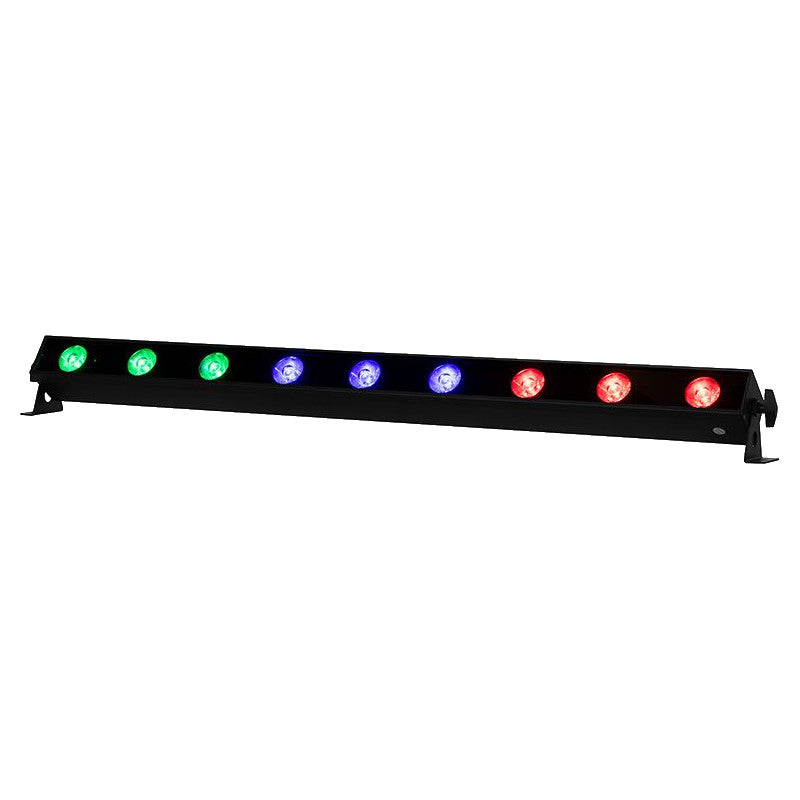

Linear Color Temperature Control (2,300K to 9,900K), OLED Display with 4-buttons, 3 Groups x3 RGBAL+UV LED pixels controllable via DMX in 18, 25 & 28 channel modes, 64 built-in Color Macros, 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2), 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve), Built-In Microphone for sound trigger, LED pulse and strobe effect
5 Operational Modes
Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
LED Refresh Rate
1.9KHz
Electronic Dimming
0-100
Linkable
DMX via 5-pin XLR cable
Power Draw
54W
Optional Accessories

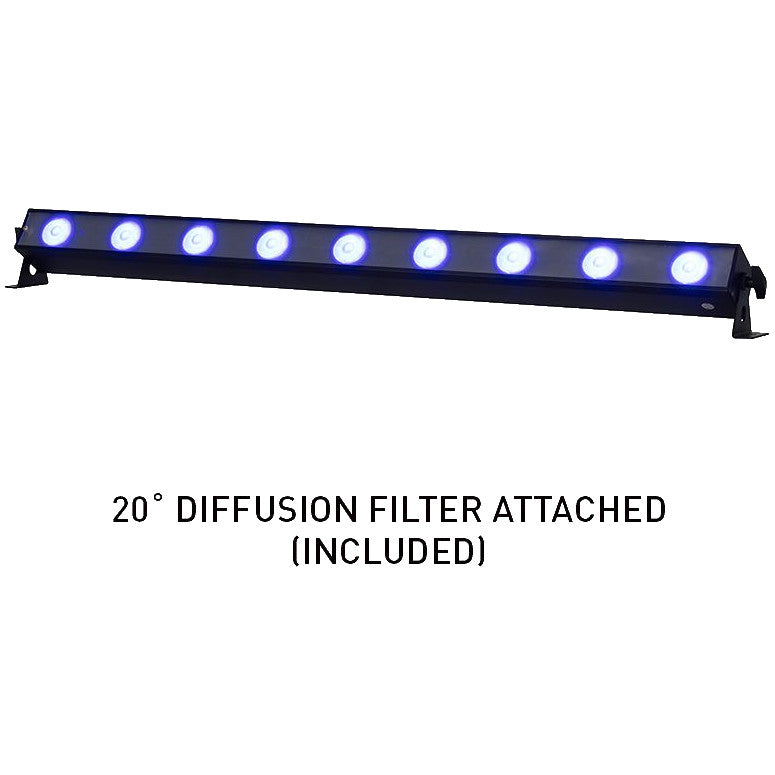

(1) 1x40° Linear Diffusion Lens (SKU: UBL912)
