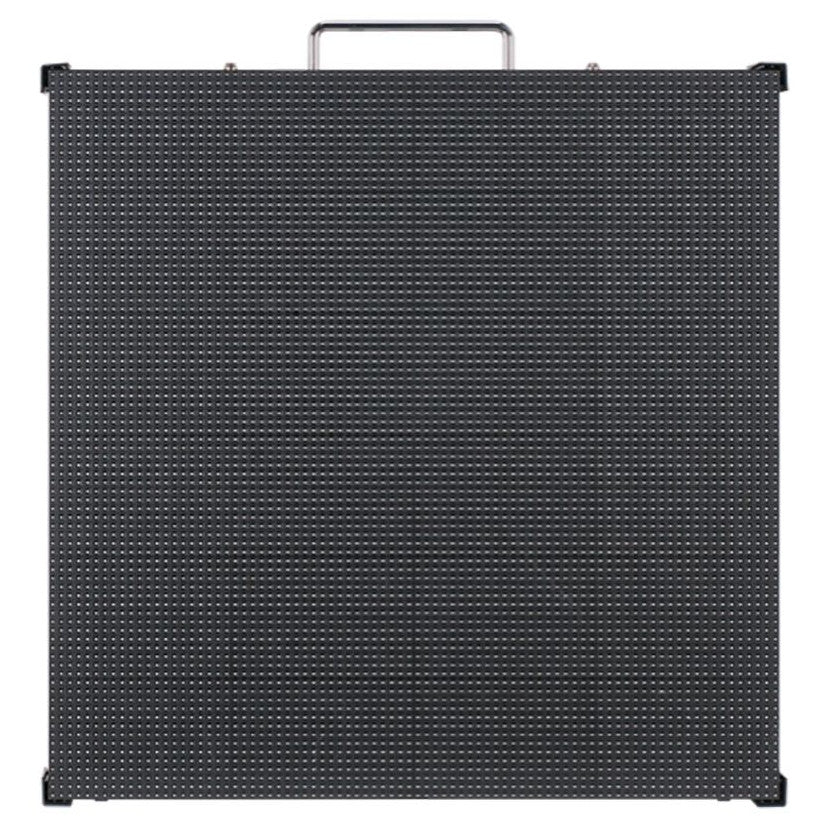

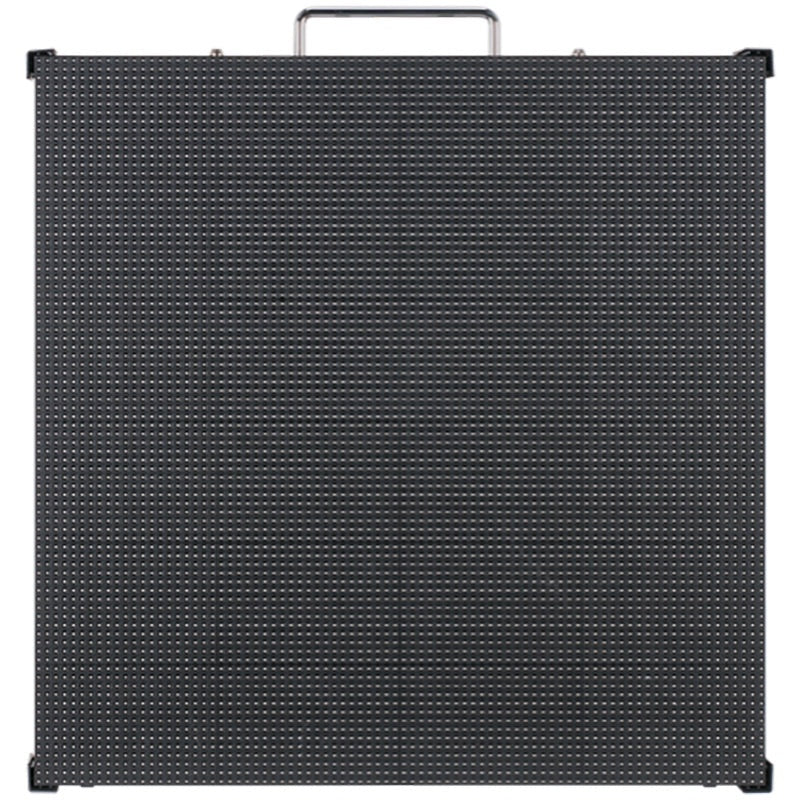

ADJ VS2 Single LED Video Panel
ADJ VS2 Single LED Video Panel
SoundPro Item: 55387 | Part Number: VS2
Usually ships in 5-7 business days
- Pixel pitch of 2.97mm
- 4 LED modules per panel
- Connections include PowerLock in/out and DataLock in/out
- Novastar A5s receiving card built-in

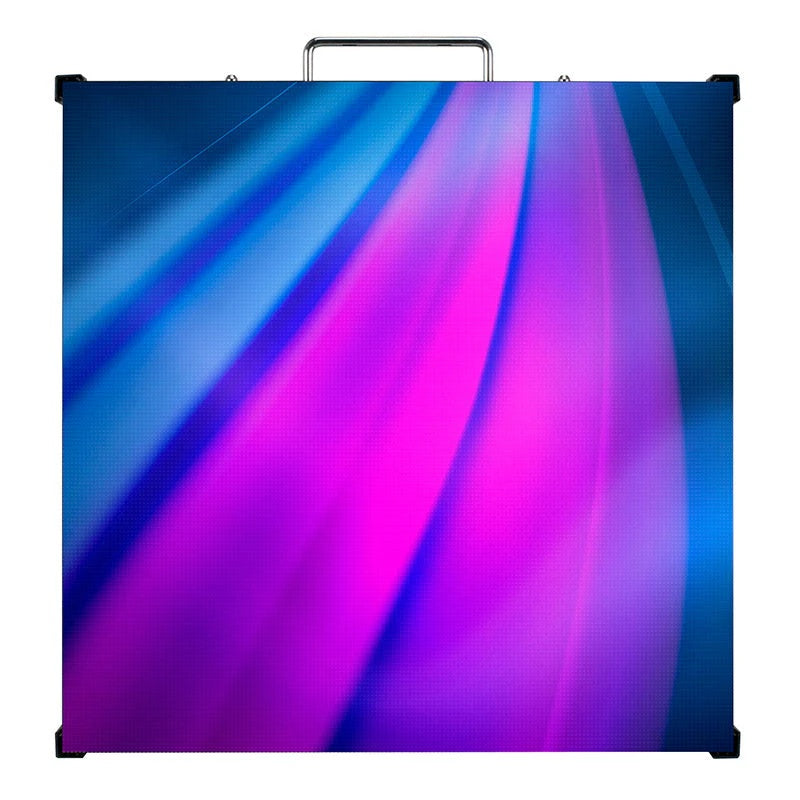

ADJ’s VS2 Single LED Video Panel offers the highest quality LED binning and bright, clear output.

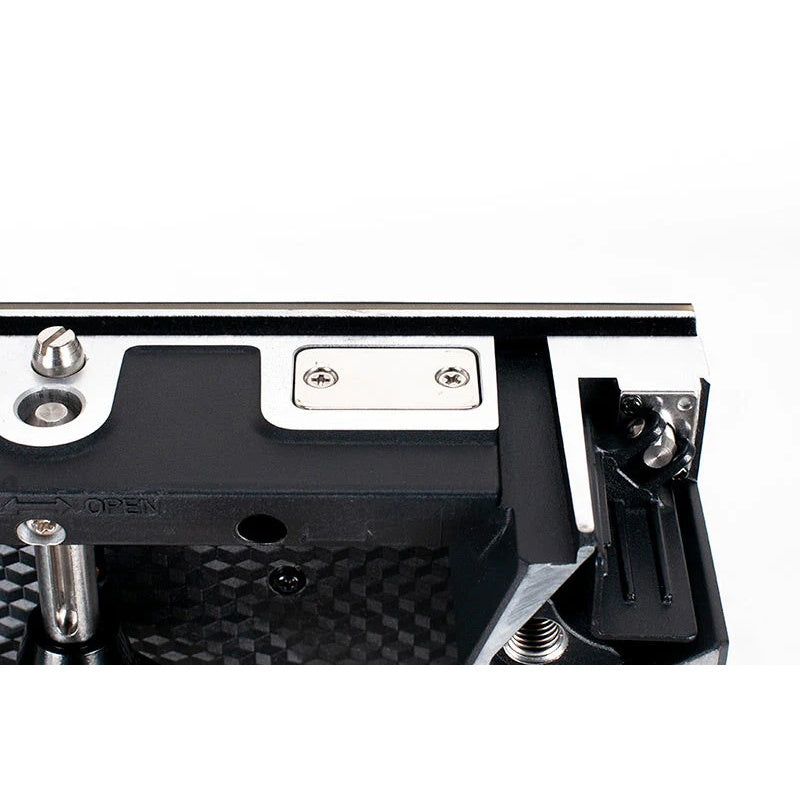

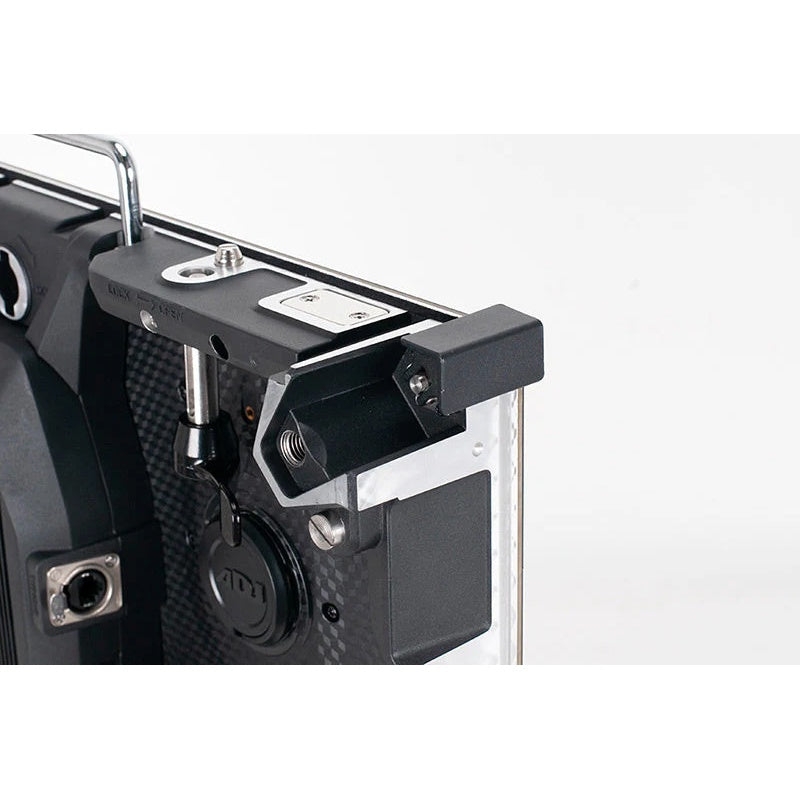

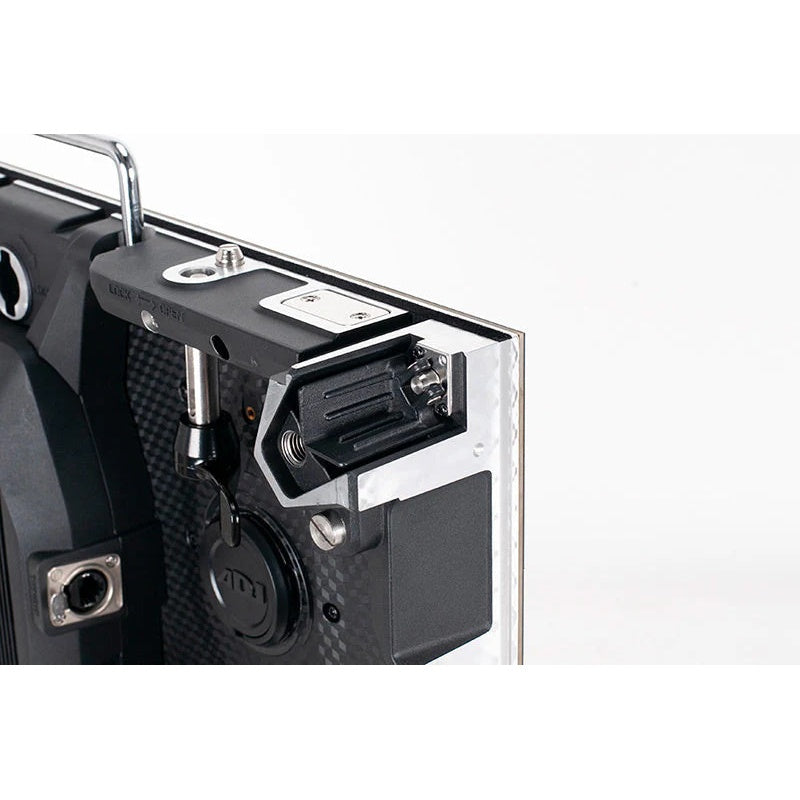

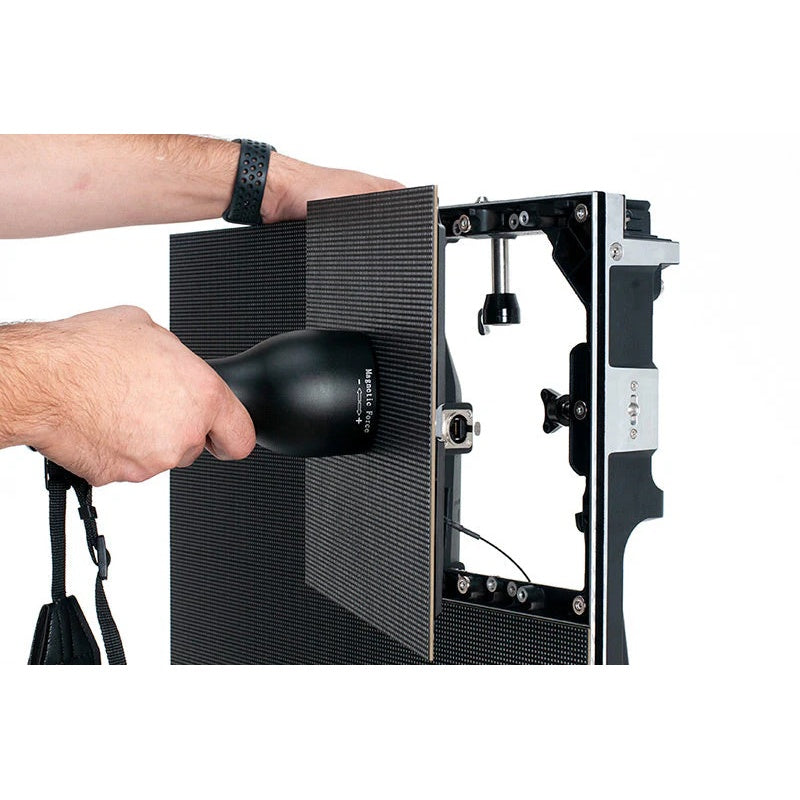

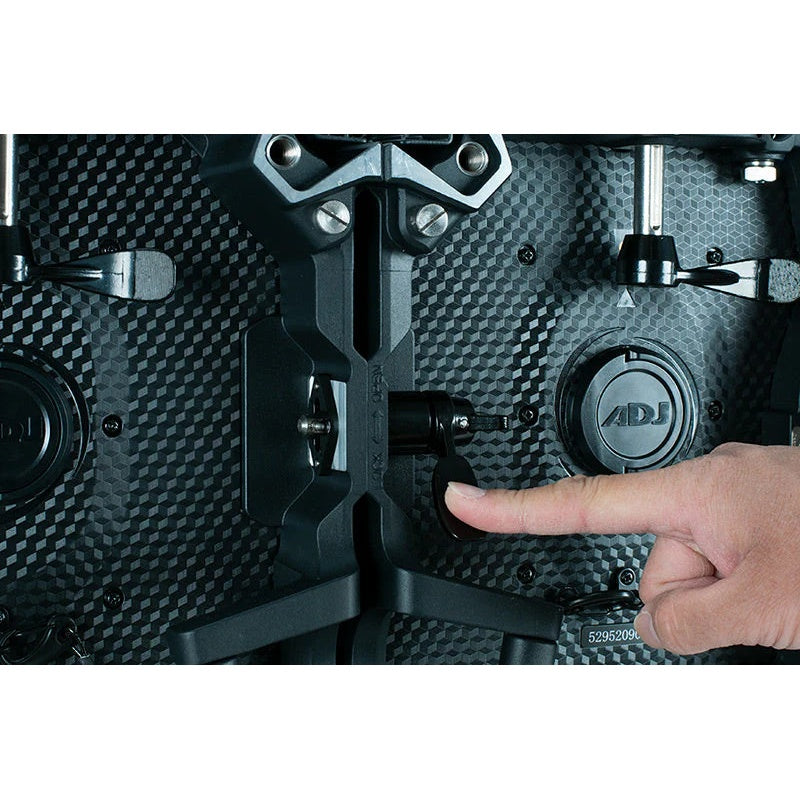

Vision Series video panels are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models are built on the same frame allowing panels with different resolutions to be used together. The Vision Series panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.

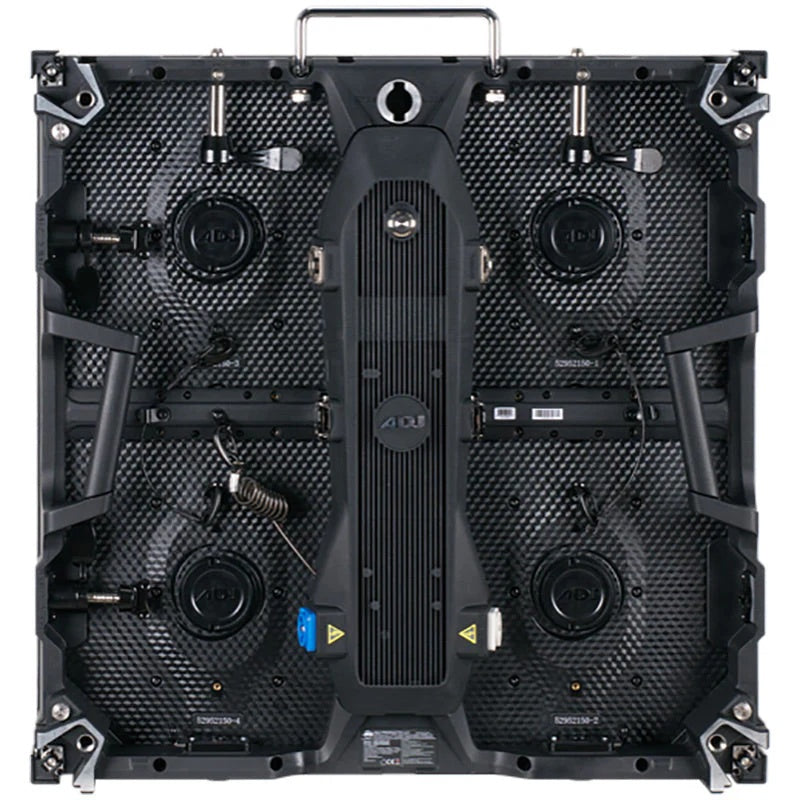

The VS2 is a high-resolution video panel with a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS2 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS2 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar.
- Pixel Pitch2.97mm
- LED Configuration3-in-1 SMD2121 LED
- Pixel Density168x168; 112896 per square meter
- Module Quantity4
- Front and Rear Serviceable4 easy to replace video modules on each panel
- Magnetson top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall
- Mechanical Ratings
- Surface Flatness: gaps <0.5mm
- Optical Ratings
- Brightness: 1000 NITS
- View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
- Gray Scale: ≥14-bit
- Display Color: 256
- Brightness Adjustment: 0~100% 100 Levels
- Contrast ratio: 5000:1
- Processing: 14-bit
- Power Supply
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 170W/per panel
- Ave. Power Consumption: 68W/per panel
- Connections Power/Data: PowerLock In/Out; DataLock In/Out
- Control System
- Control Mode: Nova Star Synchronous System with Control via DVI
- Frame Update Frequency: 50-75Hz
- Scan Mode: 1/21
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Control Distance: Ethernet Cable <120m or Fiber Optic>120m
- Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
- Brightness Correction: Pixel, Module, Cabinet
- Environmental
- Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
- Operating Life / MTBF: 50,000 Hours / 5,000 Hours
- Protection Level: IP20 (Front and Back)
- Out of Control Rate: <0.02%
- Dimensions19.68" x 19.68" x 2.74"
- Weight17 pounds
