ADJ VS3 9x5 Video Panel System
ADJ VS3 9x5 Video Panel System
SoundPro Item: 114130 | Part Number: VS3 9X5
Usually ships in 5-7 business days
- Pixel pitch of 3.91mm
- Configuration of 3-in-1 RGB SMD2121 LED
- Each panel has 4 individual mini modules and is front and rear serviceable
- Each panel has Novastar A5s receiving card built in

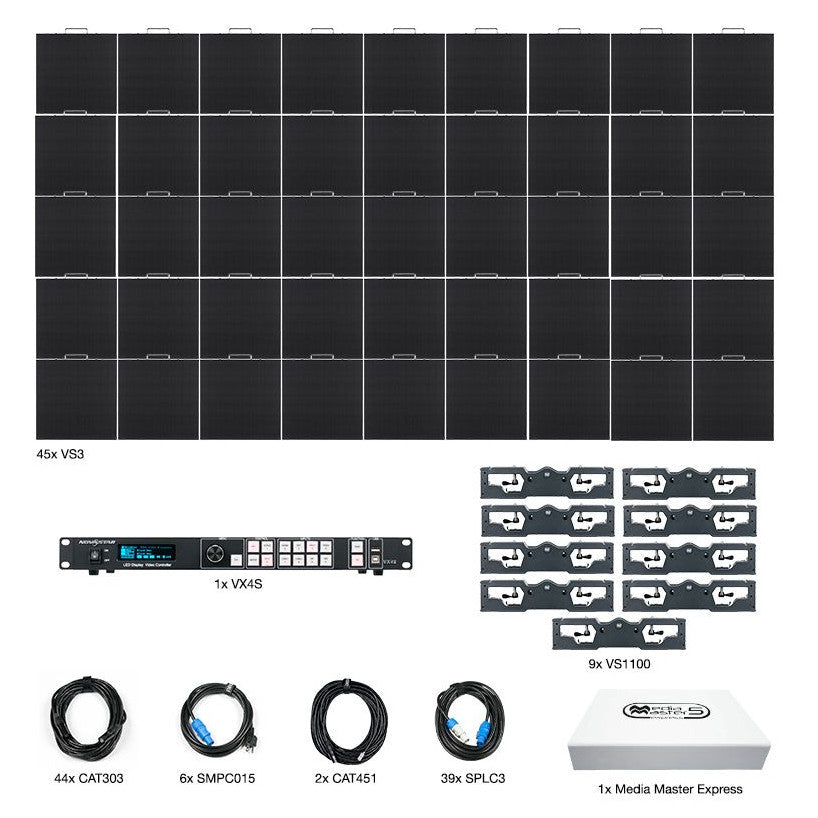

ADJ Video Panel System featuring 45 ADJ VS3, 3.91 mm pixel pitch video panels, power cables, data cables, rigging bars, video processor and software.

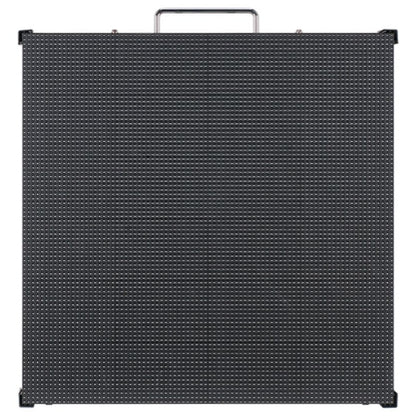

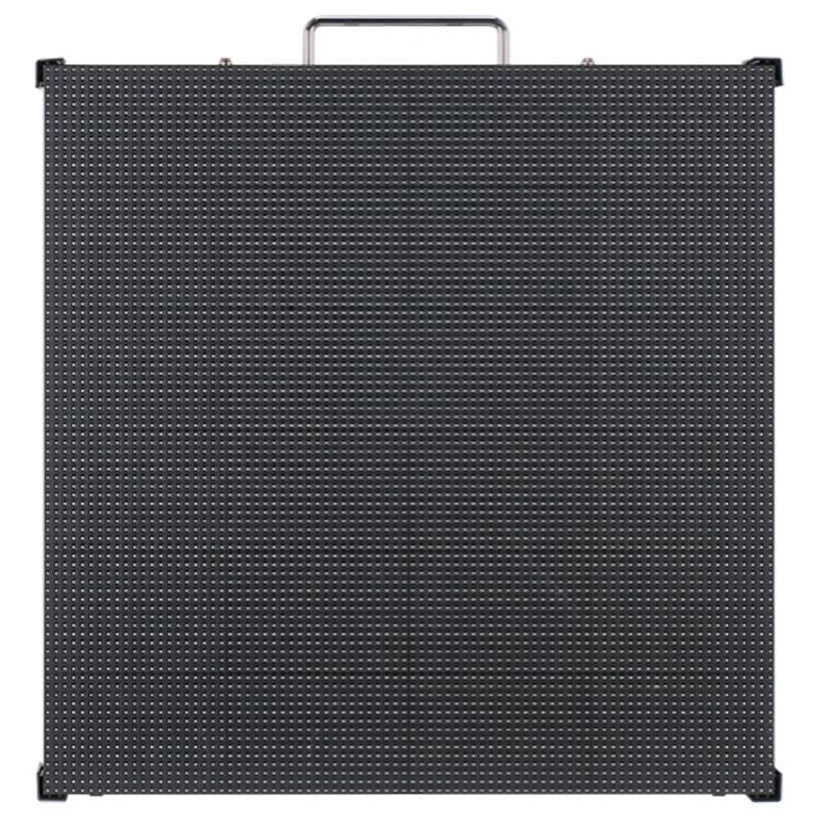

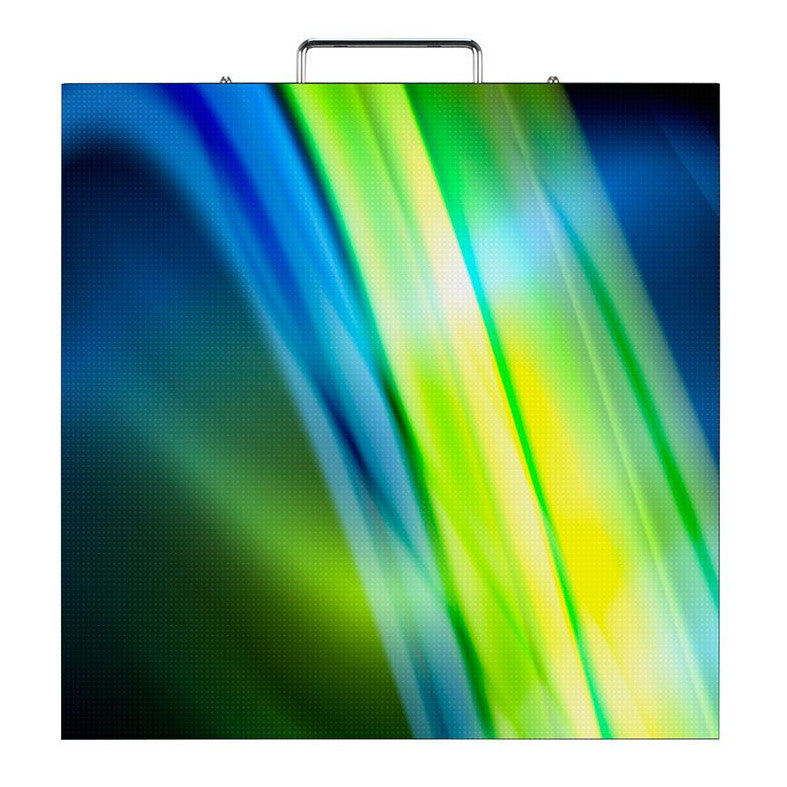

The VS3 is a high-resolution video panel with a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS3 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in.
- VS3
- Pixel Pitch: 3.91mm
- LED Configuration: 3-in-1 SMD2121 LED
- Pixel Density: 128x128; 65536 per square meter
- Module Quantity: 4

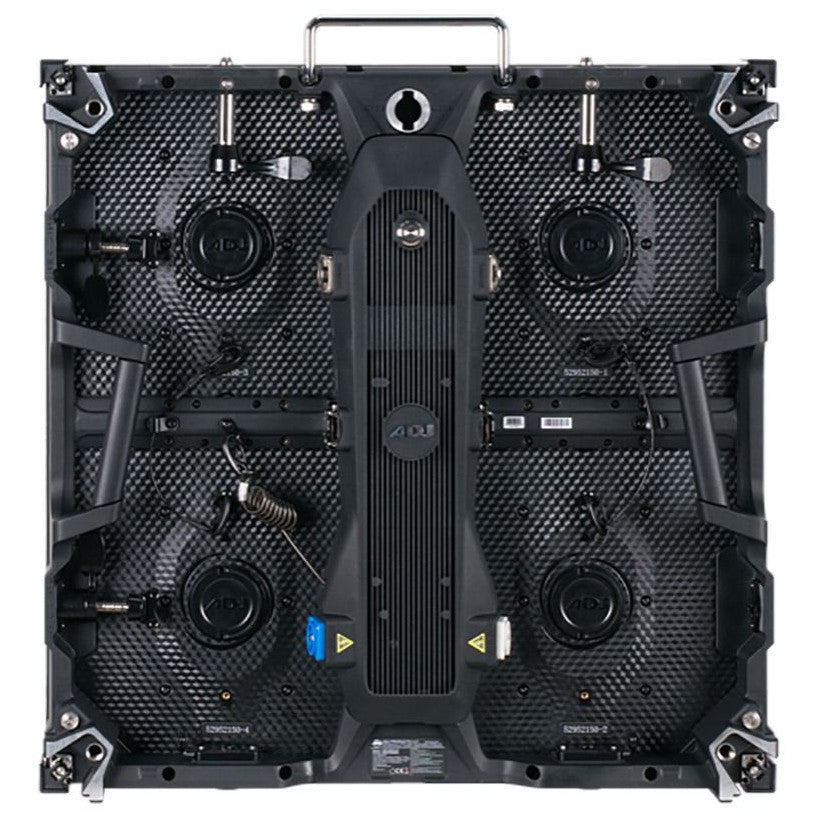

- Front and rear serviceable: 4 easy to replace video modules on each panel

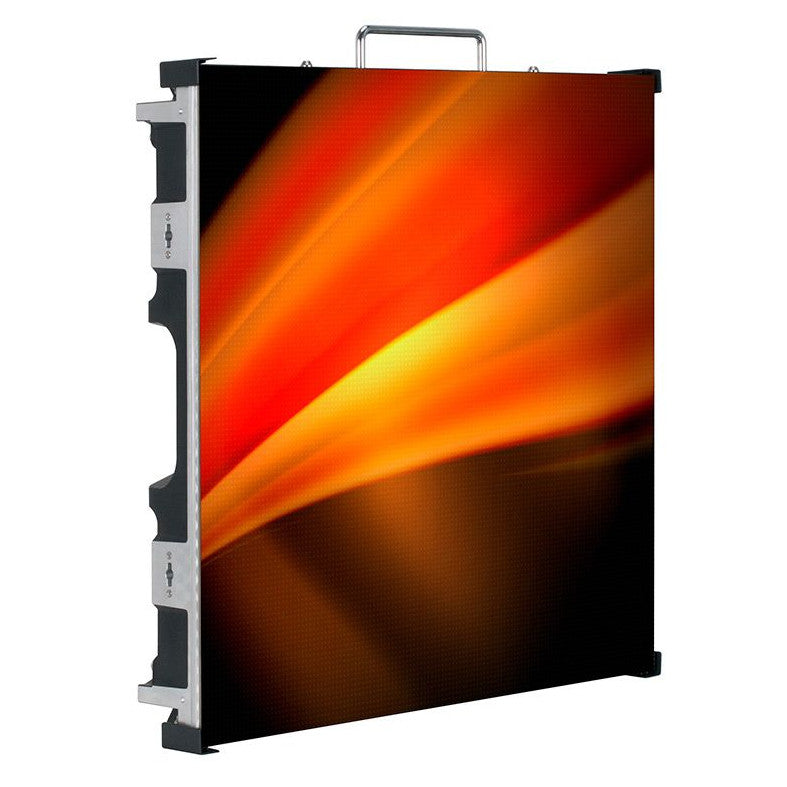

- Magnets: on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall
- Mechanical Ratings, Surface Flatness: gaps <0.5mm
- Optical Ratings
- Brightness: 1000 NITS
- View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
- Gray Scale: ≥14-bit
- Display Color: 256
- Brightness Adjustment: 0~100% 100 Levels
- Contrast ratio: 5000:1
- Processing: 14-bit
- Power Supply
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 170W/per panel
- Ave. Power Consumption: 68W/per panel
- Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
- Control System
- Control Mode: Nova Star Synchronous System with Control via DVI
- Frame Update Frequency: 50-75Hz
- Scan Mode: 1/16
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Control Distance: Ethernet Cable <120m or Fiber Optic>120m
- Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
- Brightness Correction: Pixel, Module, Cabinet
- Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
- Operating Life / MTBF: 50,000 Hours / 5,000 Hours
- Protection Level: IP20 (Front and Back)
- Out of Control Rate: <0.02%
- Weight: 17 pounds
- Dimensions: 19.68" x 19.68" x 2.74"
- Novastar VX4S
- Input Resolution: up to 1920 x 1200 p @60Hz input resolution
- Electrical
- Max Power Consumption: 16W
- AC 100-240V - 50/60Hz - 0.65A
- Control/Connections
- (1) RJ45 LAN for IP Based Control
- (4) RJ45 Outputs for up to 2.6 million Pixels of LED Control
- (2) USB Type A and (2) USB Type B Ports (1 set on each side)
- (1) 1/8 inch (3.5mm) Audio Input
- Video Input: (1) DP / (1) HDMI / (2) VGA / (1) DVI / (2) CVBS / (1) SDI
- Video Output: (1) DVI Loop / (1) DVI / (1) VGA / (1) SDI Loop
- Locking IEC Power Input
- Weight: 5.6 pounds
- Dimensions (LxWxH): 19" x 10.8" x 1.8"
- VSRB1
- Weight: 10 pounds
- Dimensions (LxWxH): 19.6" x 3" x 4.75"
