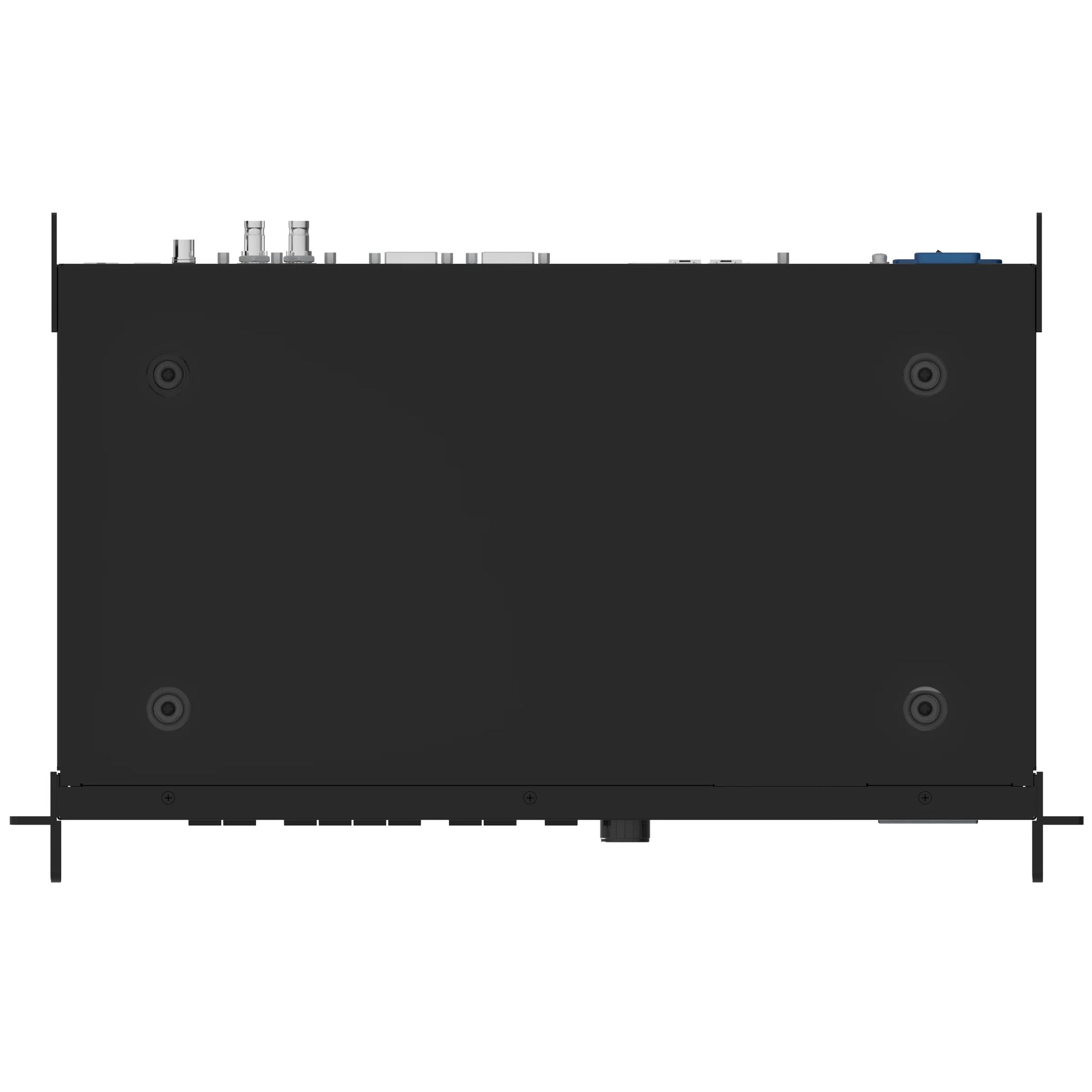

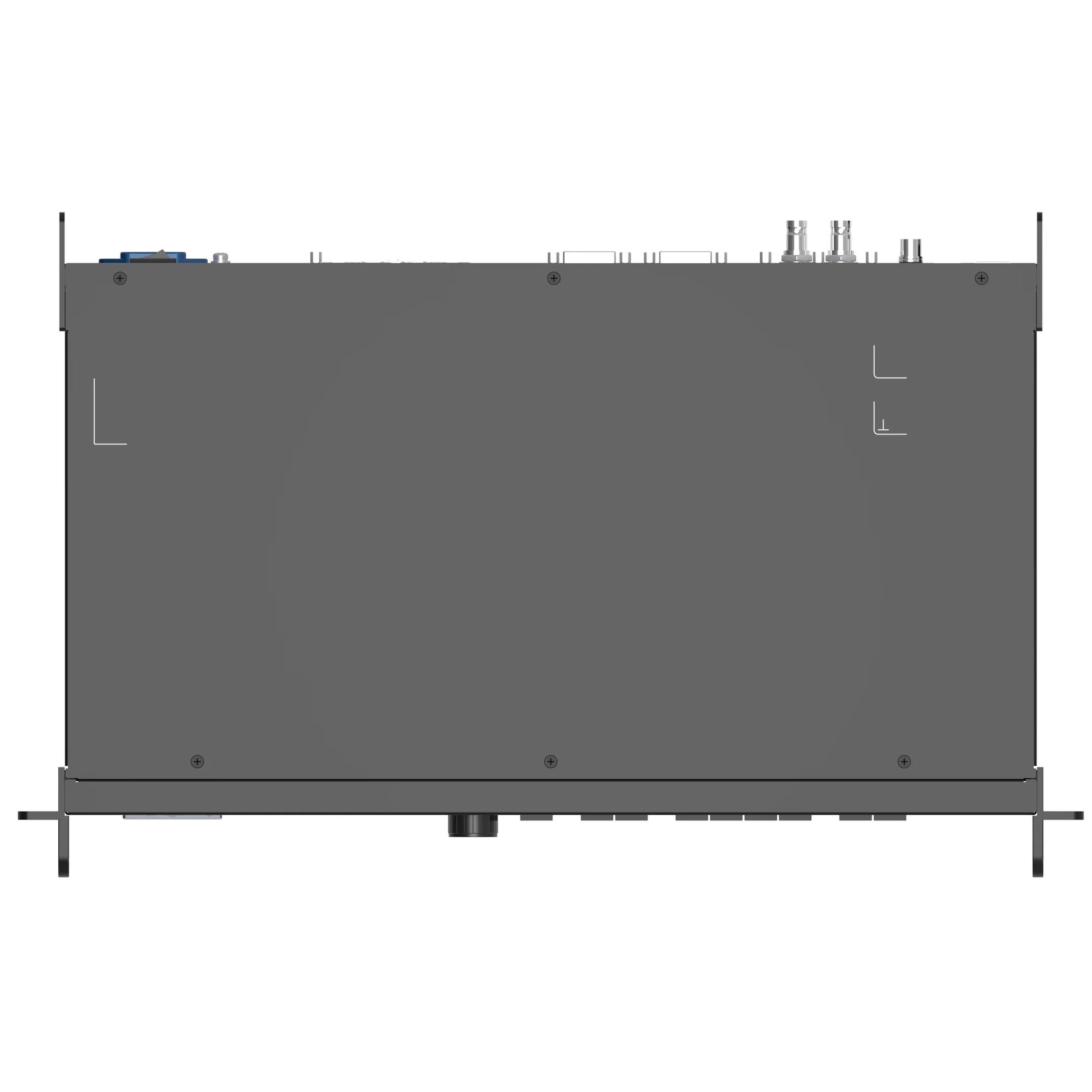

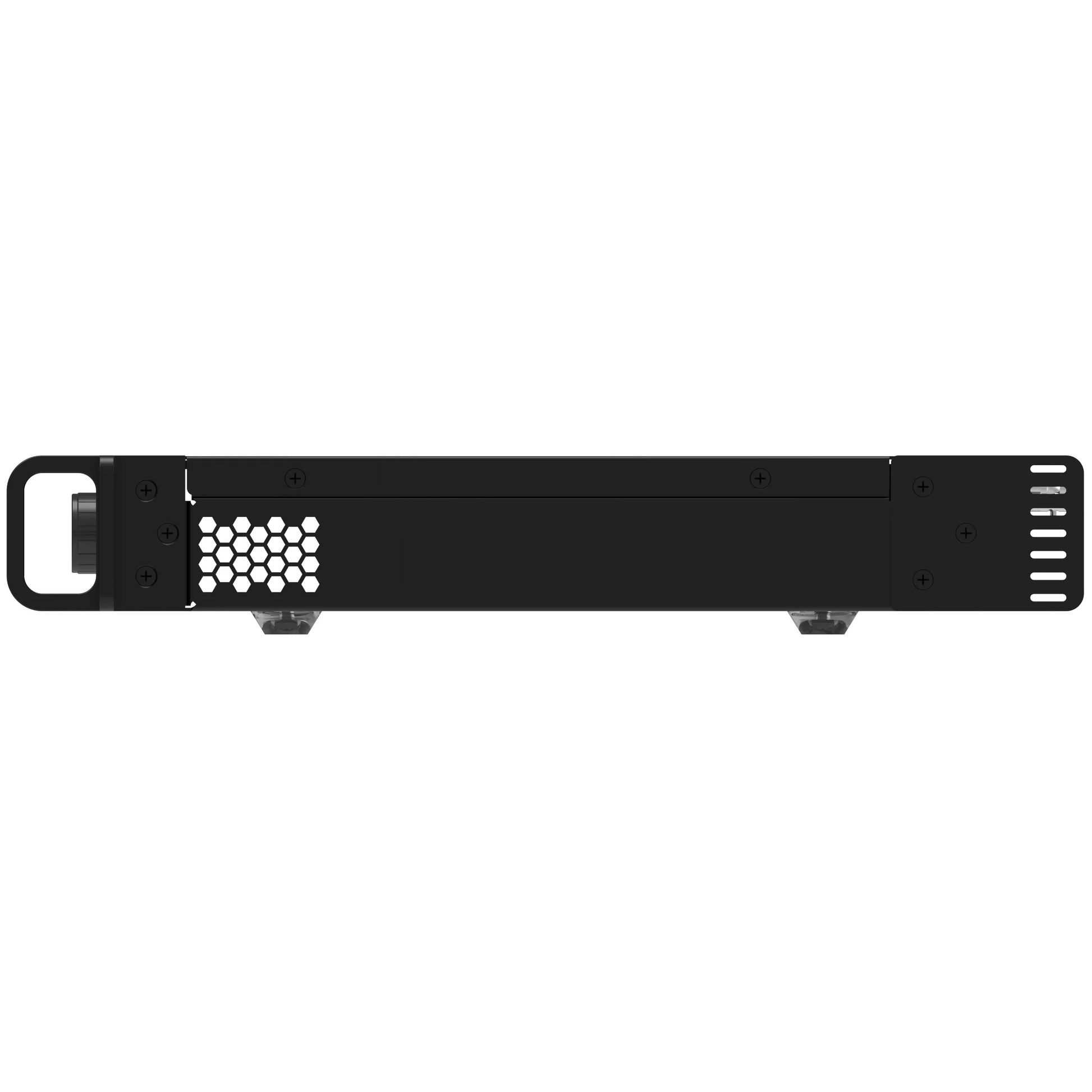

ADJ VX All-In-One Video Processor LED Wall Controller | VX600

ADJ VX All-In-One Video Processor LED Wall Controller | VX600

SoundPro Item: 208217 | Part Number: VX6033

$1,999.99
$3,199.95 $1,999.99
Your Price Sold out
MSRP: $3,199.95 | MAP: $1,999.99

Usually ships in 5-7 business days

  • NovaStar SuperView III Processing Delivers Stepless Scaling And Free Input Cropping
  • Three Working Modes Cover Video Controller, Fiber Converter, And Bypass Configurations
  • Low Latency Mode Minimizes Input-To-Receiving-Card Delay For Live And Broadcast Use
  • Multiple Hot Backup Options Between Devices And Ethernet Ports Protect Live Signals
  • Pixel-Level Brightness And Chroma Calibration Via NovaLCT Removes Color Discrepancies
  • Up To 10 User-Defined Presets Enable Fast, Repeatable Show Recall
  • Supports Conventional, Curved, And Irregularly Shaped LED Screen Configurations
Log in or register for YOUR best price

The ADJ VX series all-in-one LED wall controllers are built for production teams, AV integrators, and system designers who need a streamlined solution for driving large-format and unconventional LED display configurations. By combining video processing and LED control into a single chassis, these units eliminate the need for separate sending cards and external processors, simplifying rack builds for touring productions, fixed installs, broadcast sets, and event staging environments. Both models support conventional, curved, and irregularly shaped LED screens, making them equally suited to permanent architectural installs and touring LED walls where display geometry changes from show to show.

Powered by NovaStar's SuperView III image processing engine, the VX series delivers stepless output scaling, free input cropping, and one-click full-screen display without sacrificing image quality. Three selectable working modes, video controller, fiber converter, and bypass, give engineers flexibility to adapt the same unit to different signal routing architectures. Low-latency operation reduces the delay from input to receiving card to as low as 20 lines when low latency and bypass mode are enabled together, a critical advantage for live performance and broadcast contexts where frame delay is unacceptable. Automatic screen brightness adjustment, pixel-level brightness and chroma calibration via NovaLCT, and up to 10 user-defined presets support repeatable show recall and consistent image quality across long runs.

Input flexibility covers HDMI, DVI, 3G-SDI, and optical fiber, while multiple hot backup options between devices and between Ethernet ports protect against signal loss during live events. The VX series is available in two configurations to match the pixel load and port count required by the installation, making it a scalable choice from mid-size LED walls to large multi-cabinet arrays.

Downloads

View full details

Specifications

Performance
Max Loading Capacity
3.9 million pixels
Max Output Width
10,240 pixels
Max Output Height
8,192 pixels
Layers
3
Low Latency
Yes
Input Source Backup
Yes
Bypass Mode
Yes
Fiber Converter Mode
Yes
Genlock (IN LOOP)
Yes
Noise Level (typical at 25 degrees C / 77 degrees F)
45 dB (A)

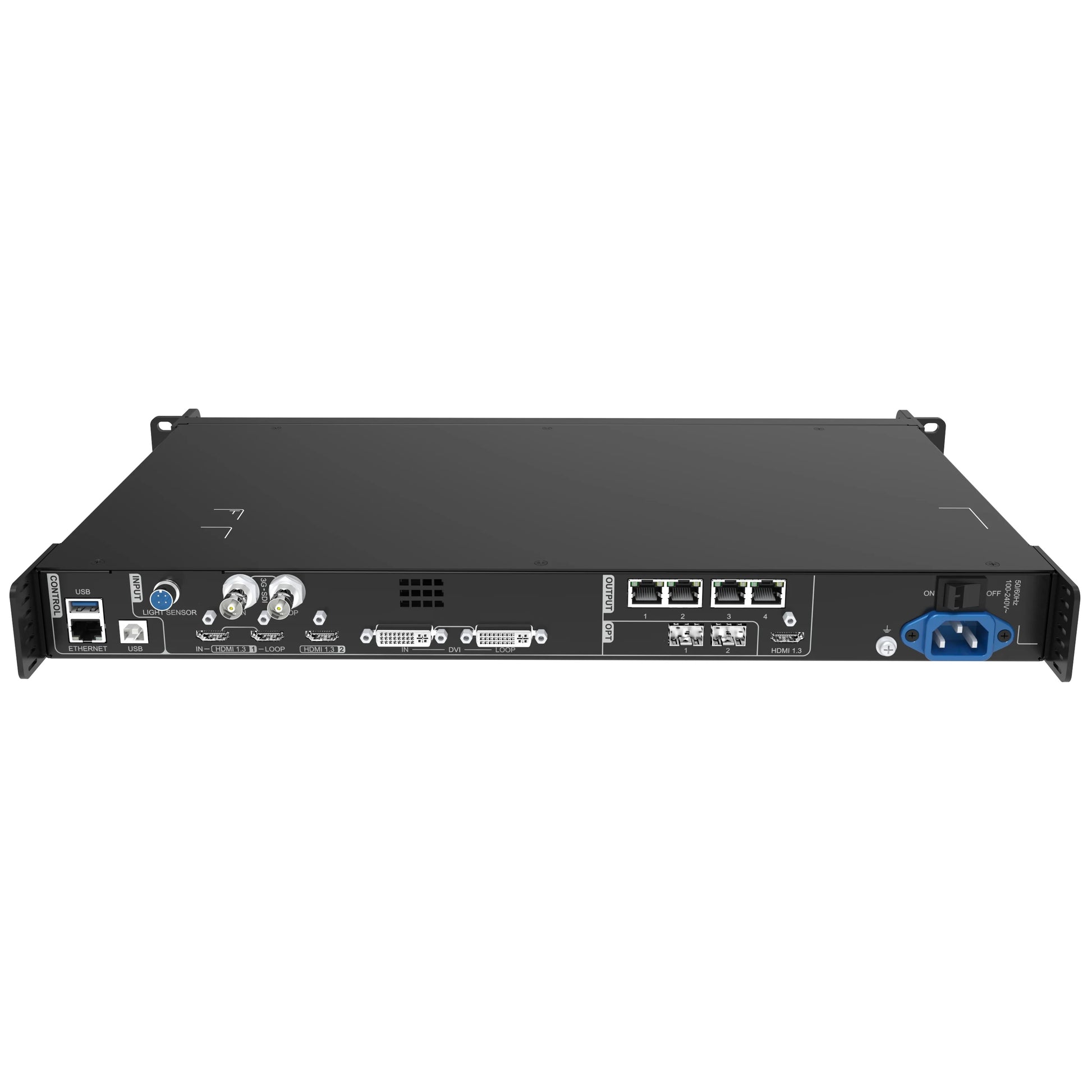

Connectivity
Input: 3G-SDI
1x 3G-SDI (IN LOOP)
Input: HDMI 1.3 (IN LOOP)
1x HDMI 1.3 (IN LOOP)
Input: HDMI 1.3
1x HDMI 1.3
Input: DVI (IN LOOP)
1x DVI (IN LOOP)
Input: Optical
1x OPT
Output: RJ45
6x RJ45
Output: 10G Optical
2x 10G OPT
Output: HDMI 1.3 (Monitor/Preview)
1x HDMI 1.3
Electrical
Power Connector
100-240V~, 1.5A, 50/60Hz
Rated Power Consumption
28 W
Dimensions
Product Width
13.827"
Product Length
19.039"
Product Height
1.972"
Unit Dimensions (mm)
483.6 mm x 351.2 mm x 50.1 mm
Weight
Net Weight
4 kg
Gross Weight
6.3 kg
Package Weight
13.889 lbs
Environmental
Operating Temperature
-10 degrees C to +60 degrees C
Operating Humidity
20% RH to 90% RH, non-condensing
Storage Temperature
-20 degrees C to +70 degrees C
Storage Humidity
10% RH to 95% RH, non-condensing
Shipping
Packing Box Dimensions
565 mm x 175 mm x 450 mm
Included Items
Accessories
1x Power cord, 1x HDMI to DVI cable, 1x USB cable, 1x Ethernet cable, 1x HDMI cable, 1x Quick Start Guide, 1x Certificate of Approval, 1x Customer Letter, 1x Safety Manual
