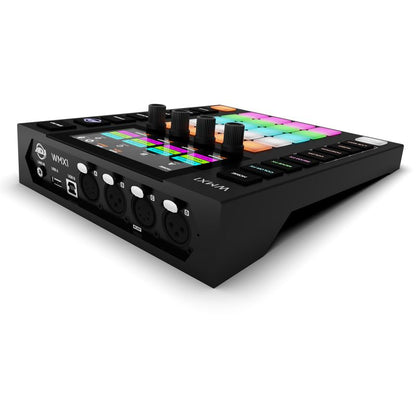

  • ADJ WMX Mk2 DMX Controller Back

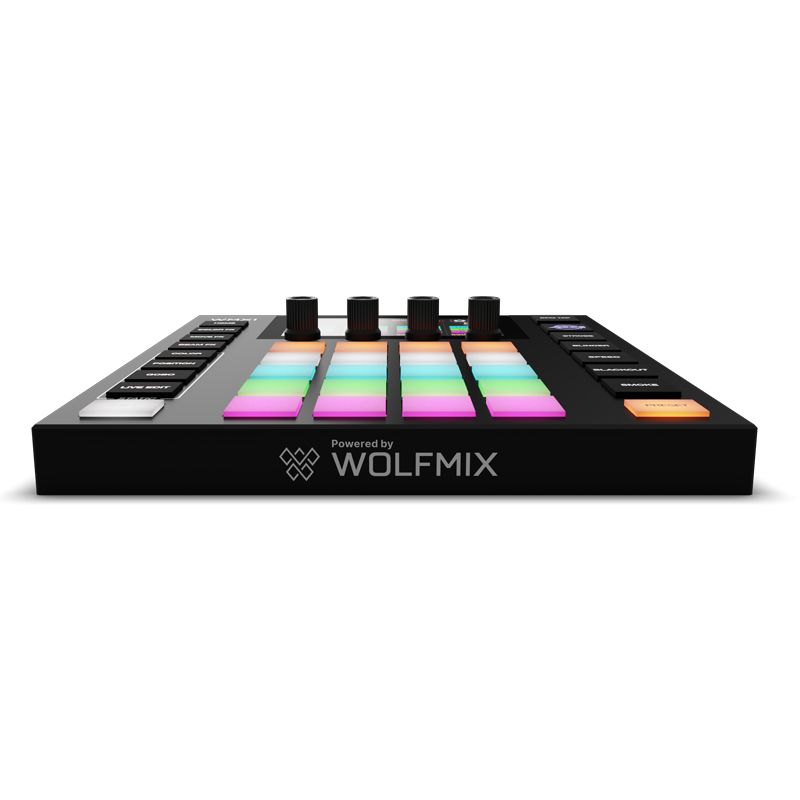

  • ADJ WMX Mk2 DMX Controller Front

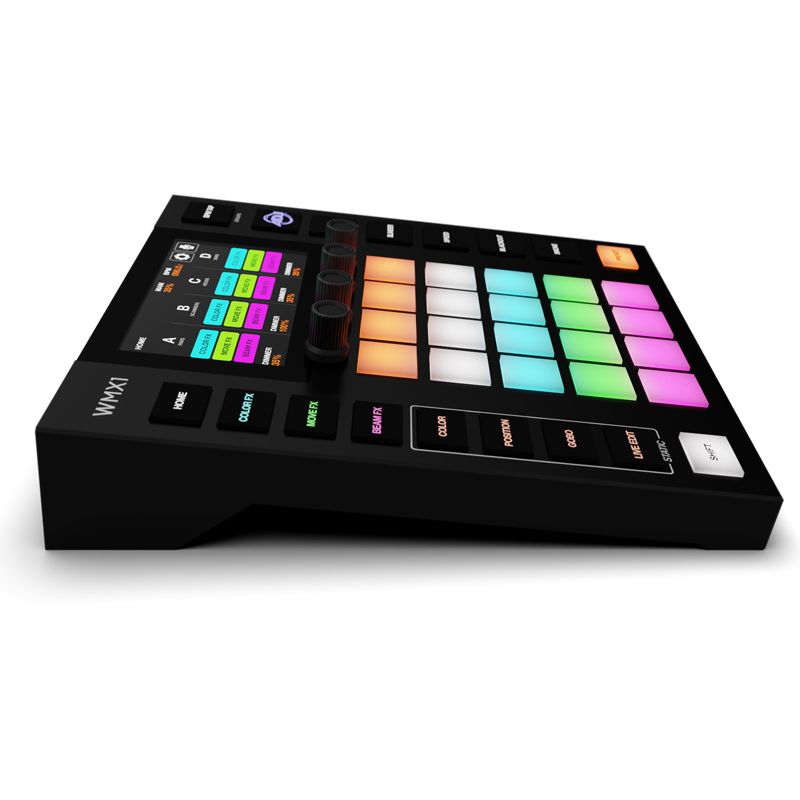

  • ADJ WMX Mk2 DMX Controller Left

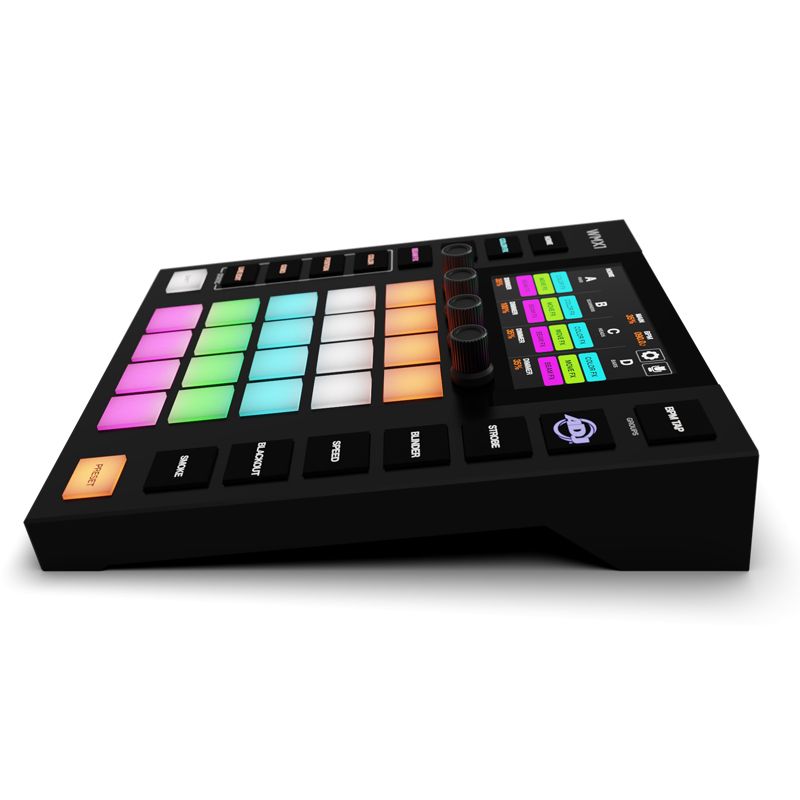

  • ADJ WMX Mk2 DMX Controller Right
  • ADJ WMX Mk2 DMX Controller Back

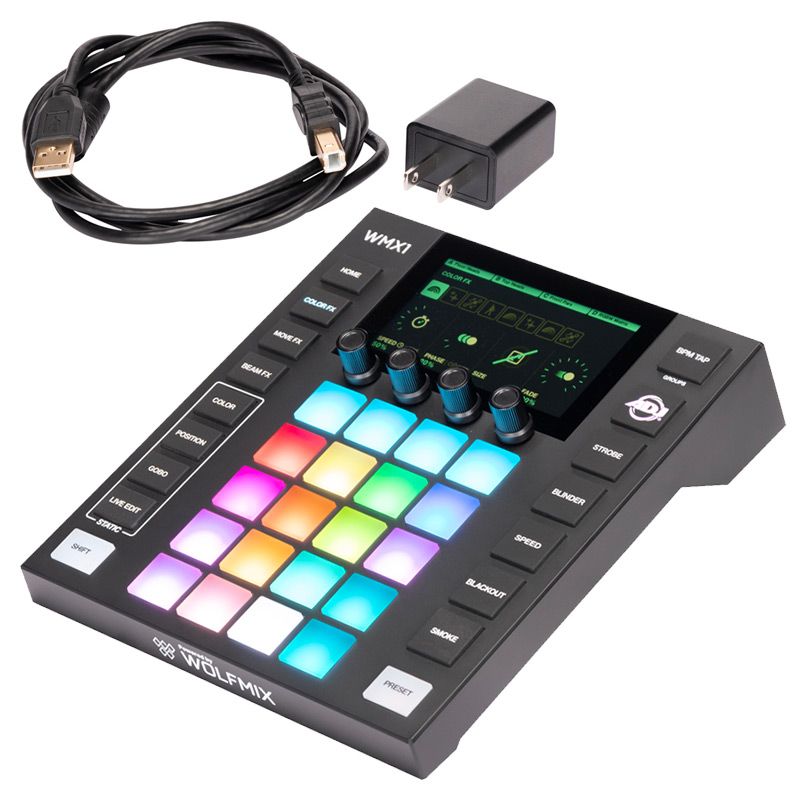

  • ADJ WMX Mk2 DMX Controller Included

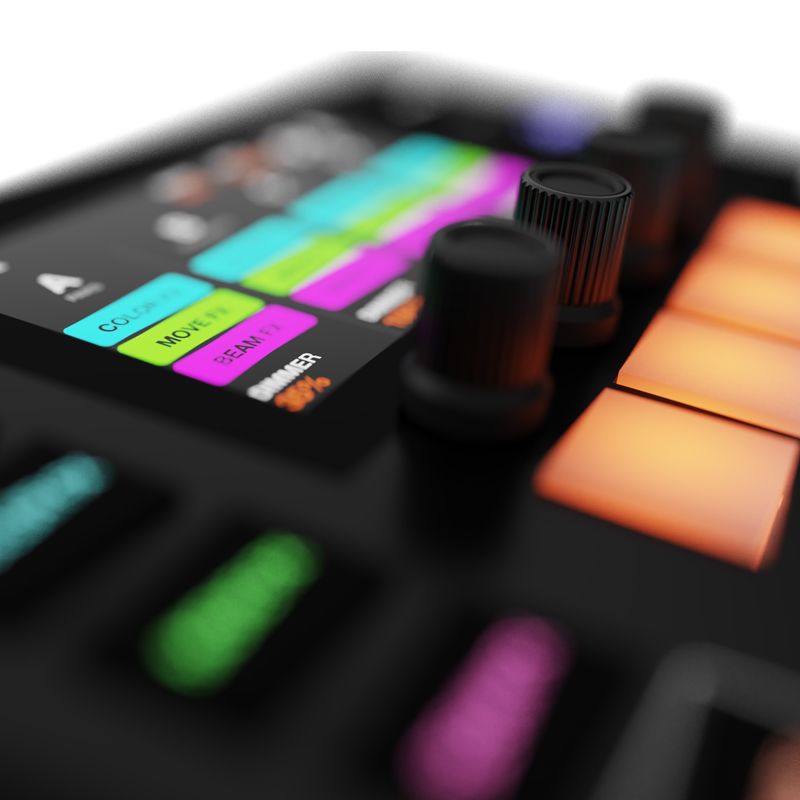

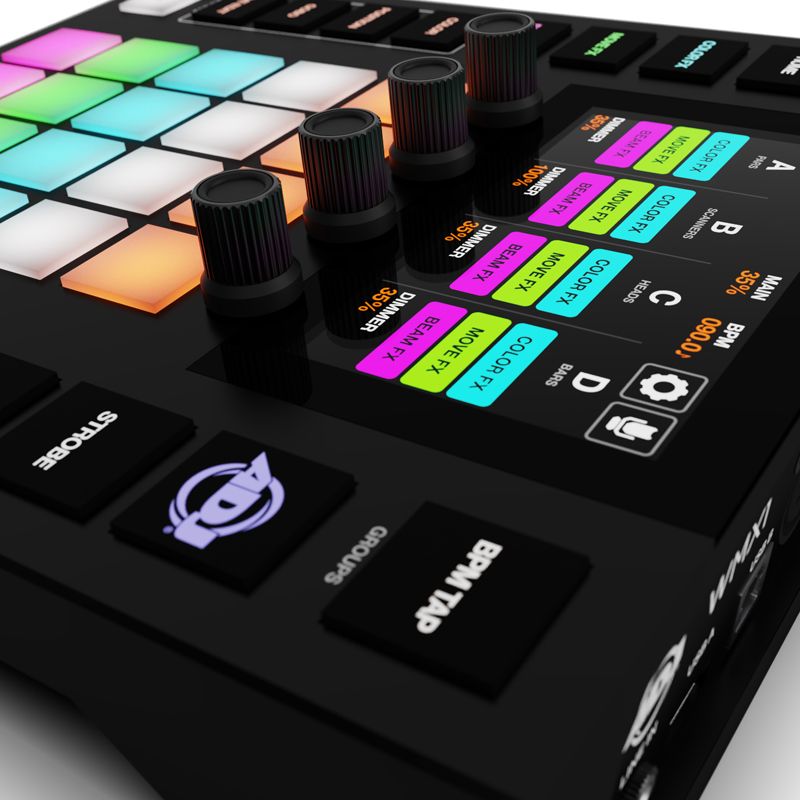

  • ADJ WMX Mk2 DMX Controller Detail
  • ADJ WMX Mk2 DMX Controller Detail
  • ADJ WMX1 Mk2 DMX Controller
  • ADJ WMX1 Mk2 DMX Controller
  • ADJ WMX1 Mk2 DMX Controller
1 12

ADJ WMX1 Mk2 DMX Controller

ADJ WMX1 Mk2 DMX Controller

SoundPro Item: 146087 | Part Number: WMX1 MK2

$859.99
$1,199.95 $859.99
Your Price Sold out
MSRP: $1,199.95 | MAP: $859.99

In stock and ready to ship

  • Standalone (no computer needed)
  • Compatible with any DMX device
  • Standard unit comes with 2 DMX universe but up to 2 additional universes are available as add-ons, which are sold via the WTOOLS app.
  • Up to 680 fixtures & beams
  • Up to 50 fixture types
  • Up to 5000 fixture features (color/gobo etc...)
  • 8 fixture groups
  • 6 projects
  • 15000+ available fixtures (3500+ on the controller)
  • DMX address, fixture order & group setup
  • Use as a DMX splitter with DMX universe mapping
Log in or register for YOUR best price

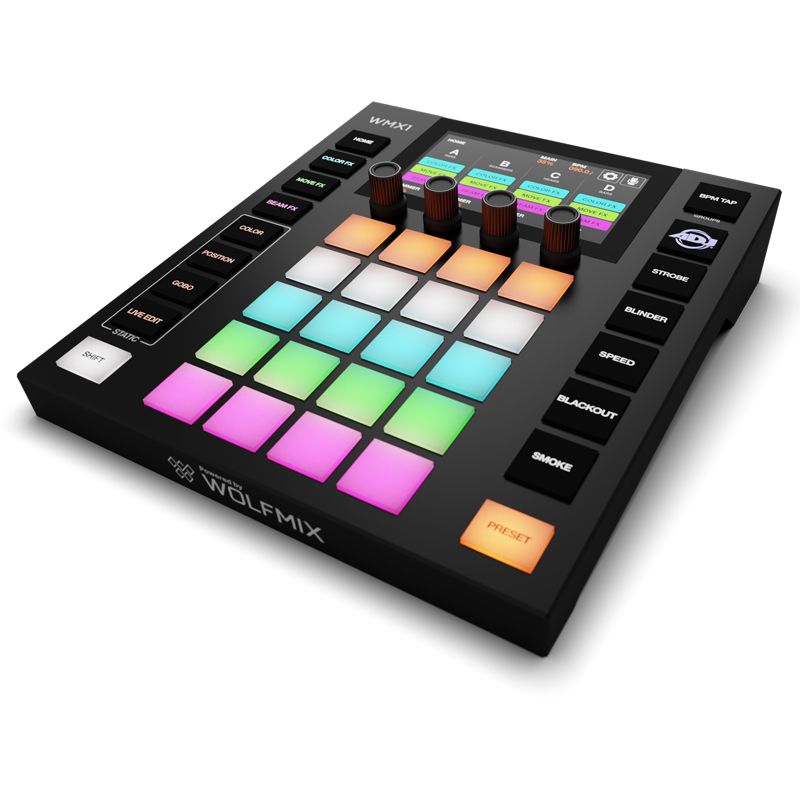

The WMX1 Mk2, powered by Wolfmix, is a standalone lighting control system designed with the performer in mind. Featuring a 4.3" color touchscreen display and 37 backlit silicone buttons, it allows intuitive hands-on control of a DMX lighting setup. It features a toolbox of FX modules and eight independent fixture groups which allow for the simple creation of high-impact light shows on the fly without a computer. Ideal for mobile entertainers as well as bars, clubs, and entertainment venues, this compact but powerful controller puts creative lighting control at any user's fingertips.

WMX1 MK2 upgrades include larger encoder caps, MIDI triggering, and an added USB-A socket for MIDI controller or memory stick.

View full details

Specifications

Weight
Size & Weight
195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in1070g / 2.36lb
Audio
Audio
Sync FX with the musicAnalog audio peak detection circuitBuilt in microphone with auto-gain3.5mm jack socket
Connectivity
USB
USB B poweredUSB A port for MIDI over USB and project loading & back-upSync with Ableton Link & OS2L via a computerLink with MIDI faders and sync with MIDI clockBackup projects and fixtures to a memory stick
Construction
Housing
ABS PlasticPowder-coated steel base plate with 100mm VESA (M4 6mm max)Powder-coated steel reinforced back plate
Controls
DMX

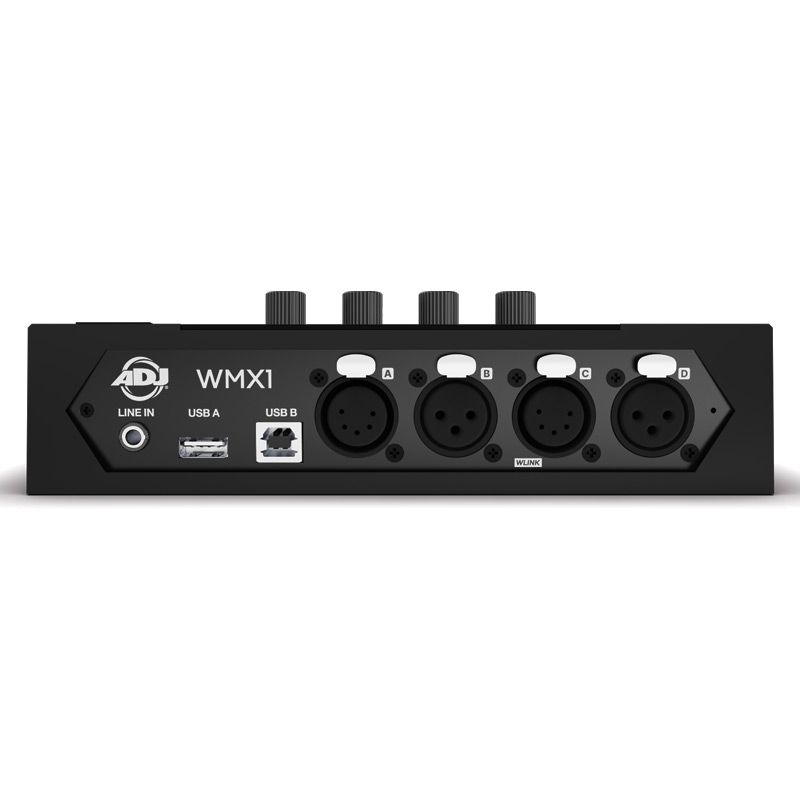

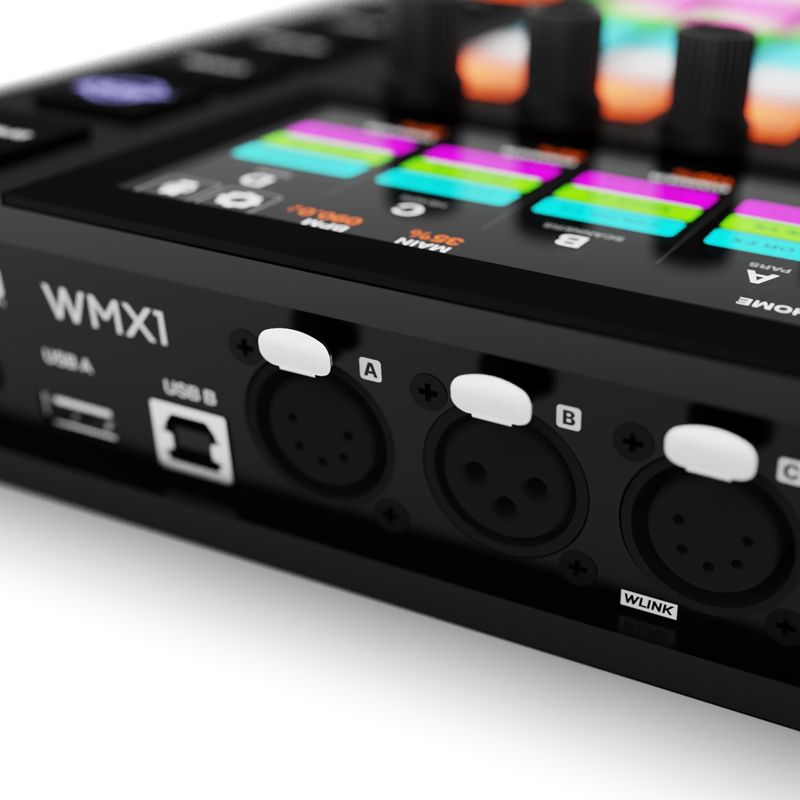

2x 3pin DMX OUT XLR connectors1x 5pin DMX OUT XLR connector1x 5pin DMX IN/OUT XLR connector with WLINK
General
Encoders
Full body alloyIncremental push with acceleration
Button Pads
37 Silicone buttons with matte oil finishingLED color backlit
Optional Upgrades
Easy View 3D Visualizer: $99WLINK (+DMX IN): $49Additional DMX universes (Up to 2 more can be purchased): $99 ea.
Indicators
Display
4.3" Color TFT with tinted glassCapacitive touch
Processing
220Mhz CPU with ARM core8MB RAM16MB Flash
