ADJ AX2191 Aria X2 TB Wireless DMX Transceiver

ADJ AX2191 Aria X2 TB Wireless DMX Transceiver

SoundPro Item: 202337 | Part Number: AX2191

$429.99
$599.95 $429.99
Your Price Sold out
MSRP: $599.95 | MAP: $429.99

Usually ships in 5-7 business days

  • Single DMX Universe
  • Sub-GHz, 2.4 GHz and Bluetooth
  • Configuration via Aria X2 BLE app or front panel
  • AC / Battery Powered
  • Wireless to DMX or DMX to Wireless
Log in or register for YOUR best price
The Aria X2 TB is a powerful and flexible wireless DMX transceiver built for professional performance in any environment. Featuring dual power options- AC or an internal rechargeable battery that delivers up to 20 hours of operation on a full charge. Designed for reliable signal transmission, intuitive control, and rugged durability, the Aria X2 TB ensures stable, seamless communication wherever your setup takes you.

Supported Protocols

  • DMX
  • RDM (Planned for future software release)
  • Proprietary 802.15.4
  • Aria X2 Mesh Protocol (Planned for future software release)
  • Bluetooth 4.2 (BLE)
  • Aria X2 Serial Protocol
  • This is our proprietary serial protocol for communicating with a variety of fixtures.

RF Characteristics

  • Frequency range
  • Bluetooth: 2402-2480 MHz
  • Zigbee: 2405-2480 MHz (EU)
  • Sub-GHz: 906-924 MHz (US)
  • Radio module: Aria X2
  • Interference mitigation
  • CSMA
  • Adaptive frequency hopping (on the roadmap)
  • OTA updates

Standards

  • EN IEC 62311:2020
  • EN50665:2017
  • BS EN IEC 62311:2020
  • BS EN 50665:2017
  • EN IEC 62368-1: 2020+A11:2020
  • BS EN IEC 62368-1: 2020+A11:2020
  • EMC
  • ETSI EN 301 489-1 V2.2.3 (2019-11)
  • ETSI EN 301 489-3 V2.3.2 (2023-01)
  • ETSI EN 301 489-17 V3.2.4 (2020-09)
  • EN 55032:2015/A1:2020
  • EN 55035:2017/A11:2020
  • EN 61000-3-3:2013/A2:2021
  • EN IEC 61000-3-2:2019/A1:2021
  • BS EN 55032:2015/A1:2020
  • BS EN 55035:2017/A11:2020
  • BS EN 61000-3-3:2013/A2:2021
  • BS EN IEC 61000-3-2:2019/A1:2021
  • EN 300 220-1 V 3.1.1 (2017-02)
  • EN 300 220-2 V 3.2.1 (2018-06)
  • ETSI EN 300 328 V2.2.2 (2019-07)

Physical

  • IP20 Aluminum / Metal enclosure

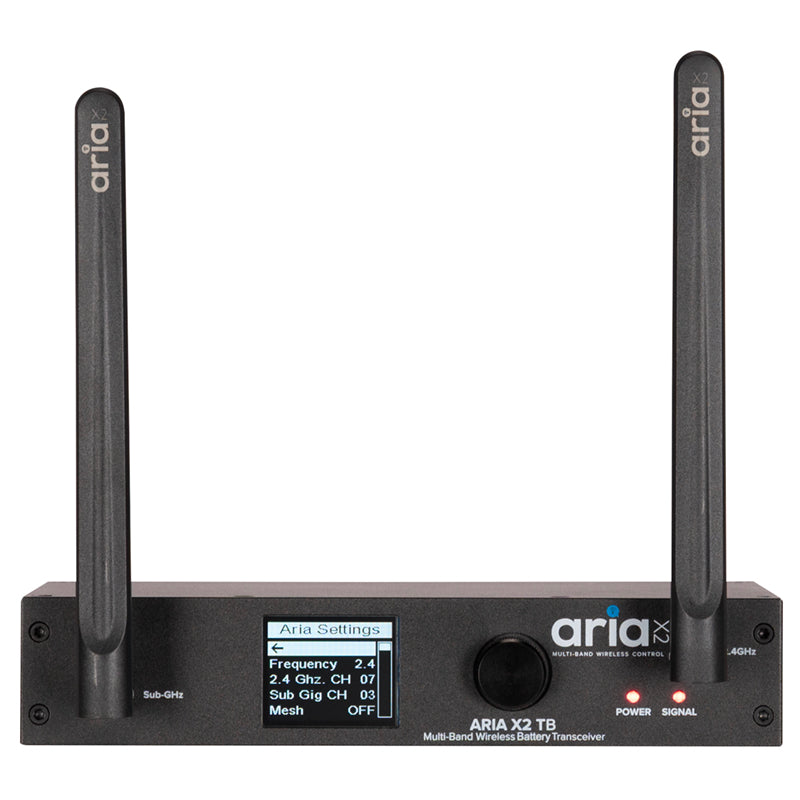

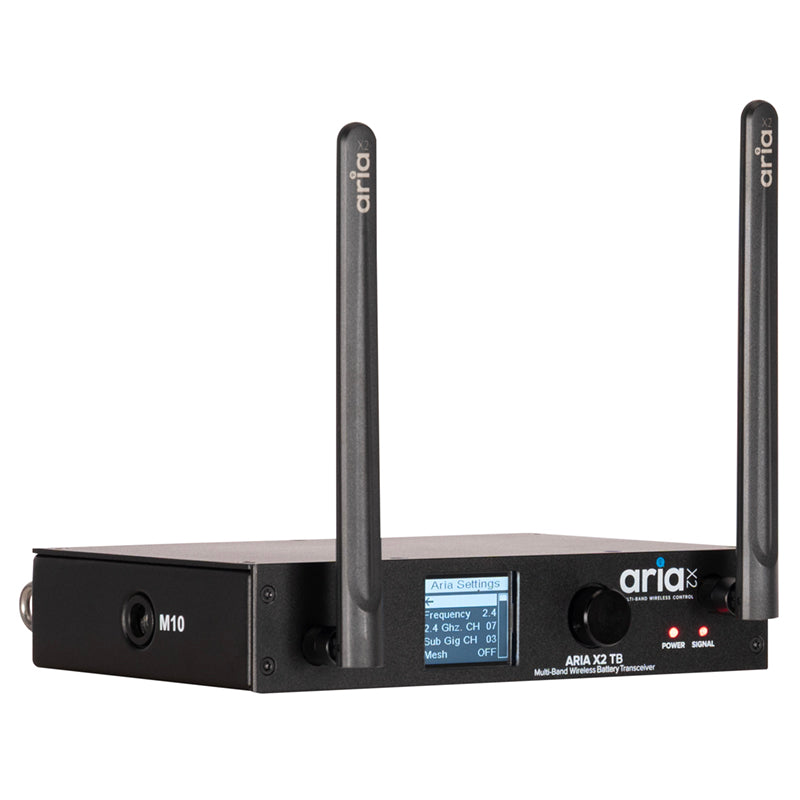

  • Front panel digital screen and rotary knob

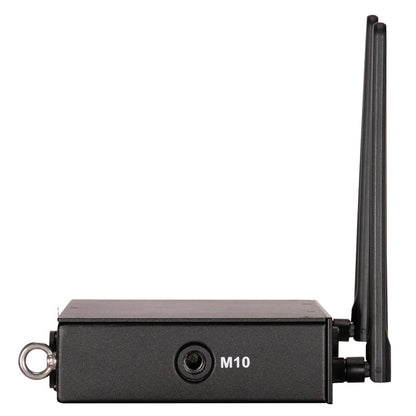

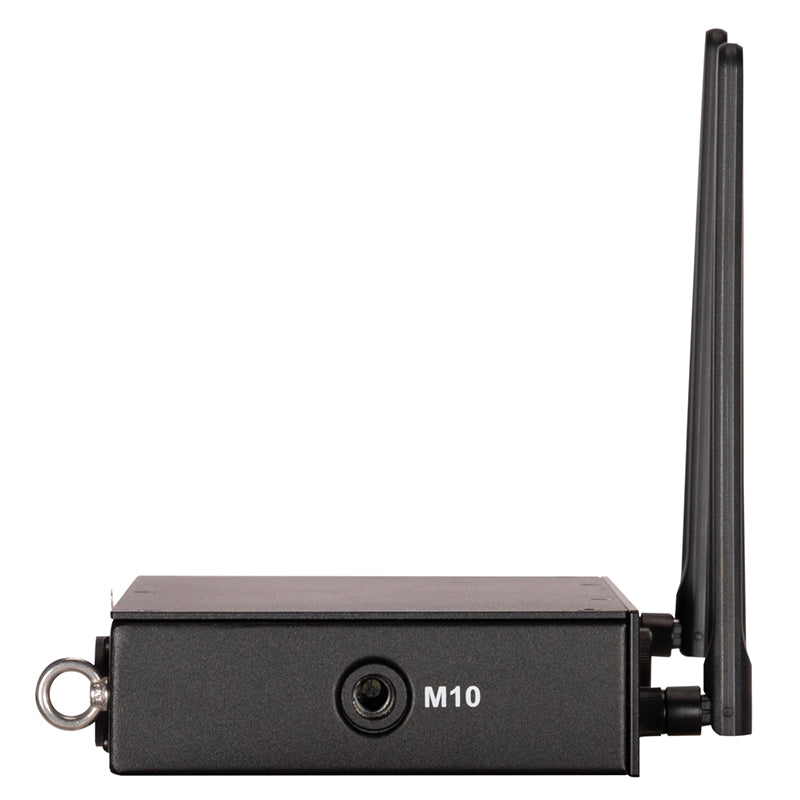

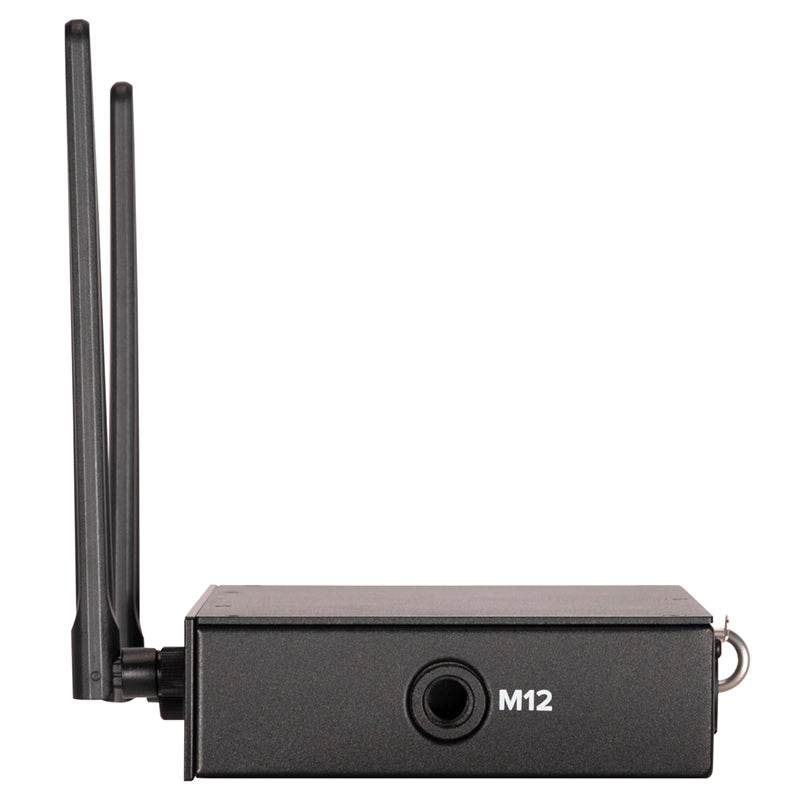

  • M10 and M12 Threads
  • Safety Eyelet
  • Max ambient operating temp: 113°F (45°C)
  • Max operating humidity: <75%
  • Storage temperature: 77F (25°C)

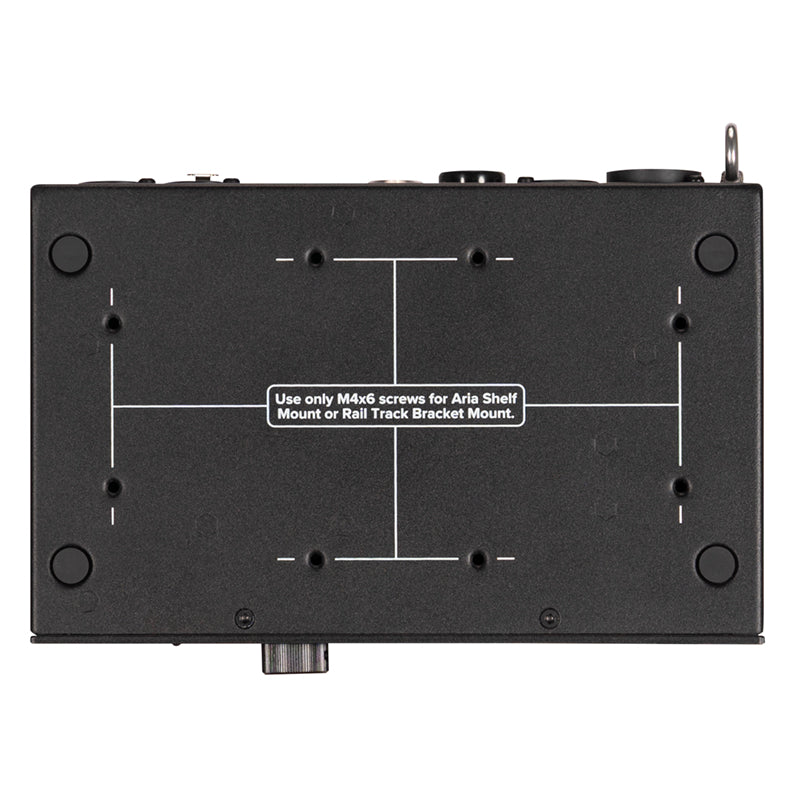

  • Rack and wall mount accessories
View full details

Specifications

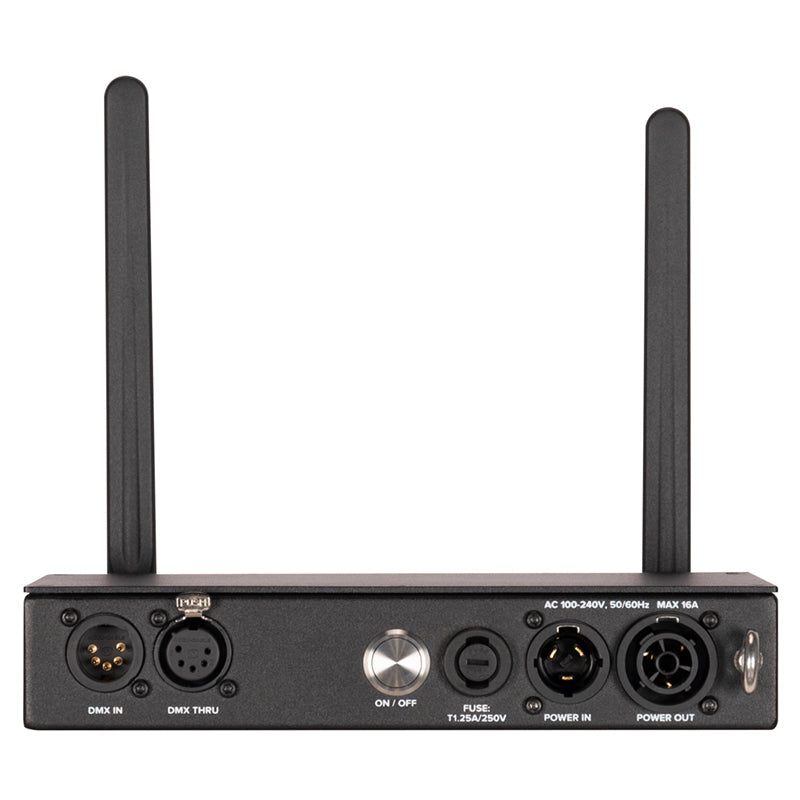

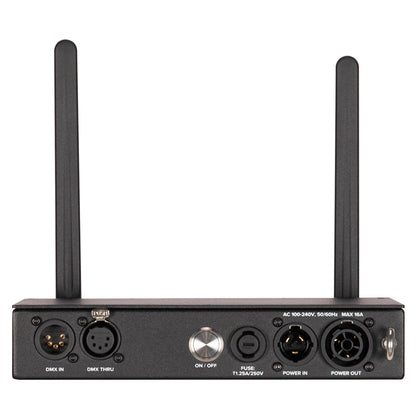

Connectors
Antenna:
5G JT SMA
DMX:
5-pin XLR Input and Output
IP Rating:
IP65 Locking Power Input and Output
Power
Power:
AC100-240V 50/60Hz; 2x 18650 Lithium Battery Power (3.6V., 2600mAh, 9.36Wh)
Power Consumption:
2W
Power Fuse:
T1.25A/250V. (5 x 20mm)
Dimensions and Weight
Length:
6.1" (155mm)
Width:
8.5" (215mm)
Height:
1.7" (42mm)
Weight:
2.7lbs (1.23kgs.)
