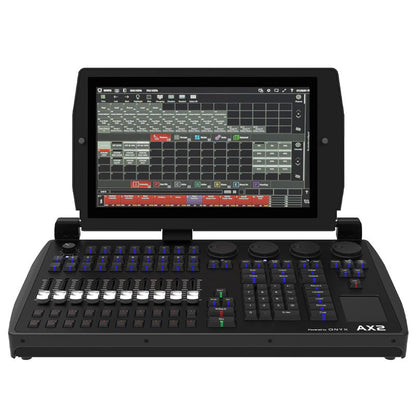

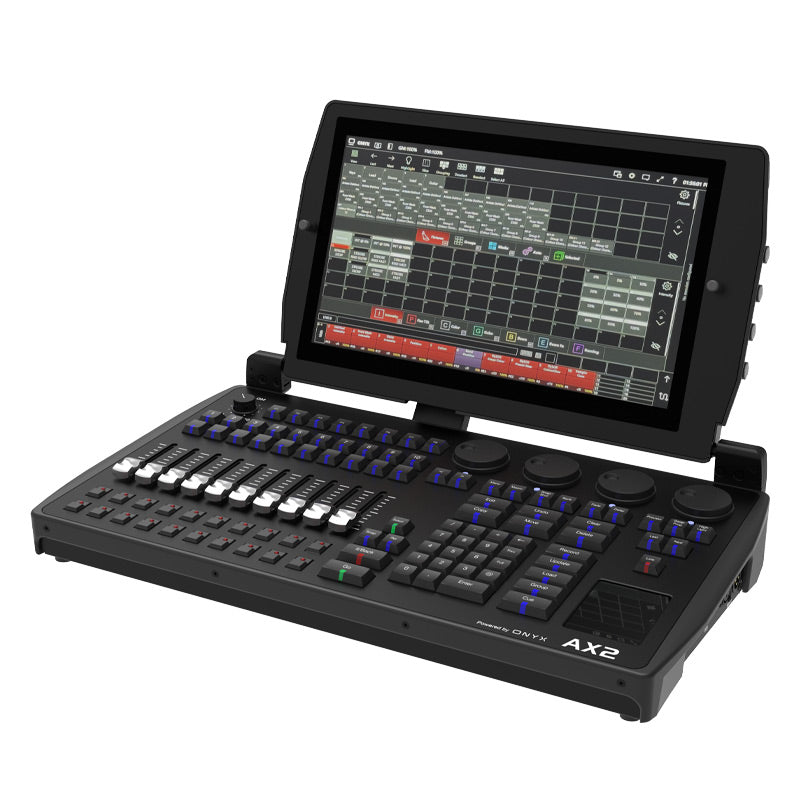

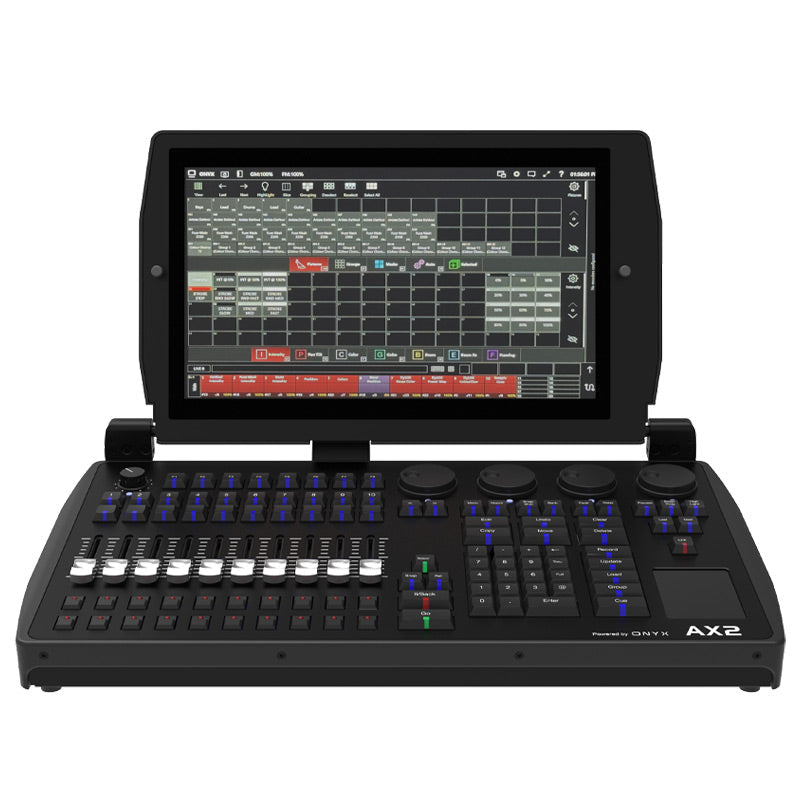

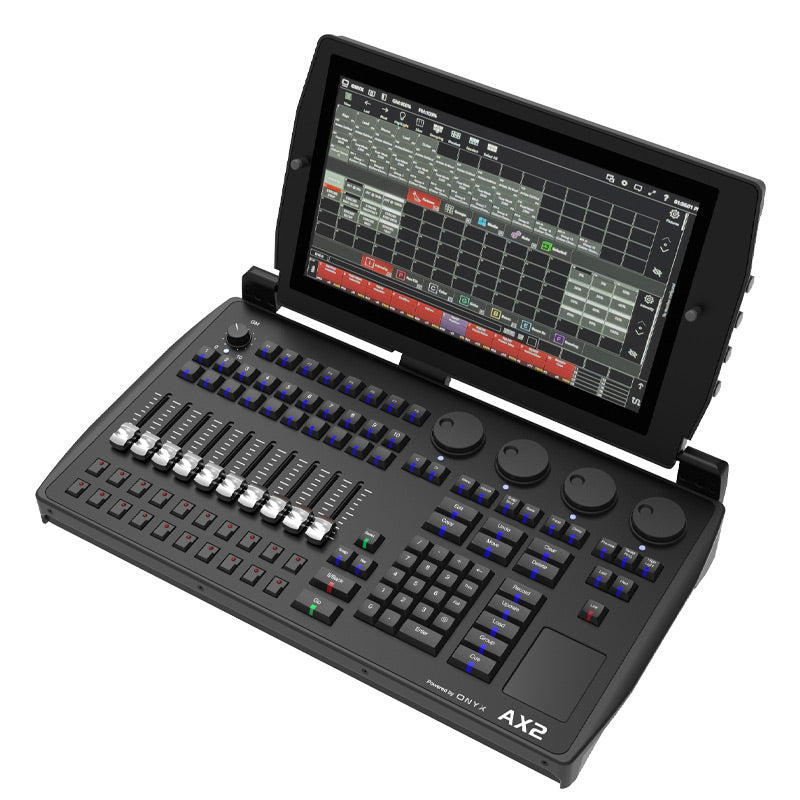

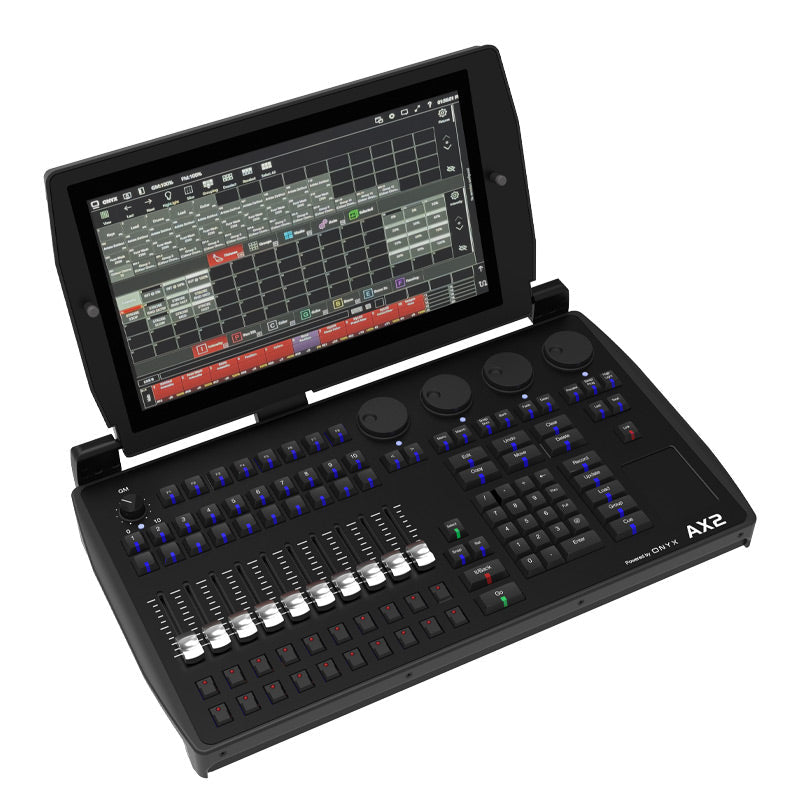

ADJ AX2992 AX2 Lighting Controller

ADJ AX2992 AX2 Lighting Controller

SoundPro Item: 202336 | Part Number: AX2992

$8,999.99
$13,199.95 $8,999.99
Your Price Sold out
MSRP: $13,199.95 | MAP: $8,999.99

Usually ships in 5-7 business days

  • Powered by ONYX from Obsidian Control Systems
  • DYLOS Media Engine with 5 Zones of Pixel Control
  • Adjustable 15.6” Full HD multi touch screen
  • 2x external 4K Touch Displays
  • 32 Universe integrated processing
  • 10 Playbacks
  • 8 Encoders
  • SMPTE/MIDI
  • Keypad and internal 3.5” touchscreen
  • Network, DMX, Timecode and Midi Connectivity
Log in or register for YOUR best price
AX2 is a compact yet powerful, fully integrated lighting controller powered by Obsidian Control Systems' ONYX platform. It features a bright 15.6" multi-touch screen, 8 encoders, a mini touchscreen, and 10 playbacks for intuitive control. With a Hexa-Core processor, 16GB RAM, and 32-universe processing built in, the AX2 delivers exceptional speed, connectivity, and power for today's most demanding lighting productions. The DYLOS Media Engine with 5 zones of pixel control is included with the AX2.

Control Surface
  • 10 x 60 mm playback faders, each with 4 x function- assignable buttons
  • 8 x customizable multi-function keys
  • Playback Select button
  • Master Go section with Go, Pause, Snap and Release
  • 4 x digital rotary encoders with push function and status LED for fixture parameter control
  • 4x screen mounted digital rotary encoders with push
  • 3.5” RGB touchscreen for parameter groups, effect parameters, fanning and global timings
  • Grand master rotary fader and button Blind/HighLight/Last/Next buttons
  • Full numerical keypad and command keys
  • ‘Powered by Onyx' text on front panel
Hardware
  • Industrial 15.6” TFT 16:9 touchscreen (1920x1080px)
  • 500 GB NVMe M.2 storage drive
  • Industrial motherboard with Intel i5 Hexa-Core CPU
  • Quiet thermal design using advanced copper heat pipe coolers
  • 16 GB DDR4 RAM
  • Integrated graphics processor
  • Windows 11 IoT Embedded Operating System
  • OS installation by USB 3.0 storage device
  • Supports Windows USB touchscreens
View full details

Specifications

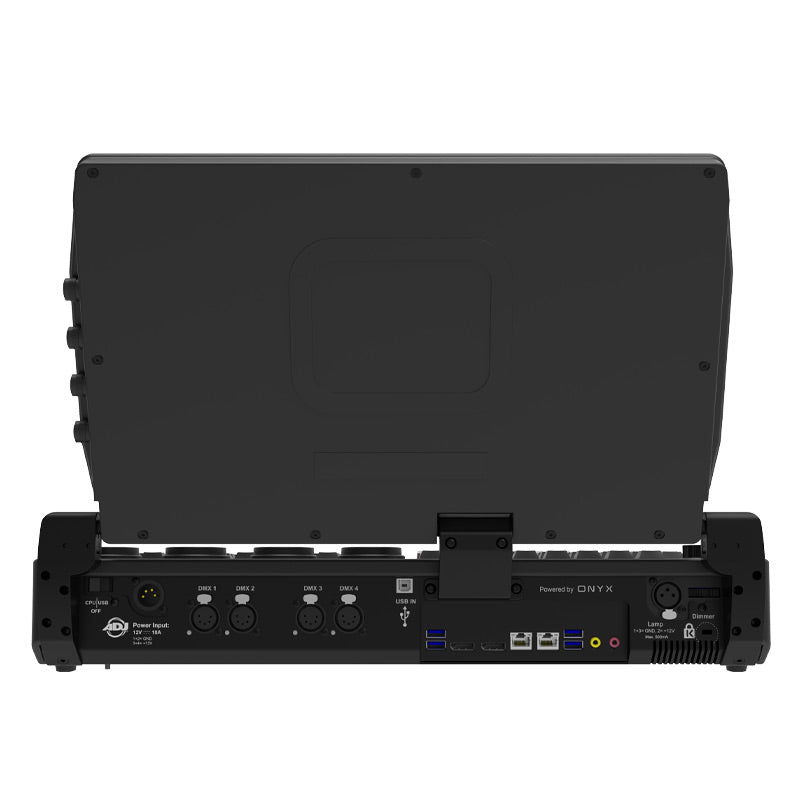

Connections
4 x DMX / RDM Universe In/Out:
5-pin locking XLR
External Display:
2x DisplayPort (up to 4k)
Network:
2x Gigabit for Art-Net, sACN and ONYX X-Net
Storage and Peripherals:
4x USB 3.0, 1x USB 2.0
Audio Out, Mic In:
2x 3.5mm Jack

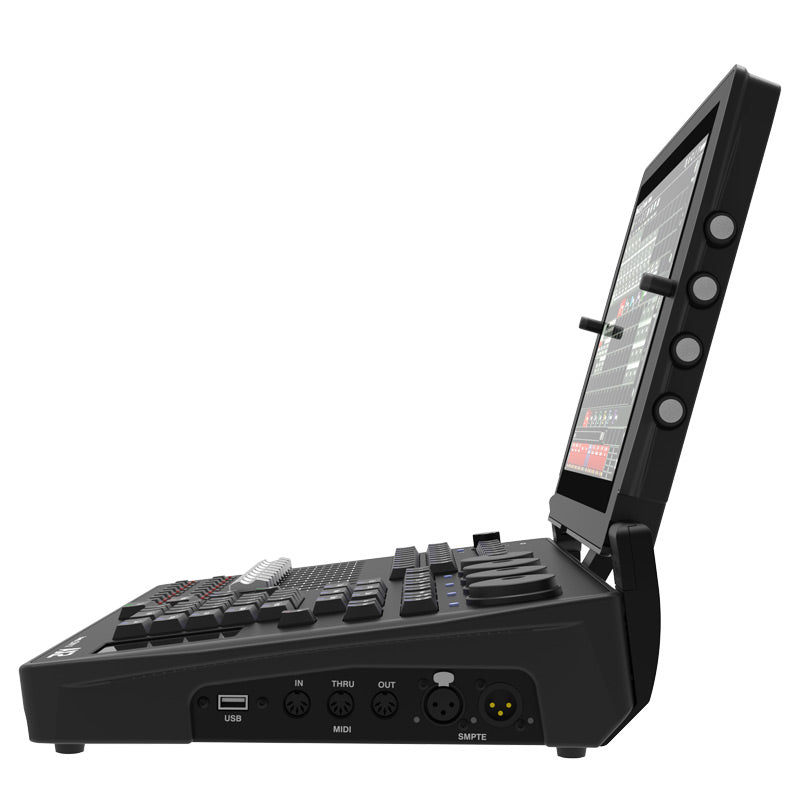

MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode):
5pin DIN
SMPTE Timecode In/Out:
3-pin XLR
12 VDC power supply input:
4-pin XLR
Desk lamp:
XLR 12V
Physical
Length:
300 mm (11.9 in.)
Width:
540 mm (21.3 in.)
Height:
121mm (4.8 in.)
Weight:
9 kg (19.8 lbs.)
Electrical (Power Supply)
AC mains power to 12 VDC external PSU (included):
100-240 V nominal, 50/60 Hz
Maximum input current:
3 A
12 VDC output:
11 A, 132 W max
Included Items
RGB LED desk lamp, angular XLR connector, 13"
1

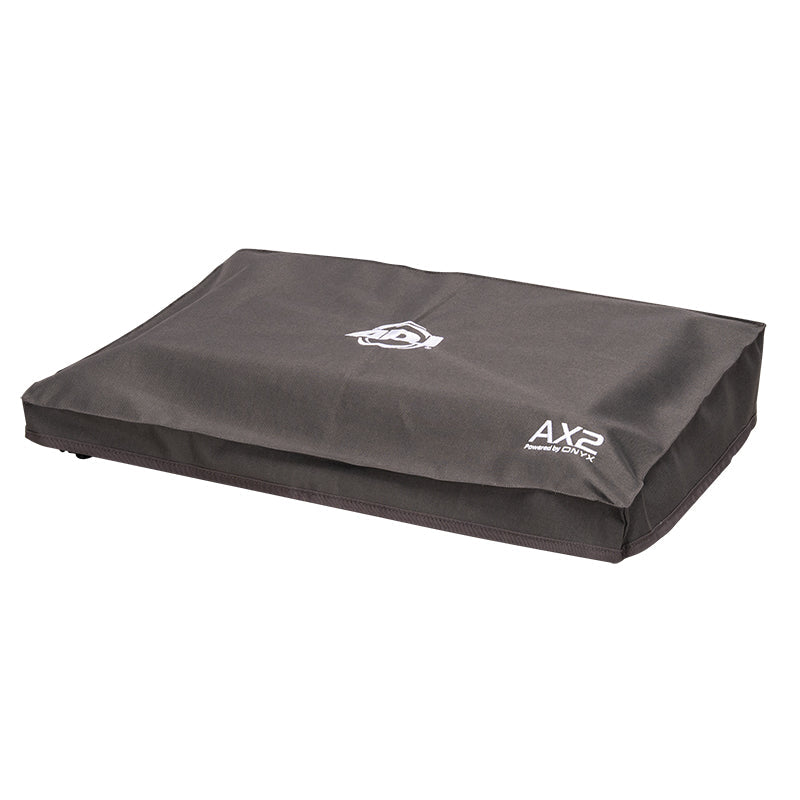

Dust Cover
1
USB Cable
1
External PSU (12V 11A)
1
1.5 m power cable, 3-pin IEC (EU or US version)
1
USB Recovery Flash drive Installation Manual
1
