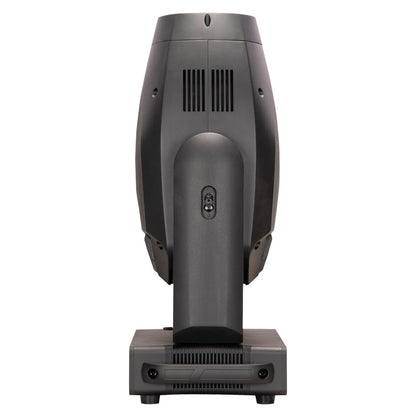

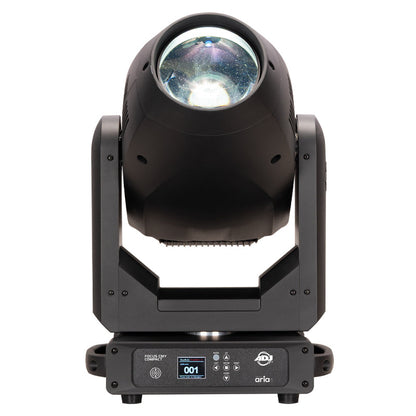

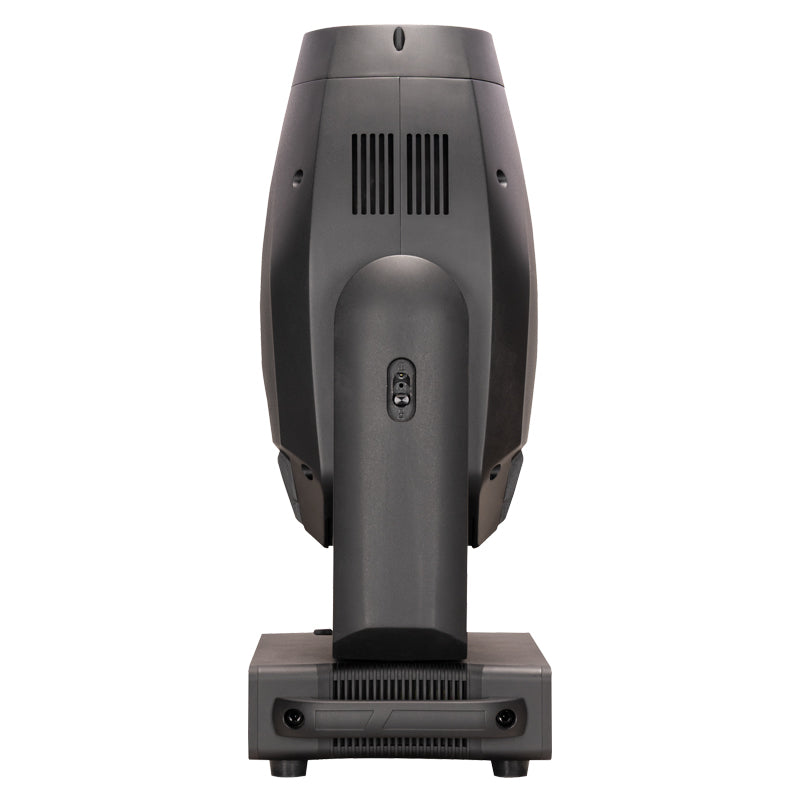

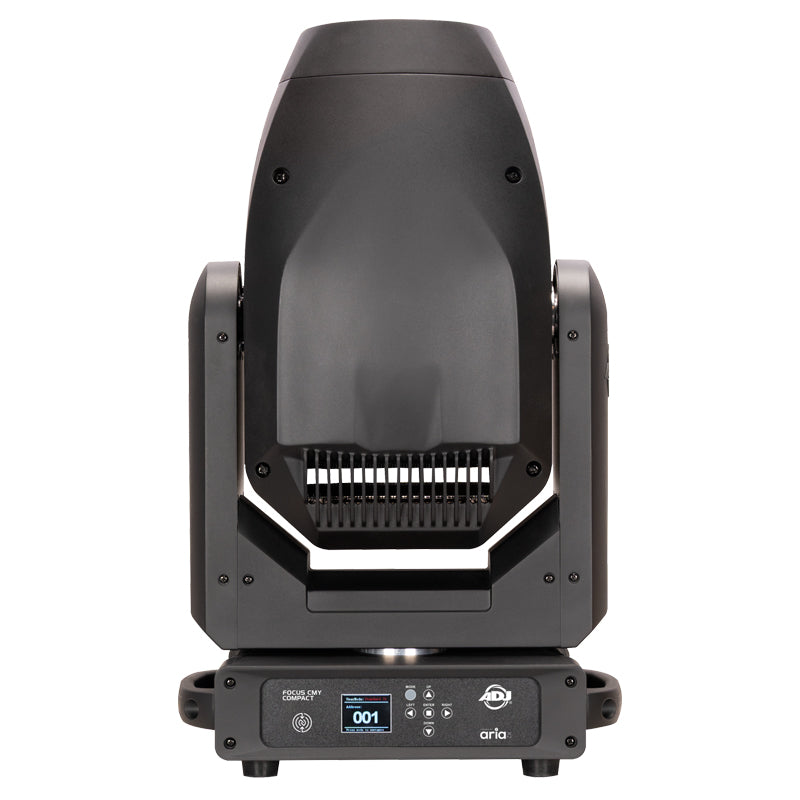

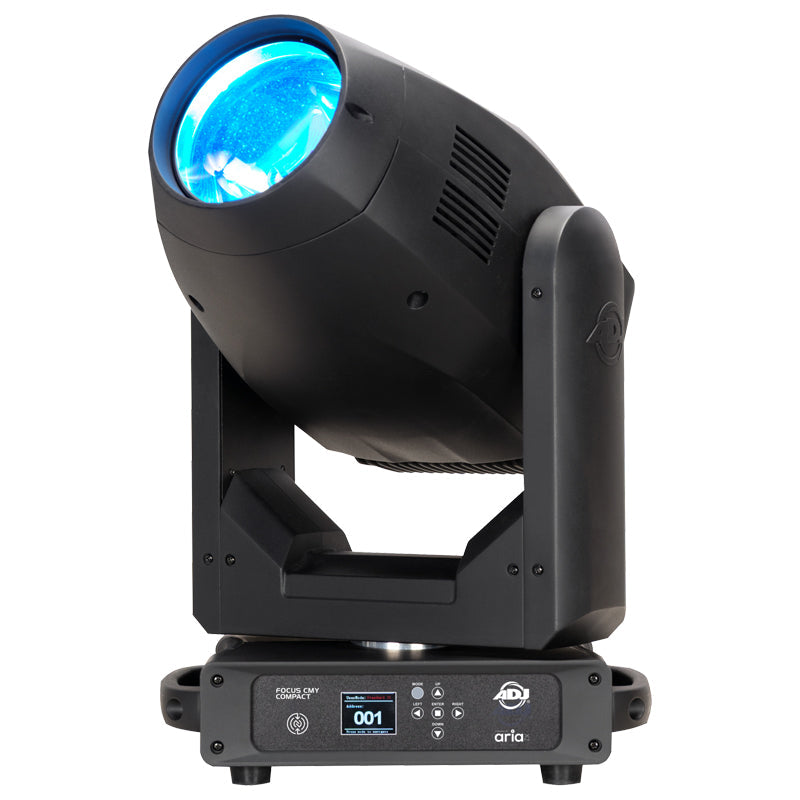

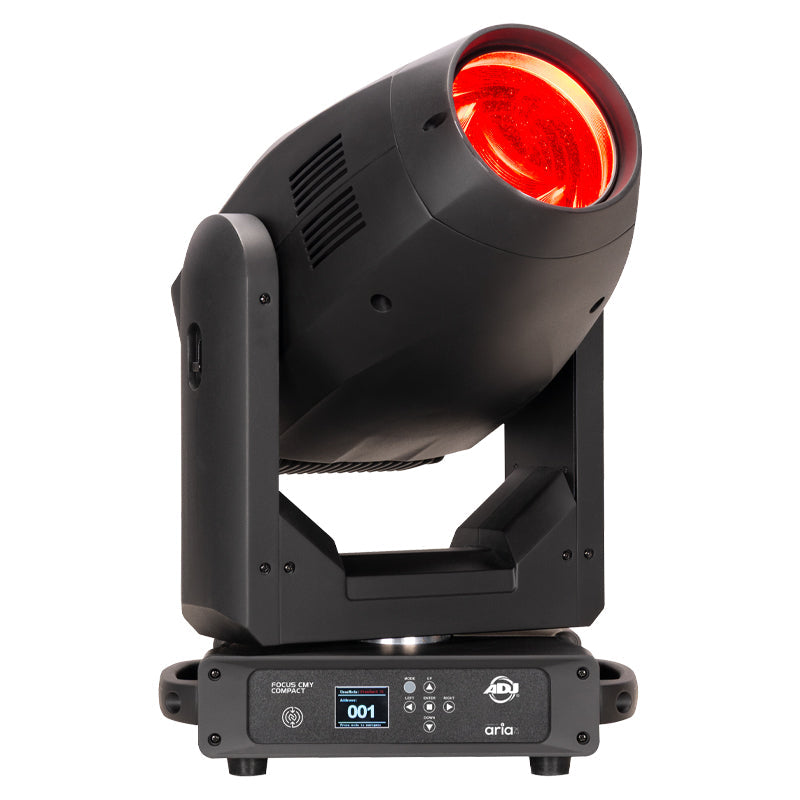

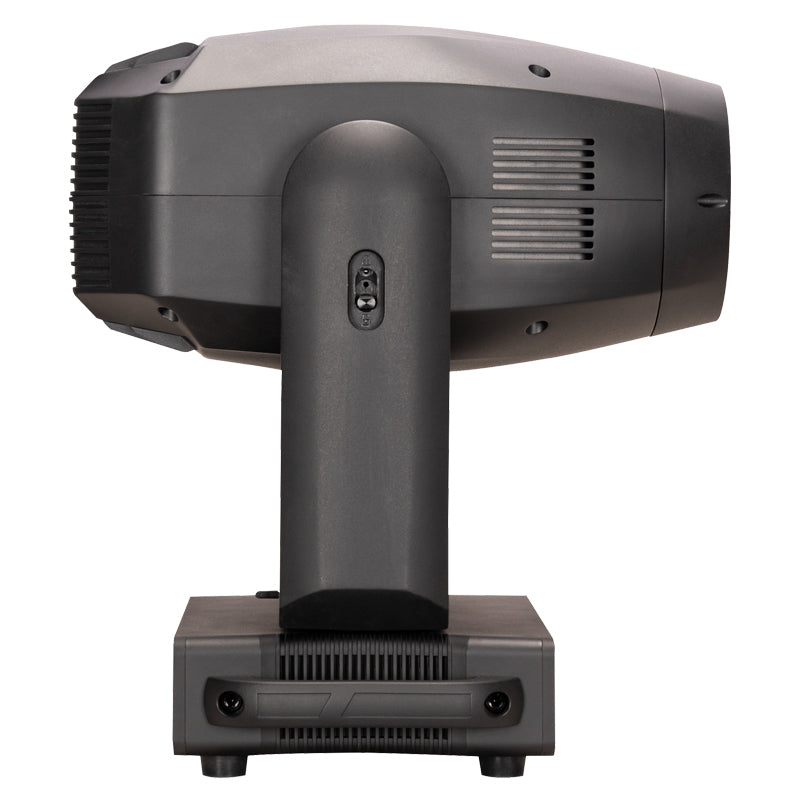

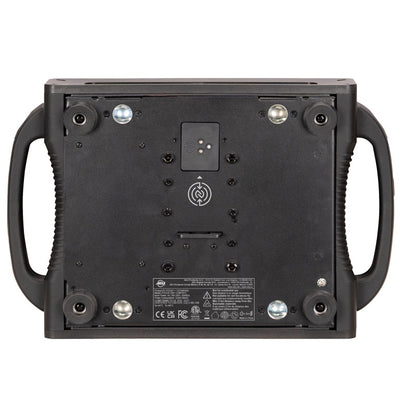

ADJ FOC871 Focus CMY Compact Automated Luminaire

ADJ FOC871 Focus CMY Compact Automated Luminaire

SoundPro Item: 202338 | Part Number: FOC871

$3,499.99
$4,959.95 $3,499.99
Your Price Sold out
MSRP: $4,959.95 | MAP: $3,499.99

Usually ships in 5-7 business days

  • 400W LED Engine
  • Color Temperature: 6900k (+/-350k)
  • 20,000 Hour Average LED Life*
Log in or register for YOUR best price
Delivering best-in-class power and versatility, the ADJ Focus CMY Compact is an automated luminaire capable of functioning interchangeably as a beam, spot or wash. Powered by a 400-watt LED engine it delivers output of up to 14,500 lumens. An extensive suite of beam shaping tools begins with full CMY + CTO color mixing and also includes two GOBO wheels, two rotating prisms, two frost filters, and Aria X2 wireless, as well as motorized zoom (3 degrees~52 degrees) and focus. All of this is packed into a compact and robust fixture that weighs less than 45 lbs. (20kg).

PHOTOMETRIC DATA
  • 14,500 Total Lumens
  • CRI: 64 (80 or 90 with HCRI Filter)
EFFECTS
  • 6-Facet Circular & 6-Facet Linear Rotating Prisms
  • 2x Frost Filters (Light and Heavy)
  • Motorized Zoom: 3°~52°
  • Motorized Focus
  • Electronic Dimming & Strobe: 1-20Hz
COLOR
  • Full CMY color mixing
  • Variable CTO (3200K to 8500K)
  • Colors Wheel with 7 dichroic colors (Includes High CRI Filter in slot 7)
GOBOS
  • (2) Gobo Wheels
  • #1 - (8) Rotating Glass Gobos (Interchangeable and Indexable)
  • #2 - (10) Static Glass Gobos

CONTROL / CONNECTIONS
  • (3) DMX Channel Modes - Basic (26ch) / Standard (31ch) / Extended (40ch)
  • DMX, RDM, sACN and ArtNet
  • Aria X2 Wireless Management System
  • NFC System
  • 6 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • 8 / 16 Bit Resolution Adjustable Movement

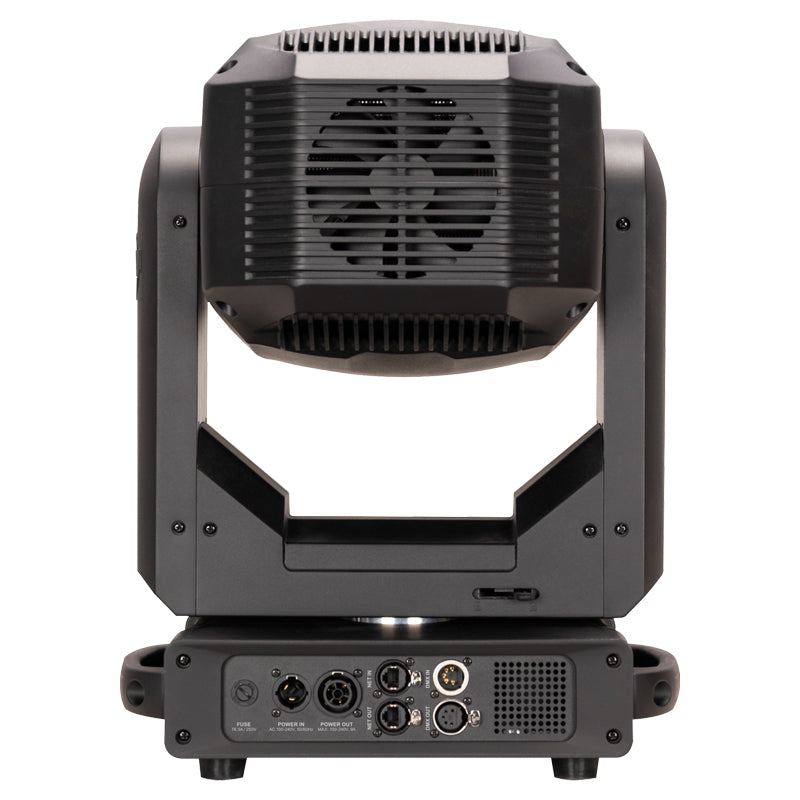

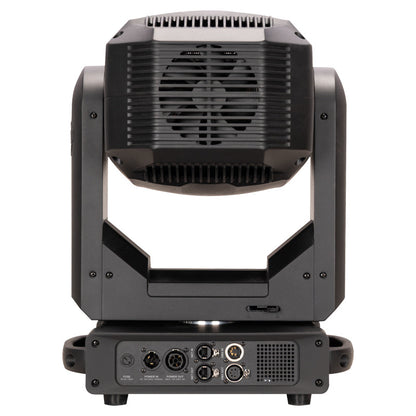

  • RJ45 In/Thru Network Ports
  • 3 & 5 pin XLR DMX In/Out
  • IP65 Locking Power In/Out
  • With Wired Digital Communication Network
View full details

Specifications

PAN / TILT
Pan
540/630-degrees
Tilt
270-degrees
SIZE / WEIGHT
Length
14.2" (360mm)
Width
9.3" (234mm)
Vertical Height
23.5” (597mm)
Weight
44.5 lbs. (20.2kg)
ELECTRICAL / THERMAL
Electrical
AC 100-240V - 50/60Hz
Max Power Consumption
450W @ 220V.
Max ambient temperature
-13°F to 113°F (-25°C to 45°C)
INCLUDED ACCESSORIES
Power cable
1
Omega brackets
2
