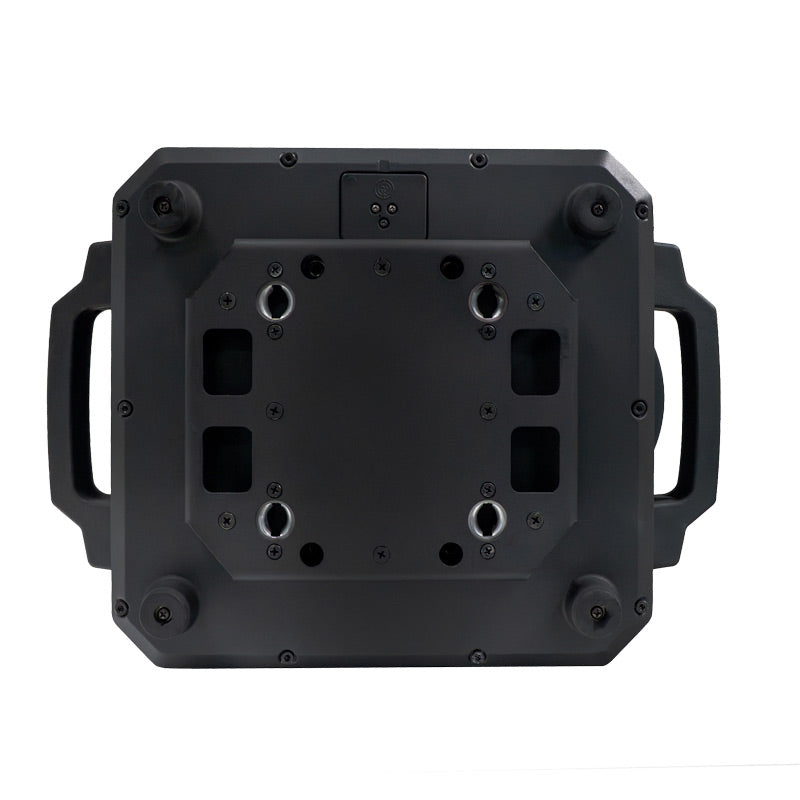

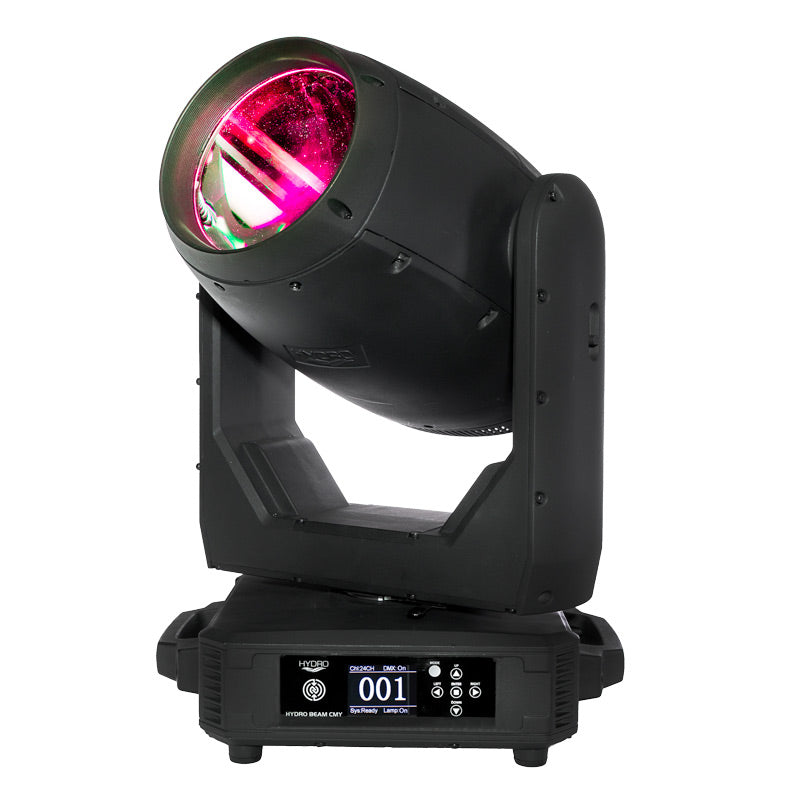

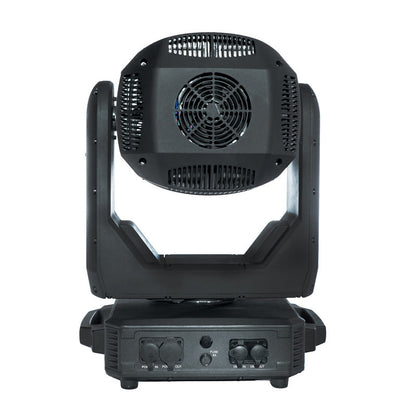

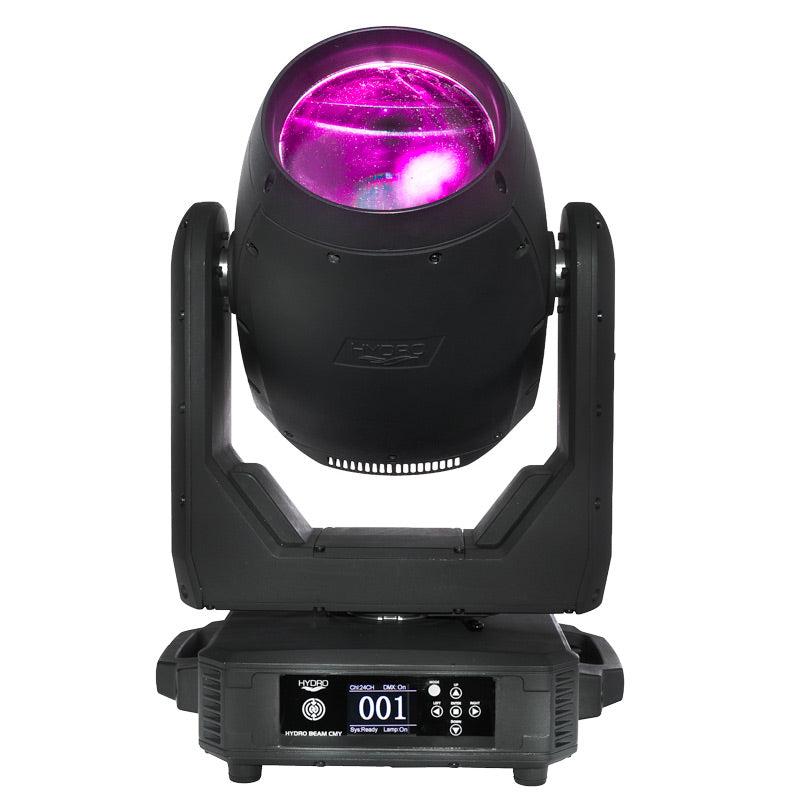

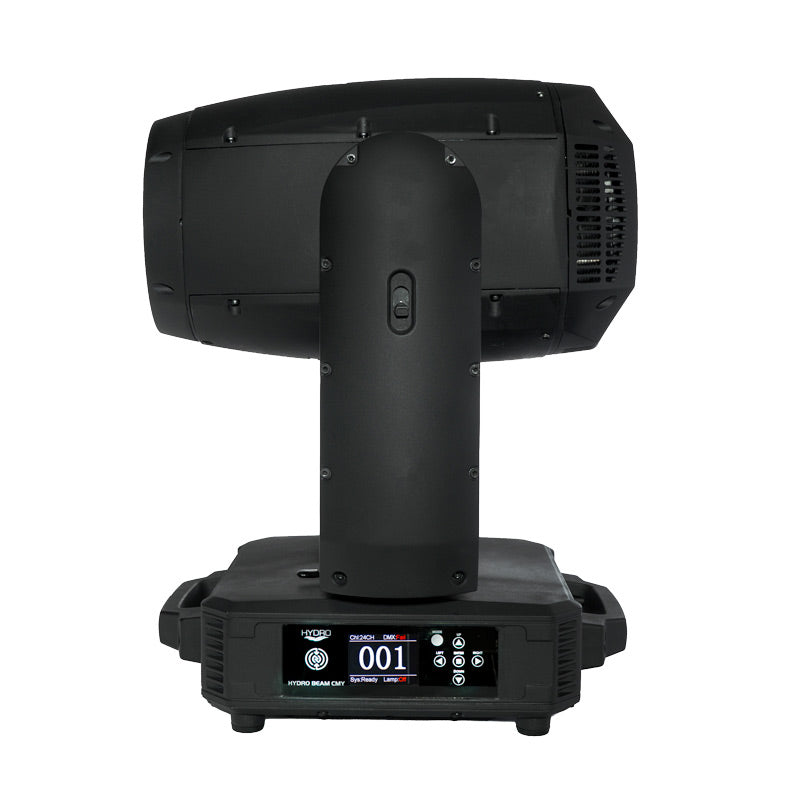

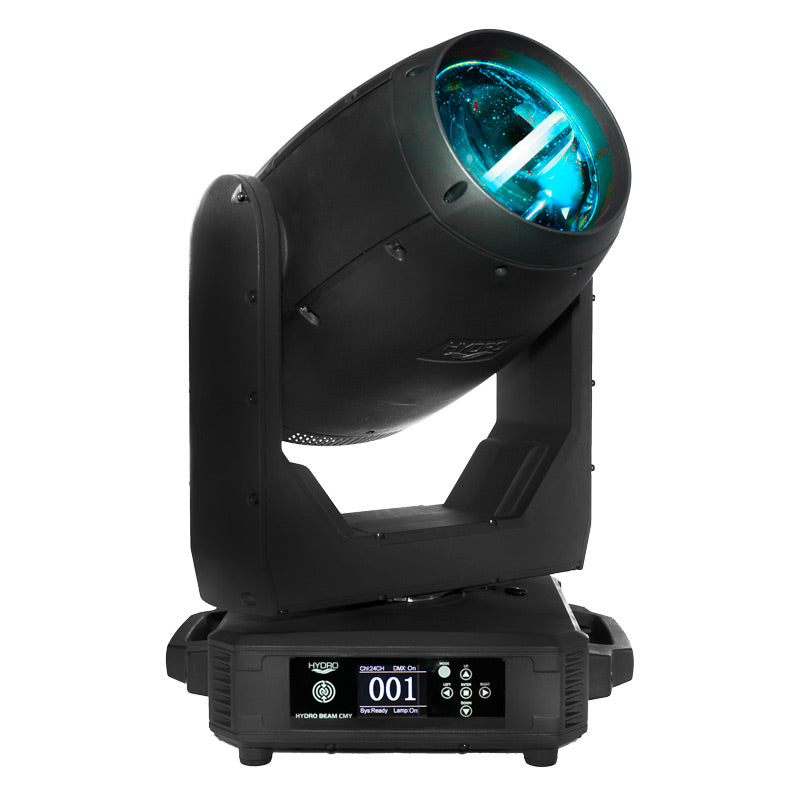

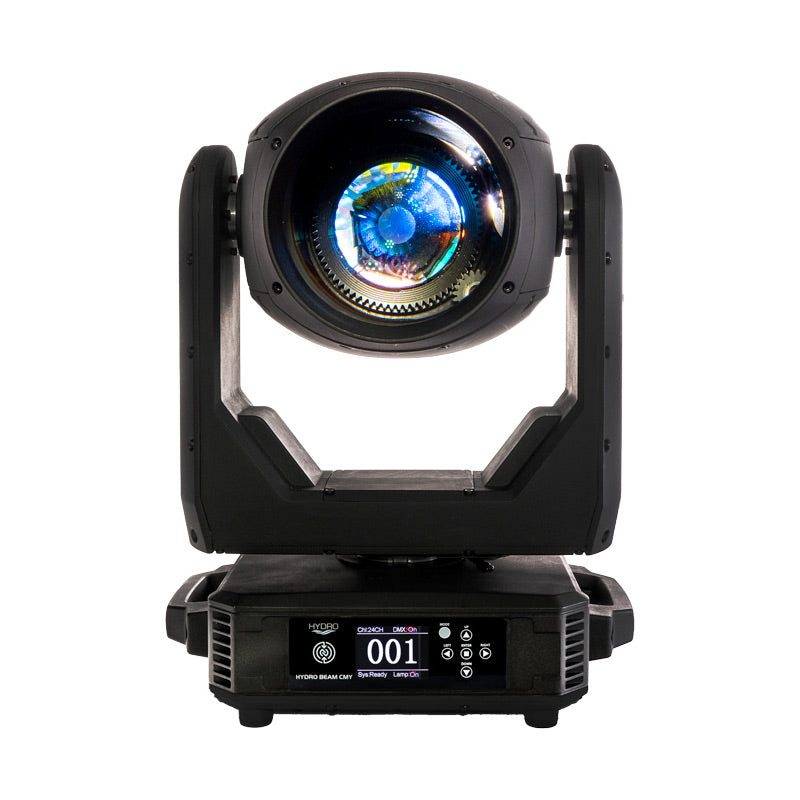

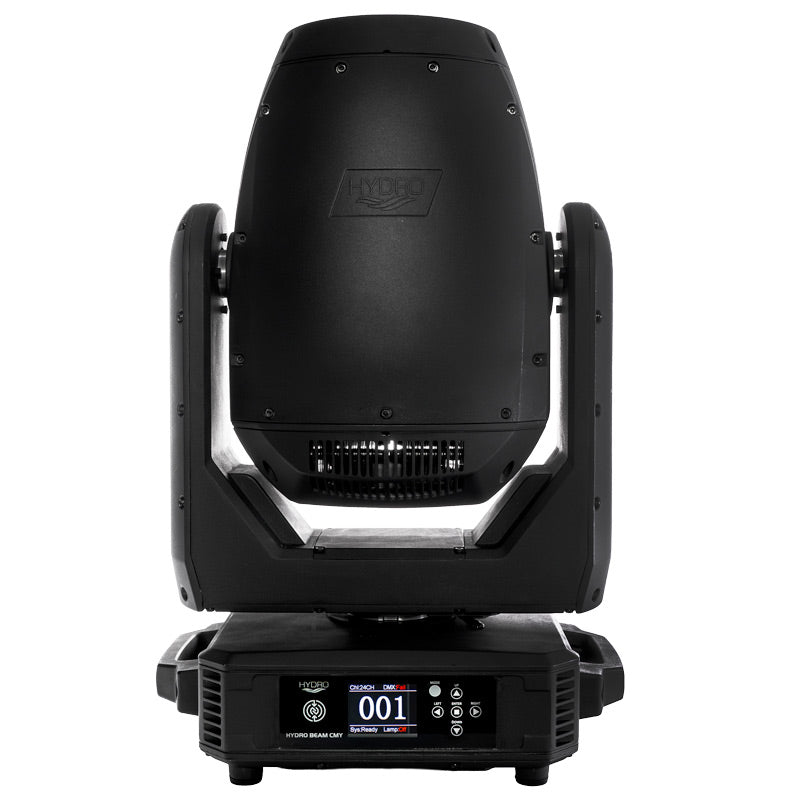

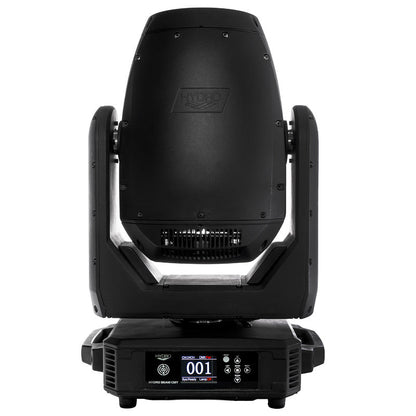

ADJ HYD359 Hydro Beam CMY Automated Beam Luminaire

ADJ HYD359 Hydro Beam CMY Automated Beam Luminaire

SoundPro Item: 202339 | Part Number: HYD359

Regular price $2,499.99
Regular price $3,599.95 Sale price $2,499.99
Your Price Sold out
MSRP: $3,599.95 | MAP: $2,499.99

Usually ships in 5-7 business days

  • CMY Color Mixing
  • On-Board Wireless DMX
  • Motorized Focus + 16-bit fine focus
  • 2-degree beam angle
  • Frost Filter to create wash effect
  • High quality glass lens
  • 2 Rotating prisms:
  • 0-100% smooth dimming
  • Pan/Tilt locks
  • Various strobe speeds
  • OTA, wireless, firmware updates
  • Fan cooled
Offering power, precision and reliability, the Hydro Beam CMY is a versatile IP65-rated automated beam luminaire. Harnessing the power of an OSRAM Sirius HRI 310W PRO discharge lamp, focused through precision-engineered optics and projected from a high-quality glass lens, it generates a razor-sharp 2-degree beam. An extensive feature set is headlined by CMY color mixing and also includes 17 static GOBOS, two rotating prisms, a frost filter, and integrated Aria X2 wireless DMX control and remote fixture management. Featuring lightning-fast movement, this robust fixture is designed to create impressive aerial effects for large indoor as well as outdoor events.

Light Source:
  • OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
  • Color temperature: 7850K (+/- 500K)
  • CRI: 86 (+/- 5)
Color Wheel:
  • 14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)
  • Indexable color wheel for split colors
  • Separate Multi-Color Effect
GOBO Wheel:
  • 17 static GOBOs + open (4 GOBOs are beam reducers)
  • GOBO Shake Effect
Prism Wheels:
  • 2 Rotating prisms
  • 16 facet circular and 6 facet linear prisms
  • Prisms Overlay
Control:
  • Protocols: DMX512, RDM, Aria X2, NFC
  • Control Mode: DMX512 & Manual (On-board Controls)
  • 2 DMX Channel Modes: 20/24 Channels
  • Color LCD display with 4-button function menu
  • 0-100% smooth dimming
  • Various strobe speeds
  • With Wired Digital Communication Network
Approvals / Ratings
  • CE
  • cETLus (Pending)
  • FCC
  • IP65
View full details

Specifications

Pan/Tilt
Pan
540 degrees (plus 16-bit fine pan)
Tilt
270 degrees (plus 16-bit fine tilt)

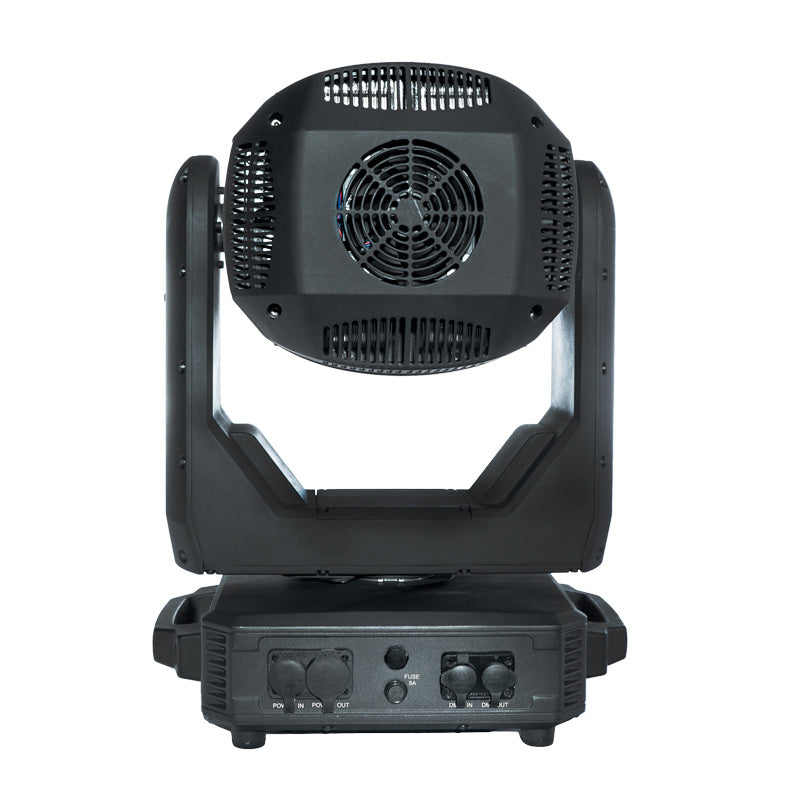

Connections
DMX Connections
Seetronic IP65 Rated,5-pin DMX In/Out (Data link max: 32 fixtures)
Power Connections
IP65 locking power In/Out connections to daisy chain power
Electrical
Multi-voltage operation
100-240V, 50/60Hz
Max power consumption
450W (@120V), 4300W (@230V)
Fuze Protected
6.5A
Dimensions & Weight
Dimensions
15” (L) x 11.2” (W) x 23” (H) / 381.6 x 284.5 x 568.5mm
Weight
56 lbs. / 25.6 kg.
What's Included
Omega Brackets (107 Type)
2
2M, outdoor locking 14AWG power cord
1
