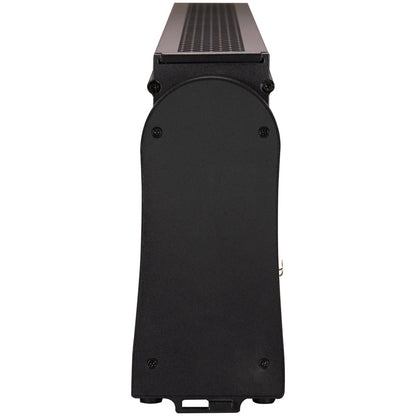

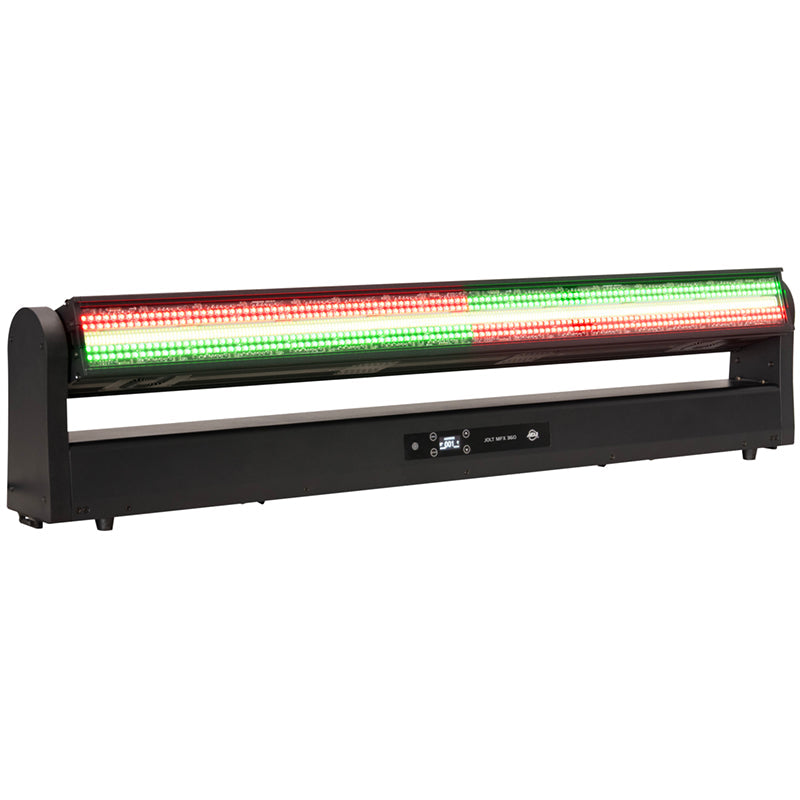

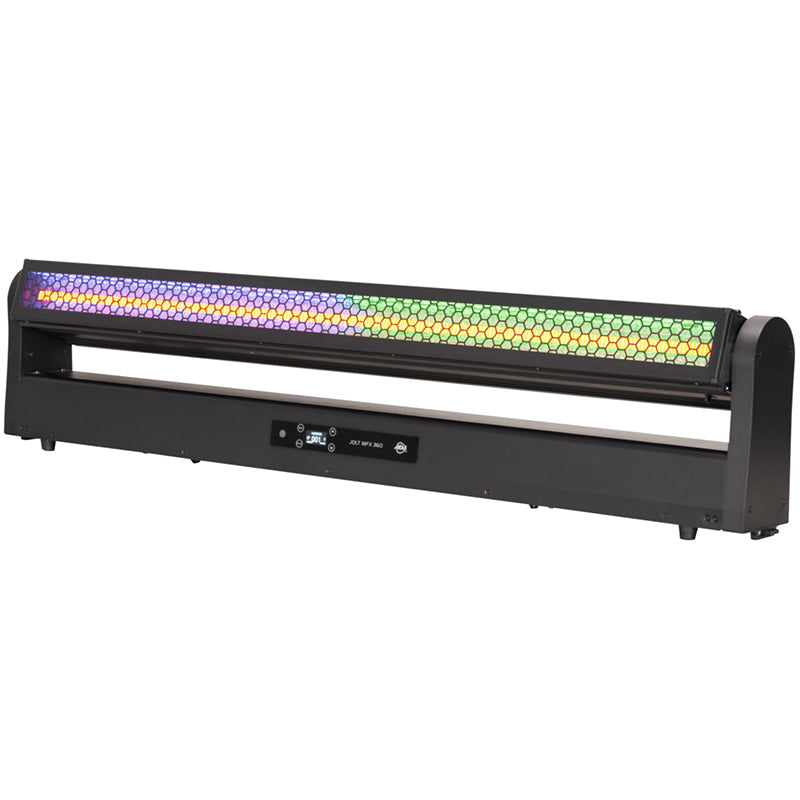

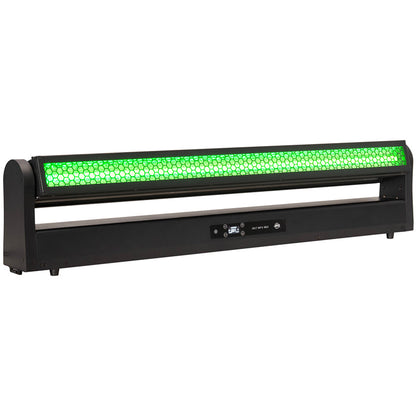

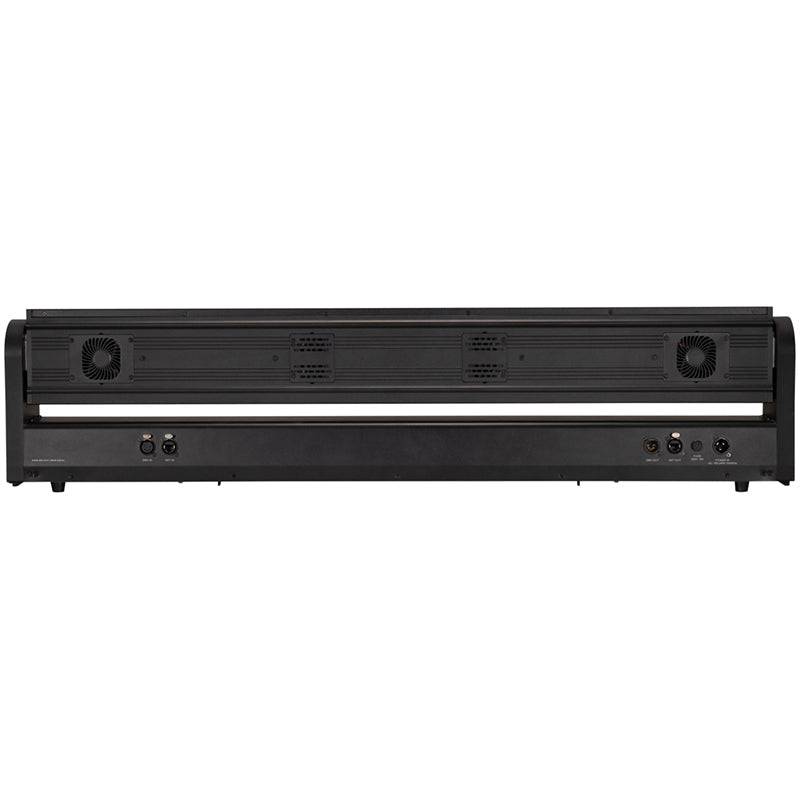

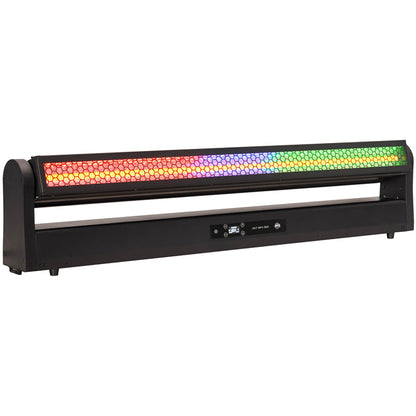

ADJ JOL360 Jolt MFX 360 LED Bar

ADJ JOL360 Jolt MFX 360 LED Bar

SoundPro Item: 202340 | Part Number: JOL360

$1,579.99
$2,199.95 $1,579.99
Your Price Sold out
MSRP: $2,199.95 | MAP: $1,579.99

Usually ships in 5-7 business days

  • 4 x Amber LED's on Vintage Effect Side (203, 220, 223, and 229CH Modes)
  • 20 x RGBL LED Zones on Vintage Effect Side (203, 220, 223, and 229CH Modes)
  • 16 x Cool White LED Zones on Jolt FX Bar Side (203, 220, 223, and 229CH Modes)
  • 32 x RGB Background LED Zones on Jolt FX Bar Side (203, 220, 223, and 229CH Modes)
  • 128 Built-in RGB (Jolt Bar) and RGBL (Vintage) Background LED Macros
  • 6 Built-in RGBL LED Program Macros with Speed and Fade Control (Vintage Side)
  • 6 Built-in RGB LED Program Macros with Speed and Fade Control (Jolt Bar Side)
  • 6 Built-in Cool White LED Program Macros with Speed and Fade Control (Jolt Bar Side)
  • 360° Continuous Tilt Movement in both directions
  • Tilt Lock
  • Built-in Aria X2 Wireless Management System
  • NFC Ready
  • Lens slot on Jolt Bar side for optional frost lens
  • Alignment feature for precise end-to-end unit setup
Log in or register for YOUR best price
Combining the effects from two popular ADJ fixtures into one groundbreaking product, the Jolt MFX 360 delivers a fusion of classic atmosphere with modern intensity. On one side is the timeless glow of the Vintage Bar: a potent warm white LED blinder strip surrounded by vibrant background color glow. One the other is the raw power of the Jolt Bar: a dazzling white LED strobe strip surrounded by intense RGB wash LEDs. Fast motorized tilt allows near instant transition between the two effects, while 360 degrees continuous rotation unlocks mesmerizing hybrid effects. With pre-programmed effect macros, a lens slot on the Jolt Bar side for optional frost filters, and Aria X2 wireless built in, this unique fixture is ready to deliver both on the road and for integration applications.
Vintage Effect Side
  • 4 x 100-Watt COB Amber (1800K) LED's
    • Wavelength: 588-592nm
    • Lux: 473
    • CRI: 60
    • Beam Angle: 120°
    • Field Angle: 140°
    • LED Life (Average): 50,000 Hours
  • 140 x 0.8-Watt RGBL SMD LED's
    • Wavelength: Red (620-625nm), Green (520-525nm), Blue (455-460nm), Lime (570nm)
    • LED Life (Average): 50,000 Hours
Jolt Bar Effect Side
  • 448 x 1-Watt Cool White (6500K) SMD LED's
    • Wavelength: 620nm
    • LUX: 585
    • CRI: 73
    • Beam Angle: 60°
    • Field Angle: 80°
    • LED Life (Average): 50,000 Hours
  • 448 x 0.5-Watt RGB SMD LED's
    • Wavelength: Red (630nm), Green (520-525nm), Blue (470nm)
    • LED Life (Average): 50,000 Hours
View full details

Specifications

Control
Control Protocols
DMX, ArtNet, sACN, Aria X2, NFC and RDM
Functionality
Primary / Secondary
12 DMX Channel Modes
16, 31, 36, 42, 79, 96, 99, 105, 203, 220, 223, and 229
Dim Modes
6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Curves
4 Presets (Linear, Square Law, Inv Square Law, and S Curve)
Dimming
0-100% Smooth
Strobe Effects
Linear Speed, Pulse, and Random
Max Strobe Rate
25Hz; Min Strobe Rate: 0.35Hz
Refresh Rate
900Hz-25kHz
Connections
Data
Seetronic 5-pin XLR Locking DMX In/Thru
Data
Seetronic RJ45 Locking In/Thru
Power
IP65 Power Locking In/Thru
Electrical
100-240V, 50Hz/60Hz (Auto Sensing)
Max Power Consumption
780W (7.09A @ 110V, 3.55A @ 220V)
Max Power Link
2 units @110V/120V, 4 units @220V/240V
Fuse Protected
T6.3A/250V Glass Fuse (5x20mm)
Dimensions / Weight
Length
42.44" (1078.2mm)
Width
5.08" (129.2mm)
Height
11.02" (280mm)
Weight
40.4 lbs (18.3kg)
What's Included
IP65, 3x14AWG, 6.5ft Locking Power Cable
1
Safety Cable
1
107mm Omega Brackets
2
