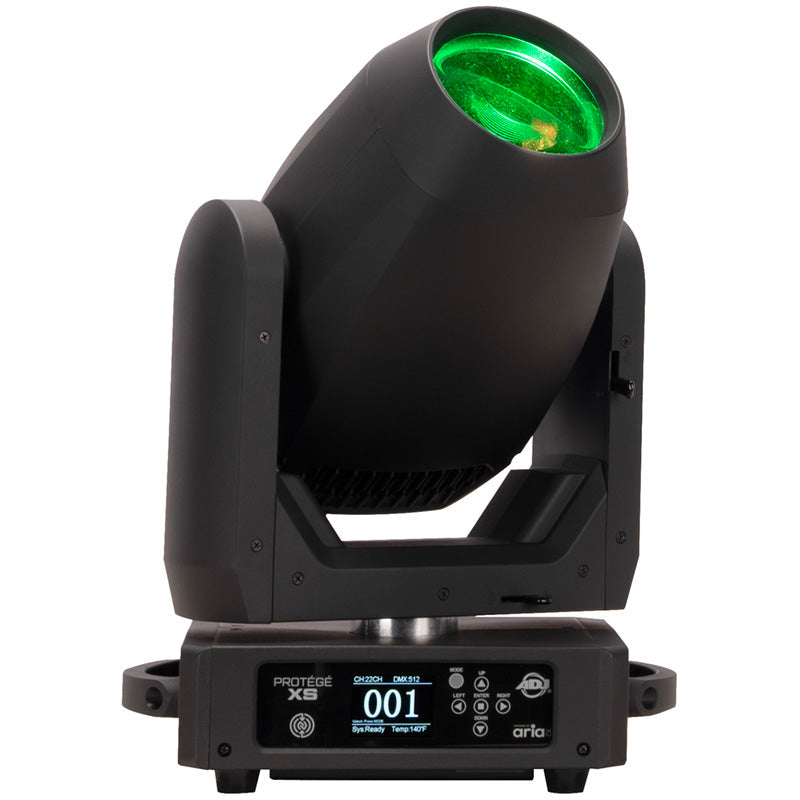

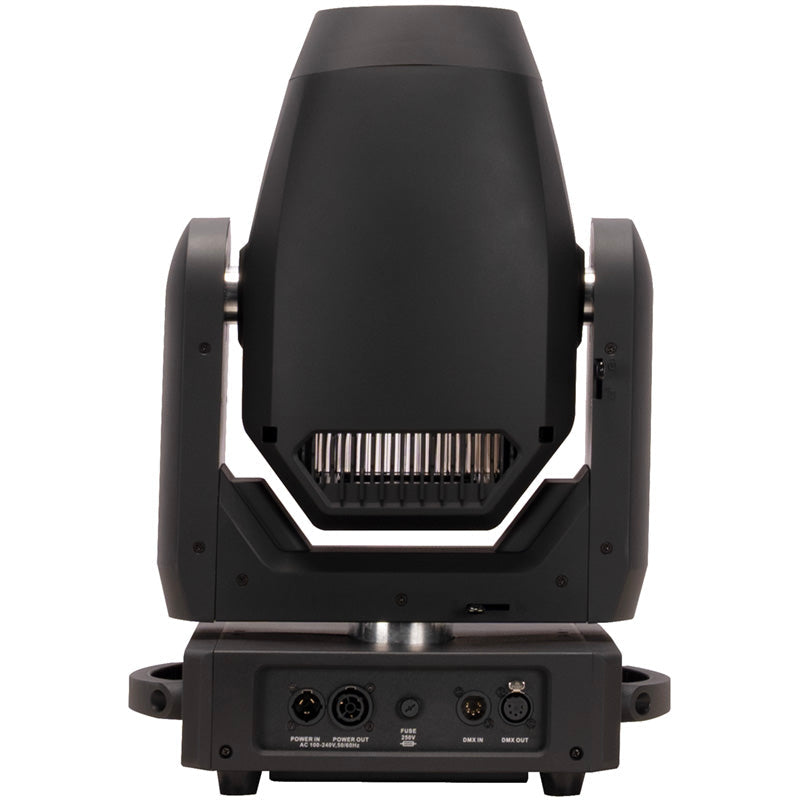

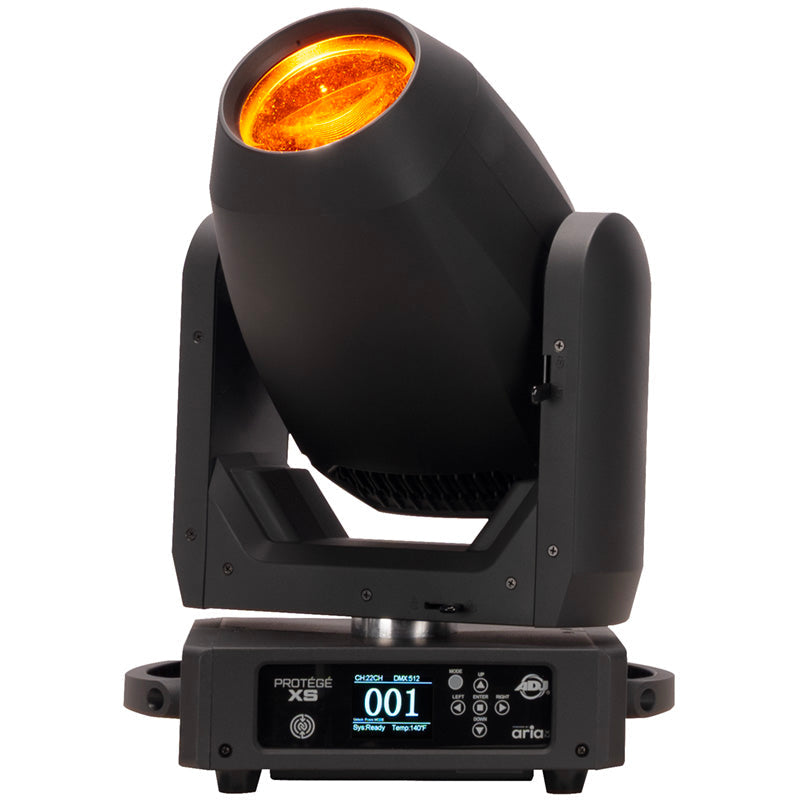

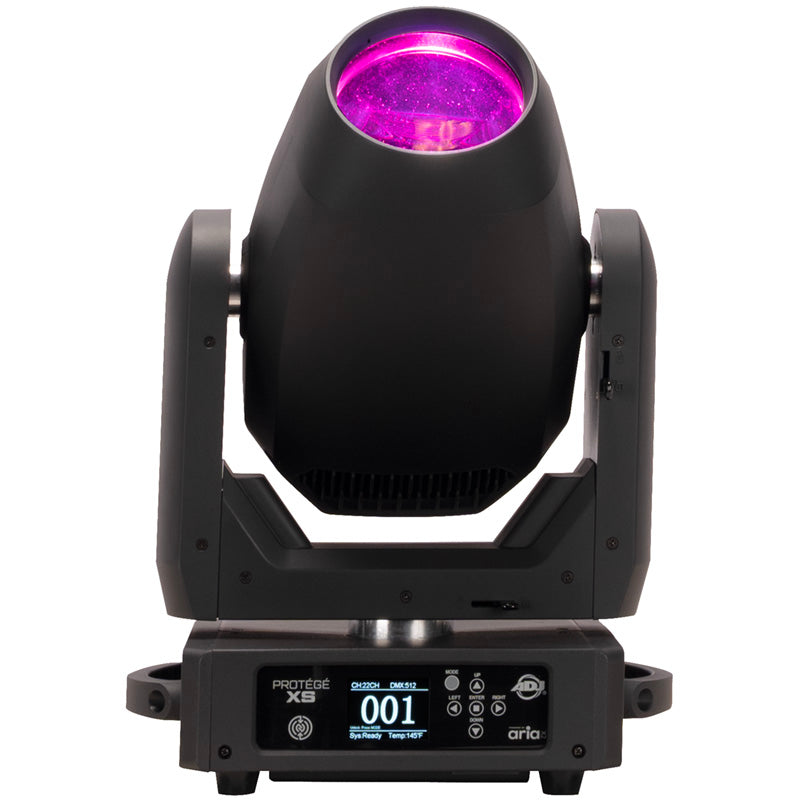

ADJ PRO300 Protégé XS LED-powered Moving Head Spot Luminaire

ADJ PRO300 Protégé XS LED-powered Moving Head Spot Luminaire

SoundPro Item: 202343 | Part Number: PRO300

$1,729.99
$2,399.95 $1,729.99
Your Price Sold out
MSRP: $2,399.95 | MAP: $1,729.99

Usually ships in 5-7 business days

Log in or register for YOUR best price
Offering an impressive feature set from a compact fixture, the Protégé XS is an LED-powered Beam/Spot/Wash moving head spot luminaire. Designed for applications that require a small unit that delivers big creative potential, it harnesses the power of a 250-watt LED engine to deliver an output of up to 9800 lumens. Packed with beam-shaping tools, it features motorized zoom and focus, two 8-position color wheels, two GOBO wheels (one rotating and replaceable, the other fixed), two rotating prisms (linear and circular), a frost filter and an animation wheel. Ensuring simple integration into any lighting system, the unit features both 5-pin DMX sockets and integrated Aria X2 wireless management.

SOURCE:

  • 250W White LED Engine
  • Color Temperature: 8500K (+/-200k)
  • 20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

EFFECTS:
  • Motorized Zoom: 4.8° ~ 38°
  • 2x Prisms: 1x 6 Facet Linear & 1x 6 Facet Circular (Overlay Capable)
  • Heavy Frost Filter for Smooth Wash Effects
  • Animation Wheel on Movable Arm
  • Motorized Focus
  • 1Hz ~10Hz Strobe Rate (Electronic)
CONTROL / CONNECTIONS:
  • (3) DMX Channel Modes (Basic / Standard / Extended)
  • DMX, RDM
  • Aria X2 Wireless Management System
  • NFC System
  • 6 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • 8 / 16 Bit Resolution Adjustable Movement
  • 5 pin XLR DMX In/Out
  • IP65 Locking Power In/Out
APPROVALS / RATINGS:
  • CE
  • FCC
  • cETLus (Pending)
  • IP20
View full details

Specifications

PHOTOMETRIC DATA
Lumens
9,800
CRI
73
COLOR
Color
2x Color Wheels; 8 colors per color wheel
Color Wheel 1
Red, Blue, Green, Orange, Quad Color,Yellow, Magenta, Congo Blue
Color Wheel 2
Dark Red, Light Turquiosise, UV, Pink, Quad Color, Lavender, CTO 3200K, CTB 9000K
GOBOS
1x Rotating Gobo Wheel
7 Interchangeable, glass gobos (OD: 16mm, Image: 10mm)
1x Static Gobo Wheel
11 Fixed, aluminum gobos, including two beam reducers
PAN / TILT
Pan
540/630° and separate 360° Continuous Pan Rotation
Tilt
270°
Motors
3 Phase
SIZE / WEIGHT
Length
14.3" (364mm)
Width
9.8" (248mm)
Vertical Height
20” (509mm)
Weight
39 lbs. (17.85kg)
ELECTRICAL / THERMAL
Electrical
AC 100-240V - 50/60Hz
Max Power Consumption
616W
Power Link
2 units @120V., 5 units @ 230V.
Max ambient temperature
-13°F to 113°F (-25°C to 45°C)
INCLUDED ACCESSORIES
Outdoor Locking Power cable (6.5ft.)
1
Omega brackets (107mm)
2
Safety Cable, 3mm (1.97ft.)
1
