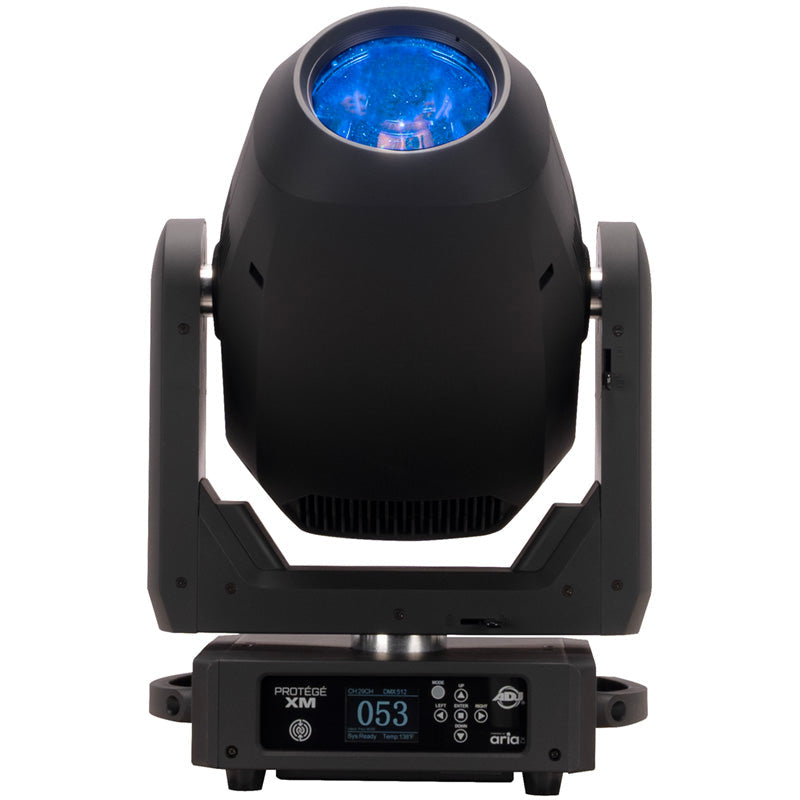

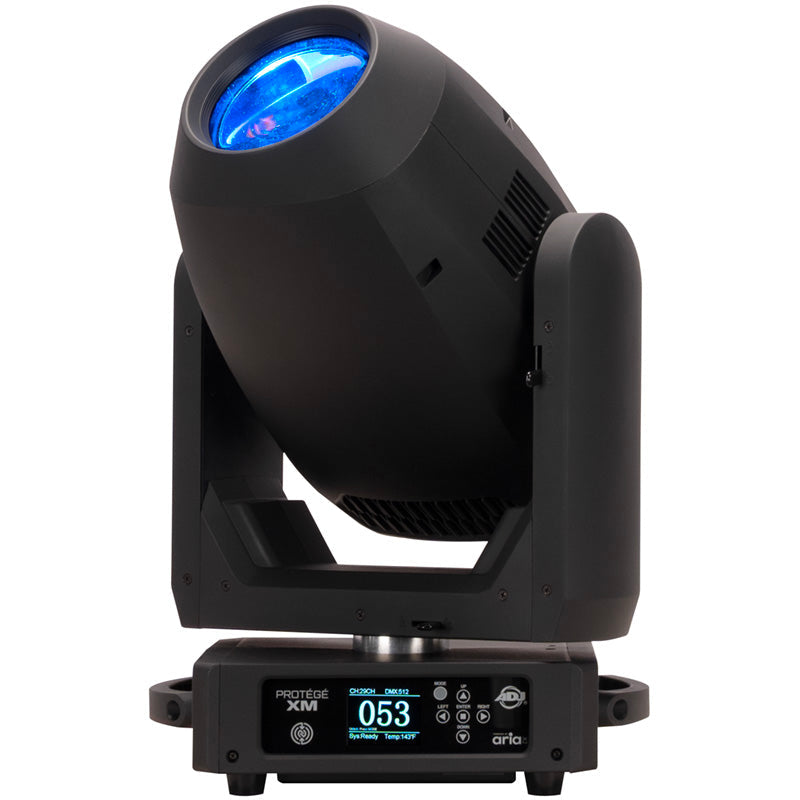

ADJ PRO500 Protégé XM LED-powered Moving Head Spot Luminaire

ADJ PRO500 Protégé XM LED-powered Moving Head Spot Luminaire

SoundPro Item: 202342 | Part Number: PRO500

$2,299.99
$3,199.95 $2,299.99
Your Price Sold out
MSRP: $3,199.95 | MAP: $2,299.99

Usually ships in 5-7 business days

Log in or register for YOUR best price
Delivering output of up to 16,000 lumens and an extensive feature set, the Protégé XM is a versatile LED-powered moving head spot luminaire. Its 350W LED engine has a native color temperature of 8000K and its precision-engineered optics deliver crisp GOBO projections and striking aerial effects with a beam angle variable between 3.8 degrees and 44 degrees. The fixture is packed with useful features, including CMY color mixing alongside two color wheels, two rotating GOBO wheels, two prisms, two frost filters, and an animation wheel. It offers extensive control options for integration into any professional lighting system, including support for sACN and Art-Net as well as onboard Aria X2 wireless DMX and remote fixture management.


SOURCE:
  • 350W White LED Engine
  • Color Temperature: 8000K (+/-200k)
  • 20,000 Hour Average LED Life
EFFECTS:
  • Motorized Zoom: 3.7° to 43°
  • 2x Prisms: 1x 6 Facet Linear & 1x 6 Facet Circular (Overlay Capable)
  • 2x Frost Filters- 1 x Light Frost Filter and 1 x Heavy Frost Filter
  • Animation Wheel on Movable Arm
  • Motorized Focus
  • 1Hz ~10Hz Strobe Rate (Electronic)
CONTROL / CONNECTIONS:
  • (3) DMX Channel Modes (Basic / Standard / Extended)
  • DMX, sACN, ArtNet and RDM
  • Aria X2 Wireless Management System
  • NFC System
  • 6 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • 8 / 16 Bit Resolution Adjustable Movement
  • RJ45 In/Thru Ports
  • 5 pin XLR DMX In/Out
  • IP65 Locking Power In/Out
APPROVALS / RATINGS:
  • CE
  • FCC
  • cETLus (Pending)
  • IP20
View full details

Specifications

PHOTOMETRIC DATA
Lumens
16,000
CRI
70
COLOR
Color
Disc-Based CMY Color Mixing; 2x Color Wheels; 9 colors per color wheel
Color Wheel 1
Red, Blue, Green, Orange, Quad Color,Lime, Amber, Magenta, Congo Blue
Color Wheel 2
Dark Red, Midnight Blue, Light Turquoise, Pink, UV, Quad Color, High CRI, CTO 2700K, CTC (Color Temp. Correction)
GOBOS
2x Rotating Gobo Wheels
Each with 7 Interchangeable, glass gobos (OD: 23mm, Image: 14.8mm)
PAN / TILT
Pan
540/630° and separate 360° Continuous Pan Rotation
Tilt
270°
Motors
3 Phase
SIZE / WEIGHT
Length
14.49" (368mm)
Width
9.76" (248mm)
Vertical Height
22.3” (566.5mm)
Weight
48.5 lbs. (22kg)
ELECTRICAL / THERMAL
Electrical
AC 100-240V - 50/60Hz
Max Power Consumption
675W (5.9 Amps @ 120V., 3.07 Amps @ 230V.)
Power Link
2 unit @120V., 5 units @ 230V.
Max ambient temperature
-13°F to 113°F (-25°C to 45°C)
INCLUDED ACCESSORIES
Outdoor Locking Power cable (6.5ft.)
1
Omega brackets (107mm)
2
Safety Cable, 3mm (1.97ft.)
1
