Specifications
Optical

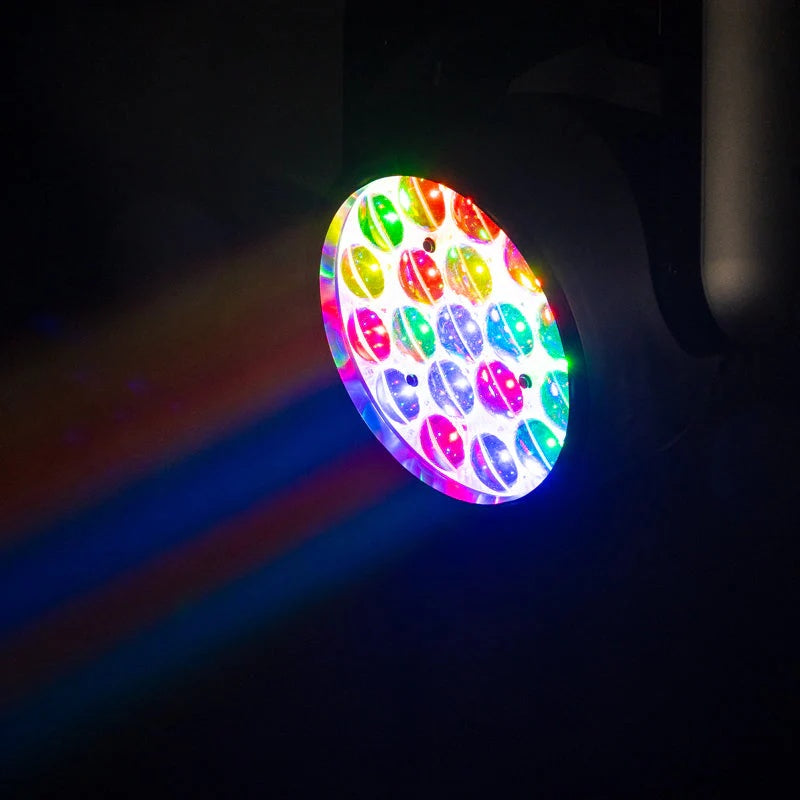

Foreground LEDs
19x 30W RGBL (4-IN-1) LEDs
Foreground LED Life
30,000 Hour Average LED Life
CRI
86
Output
16,500+ Lux (Zoomed In to 7° @ 5 meters)

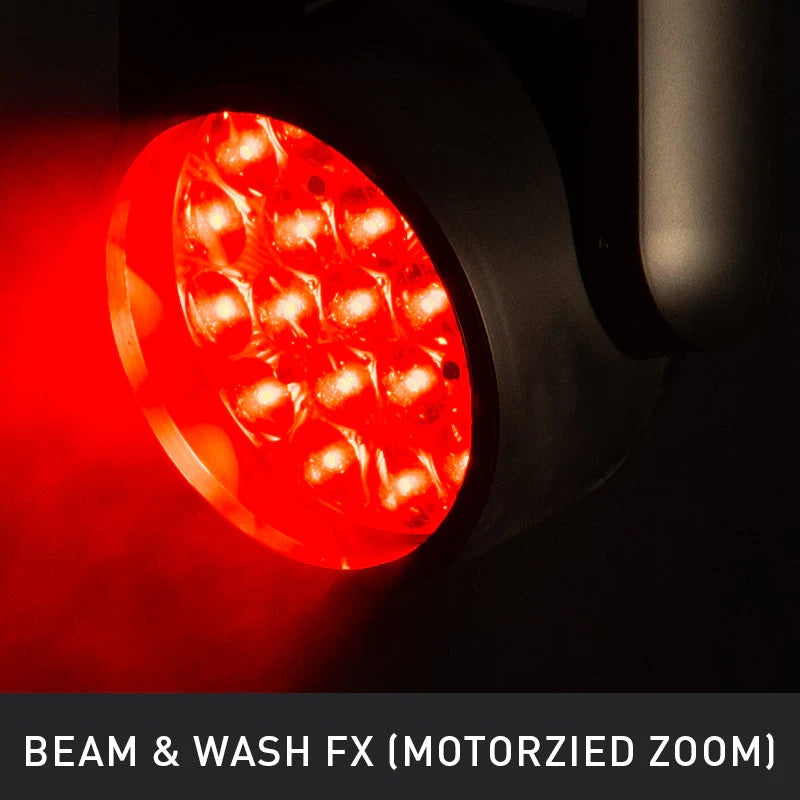

Beam Angle
7° to 42°
Field Angle
9° to 60°

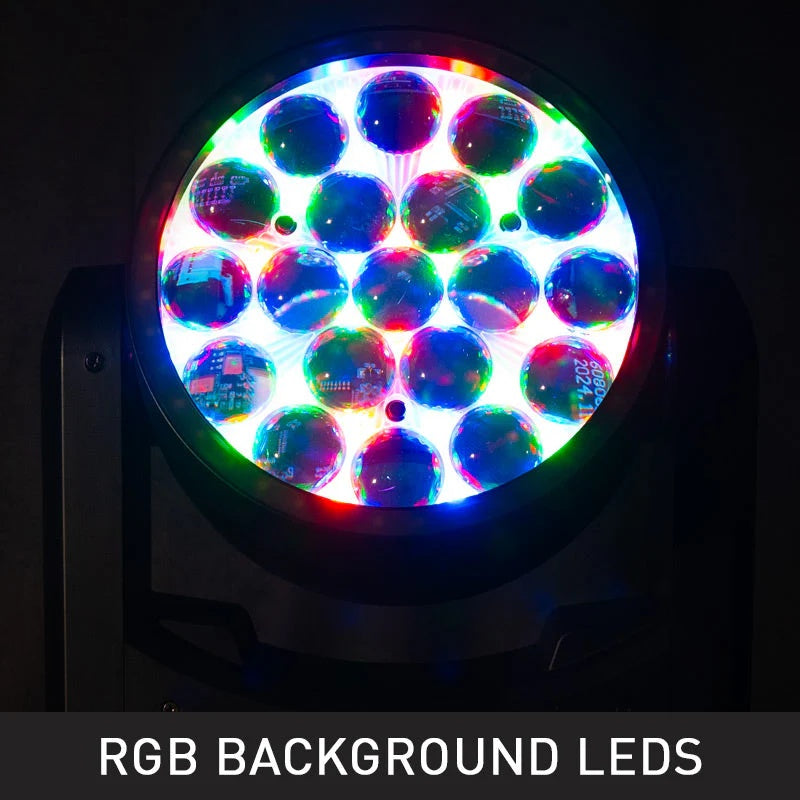

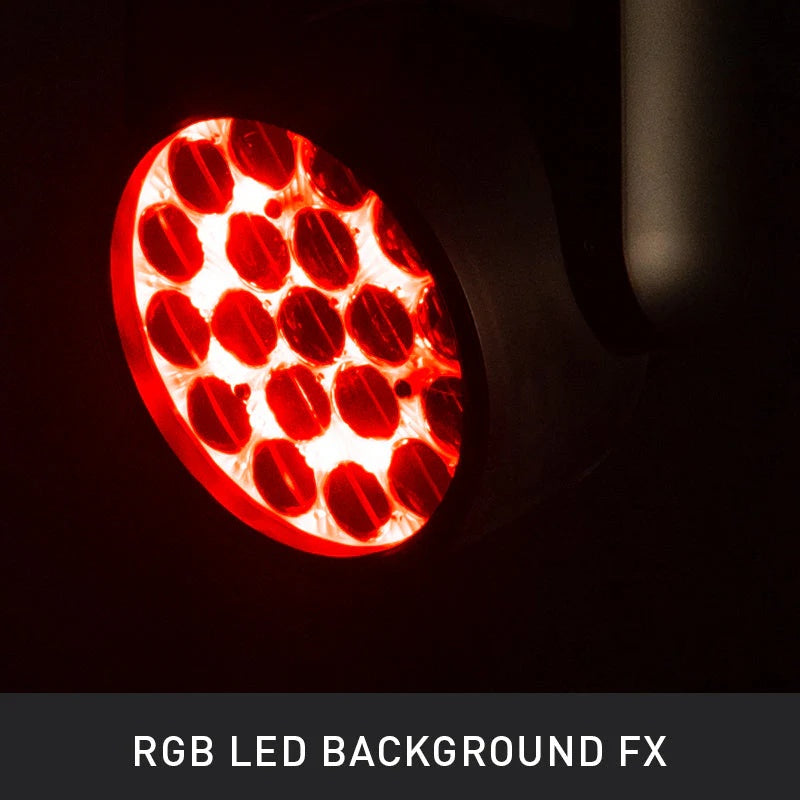

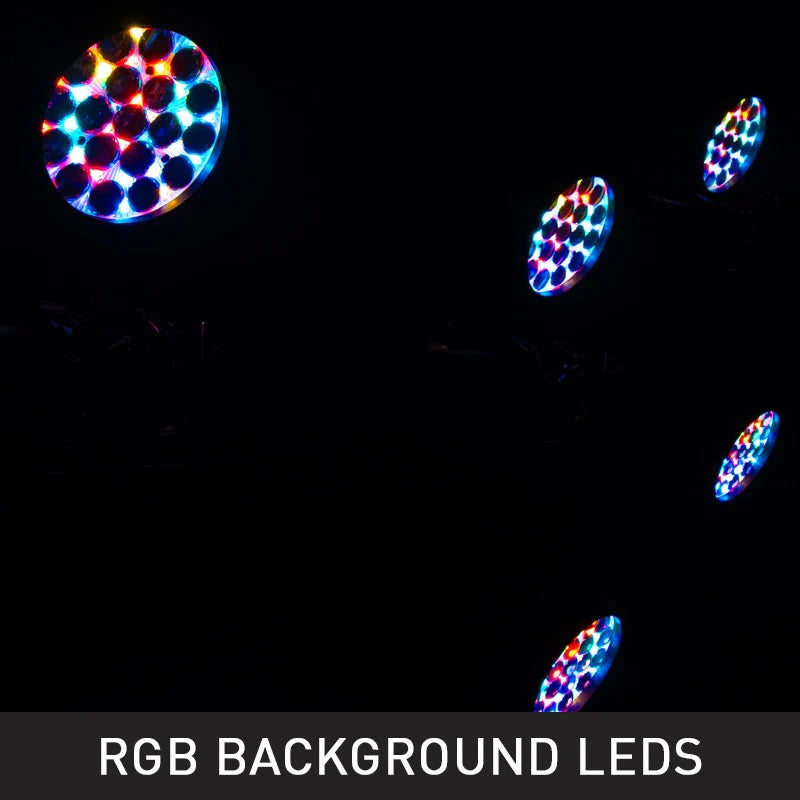

Background LEDs
30x 0.5W SMD RGB LEDs
Background LED Life
50,000 Hour Average LED Life

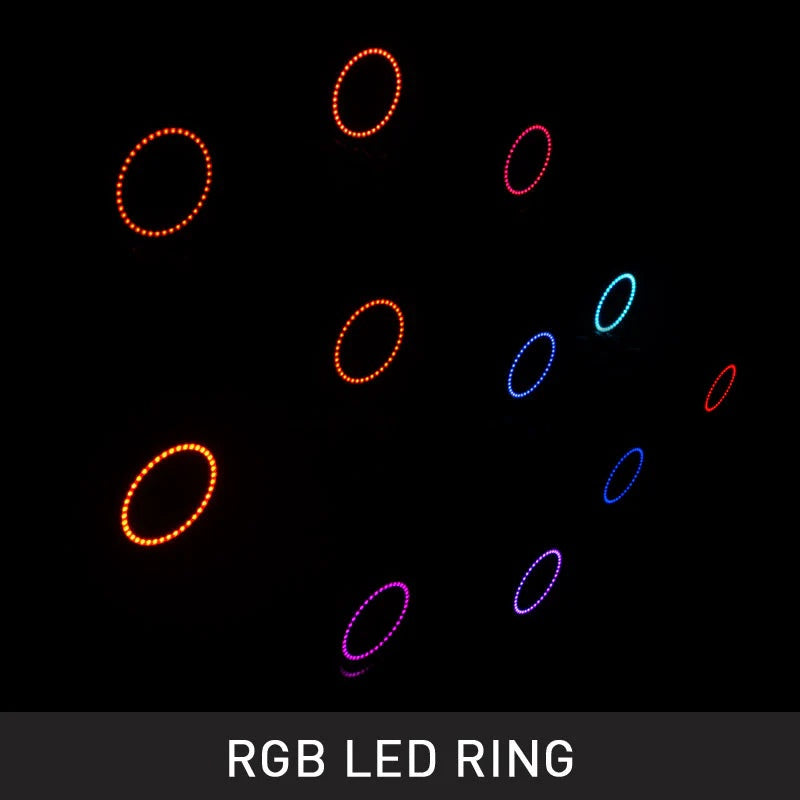

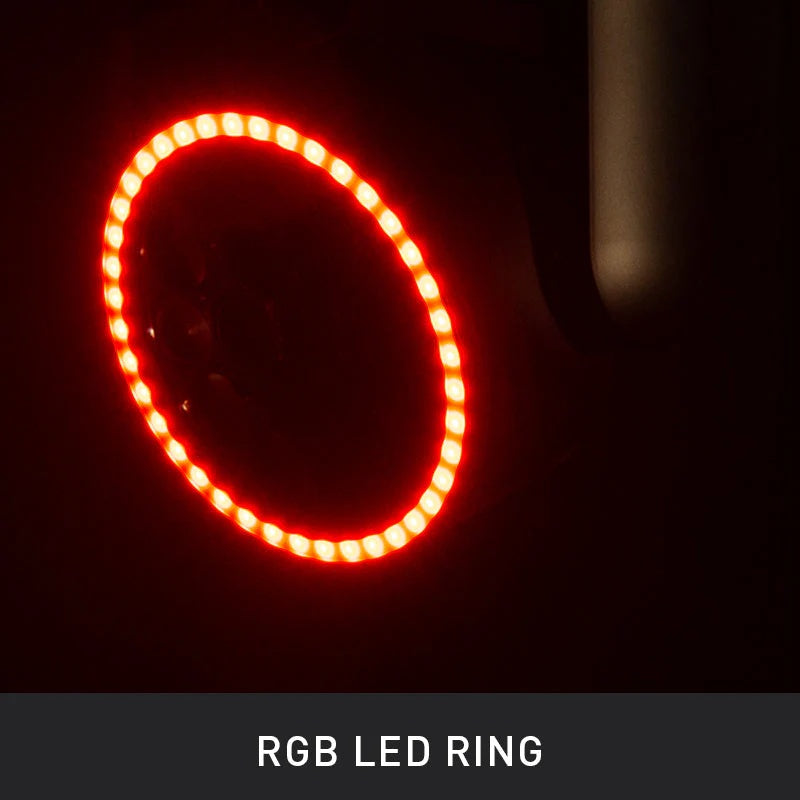

Ring LEDs
40x 0.5W SMD RGB LEDs
Ring LED Life
50,000 Hour Average LED Life
Color

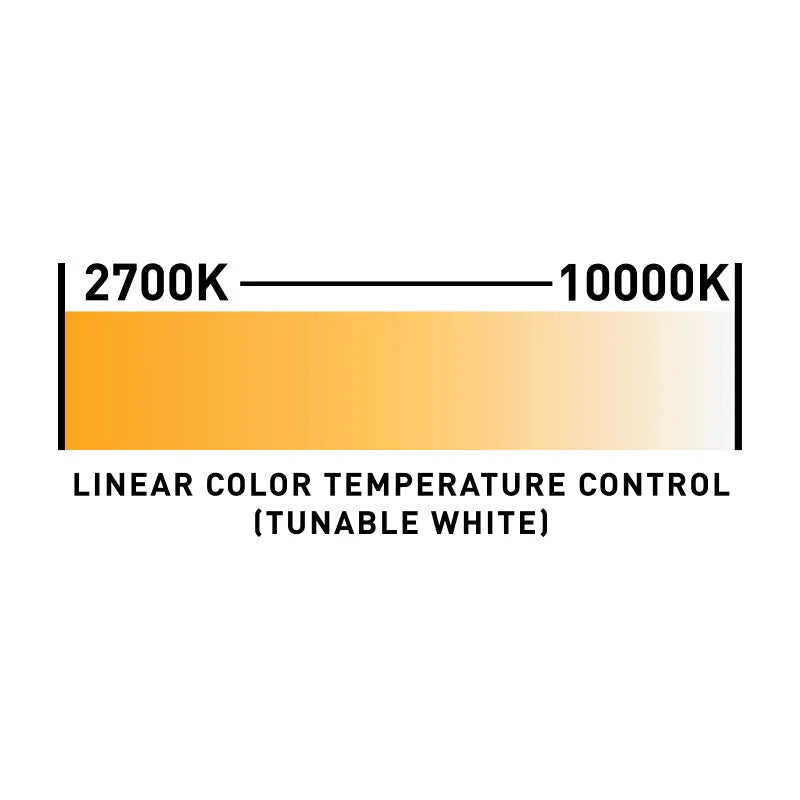

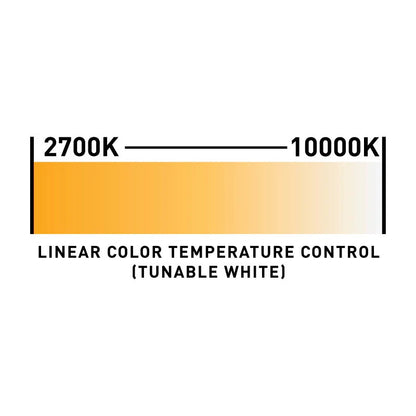

White Color Temperature Control
2,700K ~ 10,000K
Color Temperature Presets
2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
Built-In Color Macros
Yes
Control
Protocols
DMX-512, RDM, Artnet, sACN
DMX Control Modes
32 / 43 / M1 58 / M2 58 / 203 / 123 133 channels
Wireless Management
Aria X2 Wireless Management System
Built-In Effect Pixel Programs
With Speed and Fade Control
Network Ports
2x IP20, RJ45 network ports
Pan/Tilt
Pan
630 or 540 degrees
Tilt
270 degrees
Fine Control
16-Bit Fine Pan Tilt
Locks
Pan Tilt Locks

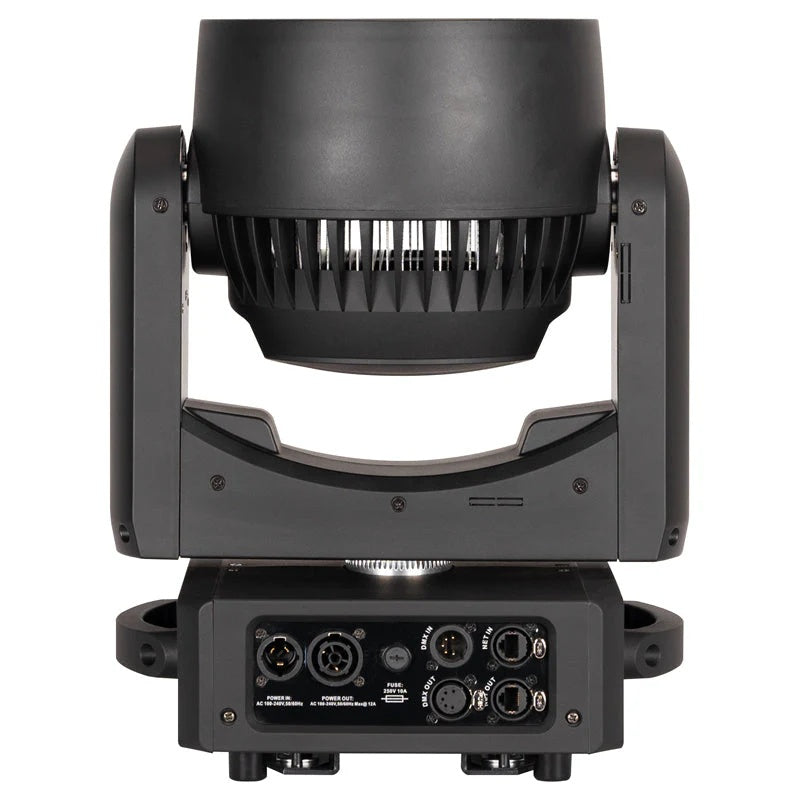

Connections
Power Connections
Seetronic, IP65 locking power In Thru Connections
DMX Connections
Seetronic, IP20 5-pin In Out DMX Connections
Electrical
Voltage
100-230V, 50/60Hz
Max Power Consumption
730W (6.64Amps) @ 120V. 690W (3.04Amps) @ 230V.
Dimensions Weight
Dimensions (LxWxH)
9.0”L x 12.0”W x 15.5”H (230x304x394mm)
Center-To-Center Spacing
13.8"" (351mm)
Weight
22.6lbs (10.1kg)
Included Items
Omega Brackets
108mm Omega Brackets (2x)
Power Cable
1x 2M, IP65-rated locking power cable
Compliance
Certifications
CE Certified, FCC
IP Rating
IP20"
