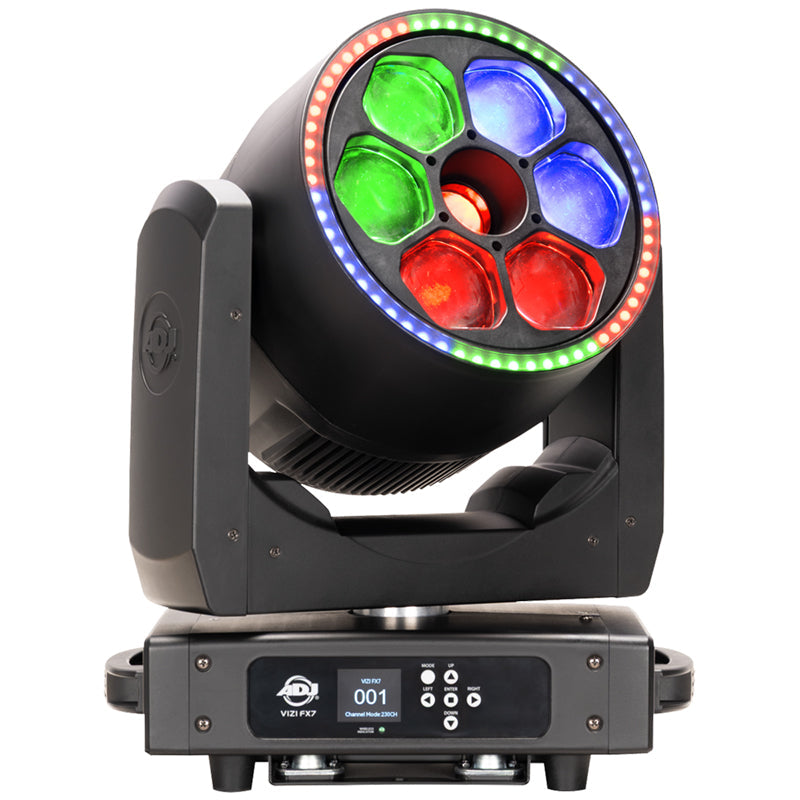

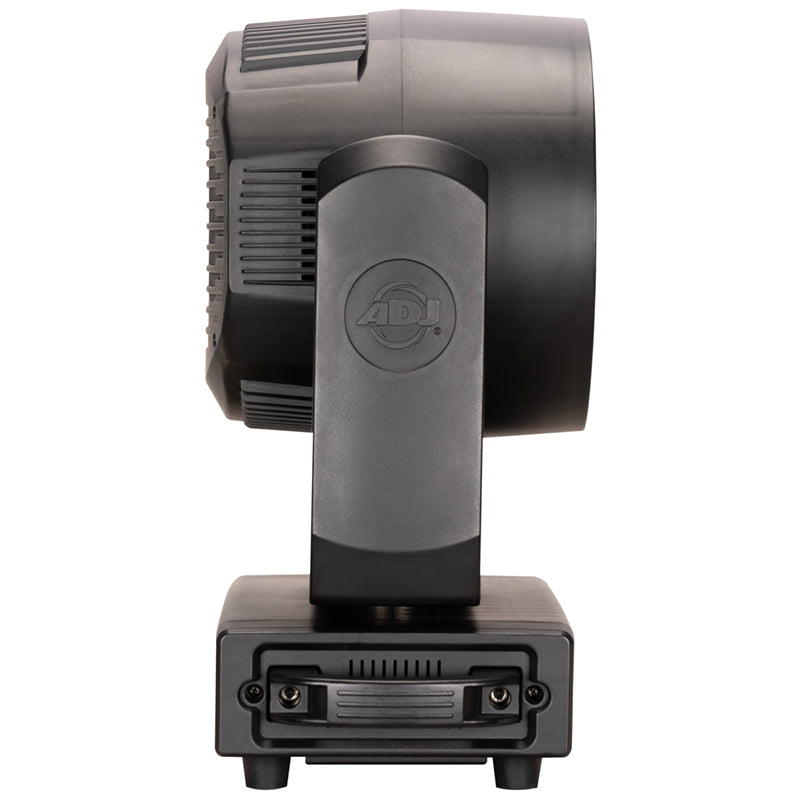

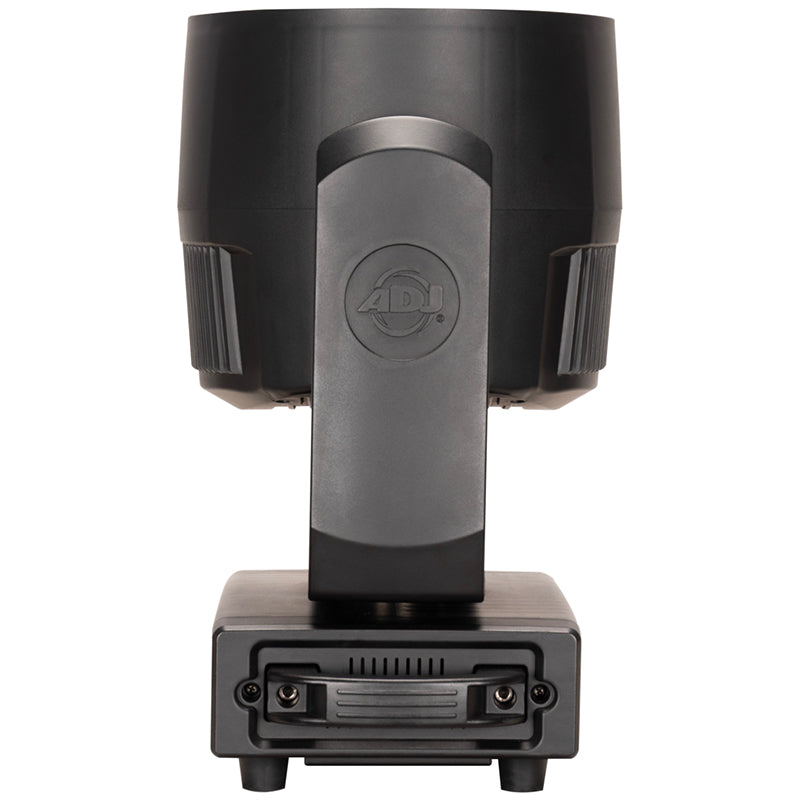

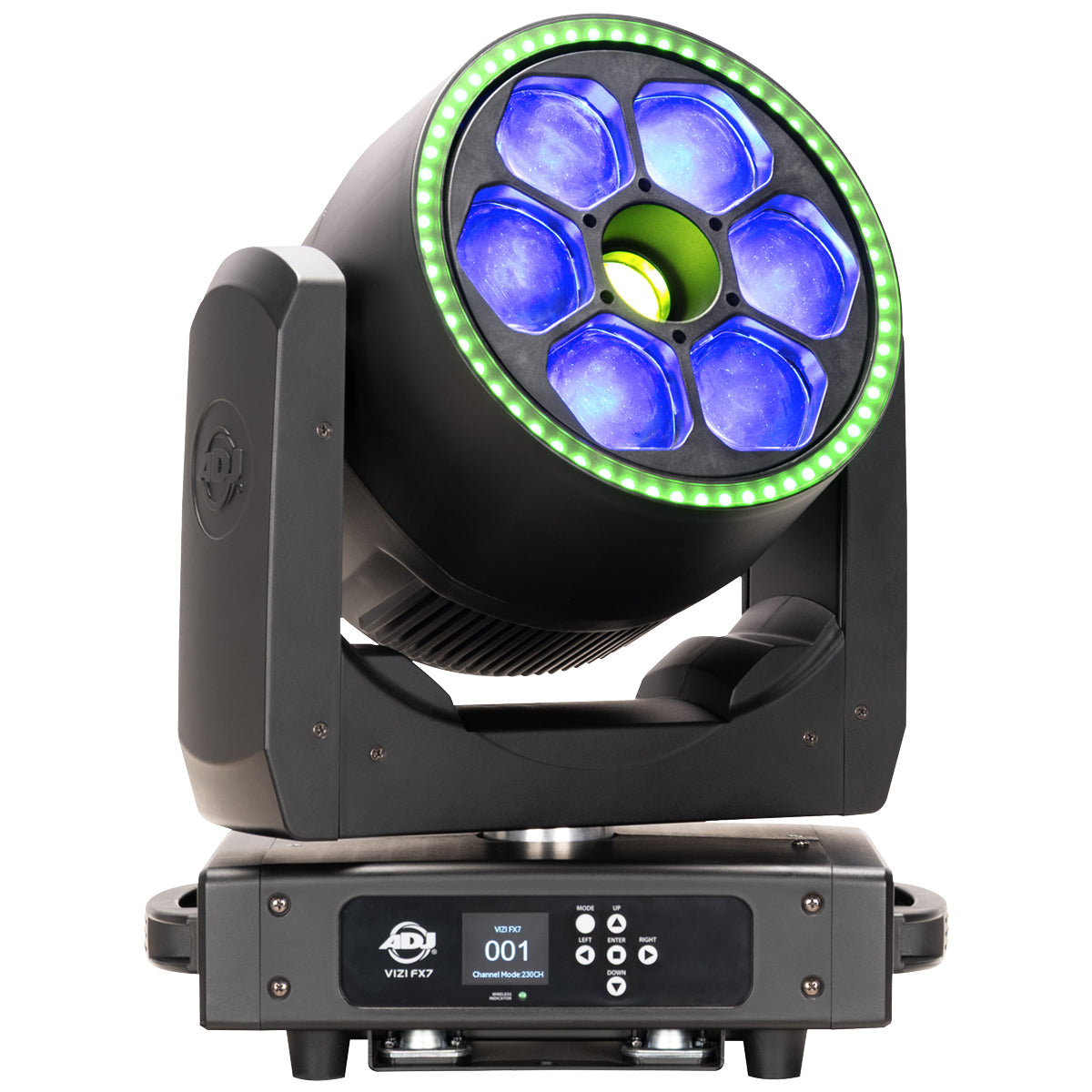

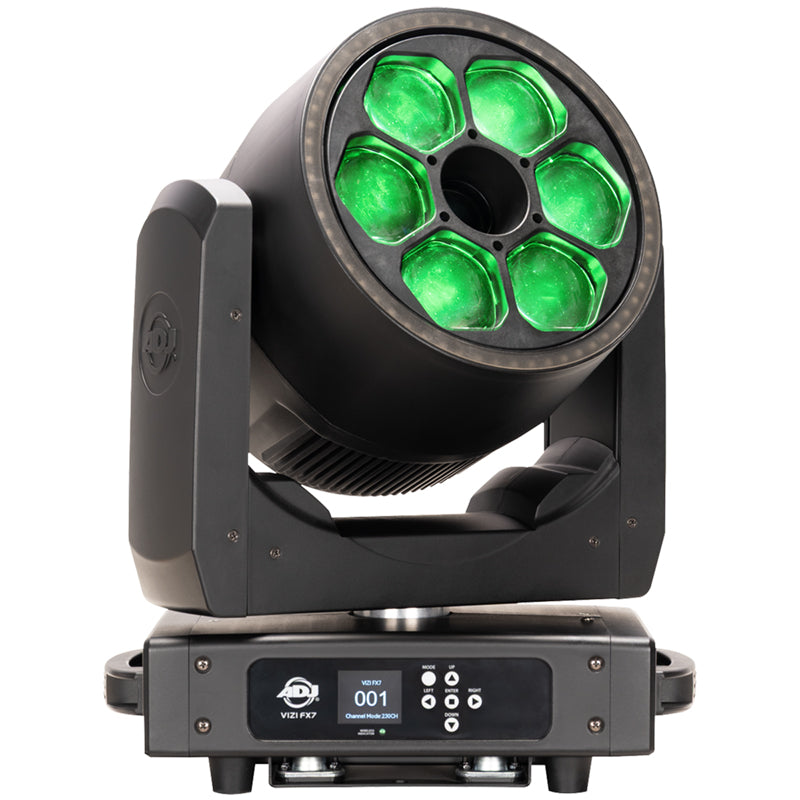

ADJ VIZ563 Vizi FX7 Moving Head Luminaire

ADJ VIZ563 Vizi FX7 Moving Head Luminaire

SoundPro Item: 202344 | Part Number: VIZ563

Regular price $1,579.99
Regular price $2,199.95 Sale price $1,579.99
Your Price Sold out
MSRP: $2,199.95 | MAP: $1,579.99

Usually ships in 5-7 business days

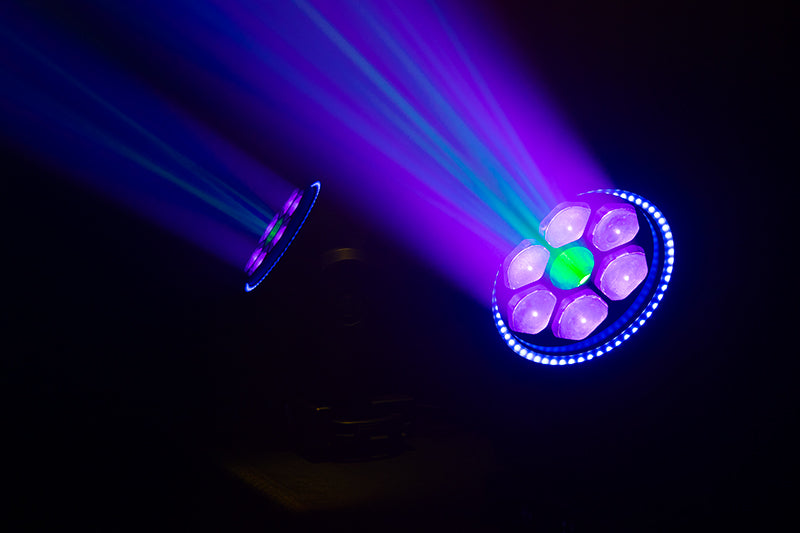

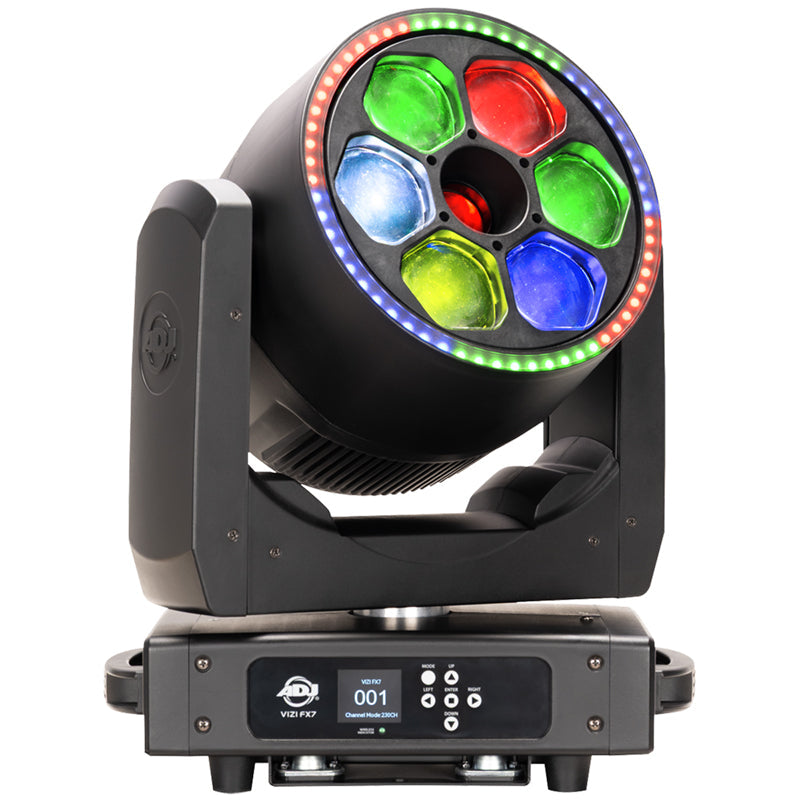

Offering four unique effects in one powerful fixture, a beam, a wash, a multi-colored kaleidoscope, and a LED ring effect, the Vizi FX7 is a professional moving head luminaire ideal for event production and venue integration. With individual pixel control over the primary LEDs and a variety of built-in FX programs, the Vizi FX7's four distinct functions can be used individually or combined to create a huge variety of aerial effects.


SOURCE:
  • Main + Kaleidoscope Center
    • 7 x 60-Watt RGBL LED's
    • Color Temperature: 2800K ~ 8,500K
    • 50,000 Hour Average LED Life*
  • Ring
    • 60 x 0.5-Watt RGB LED's
    • 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

EFFECTS:
  • Bi-Directional Primary LED Beam Rotation
  • Individual Primary LED Pixel Control

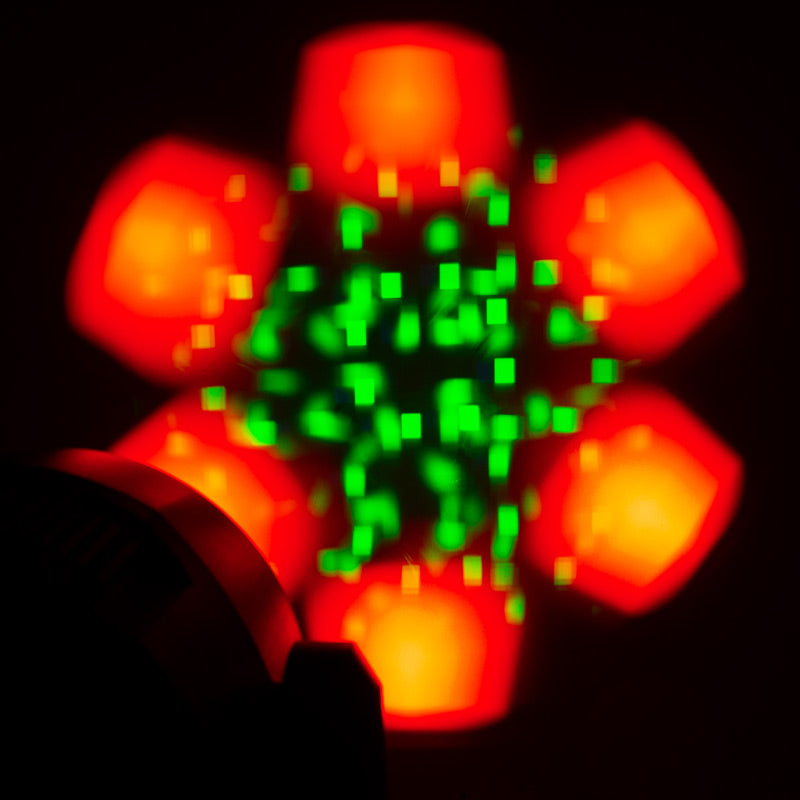

  • Bi-Directional Multi-Color Rotating Kaleidoscope
  • Built-In FX Programs with Speed Control
  • Motorized Zoom: 8° to 38°
  • 1Hz ~20Hz Strobe Rate (Electronic)
CONTROL / CONNECTIONS:
  • (4) DMX Channel Modes (31CH / 55CH / 57CH / 60CH and 237CH) Plus 1 User Definable DMX Mode
  • DMX and RDM
  • Aria X2 Wireless Management System
  • Selectable LED Refresh Rates (900 Hz~25K Hz)
  • Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
  • 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
  • 0-100% dimming
  • Fan Cooled

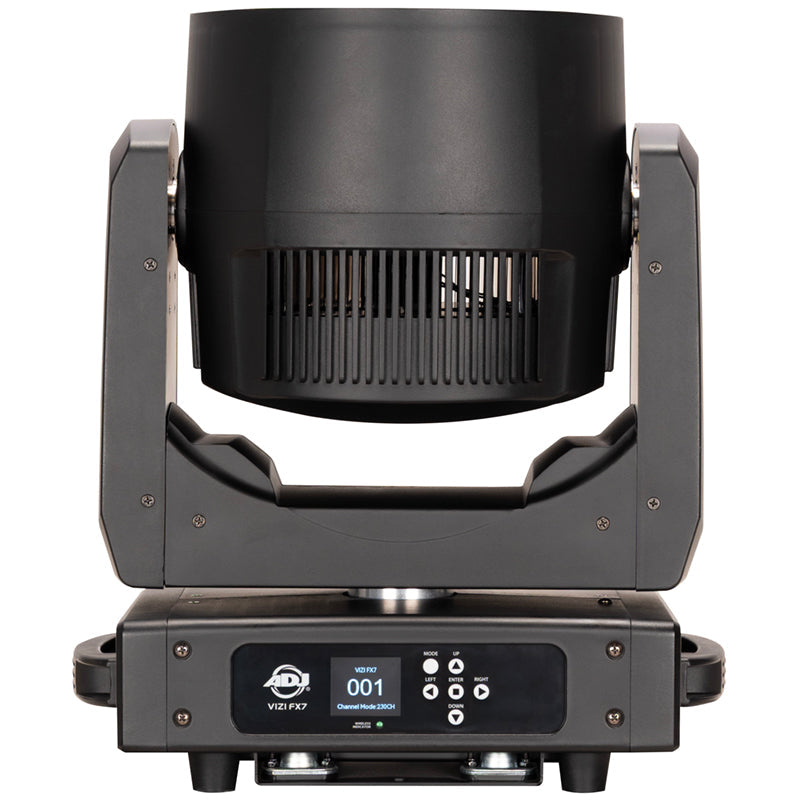

  • 6 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • 8 / 16 Bit Resolution Adjustable Movement

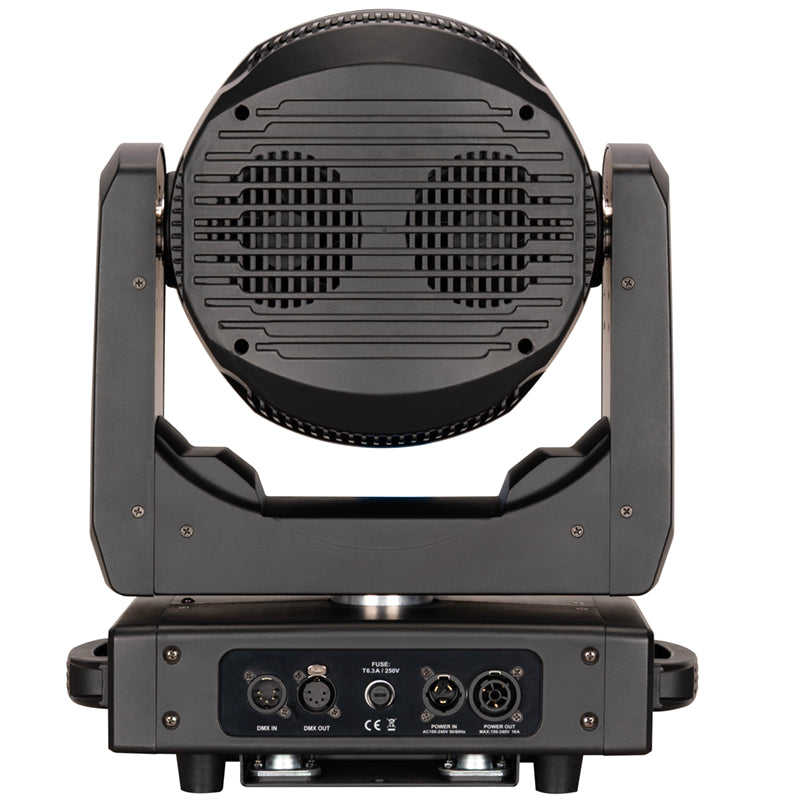

  • 5 pin XLR DMX In/Out
  • IP65 Locking Power In/Out
 APPROVALS / RATINGS:
  • cETLus (Control # 5027824)
  • CE
  • FCC
  • UKCA
  • IP20
View full details

Specifications

COLOR
Color
Red, Green, Blue and Lime x6 Primary LED's; Multi-Color Kaleidoscope Center
LED's
Red, Green and Blue Ring LED's
Color Macros
Built-In
Linear White Color Temperature Control
2,700K ~ 10,000K
Color Temperature Presets
2,800, 3,200, 3,600, 4,500, 5,000, 5,600, 6,200, 6,800, 7,500 and 8,500K
PAN / TILT
Pan
540°
Tilt
190°
Motors
3 Phase
SIZE / WEIGHT
Length
14.39" (365mm)
Width
8.66" (220mm)
Vertical Height
17.11” (434.4mm)
Weight
29.8 lbs. (13.5kg)
ELECTRICAL / THERMAL
Electrical
AC 100-240V - 50/60Hz
Max Power Consumption
400W (3.7 Amps @ 120V)
Power Link
3 unit @120V., 6 units @ 230V.
Max ambient temperature
-13°F to 113°F (-25°C to 45°C)
INCLUDED ACCESSORIES
Outdoor Locking Power cable (6ft.)
1

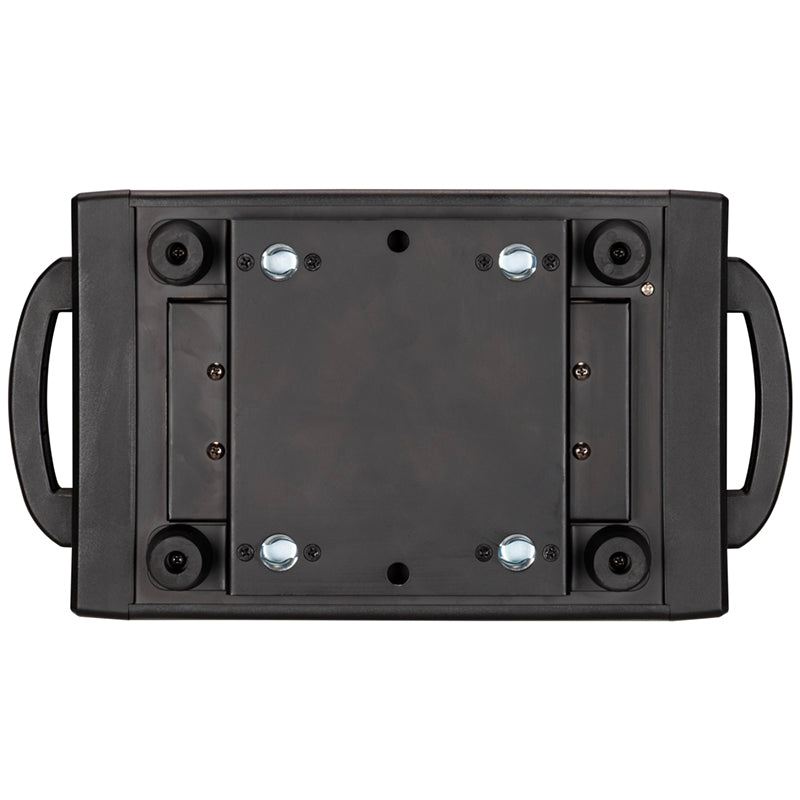

Omega brackets (107mm)
2
