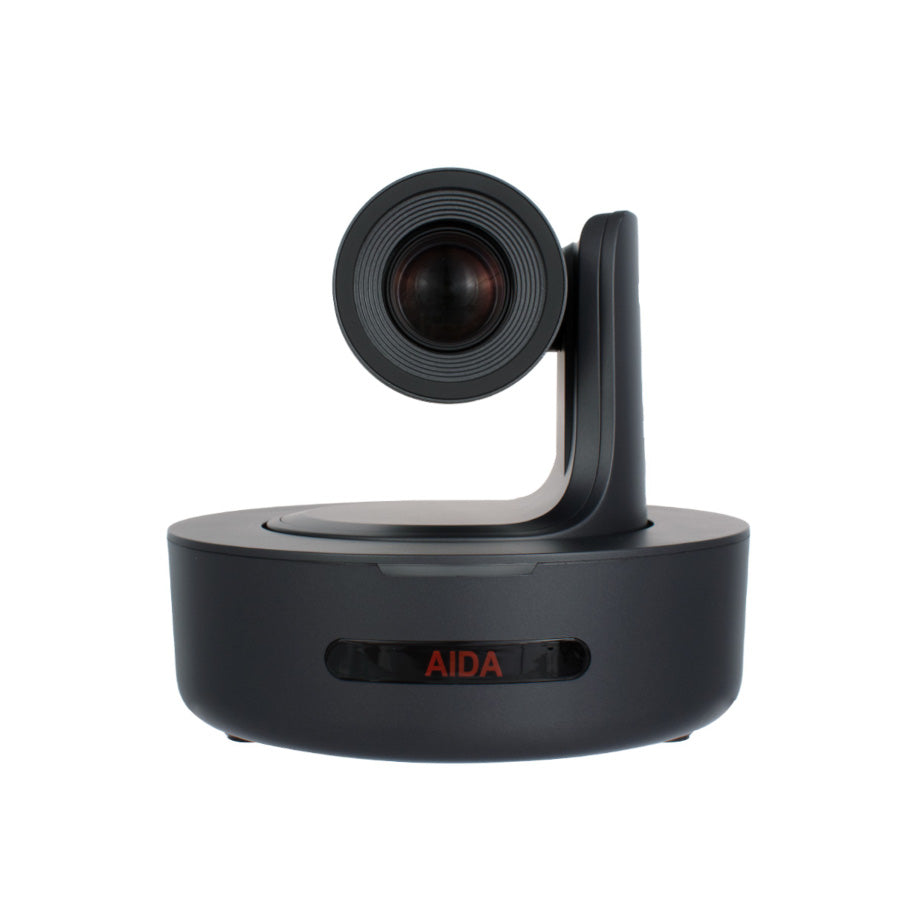

• AIDA PTZ-NDI-X20 Full HD NDI HX2 Broadcast PTZ Camera front
1 1

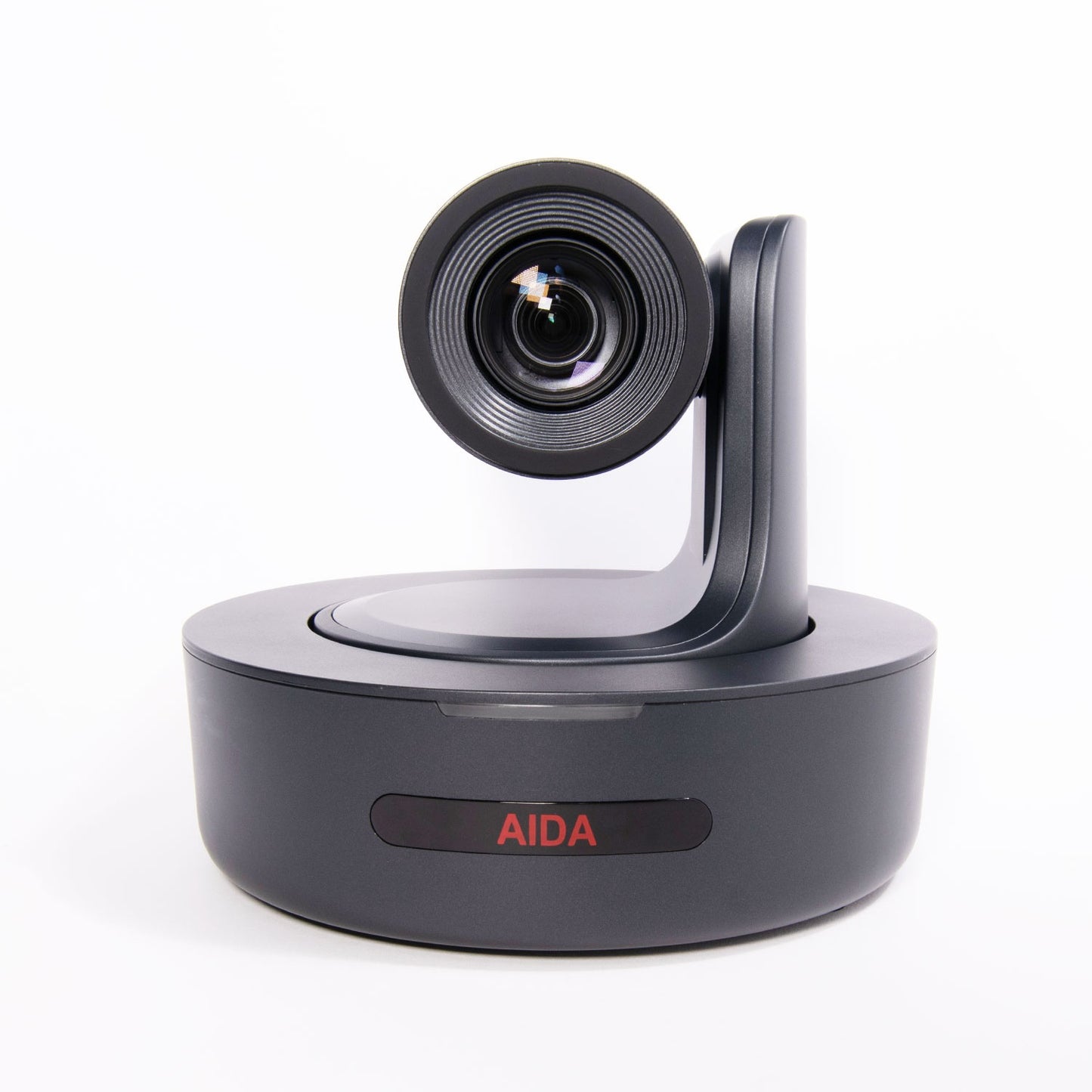

AIDA PTZ-NDI-X20 Full HD NDI HX2 Broadcast PTZ Camera

AIDA PTZ-NDI-X20 Full HD NDI HX2 Broadcast PTZ Camera

SoundPro Item: 51365 | Part Number: PTZ-NDI-X20

$1,260.00
$1,260.00 $1,260.00
Your Price Sold out
MSRP: $1,260.00 | MAP: $1,260.00

Usually ships in 5-7 business days

  • NDI® HX2 streaming capable for low latency video streaming and PTZ control over NDI® HX2 Protocol
  • Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions
  • Advanced digital image processor provides vivid and detailed images with full access feature sets
  • Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur
  • 3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance
  • Power Optical Zoom capability up to 20X
  • Compatible with other industry leading products, conforming with SMPTE 424M/292M standard
  • Auto White Balance and shutter speed provides the optimized performance in a variety of situations
  • Built-in OSD controls for customizable image settings
  • TRS Stereo Audio Input for embedded audio over HDMI, SDI, IP and NDI®
Log in or register for YOUR best price

The PTZ-NDI-X20 is AIDA’s first camera to utilize NDI® HX2 technology. The camera features Newteks NDI® HX2 to help ease production with seamless video transfer over almost any existing network infrastructure. With integrated RS232 and VISCA over IP camera control, this camera is compatible with most IP based controllers, simplifying existing workflows with better cable management. The camera features traditional multi video format outputs such as 3G-SDI, HDMI, USB 3.0, as well as online video outputs RTSP/RTMP. Our camera’s cost effective approach makes professional grade PTZ cameras, at the fraction of the price.

NDI® HX2, NewTek’s innovative Network Device Interface technology, is a royalty free standard enabling IP video workflows across Ethernet networks. NDI® HX2 is a bi-directional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and audio in real time. The NDI® HX2 encoding algorithm is resolution and frame rate independent, supporting up to 4K and beyond, as well as multi-channel, floating-point audio up to 16 channels and beyond. NDI also includes tools to implement video access and grouping, bi-directional metadata, tally, and more.

View full details
  • Video
    • Image Sensor 1/2.5″ Progressive CMOS
    • Effective Pixels Horizontal: 1920, Vertical: 1080
    • Pixel Size 2.13 µm x 2.13 µm
    • Resolution 1080p & 1080i: 1920 x 1080
    • Resolution | Rate
      • 108060p/59.94p/50p/30p/29.97p/25p/24p/23.98p
      • 1080 60i/59.94i/50i
      • 720 60p/59.94p/50p/30p/29.97p/25p
    • IP Rate
      • 1920 x 1080 @ 1~60
      • 1280 x 720 @ 1~60
      • 1024 x 576 @ 1~60
      • 620 x 360 @ 1~60
    • Output
      • HD-SDI/3G-SDI
      • HDMI
      • RTSP / RTMP / NDI®|HX2
      • USB 3.0 & 2.0
    • Color Space: 4:2:2 (YCbCr) 10bit
    • Min. Illumination: 0.1Lux
  • Function
    • White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
    • Focus: Auto, Manual
    • Shutter Speed: 1 to 1/10,000 Sec.
  • Lens20X HD Optical Zoom, F1.5 ~ F3.0
  • PTZ
    • Pan, Tilt :Range
      • Pan: 340°,
      • Tilt: +90 to -30°
    • Pan, Tilt :Speed
      • Pan: 0° to +120°/s
      • Tilt: 0° to +80°/s
    • Presets: 128 Positions
    • Field of View: 61°
  • Standard
    • SMPTE: SMPTE 292M, SMPTE 424M
    • IP Protocol: TCP|IP, RTSP|RTMP
  • Audio
    • Input: 3.5mm TRS Stereo Audio Port
    • Sample Rate: 16/24/32 Bits
  • Physical
    • Camera Control: Protocol: VISCA Interface: RS-232C IN & OUT, RJ-45 Remote Controller
    • Operation Temp: 32° F – 104° F
    • Dimension: 6.1 x 6.92 x 6.69 inches (155mm x 160m x 170mm)
    • Weight: 2.97 lbs (1.35 kg)
    • Power: 12VDC (+9 – +15VDC) PoE+ (IEEE802.3at Standard Required)
