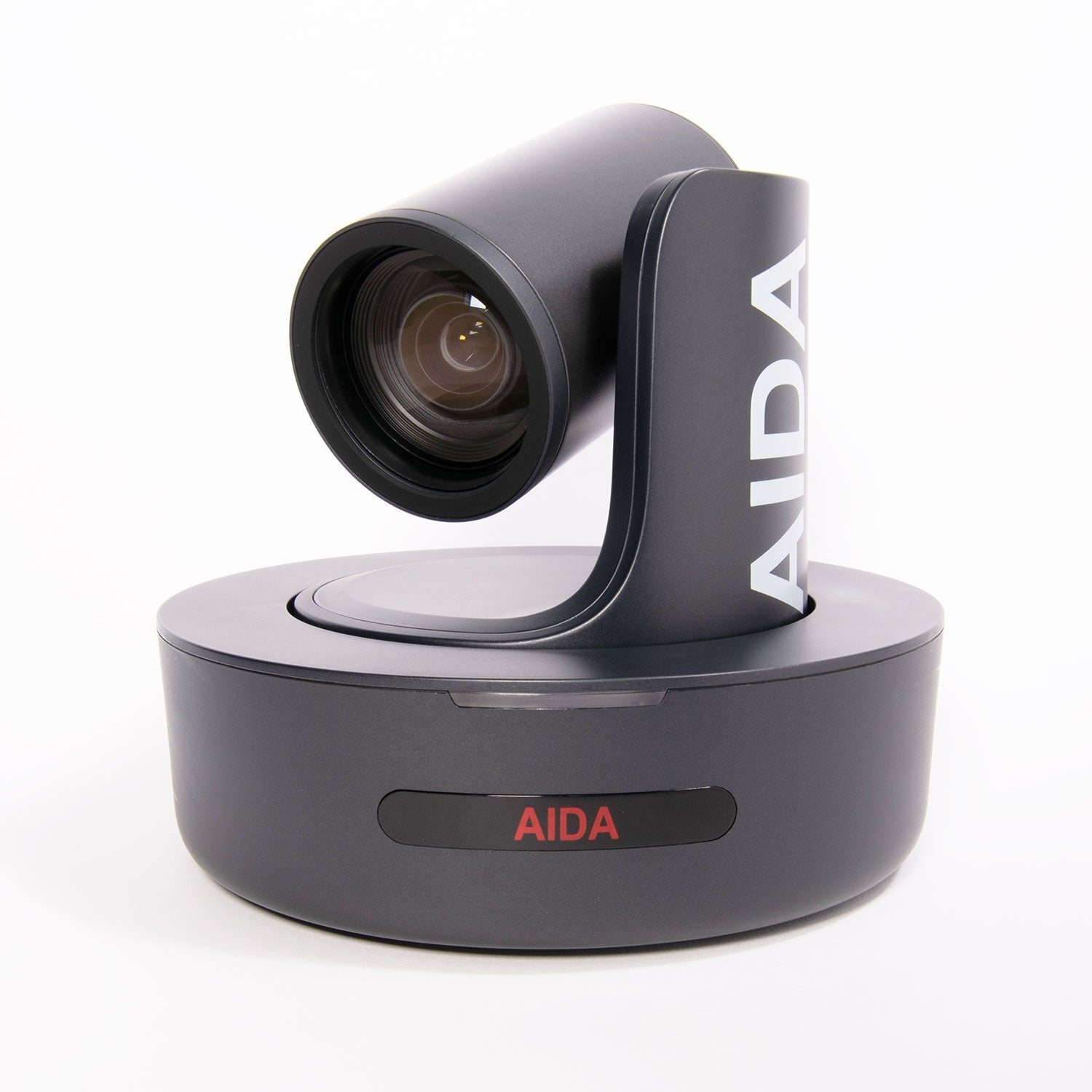

• AIDA PTZ-X12-IP broadcast PTZ camera angled three-quarter view showing zoom lens and gray base

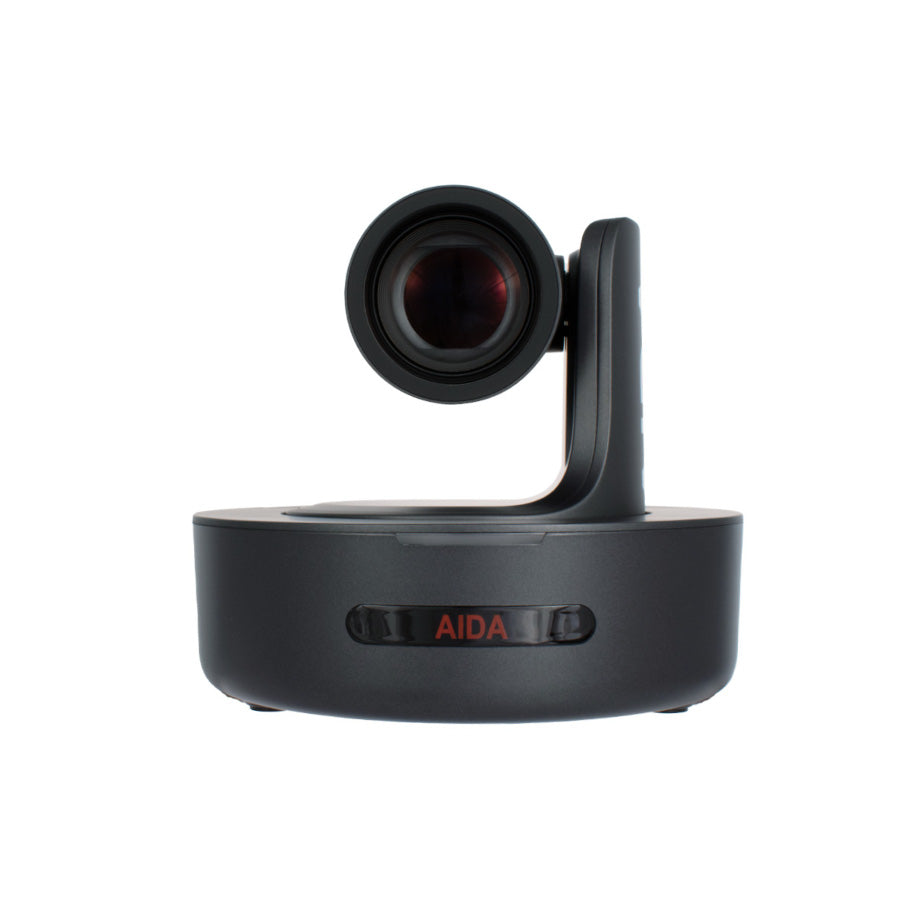

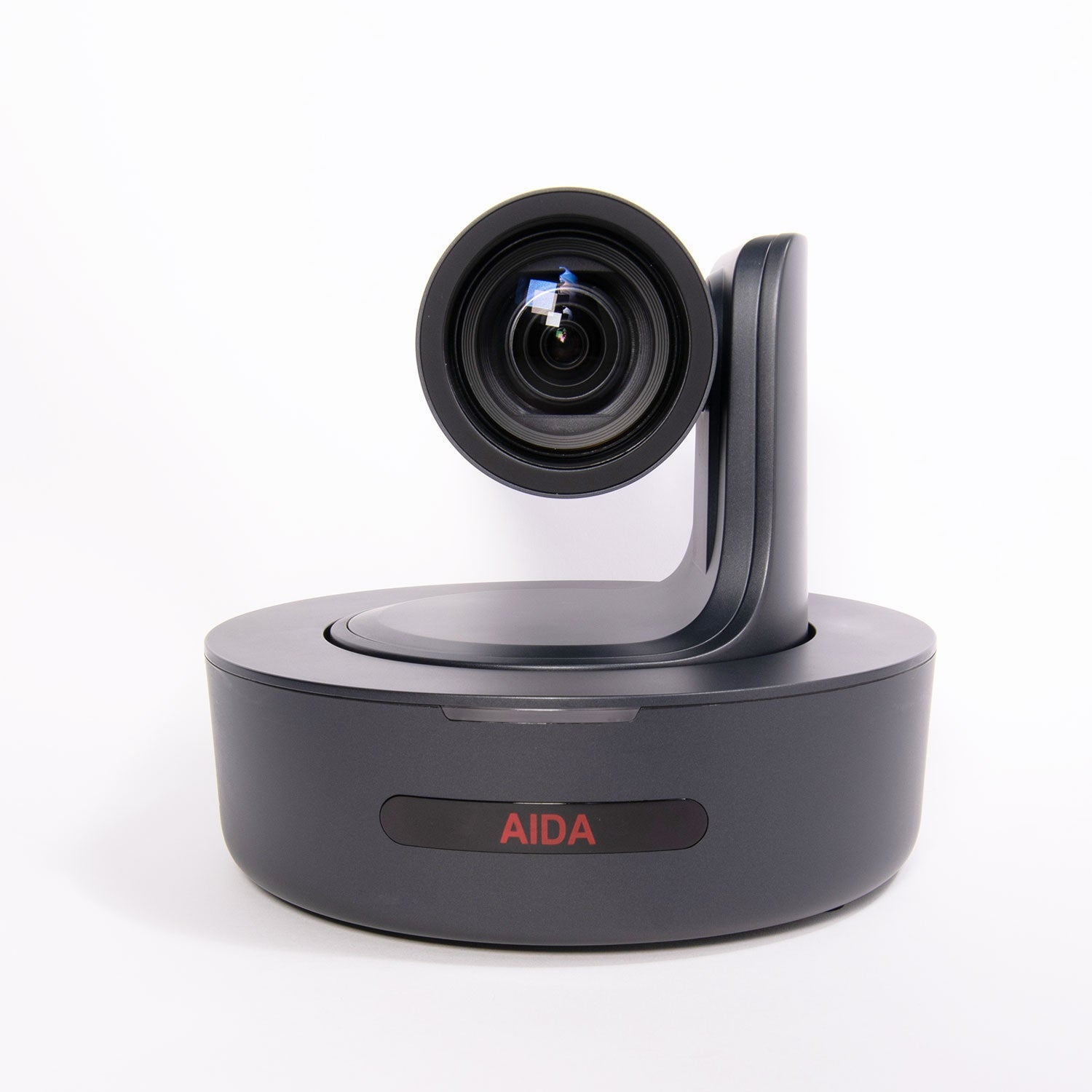

  • AIDA PTZ-X12-IP PTZ camera front view with lens centered and red AIDA badge on base

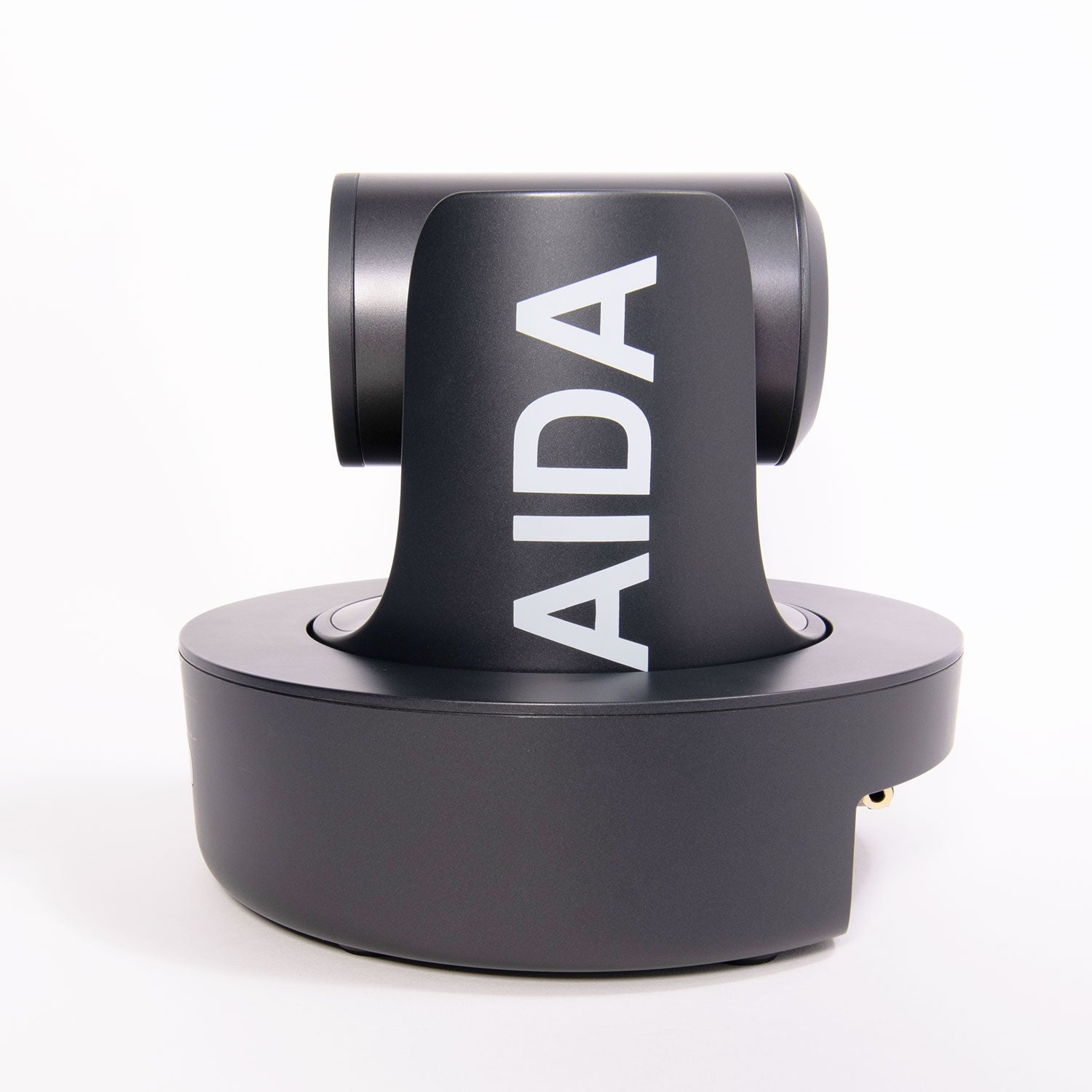

  • AIDA PTZ-X12-IP PTZ camera side profile with AIDA logo on the pan-tilt yoke

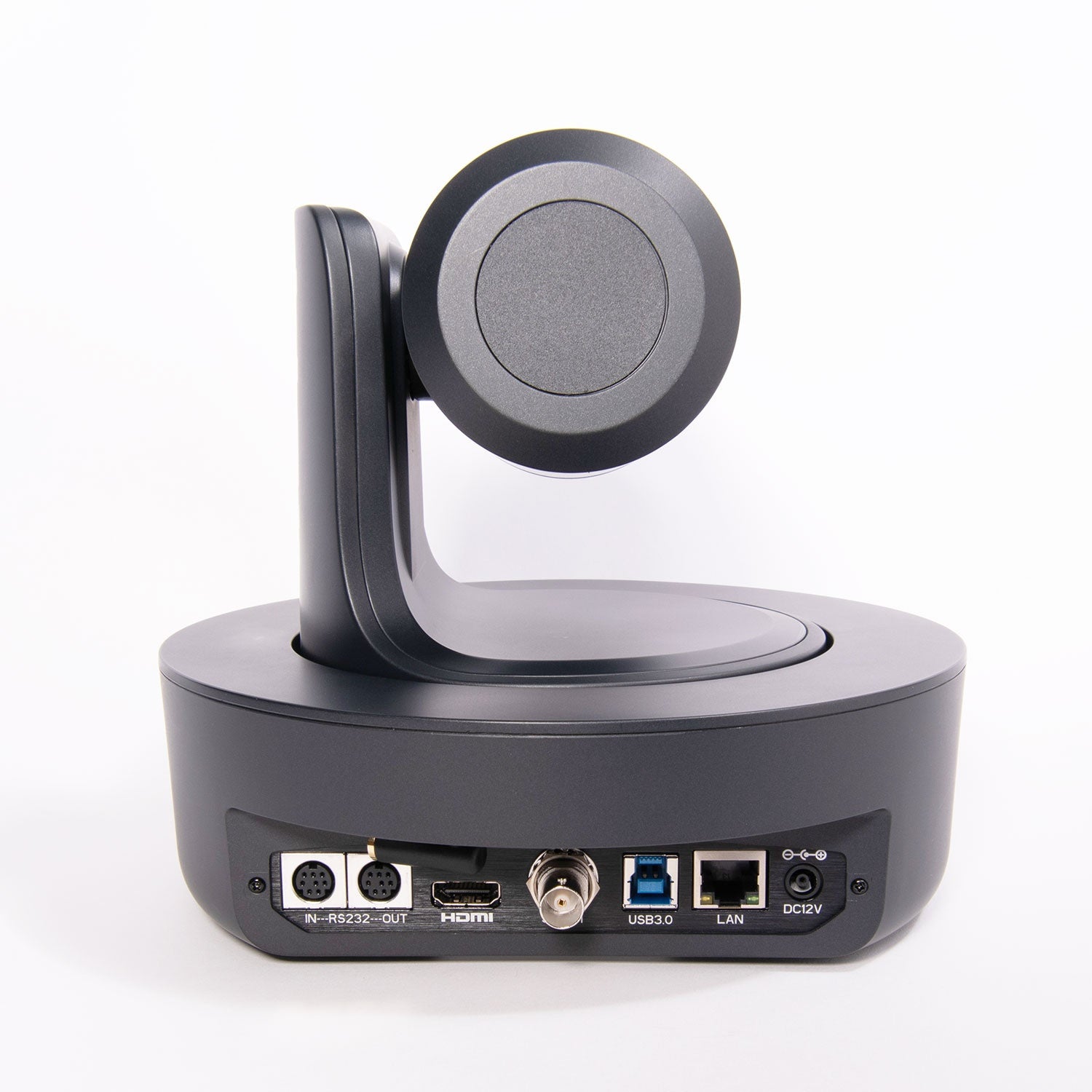

  • AIDA PTZ-X12-IP rear connector panel with RS232 in and out, HDMI, BNC, USB3.0, LAN and DC12V
1 4

AIDA PTZ-X12-IP Full HD IP Broadcast PTZ Camera

AIDA PTZ-X12-IP Full HD IP Broadcast PTZ Camera

SoundPro Item: 48854 | Part Number: AIDA-PTZ-X12-IP

$1,035.00
$1,035.00 $1,035.00
Your Price Sold out
MSRP: $1,035.00 | MAP: $1,035.00

Usually ships in 5-7 business days

  • Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions
  • Advanced digital image processor provides vivid and detailed images with full access feature sets
  • Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur
  • 3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance
  • Power Optical Zoom capability up to 12X
  • Compatible with other industry leading products, conforming with SMPTE 424M/292M standard
  • Auto White Balance and shutter speed provides the optimized performance in a variety of situations
  • Built-in OSD controls for customizable image settings
  • Versatile and compact
  • TRS Stereo Audio Input for embedded audio over HDMI, SDI, and IP
Log in or register for YOUR best price

The PTZ-X12-IP is one of AIDA’s most well-rounded Full HD cameras yet. The camera features IP streaming technology by H.264 or the newer H.265 High Efficiency Video Coding (HEVC). With integrated RS232 and VISCA over IP camera control, this camera is compatible with most IP based controllers, simplifying existing workflows with better cable management. The camera features traditional multi video format outputs such as 3G-SDI, HDMI, USB 3.0, as well as online video outputs RTSP/RTMP. Our camera’s cost effective approach makes professional grade PTZ cameras, at the fraction of the price.

Downloads

View full details

Specifications

Dimensions
Pixel Size
2.13 µm x 2.13 µm
Dimension
6.1 x 6.92 x 6.69 inches (155mm x 160m x 170mm)
Audio
Sample Rate
16/24/32 Bits
Optics
Focus
Auto, Manual
Connectivity
Input
3.5mm TRS Stereo Audio Port
Construction
Color Space
4:2:2 (YCbCr) 10bit
Lens
12X HD Optical Zoom, F1.5 ~ F3.0
Controls
IP Protocol
TCP|IP, RTSP|RTMP
Shipping
Weight
2.97 lbs (1.35kg)
General
Image Sensor
1/2.5″ Progressive CMOS
Effective Pixels
Horizontal: 1920, Vertical: 1080
Resolution
1080p & 1080i: 1920 x 1080
Video
Resolution | Rate 108060p/59.94p/50p/30p/29.97p/25p/24p/23.98p1080 60i/59.94i/50i720 60p/59.94p/50p/30p/29.97p/25p, IP Rate 1920 x 1080 @ 1~601280 x 720 @ 1~601024 x 576 @ 1~60620 x 360 @ 1~60, Output HD-SDI/3G-SDIHDMI RJ45USB 3.0 & 2.0
Min. Illumination
0.1Lux
White Balance
Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
Shutter Speed
1 to 1/10,000 Sec.
Pan, Tilt
Speed Pan: 0° to +120°/sTilt: 0° to +80°/s
Presets
128 Positions
Field of View
72.5°
SMPTE
SMPTE 292M, SMPTE 424M
Camera Control
Protocol: VISCA Interface: RS-232C IN & OUT, RJ-45 Remote Controller
Operation Temp
32° F – 104° F
Movement
Pan
340°
Tilt
+90 to -30°
Power
Power
12VDC (+9 – +15VDC) PoE+ (IEEE802.3at Standard Required)
