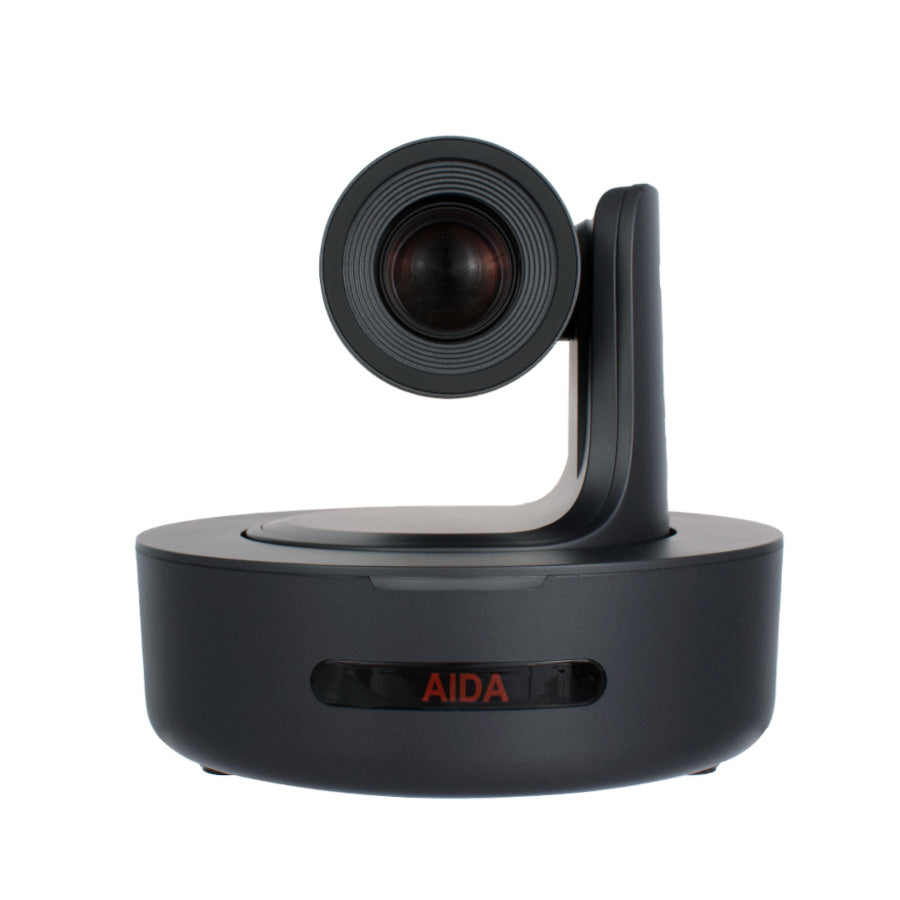

• AIDA PTZ-X20-IP Full HD IP Broadcast PTZ Camera front
1 1

AIDA PTZ-X20-IP Full HD IP Broadcast PTZ Camera

AIDA PTZ-X20-IP Full HD IP Broadcast PTZ Camera

SoundPro Item: 49740 | Part Number: PTZ-X20-IP

$1,090.00
$1,090.00 $1,090.00
Your Price Sold out
MSRP: $1,090.00 | MAP: $1,090.00

Usually ships in 5-7 business days

  • Full HD Progressive Scan sensor captures sharp and vivid color
  • Advanced digital image processor provides vivid and detailed images with full access feature sets
  • Motion-compensated temporal noise reduction filter leads motion video without blur
  • 3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance
  • Power Optical Zoom capability up to 20X
  • Compatible with other industry leading products, conforming with SMPTE 424M/292M standard
  • Auto White Balance and shutter speed provides the optimized performance in a variety of situations
  • Built-in OSD controls for customizable image settings
  • TRS Stereo Audio Input for embedded audio over HDMI, SDI, and IP
Log in or register for YOUR best price

Affordable and versatile, the professional-grade PTZ-X20-IP Full HD IP Broadcast PTZ Camera from AIDA features pan, tilt, and zoom capabilities. It is compatible with most IP-based controllers and IP streaming technology by H.264 or the newer H.265 High-Efficiency Video Coding (HEVC). This camera is great for capturing video in a wide range of applications, including professional broadcast for television stations and live production shoots; corporate huddle rooms, conference rooms, or board meetings; live streaming events; and recording services at houses of worship.

The PTZ-X20-IP delivers a vast range of simultaneous HD video and direct stream options, including audio embedment, to myriad platforms for streaming—all while bringing your finished product pristine images with a 20x optical zoom. This revolutionary camera also features traditional multi-video format outputs such as 3G-SDI, HDMI, USB 3.0, in addition to online video outputs RTSP/RTMP. With integrated RS232 and VISCA over IP camera control that makes operation and video management simple and efficient, you can streamline your workflow to reduce camera operators to one to accommodate demanding shoots, no matter your staff size.

View full details
  • Video
    • Image Sensor: 1/2.5" Progressive CMOS
    • Effective Pixels: Horizontal: 1920, Vertical: 1080
    • Pixel Size: 2.13 µm x 2.13 µm
    • Resolution: 1080p & 1080i: 1920 x 1080
    • Resolution/Rate
      • 108060p/59.94p/50p/30p/29.97p/25p/24p/23.98p
      • 1080 60i/59.94i/50i
      • 720 60p/59.94p/50p/30p/29.97p/25p
    • IP Rate
      • 1920 x 1080 @ 1~60
      • 1280 x 720 @ 1~60
      • 1024 x 576 @ 1~60
      • 620 x 360 @ 1~60
    • Output
      • HD-SDI/3G-SDI
      • HDMI
      • RJ45
      • USB 3.0 & 2.0
    • Color Space: 4:2:2 (YCbCr) 10bit
    • Min. Illumination: 0.1Lux
  • Function
    • White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
    • Focus: Auto, Manual
    • Shutter Speed: 1 to 1/10,000 Sec.
  • Lens20X HD Optical Zoom, F1.5 ~ F3.0
  • PTZ
    • Pan, Tilt
      • Range Pan: 340°
      • Tilt: +90 to -30°
    • Pan, Tilt :Speed
      • Pan: 0° to +120°/s
      • Tilt: 0° to +80°/s
    • Presets: 128 Positions
    • Field of View: 61°
  • Standard
    • SMPTE: 292M, SMPTE 424M
    • IP Protocol: TCP|IP, RTSP|RTMP
  • Audio
    • Input 3.5mm TRS Stereo Audio Port
    • Sample Rate 16/24/32 Bits
  • Physical
    • Camera Control
      • Protocol: VISCA
      • Interface: RS-232C IN & OUT, RJ-45
      • Remote Controller
    • Operation Temp: 32° F - 104° F
    • Dimensions: 6.1 x 6.92 x 6.69 inches (155mm x 160m x 170 mm)
    • Weight: 2.97 lbs (1.35 kg)
    • Power
      • 12VDC (+9 - +15VDC)
      • PoE+ (IEEE802.3at Standard Required)
