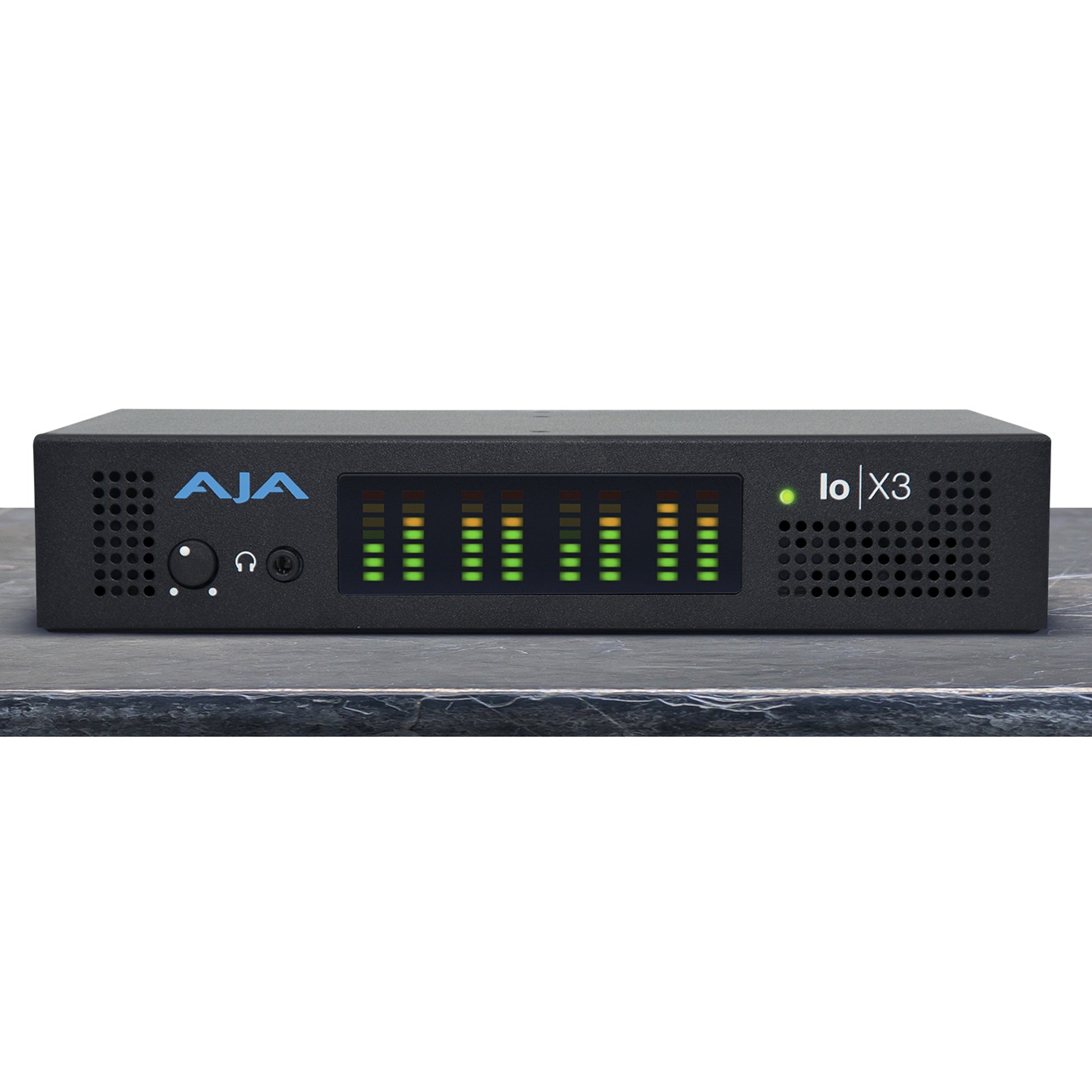

AJA IO-X3-R1 Thunderbolt 3 2K/HD/SD Video I/O Device

AJA IO-X3-R1 Thunderbolt 3 2K/HD/SD Video I/O Device

SoundPro Item: 207515 | Part Number: IO-X3-R1

$1,982.00
$1,982.00 $1,982.00
Your Price Sold out
MSRP: $1,982.00 | MAP: $1,982.00

Usually ships in 5-7 business days

  • Bidirectional 3G-SDI BNCs With Embedded Audio Support Professional Signal Routing

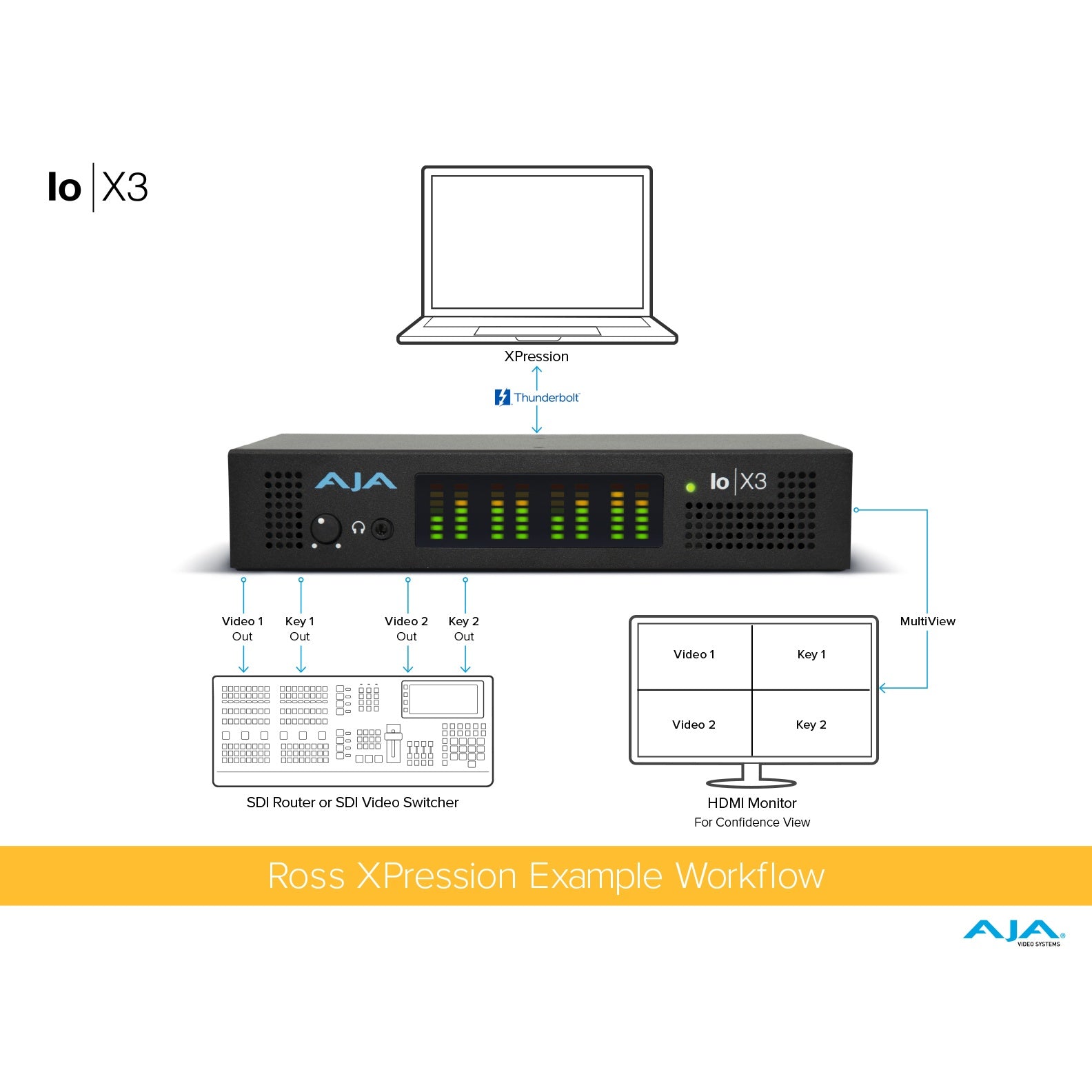

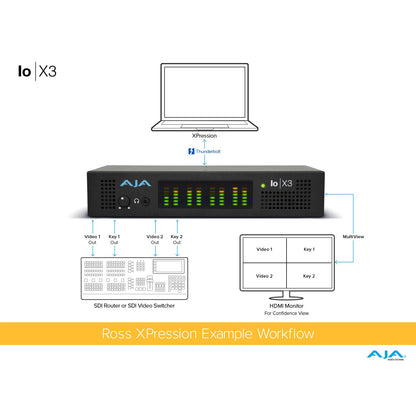

  • Multiview HDMI Output Allows Monitoring Up To Four Channels On One Display
  • HDR Metadata Capture And Auto Playback Detection Streamlines HDR Post Workflows
  • VPID Signaling Communicates SDR/HDR Colorimetry And Luminance Over SDI
  • DB-25 Analog Audio Port Supports Flexible Eight-Channel Input Or Output Configurations
  • Headphone Jack With Level Control For Local Monitoring In Mobile Environments
  • Apple Silicon Compatible For Use With Current Mac-Based Production Setups
Log in or register for YOUR best price

The AJA Io X3 is built for video engineers, post-production editors, and live production operators who need reliable, high-bandwidth video I/O from a laptop or workstation without a PCIe slot. Its single Thunderbolt 3 connection handles 2K, HD, and SD signals up to 60p, making it a practical choice for on-set monitoring, edit suite capture, and live streaming setups where a rack-mounted interface is not viable.

With four bidirectional 3G-SDI BNCs, the Io X3 integrates directly into broadcast-grade signal chains alongside cameras, routers, and reference monitors. The HDMI port handles multiview output, allowing operators to monitor up to four channels simultaneously on a single display — a meaningful workflow advantage during multi-camera events. Support for PQ, HLG, HDR10, and Dolby Vision alongside VPID signaling ensures the device handles modern HDR pipelines without requiring external conversion.

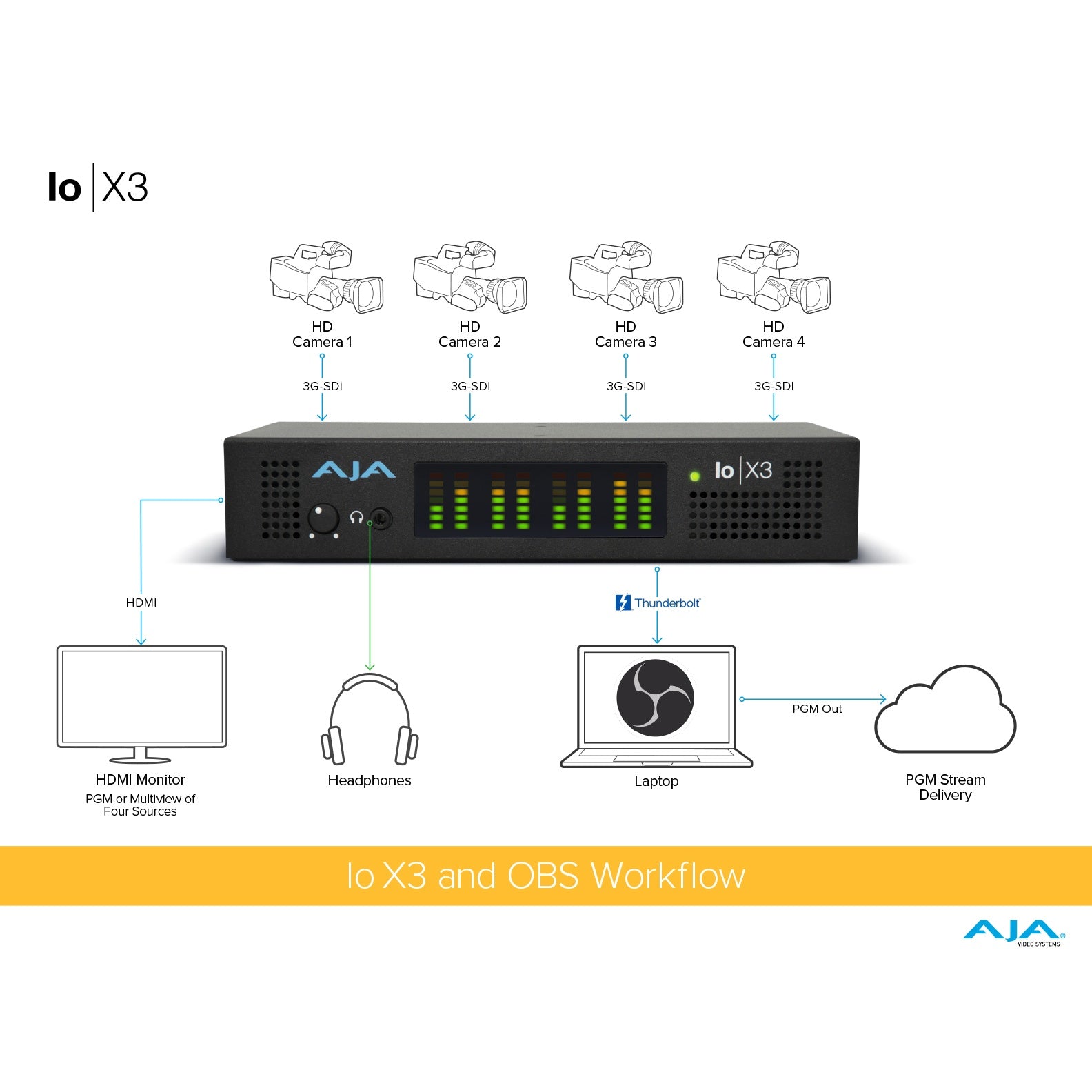

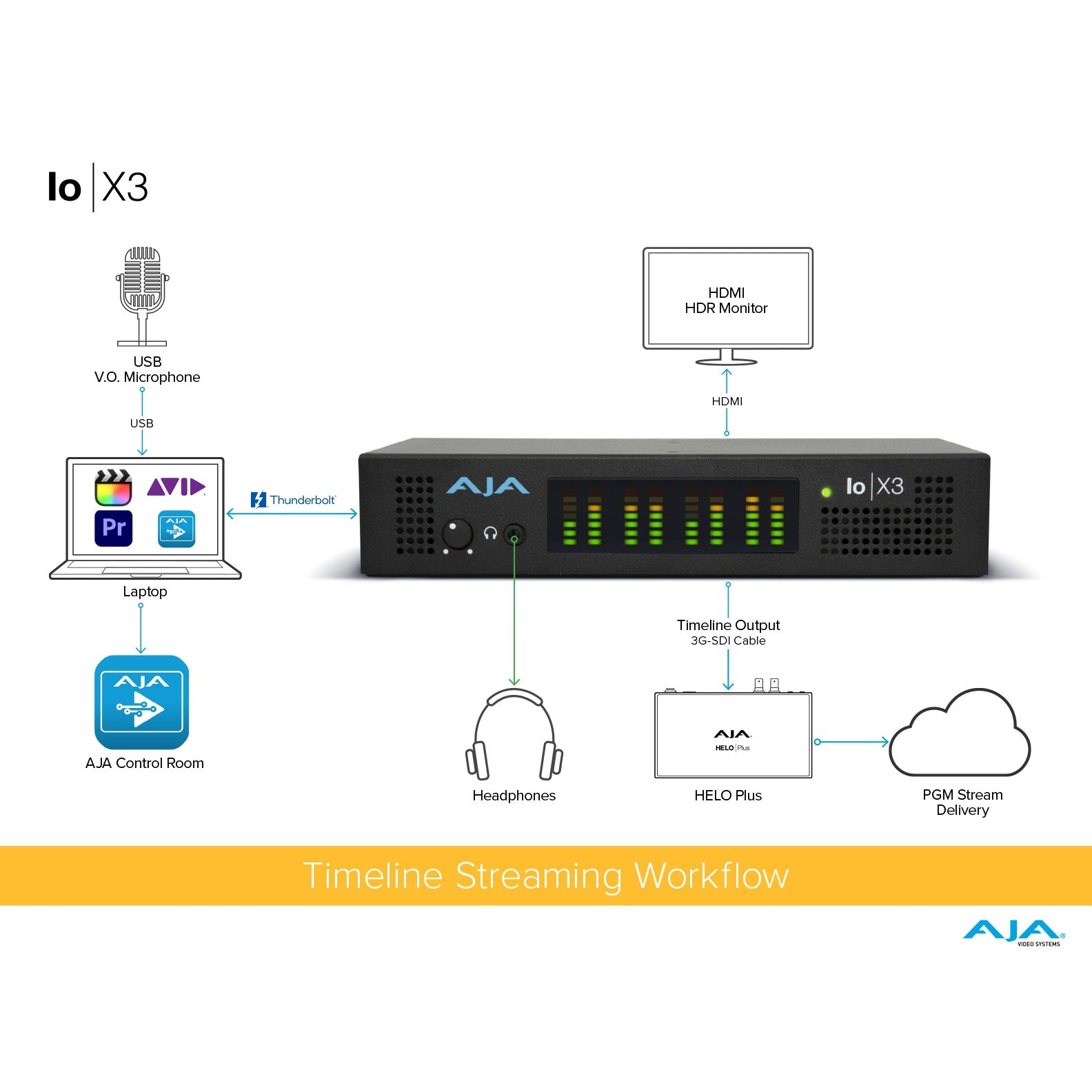

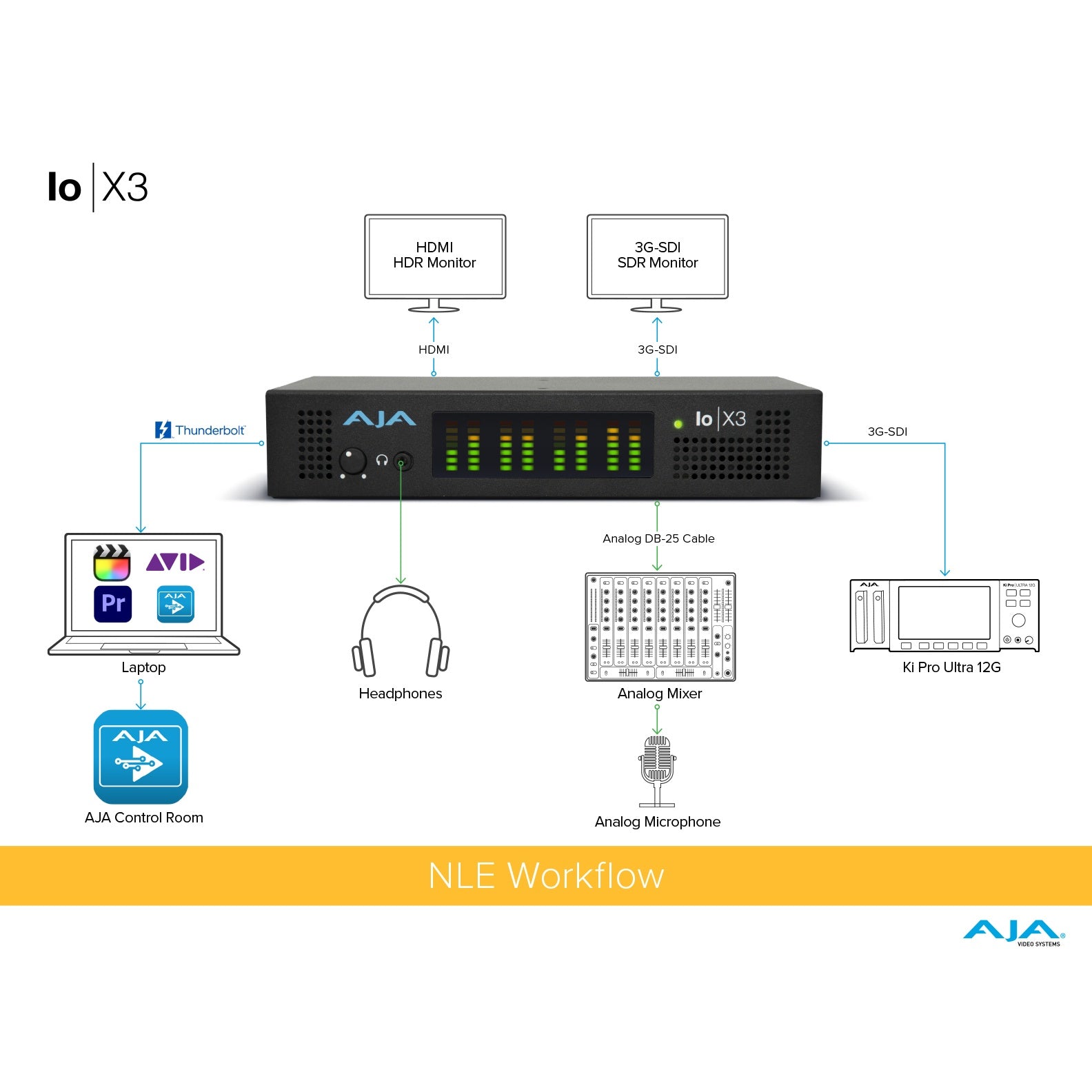

Compatibility with OBS Studio, vMix, Telestream Wirecast, and all major NLE applications makes the Io X3 equally capable in file-based post and live streaming scenarios. The DB-25 analog audio port accommodates up to eight channels in or out via TASCAM pinout, while the headphone jack and level control provide local monitoring in mobile environments. AC adapter and battery power support via the 4-pin XLR input adds deployment flexibility for location-based production where mains power is intermittent.

Downloads

View full details

Specifications

Certifications
Certifications
CE, FCC-A, ICES-3(A), Kcc, VCCI-A
Dimensions
Length
8.3"
Width
6.28"
Height
1.66"
Weight
Product Weight
1.6 lbs
Electrical
Power Input
1x XLR 4-Pin, 10 to 20 VDC
Power Consumption
28 W

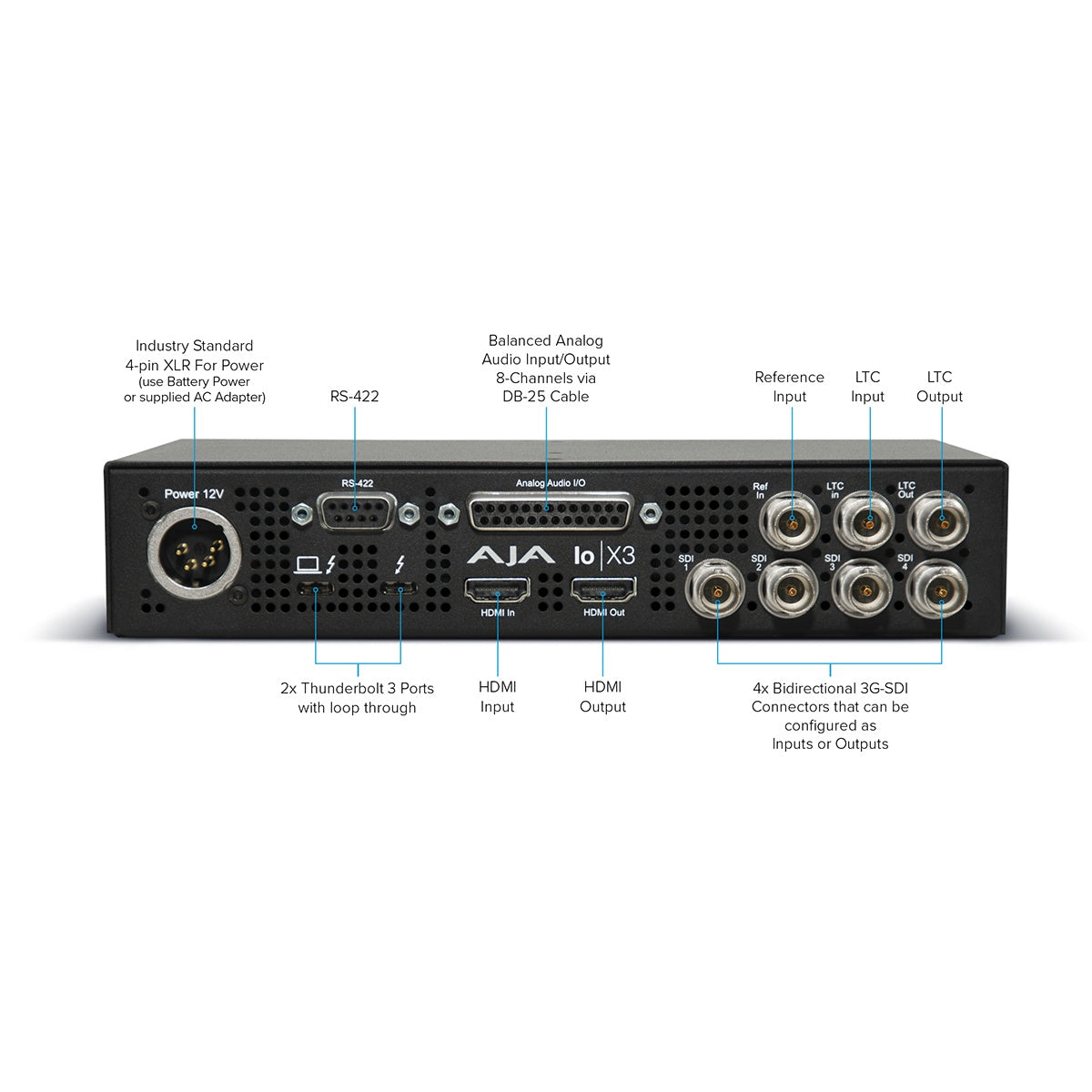

Connectivity
System Connection
USB-C (Thunderbolt 3) with Pass-Through Port
SDI I/O
4x BNC (3G-SDI), Bidirectional
HDMI Input
1x HDMI 1.4b Female
HDMI Output
1x HDMI 1.4b Female
Analog Audio I/O
1x DB-25 8-Channel (TASCAM Pinout)
Timecode I/O
1x BNC (Timecode) Input/Output
Timecode Input
1x BNC (Timecode)
Reference Input
1x BNC (Reference)
RS-422
1x DE-9/DB-9 (RS-422) Input/Output
Audio
SDI Embedded Audio
16-Channel
HDMI Embedded Audio
8-Channel
Reclocking
No
Performance
HDMI Input Resolutions
2048x1080p up to 60fps; 1920x1080p up to 60fps; 1920x1080i at 50/59.94/60fps; 1280x720 at 50/59.94/60fps
SDI Input Resolutions
2048x1080p up to 60fps; 1920x1080p up to 60fps; 1920x1080i at 50/59.94/60fps; 1280x720 at 50/59.94/60fps
HDMI Output Resolutions
2048x1080p up to 60fps; 1920x1080p up to 60fps; 1920x1080i at 50/59.94/60fps; 1280x720 at 50/59.94/60fps
SDI Output Resolutions
2048x1080p up to 60fps; 1920x1080p up to 60fps; 1920x1080i at 50/59.94/60fps; 1280x720 at 50/59.94/60fps
YCbCr Sampling
4:2:2 10-bit up to 60p
RGB Sampling
4:4:4 12-bit up to 30p
HDR Support
HDR10, Hybrid Log Gamma (HLG), PQ, Dolby Vision
Environmental
Operating Temperature
32 to 95°F / 0 to 35°C at 10 to 90% Humidity
Storage Temperature
-40 to 140°F / -40 to 60°C
Included Items
Included
AJA Io X3, AC Adapter, Limited 3-Year Manufacturer Warranty
