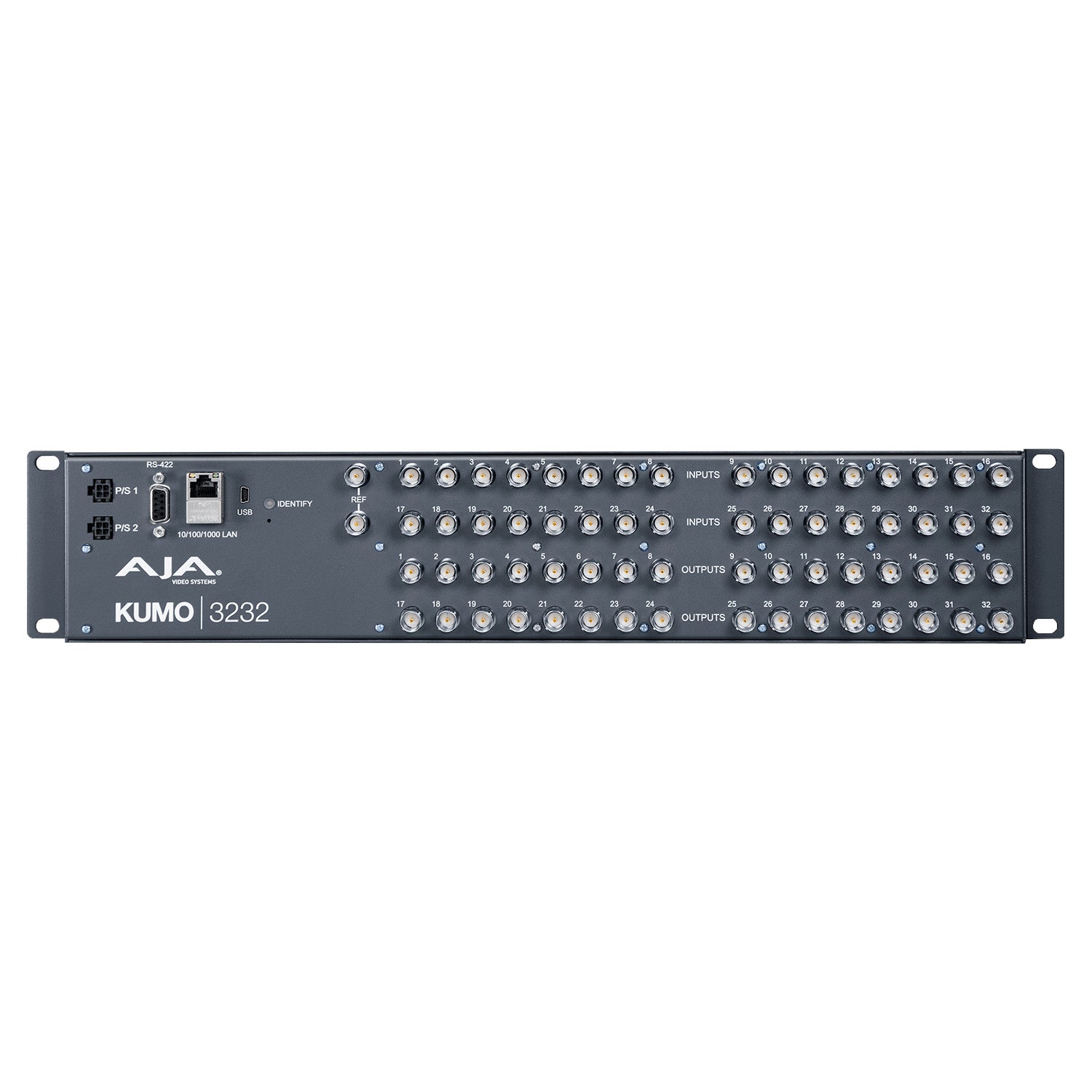

AJA KUMO 3232 Compact 32x32 3G-SDI Router

AJA KUMO 3232 Compact 32x32 3G-SDI Router

SoundPro Item: 129792 | Part Number: KUMO-3232-R2

$4,941.00
$4,941.00 $4,941.00
Your Price Sold out
MSRP: $4,941.00 | MAP: $4,941.00

Usually ships in 5-7 business days

  • 32x 3G-SDI inputs and outputs Small, portable form factor
  • Supports ganged dual and quad port routing for resolutions up to 4K/UltraHD
  • Redundant power supply (option)
  • Eight salvos per router
  • Embedded web server for remote control
  • Configure IP Address via USB port and supplied AJA eMini-Setup software for PC/Mac
Log in or register for YOUR best price

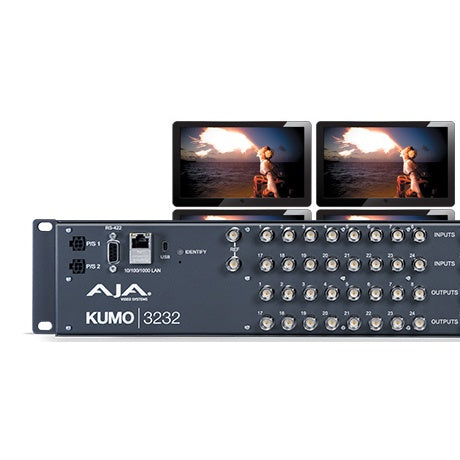

KUMO 3232 offers increased capacity for medium sized configurations while maintaining a compact 2RU profile with support for 3G-SDI/1.5G-SDI with 32x 3G-SDI inputs and 32x 3G-SDI outputs. Supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link and Quad Link 4K/UltraHD workflows.

KUMO 3G-SDI routers support single link 1080p/HD/SD, high frame rate (HFR) and deep color formats. The routers offer network-based and/or physical control using KUMO CP and CP2 and offer a USB port for configuring IP addresses via AJA’s eMini-Setup software.

Built to the same quality standards as all AJA KUMO products, KUMO 3232 is the ideal choice for any situation where a balance of size, performance, and capacity are critical such as post facilities and mobile trucks.

View full details

Specifications

Dimensions
Size (WxDxH)
2RU - 17.4x1.54x3.5" (441.96x39.12x88.9 mm)
Connectivity
Video Input Digital

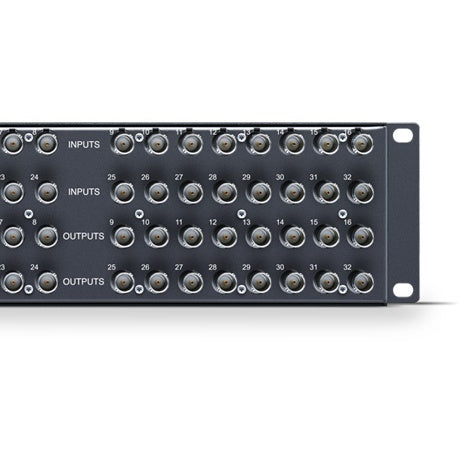

3G-SDI Inputs, 32x BNC, SMPTE-259/292/424
Video Output Digital
3G-SDI Outputs, 32x BNC, SMPTE-259/292/424, Noninverting
Cable Equalization
(Belden 1694A), 3 Gbps, up to 140m, 1.5 Gbps, up to 200m, 270 Mbps, up to 400m, Automatic operation
Reference Input
External, 2x BNC, Looping, nonterminating, Blackburst or tri-level sync
Network Interface
1x RJ-45, 10/100/1000 Ethernet, Supports AJA KUMO Ethernet control panels, direct connect or networked, Basic support for Grass Valley Native Protocol, Embedded web server for remote control
USB Interface
1x Mini-USB for IP configuration using AJA eMini-Setup
9-pin D-connector Pinout Is As Follows 1
GND2: TX-3: RX+4: GND5: No Connection6: GND7: TX+8: RX-9: GNDShell: GND
Construction
Enclosure
Dual, redundant, 10-14VDC regulated, 4-pin Molex, 24W typical, 25.2W max.
Compatibility
Control Panel Compatibility

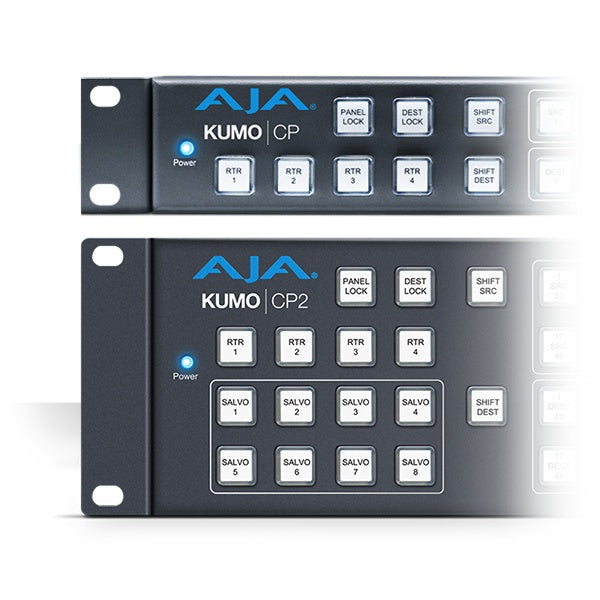

AJA KUMO CP – 1RU X-Y Ethernet control panel, AJA KUMO CP2 – 2RU X-Y Ethernet control panel
Included Items
AC Adapter, Included
100-240VAC, 50/60 Hz, universal input, 60W
Environmental
Safe Operating Temperature
0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF)
-40 to 60 C (-40 to 140 F)
Operating Relative Humidity
10-90% noncondensing
Shipping
Weight
4.6 lbs (2.1 kg)
General
Video Format
270 Mbps, 1.5 Gbps, 3 Gbps SDI, 270 Mbps DVB-ASI
Ancillary Data
Passes all SDI embedded ancillary data including audio
Salvo
Up to 8 Salvos can be configured and saved in each KUMO router
Reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
Switching Modes
Single/Normal, Dual, and Quad Link modes, Switches in vertical blanking per SMPTE RP-168
Machine Interface
1x DB-9 Female, RS-422, Basic support for Grass Valley Native Protocol
Operating Altitude
<3,000 meters (<10,000 feet)
Power
Power
External power supply required, Optional redundant AC adapter sold separately, KUMO-PWR
