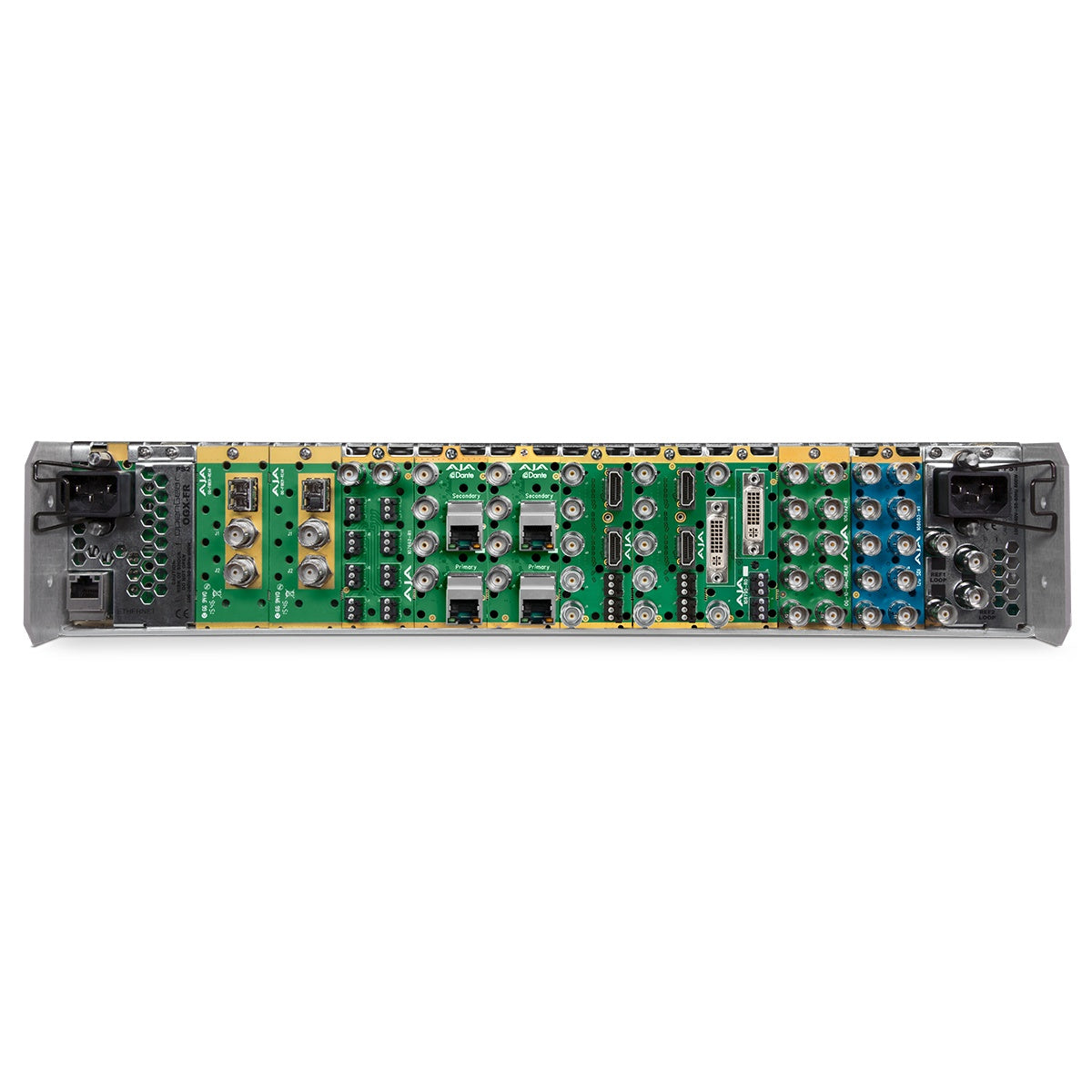

AJA OG-C10DA-R0 Analog 1x9 OpenGear Distribution Amplifier

AJA OG-C10DA-R0 Analog 1x9 OpenGear Distribution Amplifier

SoundPro Item: 207864 | Part Number: OG-C10DA-R0

$503.00
$503.00 $503.00
Your Price Sold out
MSRP: $503.00 | MAP: $503.00

Usually ships in 5-7 business days

  • Supports NTSC, PAL, Blackburst, And Tri-Level Sync For Broad Format Compatibility
  • Selectable Gain Adjustment Compensates For Signal Loss On Extended Cable Runs
  • AES3-id And LTC Support Handles Audio Distribution Alongside Video In One Card
  • Ross DashBoard Software Enables Network Control From Windows, macOS, Or Linux
  • DIP Switches Provide Local Control Of Loop, Reference, Termination, And Gain
  • Hot-Swappable Design Allows Card Replacement Without Frame Downtime
  • Five-Year Warranty Backs Long-Term Deployment In Critical Broadcast Environments
Log in or register for YOUR best price

The AJA OG-C10DA-R0 is a single-card openGear 1x9 analog distribution amplifier built for broadcast engineers and facility integrators who need reliable signal distribution across composite video, blackburst, and tri-level sync formats. With eight active BNC outputs plus one loop-out, it fits directly into openGear-compatible frames and draws only 6.75 watts per card, making it an efficient choice for dense rack environments running OG-X-FR, OG-3-FR, or DFR-8321 frames.

Beyond basic distribution, the OG-C10DA-R0 addresses real-world facility challenges. Selectable gain adjustment from -3dB to +3dB compensates for signal degradation on long cable runs, and DC coupling with differential inputs keeps the signal path stable across varying common mode conditions. Support for AES3-id digital unbalanced audio and LTC allows the card to handle more than just video distribution within a single slot, reducing the need for separate audio DA cards in hybrid analog facilities.

Control is handled through Ross DashBoard software on Windows, macOS, or Linux, with local DIP switches available for immediate onsite adjustment of loop, reference input, termination, and gain. The hot-swappable design minimizes downtime during maintenance, and a five-year warranty backs the investment. For post facilities, broadcast studios, and mobile units transitioning between HD and legacy analog formats, the OG-C10DA-R0 provides the format flexibility and frame-level integration that purpose-built analog DAs in this class often lack.

Downloads

View full details

Specifications

Formats
Video Standards
NTSC, PAL, Bi-level Reference, Tri-level Reference
Audio Formats
AES3-id (digital unbalanced), LTC
Inputs
Video Input
1x BNC, Analog, Differential
Frame Reference Inputs
2x openGear Frame Reference Inputs
Input Selection
External BNC, Frame Ref 1, Frame Ref 2
Outputs
Loop Output
1x BNC, Analog, Active/Passive
Active Video Outputs
8x BNC, Analog
Performance
Termination
75 Ohms or nonterminated
Video Bandwidth
0-6 MHz +/- 0.1dB
Gain
-3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB
Differential Gain
0.15%, not load dependent
Differential Phase
0.1 degree, not load dependent
H/V Tilt
< 0.1%
Response Variation
< 0.1dB, 1 to 9 loads
Coupling
DC
Max Common Mode Signal
8Vp-p
Return Loss
> 15dB to 6 MHz, all inputs and outputs
Output Isolation
> 40dB
Power
Power Consumption
6.75 watts max per card
Power Source
openGear frame compatible
Construction
Form Factor
openGear standard, front slot and rear card
Slots Required
2 per card
Weight
Product Weight
0.5 lbs (0.3 kg)
Environmental
Operating Temperature
0C to 40C (32F to 104F)
Storage Temperature
-40C to 60C (-40F to 140F)
Operating Humidity
10-90% noncondensing
Operating Altitude
< 3,000m (< 10,000ft)
Shipping
Package Weight
1.08 lbs
Package Dimensions
16.6" x 8.4" x 3.2"
Compatibility
Compatible Frames
OG-X-FR, OG-3-FR, DFR-8321
