Specifications
'General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
3307H00370
Brand Name
Harman
Product Model
WMS470
Product Name

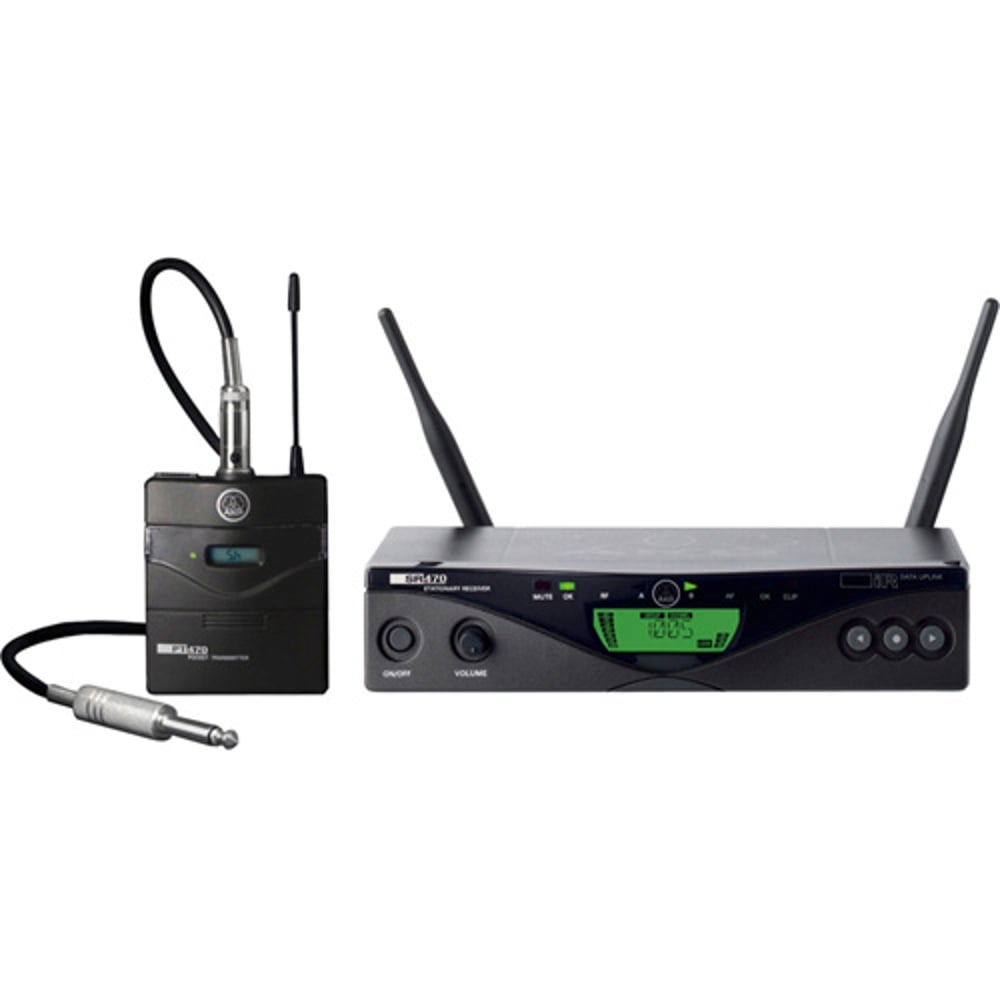

WMS470 Instrumental Set Professional Wireless Microphone System
Product Type
Wireless Microphone System
Technical Information
System Operating Frequency
500.10 MHz to 530.50 MHz
System Frequency Response
35 Hz to 20 kHz
Signal to Noise Ratio (SNR)
120 dB (A)
Interfaces/Ports
Interfaces/Ports
1 x 3-pin Mini XLR Audio In - Transmitter
1 x XLR Audio Out - Receiver
1 x 1/4" Phono Jack Audio Out - Receiver
Controls/Indicators
Status Indicators
Reciever: Low Battery Capacity Audio Level RF Level
Battery Information
Batteries
1 x AA
Battery Chemistry
Alkaline
Battery Run Time
7 Hour
Power Description
Input Voltage
1.5 V DC
12 V DC
Physical Characteristics
Material
Metal - Receiver
Height
1.7"
Width
7.9"
Depth
7.5"
Weight (Approximate)
3.17 oz - Transmitter
2.14 lb - Reciever
Miscellaneous
Package Contents

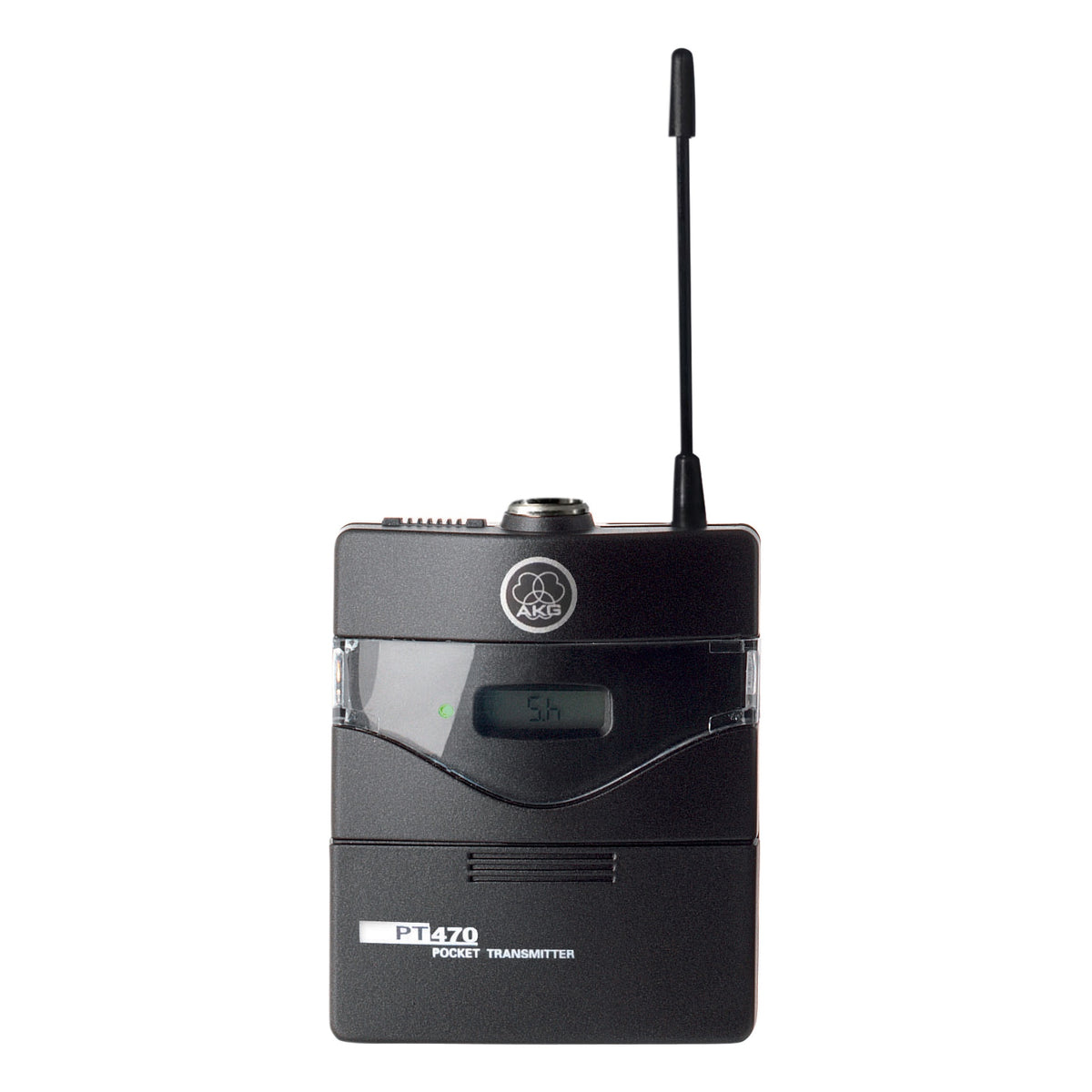

SR 470 Receiver PT 470 Bodypack MKGL Instrument Cable 19" Rack Mount Kit LR6 Battery Power Supply 1/4-Wave Antennas
