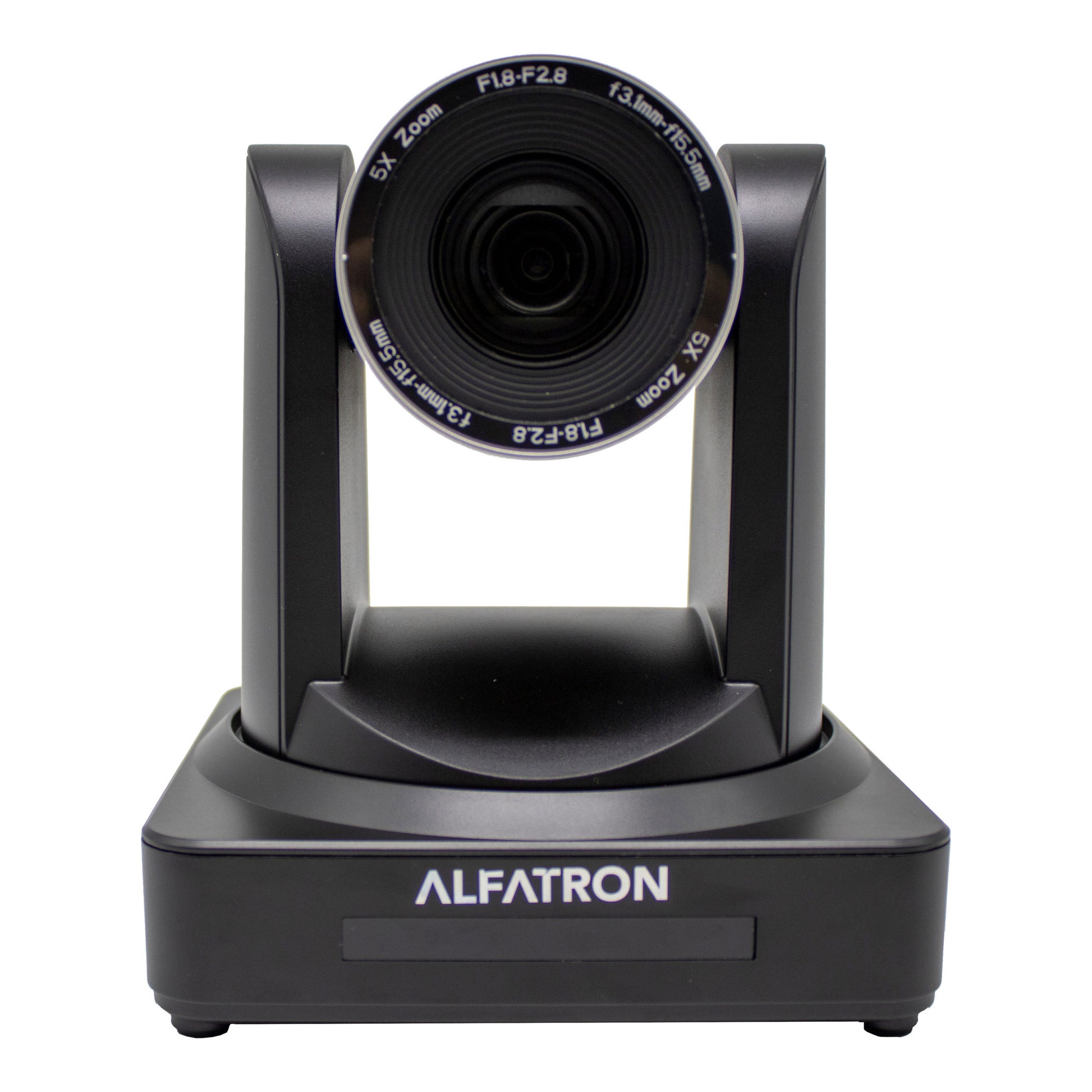

• Alfatron Electronics 10X-CAM USB3.0 PTZ Camera

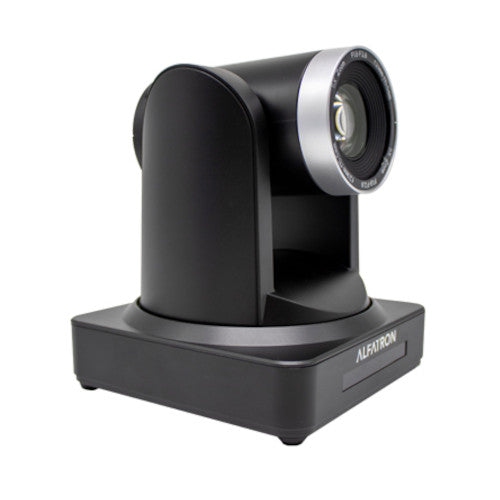

  • Alfatron Electronics 10X-CAM USB3.0 PTZ Camera side

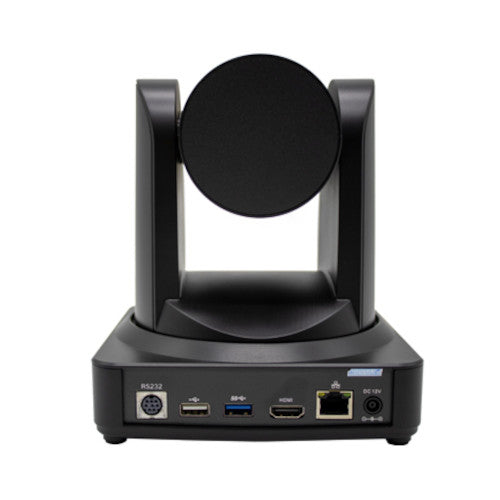

  • Alfatron Electronics 10X-CAM USB3.0 PTZ Camera rear
1 3

Alfatron Electronics 10X-CAM USB3.0 PTZ Camera

Alfatron Electronics 10X-CAM USB3.0 PTZ Camera

SoundPro Item: 111949 | Part Number: ALF-10X-CAM

$1,299.99
$1,385.00 $1,299.99
Your Price Sold out
MSRP: $1,385.00 | MAP: $1,299.99

Usually ships in 5-7 business days

  • 1080P video with a Frame rate up to 60fps
  • 10x Zoom Lens gives you clear and a fluent image
  • Leading Auto Focus Technology
  • Low Noise and High SNR
  • Quiet PTZ
  • 255 Presets
  • Controlled via RS232, RS485, and IR remote control
  • Multiple Network Protocol – Supports IP VISCA, ONVIF, RTSP & RTMP
  • Control Protocols – VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
  • 12V DC or USB Powered
  • 16.43° tele field of view, 60.9° wide field of view
  • Wide Application – Tele Education, Lecture Capture, Webcasting, Video Conferencing, Tele Training, Tele Medicine, Interrogation and Emergency command systems
Log in or register for YOUR best price

The ALF-10X-Cam is an HD PTZ 1080p equipped camera with a 10x Zoom Lens. This PTZ camera is suitable for medium to large size meeting rooms, boardrooms and conference venues.

View full details

Specifications

Dimensions
Dimension
150x150x167.5mm
Electrical
Input Current
1A(Max)
Audio
SNR
>55dB
Optics
Digital Zoom
10X
Focus
Auto/Manual
Connectivity
Video Format HDMI/ Video Format
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97Interface video format: 1)1920X1080P60/50/30/25; 1280X720P60/50/30/25; 960X540P30; 640X360P30; 640X480P30; 352X288P30; 960X540P30
Controls
Control Protocol
VISCA/Pelco-D/Pelco-P
Network Protocol
RTSP/RTMP,ONVIF
Environmental
Store Temperature
-10°C to +60°C
Store Humidity
20% – 95%
Working Temperature
-10°C to +50°C
Working Humidity
20%–80%
Shipping
Weight
1.4KG
General
Model
ALF-10X-CAM
Sensor
1/2.8-inch-high quality HD CMOS sensor
Effective Pixels
16: 9 2.07 megapixel
Camera Parameter
Optical Zoom 10Xf=4.7~47mm
Viewing Angle
6.43°(Tele)60.9°(Wide)
AV
F1.6 – F3.0
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Aperture
Auto/Manual
Electronic Shutter
Auto/Manual
BLC
ON/OFF
WDR
OFF/ Dynamic level adjustment
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
Video Interfaces
ALF-10-CAM USB2.0, USB3.0, HDMI, LAN, RS232(input)
Image Code Stream
Double streams output simultaneously
Video Compression Format
H.264, H.265
Control Signal Interface
RS-232 Ring through RS232 output, RS-485
Baud Rate
115200/9600/4800/2400bps
HD IP Interface
100M IP port(100BASE-TX); 5G WiFi (optional), support IP Visca control protocol
Power Interface
HEC3800 outlet (DC12V)
Pan Rotation
±170°
Tilt Rotation
-30°~+90°
Pan Control Speed
0.1 -180°/sec
Tilt Control Speed
0.1-80°/sec
Preset Speed
Pan: 60°/sec, Tilt: 30°/sec
Preset Number
255 presets (10 presets by the remote controller)
Supply Adapter
AC110V-AC220V to DC12V/2A
Consumption
12W (Max)
Working Environment
Indoor
Remote Operation (IP)
Remote Upgrade, Reboot, and Reset
Power
Input Voltage
DC12V±10%
