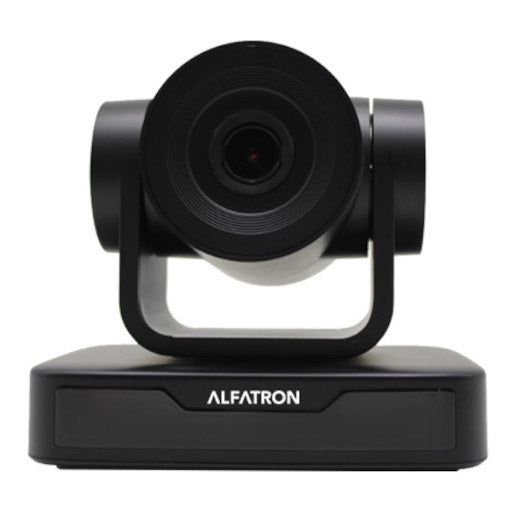

• Alfatron Electronics 10XUSB2C USB2.0 PTZ Camera

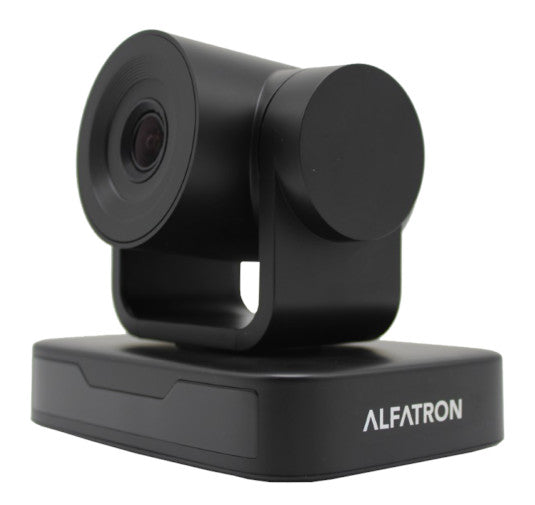

  • Alfatron Electronics 10XUSB2C USB2.0 PTZ Camera side

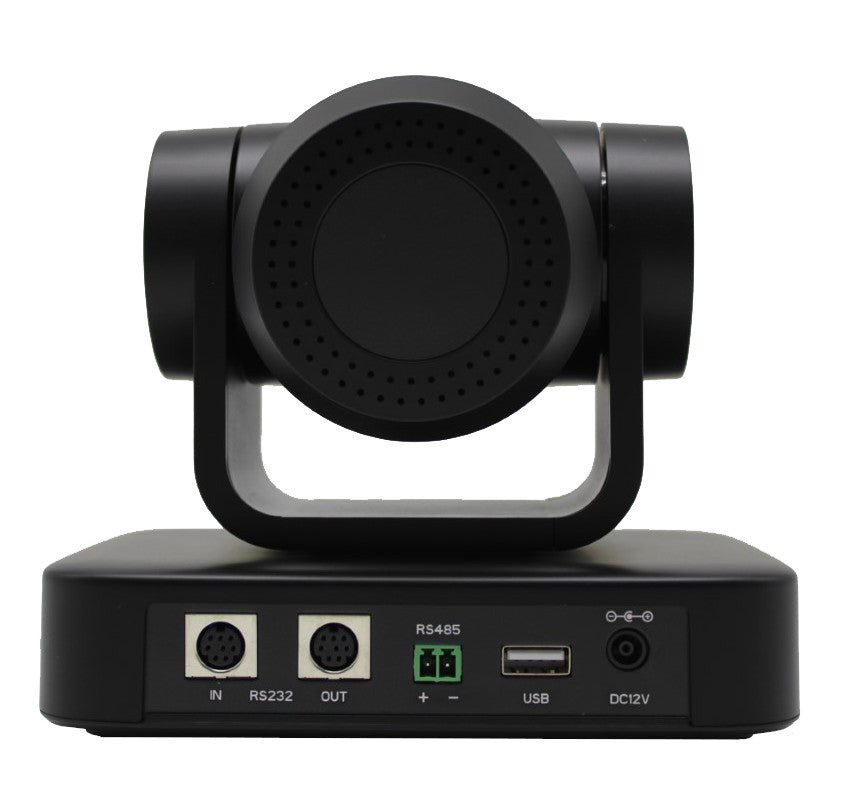

  • Alfatron Electronics 10XUSB2C USB2.0 PTZ Camera back
1 3

Alfatron Electronics 10XUSB2C USB2.0 PTZ Camera

Alfatron Electronics 10XUSB2C USB2.0 PTZ Camera

SoundPro Item: 111947 | Part Number: ALF-10XUSB2C

$649.99
$736.00 $649.99
Your Price Sold out
MSRP: $736.00 | MAP: $649.99

Usually ships in 5-7 business days

  • Full HD Resolution: 1/2.9-inch-high quality CMOS sensor. Resolution is up to 1920×1080 with a frame rate of up to 30 fps
  • Optical Zoom Lens: 10X Optical Zoom lens. Field of view 66°(Wide) 8.8°(Tele)
  • Leading Auto Focus Technology: Fast, accurate, and stable autofocusing technology
  • Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS
  • Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
  • Control Interface: RS485, RS232 (cascade connection)
  • Multiple Control Protocols: Supports VISCA, PELCO-D, PELCO-P protocols; Supports automatic identification protocols
  • Quiet Pan / Tilt Movement: With high accuracy step driving motor, the camera can pan/tilt extremely quiet and smooth
  • Multiple presets: Up to 255 presets; 10 presets via remote control
  • USB or 12V DC Powered
Log in or register for YOUR best price

The ALF-10XUSB2C is a Full HD PTZ camera equipped with 1080p and a 10x Optical Zoom Lens. This PTZ camera is suitable for medium to large sized meeting rooms, boardrooms, and conference venues. The ALF-10XUSB2C is compatible with video meeting software, such as Teams and Zoom. The 1080P HD camera is equipped for a high-quality video stream and high definition real-time synchronization.

View full details

Specifications

Dimensions
Focus Length
F=4.34mm~41.66mm
Dimension (W*H*D)
156.8×112.6×139.5mm
Electrical
Input Current
Maximum: 4.98A
Power Consumption
Maximum: 2.5W
Audio
SNR
>50dB
Optics
Optical Zoom
10X
Digital Zoom
10X
Focus
Auto / Manual/ One Push Focus
Connectivity
Video Output
USB2.0 Interface
USB Feature Operation Systems
Windows 7, Windows8, Windows10, Mac osx, Linux, etc. Video Compression Format: MJPG/H264/H265 USB Communication Protocol: UVC
Controls
Control Protocol
VISCA/Pelco-D/Pelco-P
Environmental
Stored Temperature
-40°C~+70°C
Storage Humidity
20%~90%
Working Temperature
-10°C~+50°C
Working Humidity
20%~80%
Shipping
Weight
1kg
General
Model
10x
Sensor
1/2.9-inch-high quality CMOS sensor
Effective Pixels
2.07 megapixel, 16:9
Video Format H264/H265/MJPG
1920×1080P@30/25/20/15/10/5fps;1280*720P@30/25/20/15/10/5fps;960*540@30/25/20/15/10/5fps;800*600@30/25/20/15/10/5fps;720*576@30/25/20/15/10/5fps;720*480@30/25/20/15/10/5fps;640*480@30/25/20/15/10/5fps;640*360@30/25/20/15/10/5fps;352*288@30/25/20/15/10/5fps;320*240@30/25/20/15/10/5fps;YUY2:1280*720@10/5fps;800*600@10/5fps;640*480@30/25/20/15/10/5fps;640*360@30/25/20/15/10/5fps;320*180@30/25/20/15/10/5fps
View Angle
8.8° ~ 66°
AV
F1.85 – F2.43
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D&3D DNR
White Balance
Auto / Manual/ One Push//3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Exposure
Auto / Manual
BLC
On/Off
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
Video Compression Format
MJPG, H.264, H.265
Control Interface
RS232 (IN/OUT), RS485
Power Interface
HEC3800 outlet (DC12V) or USB
Pan Rotation
-170°~+170°
Tilt Rotation
-30°~+30°
Pan Control Speed
0.1 ~60°/sec
Tilt Control Speed
0.1~40°/sec
Preset Speed
Pan: 60°/sec, Tilt: 40°/sec
Preset Number
255 presets (10 presets via remote control)
Application
Indoor
Power
Input Voltage
12V
