Specifications
Dimensions
Machine size(L×W×H)
247*198*66mm
Packing Size
343*302*121mm (1PS)
Maximum Packing Size
630*355*283mm (4PS)
Weight
Net Weight
2.6kg
Electrical
Rated Power Supply
AC~110-220V
Rated Outpu Voltage
120W/4Ω, AC220V
Audio
MIC1 Input Sensitivity
5mV
MIC2 Input Sensitivity
5mV
MIC3 Input Sensitivity
5mV
AUX1 Input Sensitivity
350mV
AUX2 Input Sensitivity
350mV
EMC Input Sensitivity
350mV
MIC Frequency Response
180Hz~10kHz(±3dB)
AUX Frequency Response
70Hz~16kHz(±3dB)
THD
<1%1KHz
Connectivity
Speaker Outputs
100V or 70V & 4Ohms-8 Ohms-16 Ohms

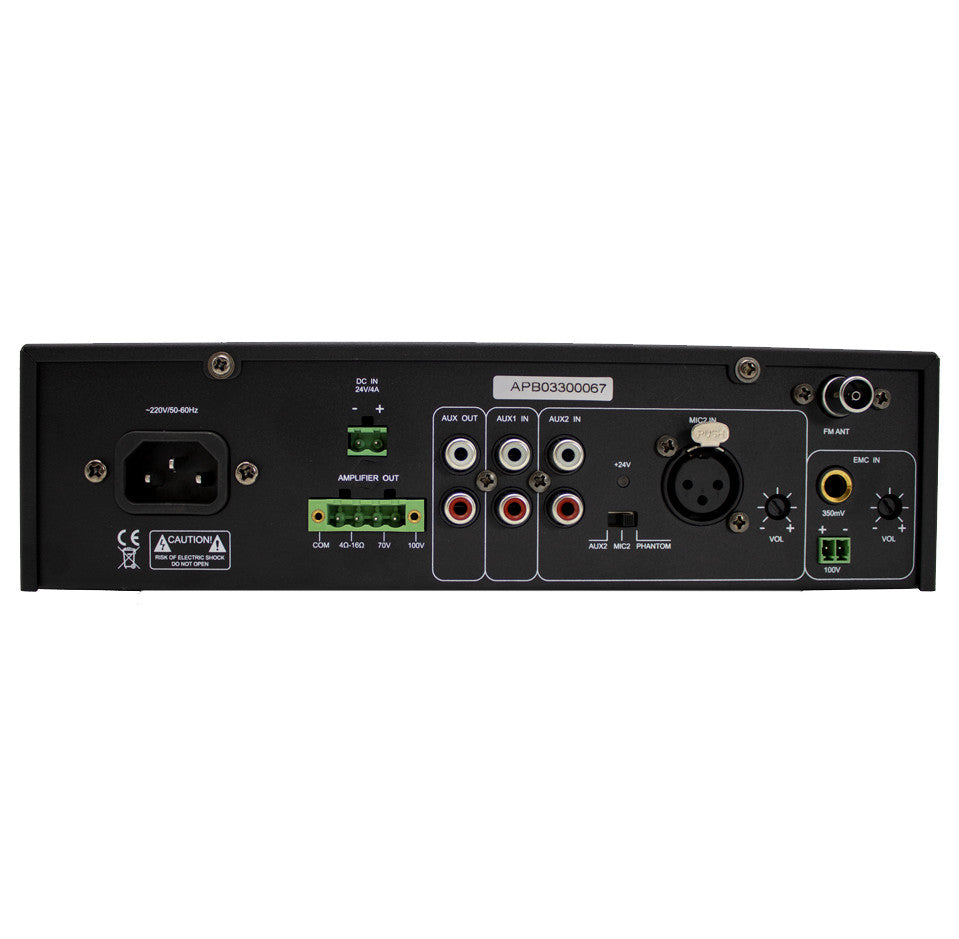

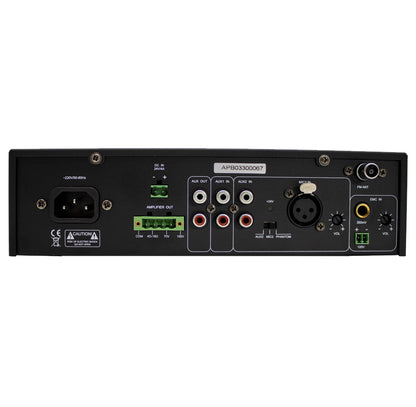

Connector
Mic1 input by unbalance jack MIC 2 balance XLR socket, Line1-2 inputs by RCA; Line output by RCA
General
Description

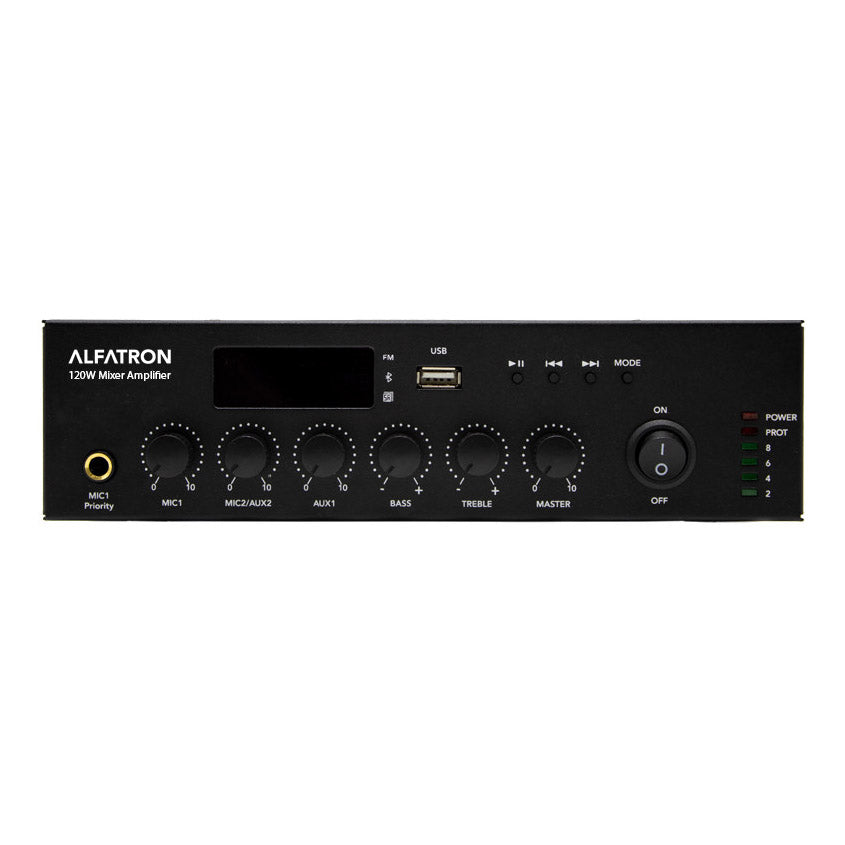

PA Amplifier with USB/SD & FM & Bluetooth
Rated Power
120W
Attenuation
Microphone1-2, line1-2 and Mp3/FM, bass/treble and master
Noise
<5mV (4 ohm load output terminal)
Protection
Short-circuit, clip, overload and high temp protection
Treble Adjustment
10dB(±2)
Bass Adjustment
10dB(±2)
Priority
EMC > MIC1 > others
Gross Weight
3.25Kg
