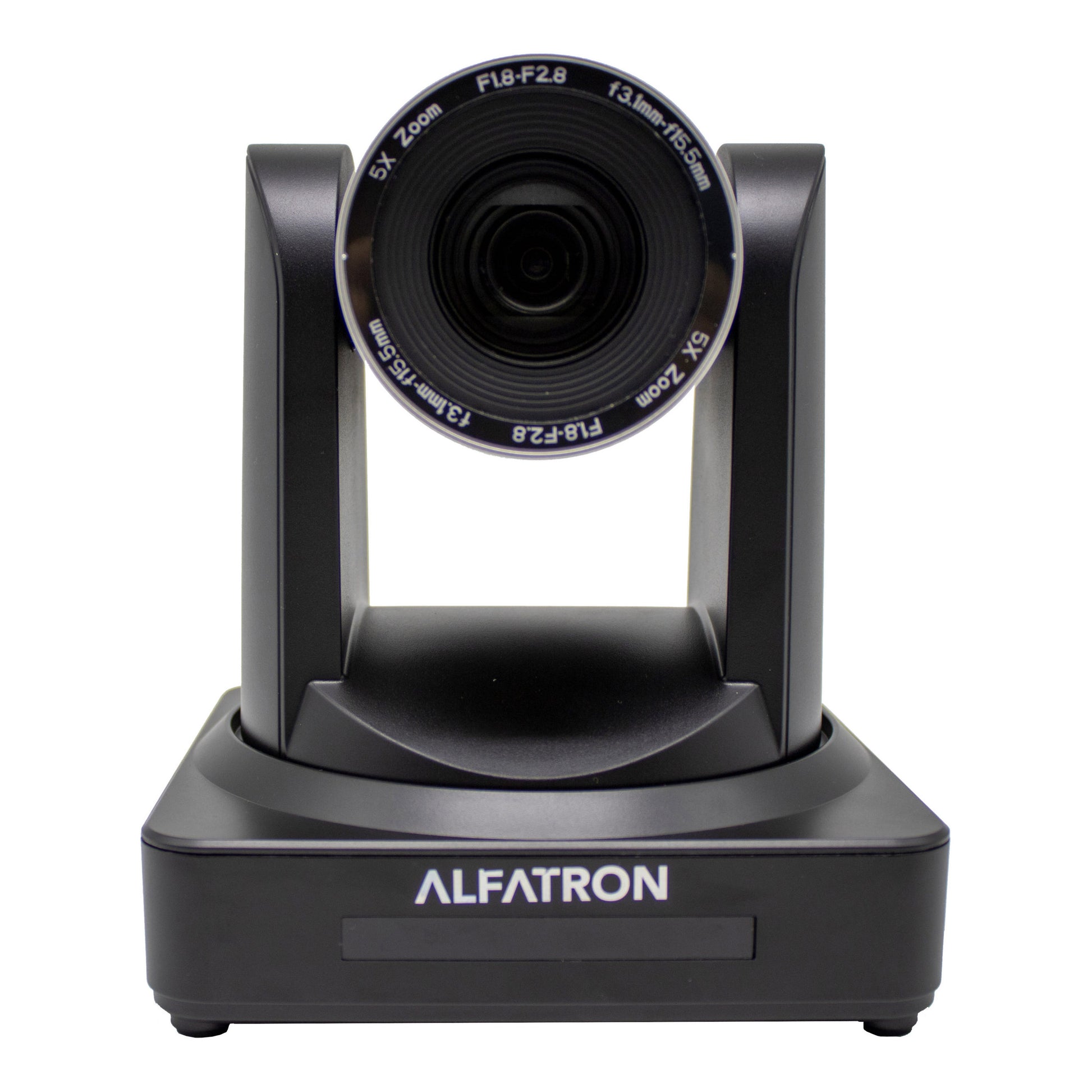

• Alfatron Electronics 20X-CAM USB3.0 PTZ Camera

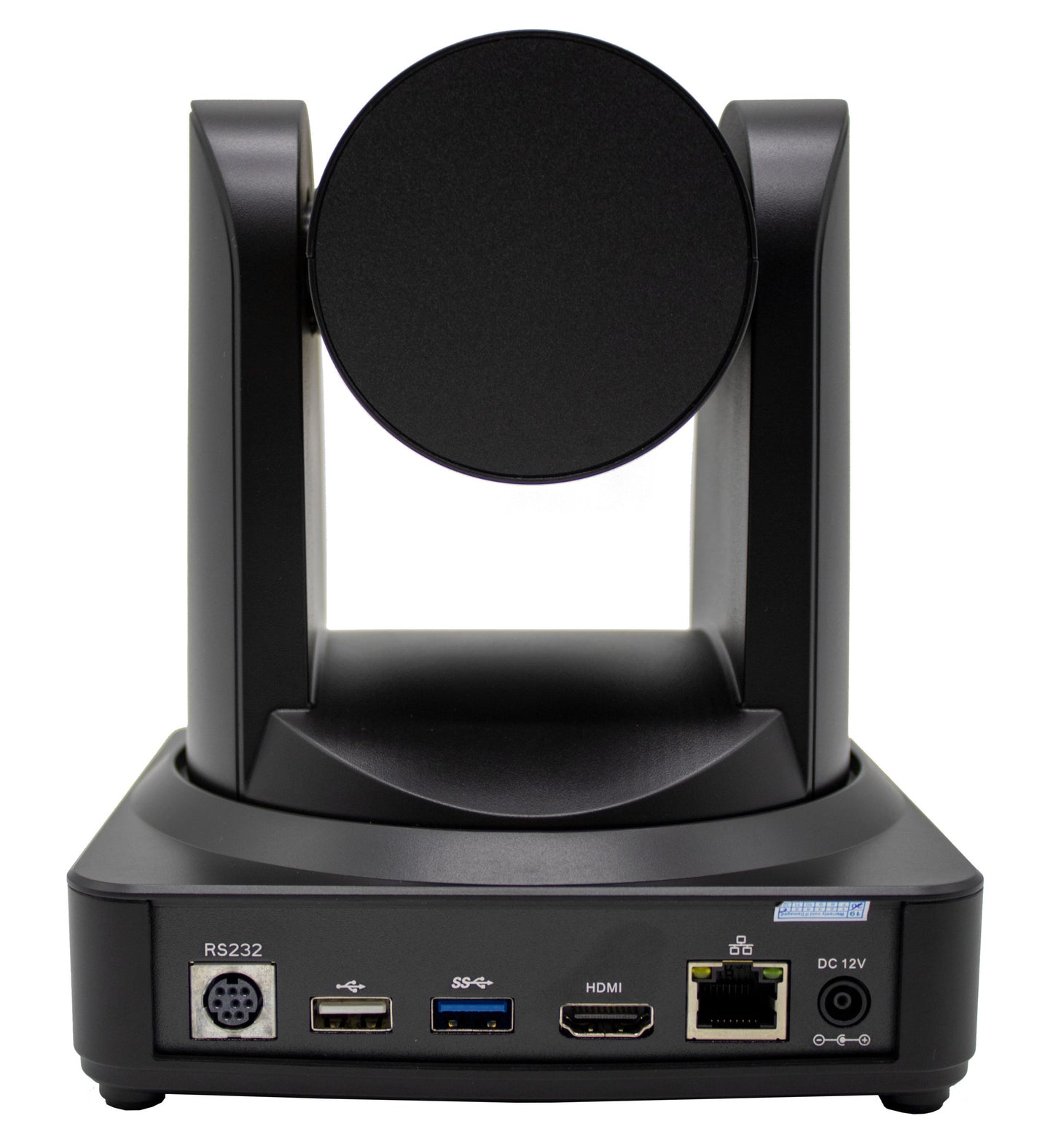

  • Alfatron Electronics 20X-CAM USB3.0 PTZ Camera back

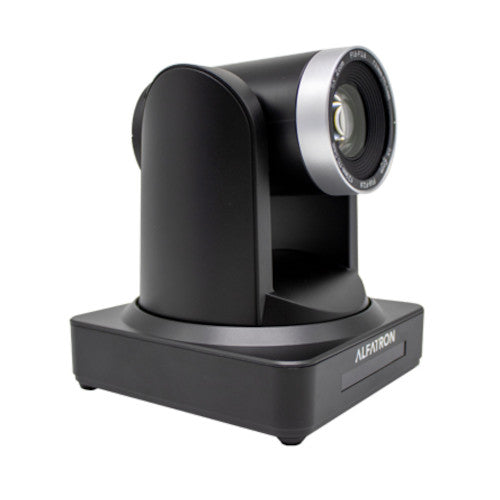

  • Alfatron Electronics 20X-CAM USB3.0 PTZ Camera side
1 3

Alfatron Electronics 20X-CAM USB3.0 PTZ Camera

Alfatron Electronics 20X-CAM USB3.0 PTZ Camera

SoundPro Item: 111951 | Part Number: ALF-20X-CAM

$1,259.99
$1,330.00 $1,259.99
Your Price Sold out
MSRP: $1,330.00 | MAP: $1,259.99

Usually ships in 5-7 business days

  • 1080P video with a Frame rate up to 60fps
  • 20x Zoom Lens gives a clear and fluent image
  • Leading Auto Focus Technology
  • Low Noise and High SNR
  • Quiet PTZ
  • 255 Presets
  • RS232 Cascade Function
  • Multiple Network Protocol – Supports IP VISCA, ONVIF, RTSP & RTMP
  • Control Protocols – VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
  • 12V DC or USB Powered
  • Wide Application – Tele Education, Lecture Capture, Webcasting, Video Conferencing, Tele Training, Tele Medicine, Interrogation and Emergency command systems
Log in or register for YOUR best price

The ALF-20X-CAM is an HD PTZ 1080p equipped camera with a 20x Zoom Lens. This PTZ camera is suitable for medium to large-sized meeting rooms, boardrooms, and conference venues. Alfatron ALF-20X-Cam is compatible with video meeting software, such as Teams and Zoom. The Full HD 1080P camera is equipped for a high-quality video stream and high definition real-time synchronization.

View full details

Specifications

Dimensions
Dimension
150x150x167.5mm
Electrical
Input Current
1A(Max)
Optics
Focus
Auto/Manual
Controls
Control Protocol
VISCA/Pelco-D/Pelco-P
Network Protocol
RTSP/RTMP,ONVIF
Environmental
Store Temperature
-10°C to +60°C
Store Humidity
20% – 95%
Working Temperature
-10°C to +50°C
Working Humidity
20%–80%
Shipping
Weight
1.4KG
General
Sensor
1/2.8-inch-high quality HD CMOS sensor
Effective Pixels
16: 9 2.07 megapixel
Camera Parameter
Video Format, Optical Zoom
View Angle
55.8° (Wide) 3.2° (Tele)
AV
F1.5 – F3.0
Minimum Illumination
0.5 Lux (F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Aperture
Auto/Manual
Electronic Shutter
Auto/Manual
BLC
ON/OFF
WDR
OFF/ Dynamic level adjustment
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
Video Interfaces
ALF-5X-CAM USB2.0, USB3.0, HDMI, LAN, RS232(input)
Mage Code Stream
Double streams output simultaneously
Video Compression Format
H.264, H.265
Control Signal Interface
RS-232 Ring through RS232 output, RS-485
Baud Rate
115200/9600/4800/2400bps
HD IP Interface
100M IP port(100BASE-TX); 5G WiFi (optional), support IP Visca control protocol
Power Interface
HEC3800 outlet (DC12V)
Pan Rotation
±170°
Tilt Rotation
-30°~+90°
Pan Control Speed
0.1 -180°/sec
Tilt Control Speed
0.1- 80°/sec
Preset Speed
Pan: 60°/sec, Tilt: 30°/sec
Preset Number
255 presets (10 presets by the remote controller)
Supply Adapter
AC110V-AC220V to DC12V/2A
Consumption
12W (Max)
Working Environment
Indoor
Remote Operation (IP)
Remote Upgrade, Reboot, and Reset
Power
Input Voltage
DC12V±10%
