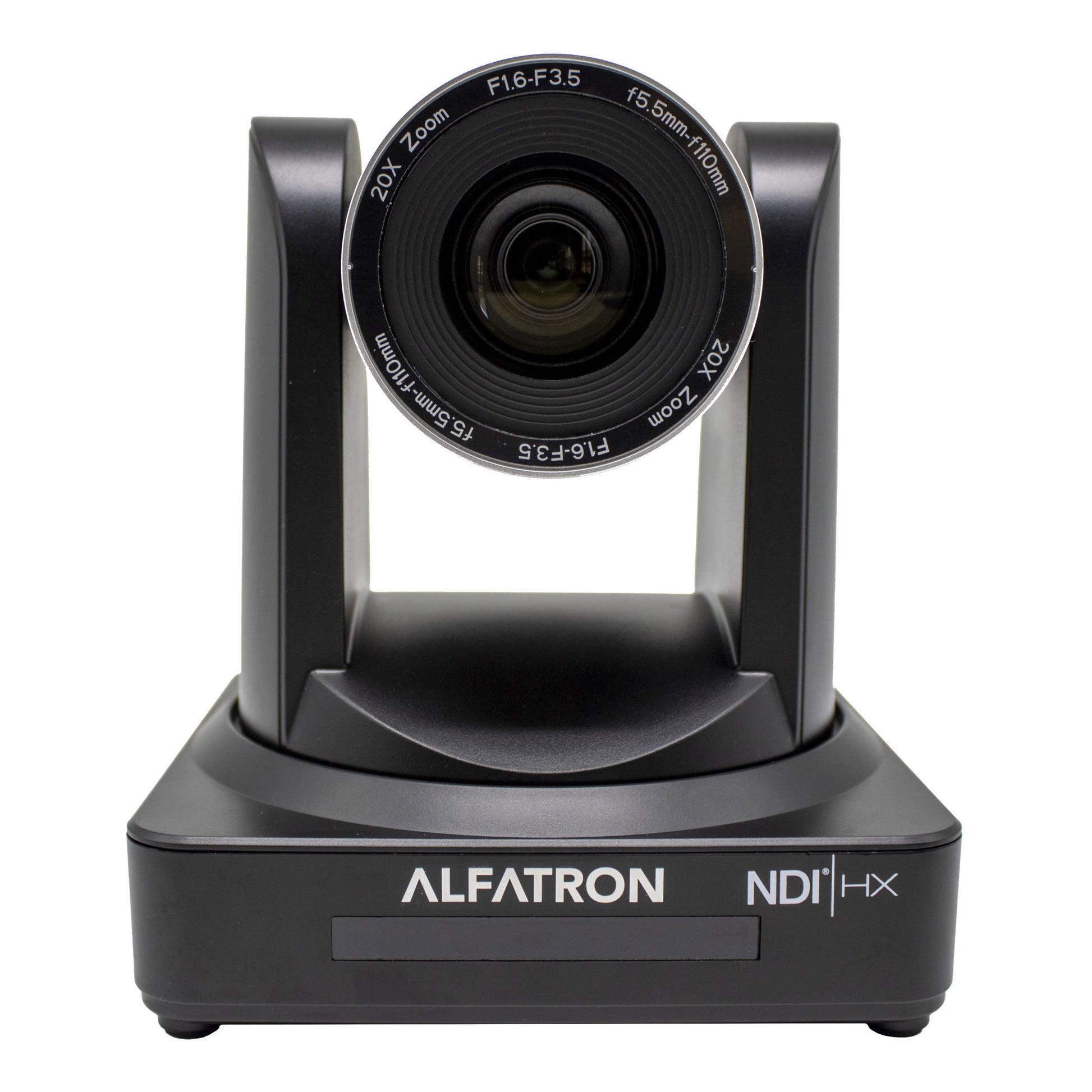

• Alfatron Electronics 20X-NDIC NDI PTZ Camera

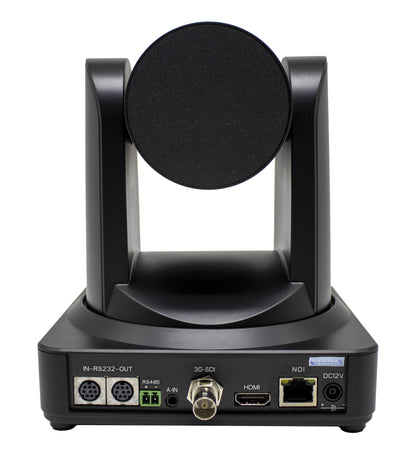

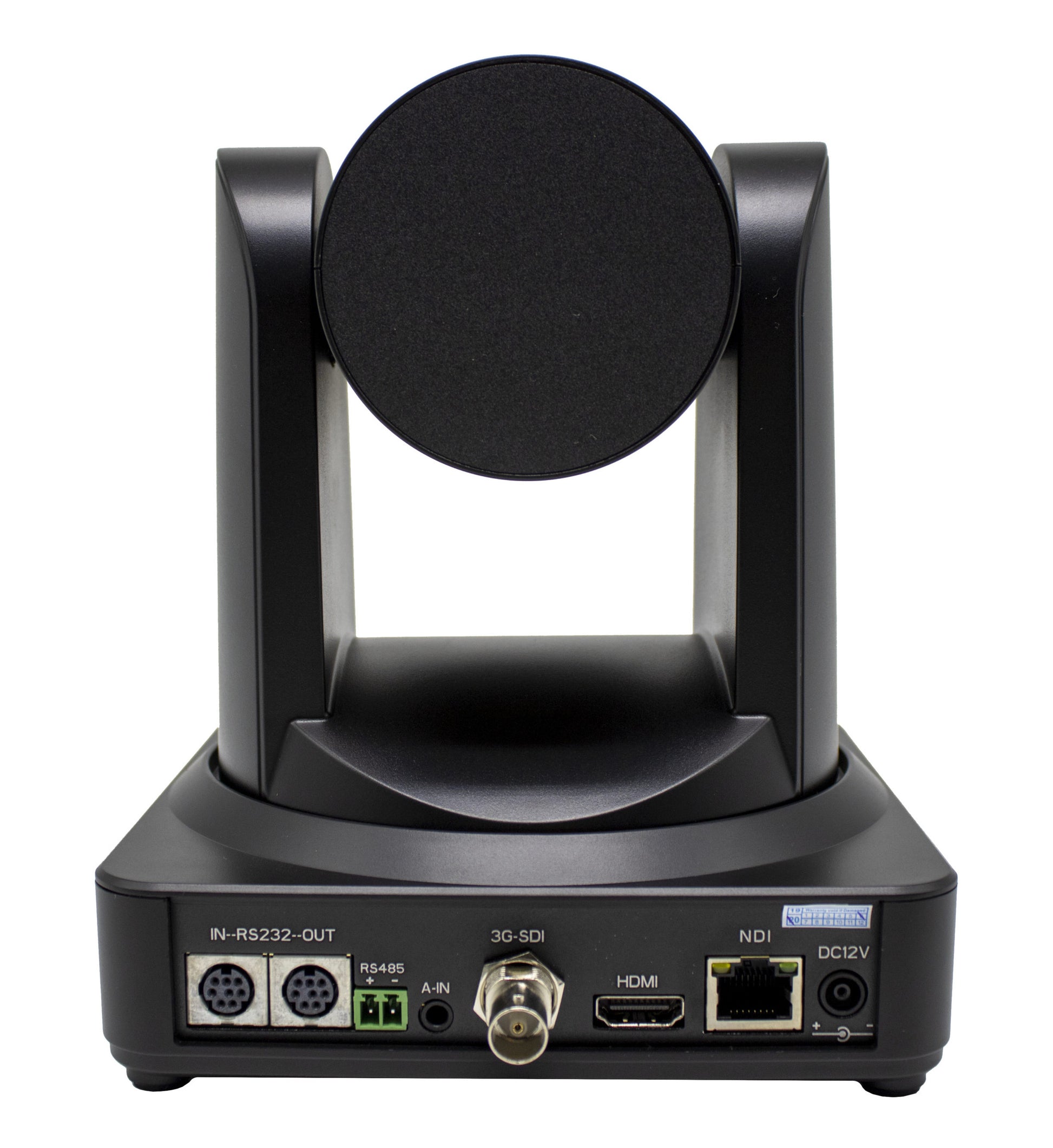

  • Alfatron Electronics 20X-NDIC NDI PTZ Camera back

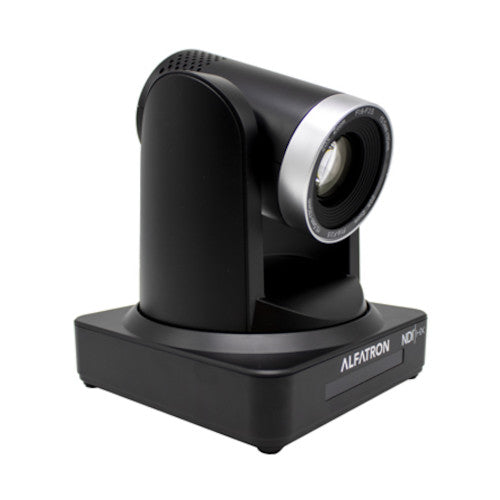

  • Alfatron Electronics 20X-NDIC NDI PTZ Camera side
1 3

Alfatron Electronics 20X-NDIC NDI PTZ Camera | Color: Black

Alfatron Electronics 20X-NDIC NDI PTZ Camera | Color: Black

SoundPro Item: 111955 | Part Number: ALF-20X-NDIC

$1,699.99
$1,799.00 $1,699.99
Your Price Sold out
MSRP: $1,799.00 | MAP: $1,699.99

Usually ships in 5-7 business days

  • 1080P video with a Frame rate up to 60fps
  • 20x Zoom Lens gives you a clear and fluent image
  • Leading Auto Focus Technology
  • Low Noise and High SNR
  • Quiet PTZ
  • 255 Presets
  • Multiple Network Protocol – Supports IP VISCA, ONVIF, RTSP & RTMP
  • Control Protocols – VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
  • Wide Application – Tele Education, Lecture Capture, Webcasting, Video Conferencing, Tele Training, Tele Medicine, Interrogation, and Emergency command systems
  • SDI, HDMI, RS232, Network, NDI Connectivity with audio input
  • PC control using Sony Visca, Pelco D/P commands
  • Powered by 12V DC Power Adaptor or POE* (*All NDIC Cameras supplied after 25th September 2020 will have POE)
Log in or register for YOUR best price

The ALF-20X-NDIC is an HD PTZ 1080p equipped camera with a 20x Zoom Lens. This PTZ camera is suitable for medium to large size meeting rooms, boardrooms, houses of worship, and conference venues. The ALF-20X-NDIC is compatible with video meeting software, such as Teams and Zoom. The 1080P HD camera is equipped for a high-quality video stream and high definition real-time synchronization. Choose this camera in either black or white.

View full details

Specifications

Dimensions
Dimension
150x150x167.5mm
Electrical
Input Current
1A (Max)
Audio
SNR
>55dB
Audio Input Interface
A-IN: Double track 3.5mm linear input; (Network Stream embedding only, does not embed to HDMI or SDI outputs)
Audio Compression
AAC/MP3/G.711A Audio compression
Optics
Digital Zoom
10X
Focus
Auto/Manual/One key focus
Connectivity
Video Format HDMI/SDI Video Format
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97
Video Output Interface
HDMI, SDI, LAN
Controls
Control Protocol
VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps
Network Protocol
RTSP, RTMP, ONVIF, GB/T28181, NDI
Environmental
Storage Temperature
-10°C~+60°C
Storage Humidity
20%~95%
Working Temperature
-10°C~+50°C
Working Humidity
20%~80%
Shipping
Weight
1.4KG
General
Model
ALF-20X-NDIC
Camera Parameter
Optical Zoom 20Xf=5.5~110mm, View Angle 3.3°(tele)54.7°(wide)
Sensor
1/2.8-inch-high quality HD CMOS sensor
Effective Pixels
16: 9, 2.07 megapixel
AV
F1.6 – F3.5
Minimum Illumination
0.1Lux
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Aperture/Electronic Shutter
Auto/Manual
BLC
ON/OFF
WDR
OFF/ Dynamic level adjustment
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
Video Interfaces
SDI, HDMI, LAN (NDI), RS232 (In & Out), RS485, A-IN
Video Compression
H.264, H.265, Dual stream output
HD IP Interface
100M IP Port(10/100BASE-TX); Support VISCA protocol control through IP port. Port : 1259 – POE
Power Interface
HEC3800 Outlet (DC12V), POE
Supply Adapter
AC110V-AC220V to DC12V/1.5A
Consumption
12W (Max)
Pan/Tilt Rotation
±170°, -30°~+90°
Pan Control Speed
0.1 -60°/sec
Tilt Control Speed
0.1-30°/sec
Preset Speed
Pan: 60°/sec, Tilt: 30°/sec
Preset Number
255 presets (10 presets by the remote controller)
Remote Operation (IP)
Remote Upgrade, Reboot and Reset
Power
Input Voltage
DC12V±10%
